Китайский поставщик Современная Коммерческая полностью автоматическая туннельная Машина для мойки
- Категория: Car Washer >>>
- Поставщик: Wuxi,Yazhou,Precision,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 68167.28 $* | 69530.49 $* |
| Jul-19-2025 | 55285.50 $* | 56391.81 $* |
| Jun-19-2025 | 67094.88 $* | 68436.12 $* |
| May-19-2025 | 66557.71 $* | 67888.7 $* |
| Apr-19-2025 | 53138.52 $* | 54201.82 $* |
| Mar-19-2025 | 65484.9 $* | 66794.65 $* |
| Feb-19-2025 | 64947.24 $* | 66246.78 $* |
| Jan-19-2025 | 64410.49 $* | 65698.68 $* |
Характеристики
Model | TN546303/TN546313 |

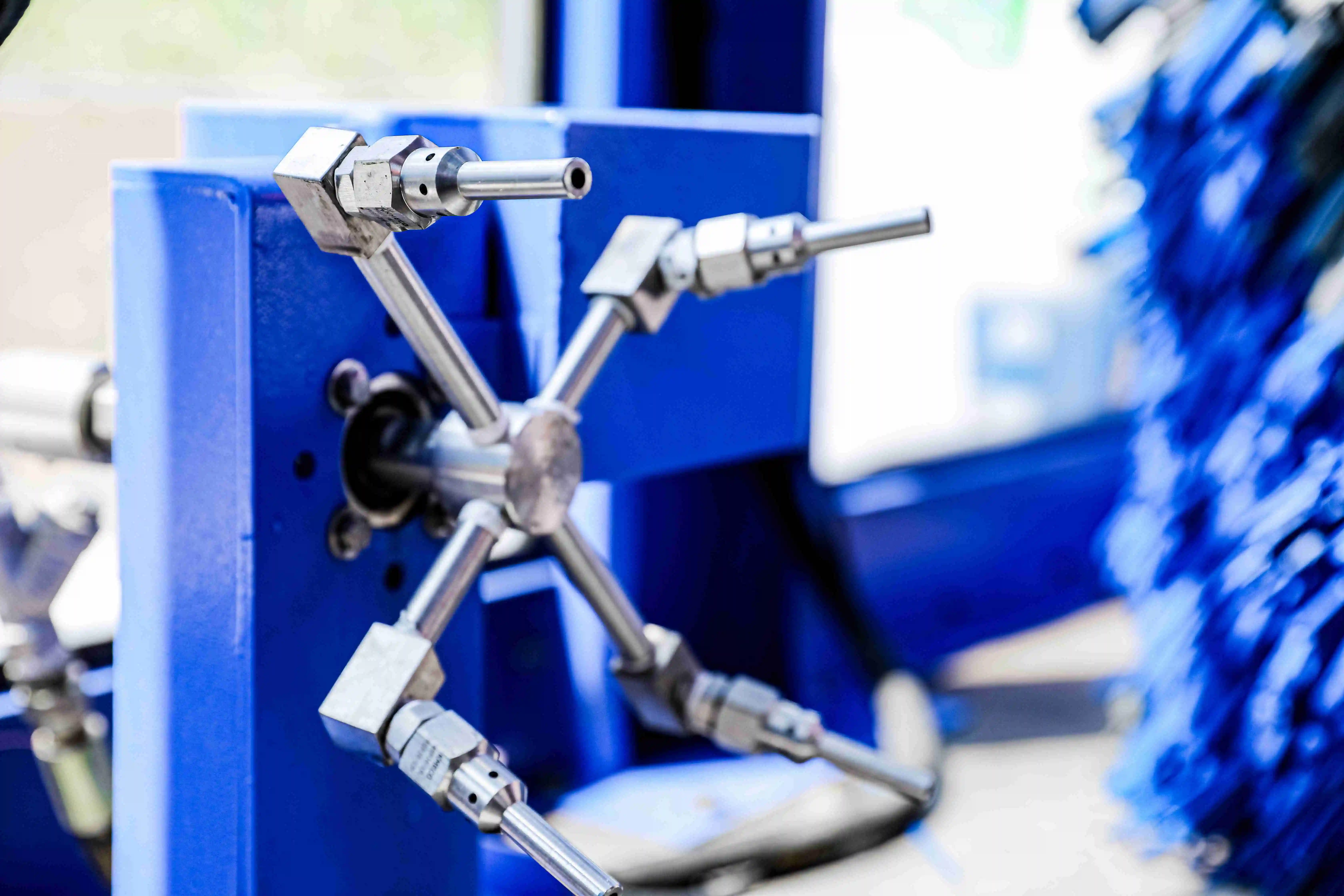

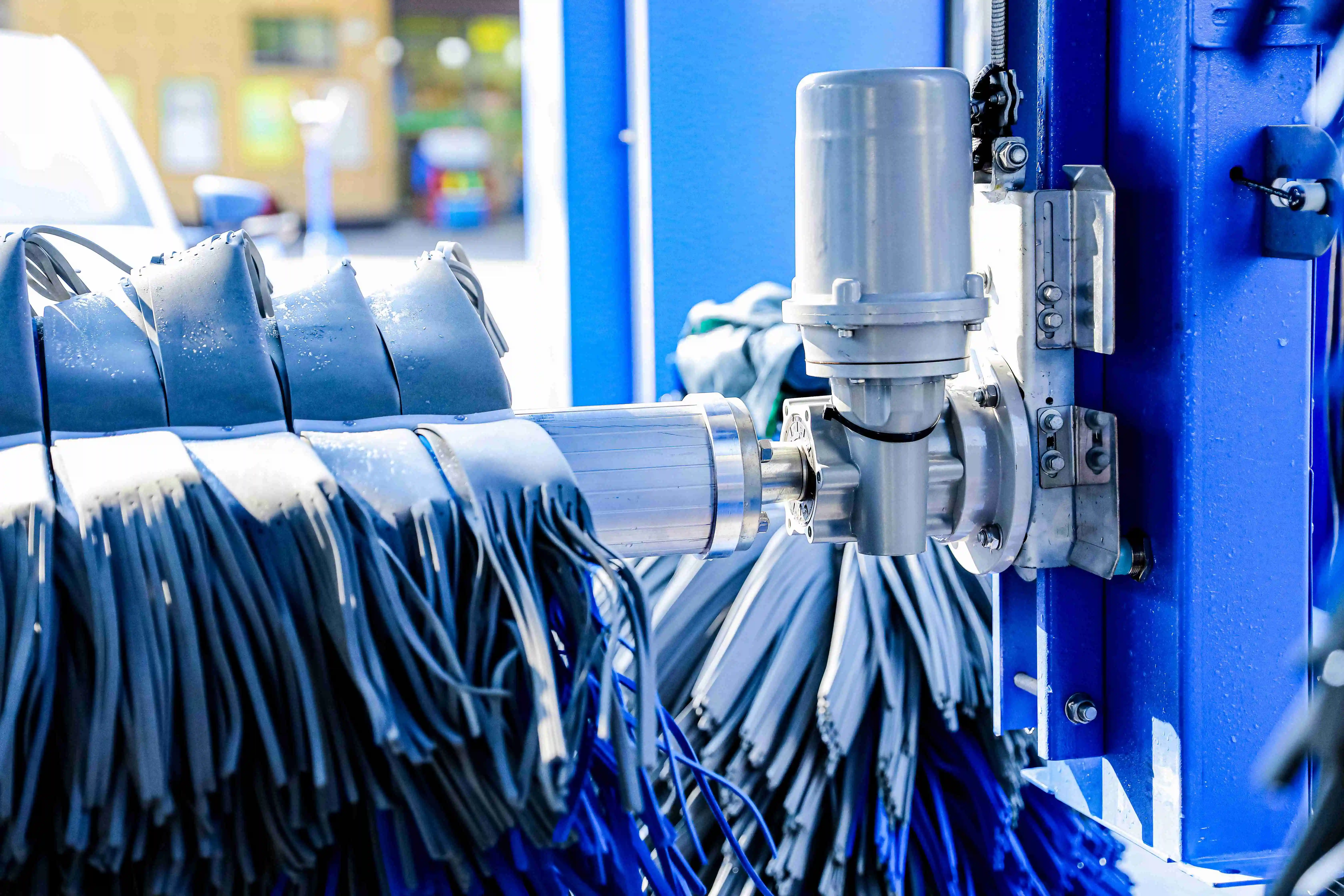

Standard Equipment | Contouring Up/down horizontal brush *1 pc Vertical Brushes * 4pc ( Left*2 & Right*2) Rock Brushes * 2 pc ( Left*1 & Right* 1) High-pressure washing system (top/side)*1pc Contouring Up/down Top Blower * 1 pc Side Blower * 2 pc ( Left *1 & Right *1) Contouring Up/down Horizontal Wiper*1pc Vertical Wiper *2pc Foaming system Waxing system |
Dimension | 3700mm * 3300mm * 14040mm (W*H*L） |
Max. Washing size | 2300 mm * 2100 mm * 5300 mm (W*H*L) |
Operation area | 4100mm * 3300 mm * 24040mm (W*H*L） |
Conveyer Length | 12.56m |
Total power consumption | ~ 42kw |
Power Expense | 0.4 kwh ~0.6 kwh / car |
Water Expense | 100L~150L / car |
Wash speed | 50cars / h |
Tunnel Main Part Brand | ||||||
No. | Name | Brand | Origin | |||
1 | HMI | Weintek/Flexem | Taiwan/Shanghai | |||
2 | button | Schneider | France | |||
3 | Contactor | Schneider | France | |||
4 | Relay | Schneider,Omron | France/Japan | |||
5 | Protector | Schneider | France | |||
6 | Switch | Shilin | Taiwan | |||
7 | VFD(Inverter) | Shilin | Taiwan | |||
8 | PLC | Mitsubishi | Japan | |||
9 | Photosensor | Pepperl+Fuchs/MD | Germany/Italy | |||
10 | Proximity Sensor | Pepperl+Fuchs | Germany | |||
11 | Solenoid valve | Airtac | Taiwan | |||
12 | Dosing Pump | ProMinent/Ecolab | Germany | |||
13 | Reducer | Siti/ASIA WASH | Italy/Taiwan | |||
14 | Motor | SEW/ASIA WASH | Germany/Taiwan | |||
O:What are the different models of car washing machines available for purchase?
A:Tunnels and Roll-overs (or gantry) Touchless (with high-pressure water) are the most common for regular commercial use.
Q:What is the delivery time?
A:15-60 days after receiving the order confirmation. Generally, it depends on the model.
Q:How to install the machine?
A:We provide an installation manual and operation manual. Online service is open at any time. We will also provide the foundation drawings for the civil work if necessary. On-site installation is limited during the pandemic.
Q:What is the daily maintenance procedure?
A:Please follow the operational manual.
Q:How to solve errors and malfunctions?
A:Please follow the operational manual. It is recommended to connect the Internet to the machine, which allows our Engineer to debug remotely.
Q:What is the warranty?

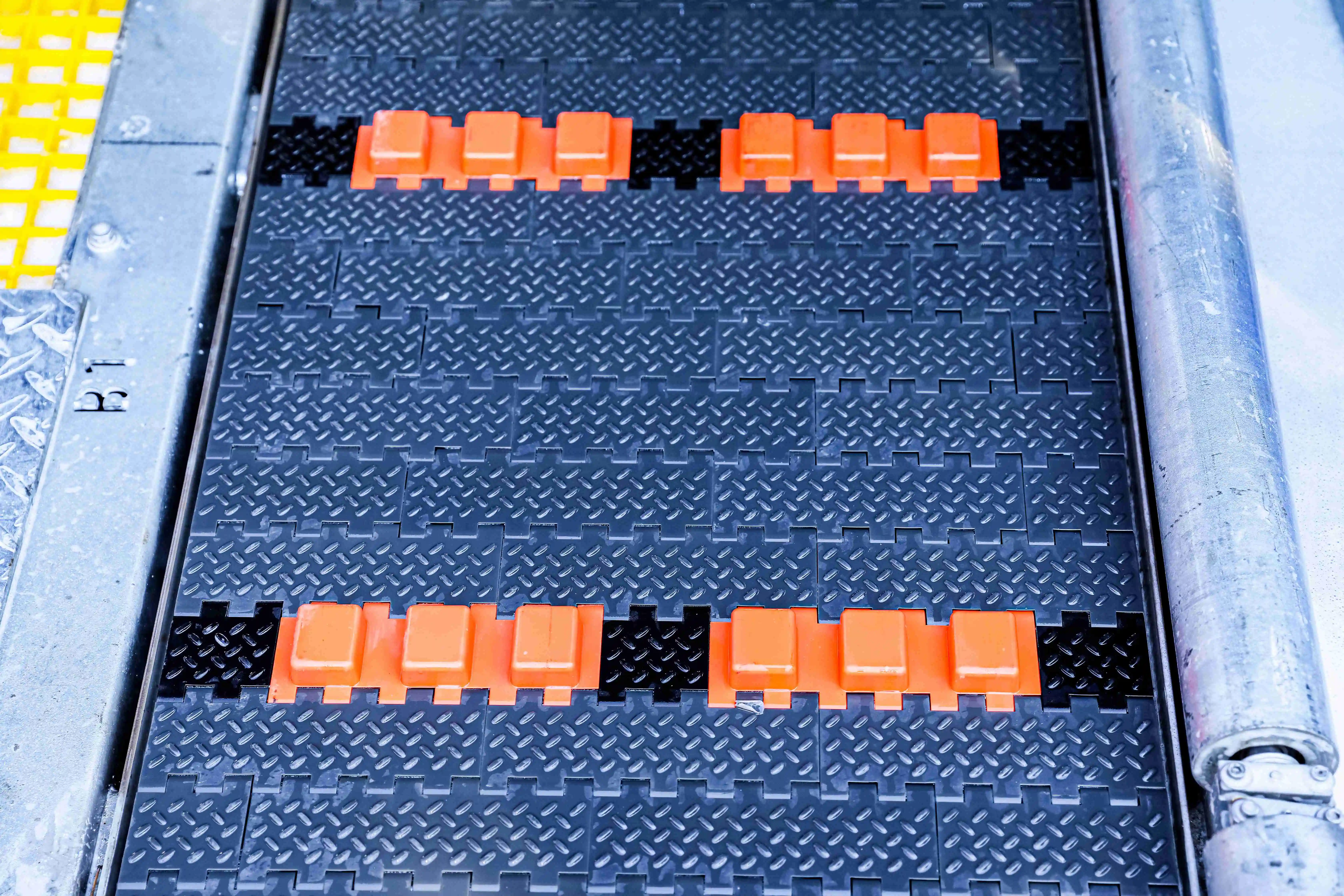

A:1-year warranty for the machine in general. The POM conveyor belt is guaranteed for 2 years or 300 thousand washes. We suggest preparing common spare parts along with the machine.
Q:How much will the maintenance cost?
A:It is estimated to be 5% of the price in the 2nd year, 6% of the price in the 3rd year, 8% of the price in the 4th year, and under 10% of the price starting from the 5th year under the condition that the maintenance guidance is followed carefully and the machine operates every day non-stop for 8 hours.
Q:Can I get repair parts in the future?
A:Yes. We have inventory for common parts regularly. Special parts or old designs will have a different cost and production time.
Q:How long will the foundation civil work take?
A:7-10 days in general.
Q:What is the power consumption per car washing?
A:Please refer to the catalog. The blower is the most power-consuming part of the machine.
Q:What is the water consumption per car washing?
A:Please refer to the product specification. With proper water reclaim system, up to 70% of the water can be recycled to the system.
