12 В постоянного тока светодиодное Цифровое реле времени модуль переключателя с задержкой управления таймером переключатель триггерный цикл
- Категория: Relays >>>
- Поставщик: Shenzhen,E-18th,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.12 $* | 0.89 $* |
| Aug-16-2025 | 0.73 $* | 0.46 $* |
| Jul-16-2025 | 0.33 $* | 0.69 $* |
| Jun-16-2025 | 0.37 $* | 0.73 $* |
| May-16-2025 | 0.12 $* | 0.43 $* |
| Apr-16-2025 | 0.5 $* | 0.22 $* |
| Mar-16-2025 | 0.51 $* | 0.15 $* |
| Feb-16-2025 | 0.86 $* | 0.44 $* |
| Jan-16-2025 | 0.22 $* | 0.62 $* |
Характеристики

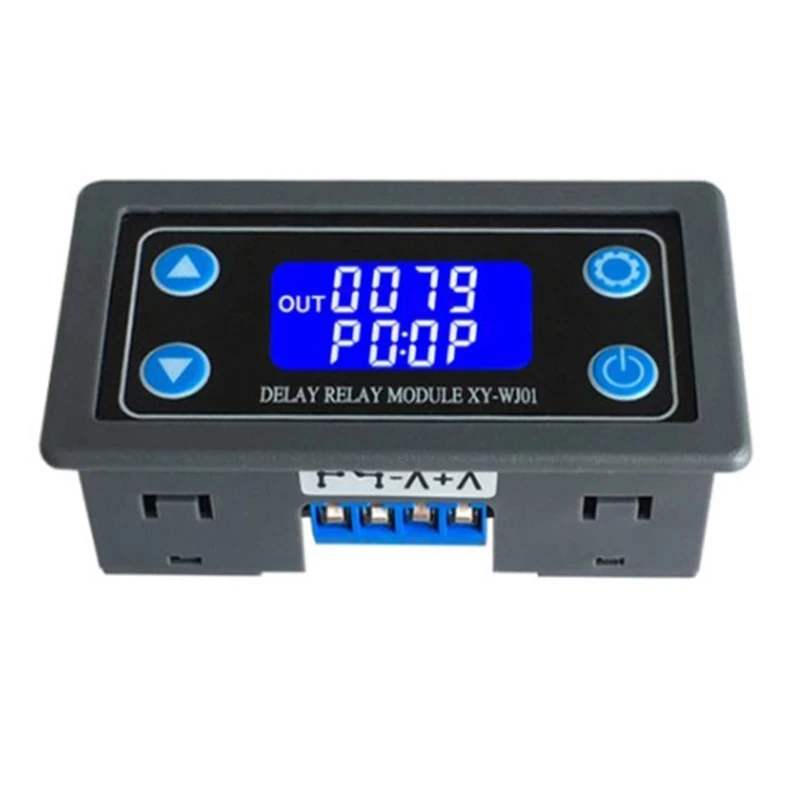

Display with LCD two columns, Can display parameters directly;
Trigger mode: high and low level,switch quantity.meet most of the needs.
Power supply: 6~30V.
Parameters can be modified via UART.
Stop button to provide emergency stop function.
5 minutes without any operation into a low-power state. Any action wake up.
OP/CL/LOP params can be modified individually
All parameters are automatically saved by power off.
Trigger signal source: High level(3.0V~24.0V),Low level(0.0V ~0.2V),Switch signal.
Maxmum Output load: DC 30V 5A and AC 220V 5A.
Static Current: 15mA Operating current: 50mA.
Service life: more than 100,000 times; working temperature: -40-85 Celsius;
Optocoupler isolation,Strong anti-interference ability, Industrial grade circuit board, after power set parameters memory forever
colour:black
material:plastic
size:71x39x25mm
Package Contents:
1 * Relay Delay Switch Module
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
