Optical Fiber Tester Mini OTDR Test with Optical Power Meter OPM VFL Light Source


Products Description


Introduction
Optical Fiber Tester Mini OTDR is a unique mainly designed for construction and maintenance of telecommunication and CATV networks.It can be widely used in engineering construction,
maintenance test and emergency repair of all fiber optics relatedsystems. Comparing with a
regular OTDR,it is more compact in size and easier for field use.

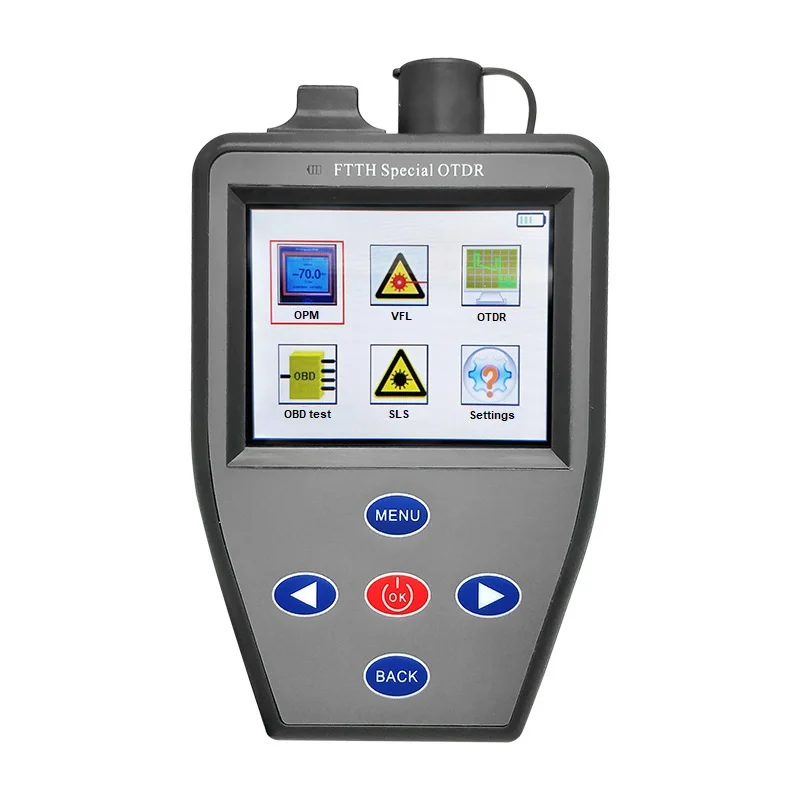

                                         Mini-Pro OTDR
Model
WT-310

Wavelength
1550nm or 1610nm
Fiber Type
Singlemode
Event Blind Zone
3m
ATT Blind Zone
10m
Test Range
500m~20km
Pulse Width
10,30,100,300ns, 1,3,6us
fiber port
SC
testing accuracy
10%
testing length (event)
50km
tesngting lenth (attenuation)
30km
Data Storage
Internal:≥600;External:TF Card
woring temperature
-10~50 degrees
Connector
SC/UPC
                                    OPM
Wave Range
800nm~1625nm
Interface Type
Universal Joint SC
Test Range
-50dBm~+26dBm(-70~+6)
Uncertainty
±5%
Frequency Identification
CW/270/330/1k/2kHz
Calibration wavelength
850/980/1300/1310/1490/1550/1625/1650nm
                                   LS
LD Type
FP-LD
Wavelength
1550
Output Power
≥-10dBm
Modulation Frequency
270/1k/2kHz
Connector
 SC
                                     VFL
Wavelength
650nm±20nm
Output Power
≥10mW
Mode
CW/1Hz/2Hz
Connector
FC/SC/ST
                               Other Parameters
Dimention
12.5*9.3.3cm

Power Supply
Polymer Li-Battery:3.7V,4000mAh
Adapter:5VDC,2A
Battery Life
 Measuring time>10h
Operating Temperature
 -10℃~+50℃
Storage Temperature
 -25℃~+70℃
Relative Humidity
 0~95%Non Condensing
Weight
 ≤350g


Application
Fiber CATV Test Engineering,
Optical fiber CCTV Test communication engineering,
Integrated wiring system,
Optical device production and research,
Optical communication teaching and testing,
Other fiber optic engineering, etc.
