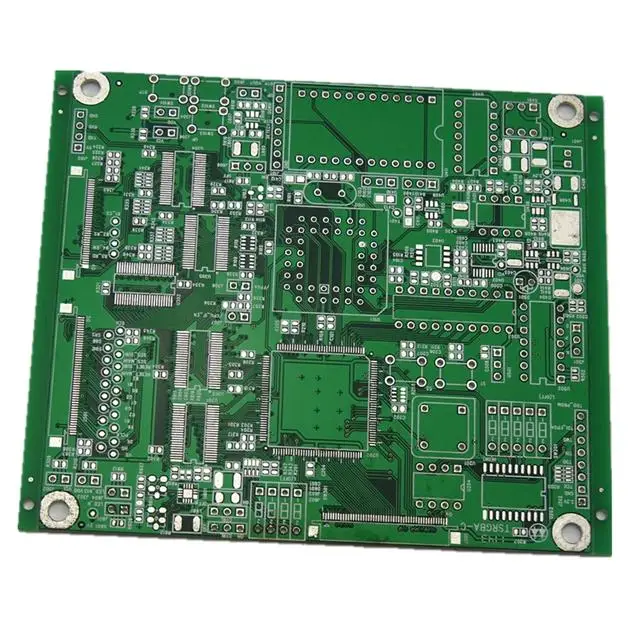

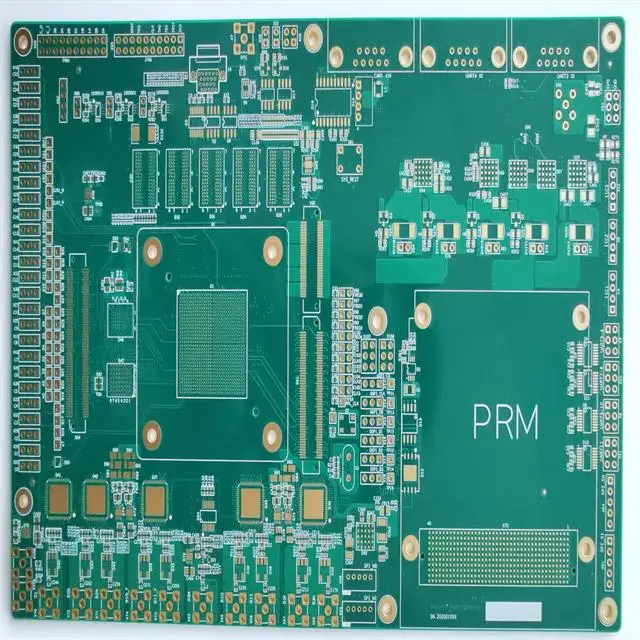

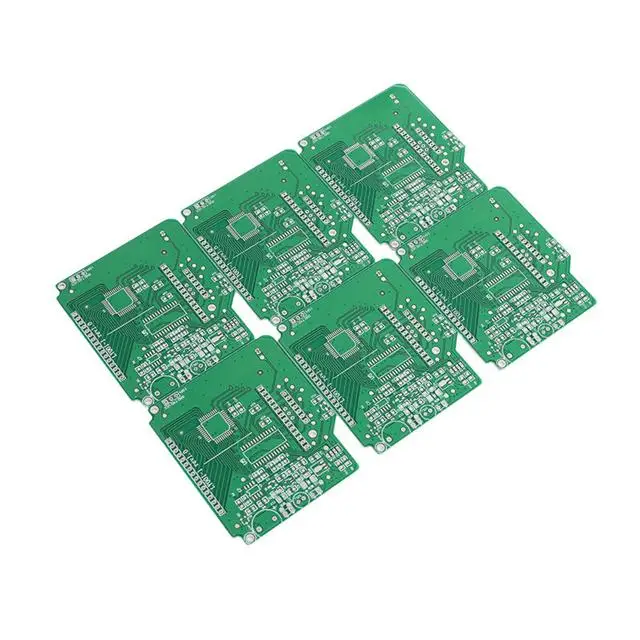

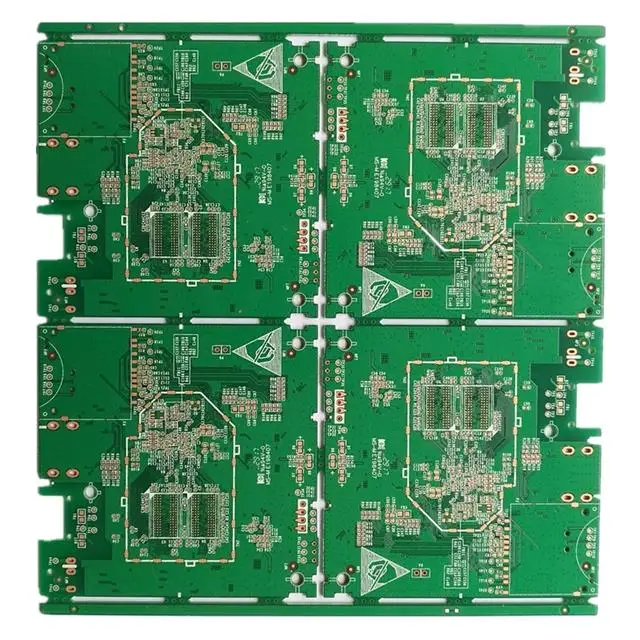

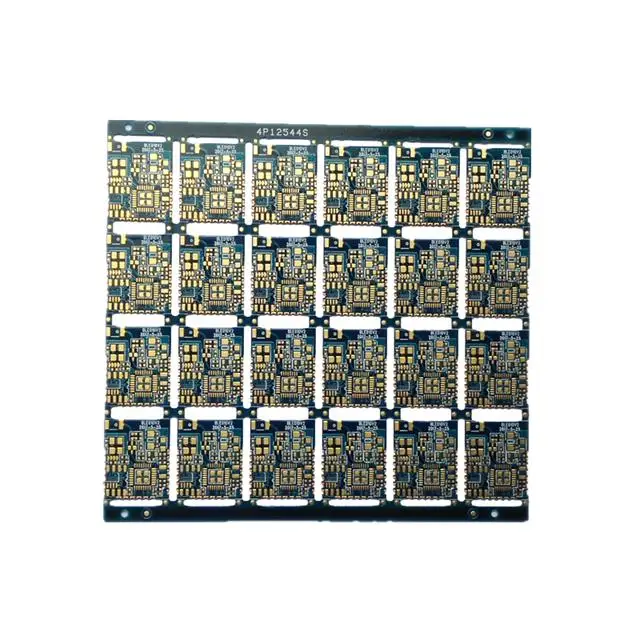

Печатная плата с программным определяемым обеспечением одного производителя печатной платой PCBA в сборе из
- Категория: High Frequency PCB >>>
- Поставщик: Sichuan,Festalight,Photoelectric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.85 $* | 0.42 $* |
| Aug-18-2025 | 0.65 $* | 0.87 $* |
| Jul-18-2025 | 0.37 $* | 0.47 $* |
| Jun-18-2025 | 0.95 $* | 0.97 $* |
| May-18-2025 | 0.0 $* | 0.65 $* |
| Apr-18-2025 | 0.85 $* | 0.9 $* |
| Mar-18-2025 | 0.69 $* | 0.9 $* |
| Feb-18-2025 | 0.90 $* | 0.61 $* |
| Jan-18-2025 | 0.98 $* | 0.97 $* |
Характеристики
Company Profile
Product Description
Specification
Feature | Capability |
PCB Type | Rigid PCB(CEM, FR4), Flexible PCB, Rigid-Flex PCB, MCPCB(Aluminum PCB), Ceramic PCB, RF PCB, etc. |
Number of Layers | 1 – 32layers |
Order Quantity | 1pc – 10,000,000 pcs |
Build Time | 2days – 5weeks (Expedited Service) |
Material | FR-4 Standard Tg 150°C |
FR4-High Tg 170°C | |
FR4-High-Tg 180°C | |
FR4-Halogen-free | |
FR4-Halogen-free & High-Tg | |
Board Size | Min 6*6mm | Max 600*700mm |
Board size tolerance | ±0.1mm – ±0.3mm |
Board Thickness | 0.4mm – 3.2mm |
Board Thickness Tolerance | ±0.1mm – ±10% |
Copper Weight | 0.5oz – 6.0oz |
Inner Layer Copper Weight | 0.5oz – 2.0oz |
Copper Thickness Tolerance | +0μm +20μm |
Min Tracing/Spacing | 3mil/3mil |
Solder Mask Sides | As per the file |
Solder Mask Color | Green, White, Blue, Black, Red, Yellow |
Silkscreen Sides | As per the file |
Silkscreen Color | White, Blue, Black, Red, Yellow |
Surface Finish | HASL – Hot Air Solder Leveling |
Lead Free HASL – RoHS | |
ENIG – Electroless Nickle/Immersion Gold – RoHS | |
ENEPIG – Electroless Nickel Electroless Palladium Immersion Gold – RoHS | |
Immersion Silver – RoHS | |
Immersion Tin – RoHS | |
OSP -Organic Solderability Preservatives – RoHS | |
Min Annular Ring | 3mil |
Min Drilling Hole Diameter | 6mil, 4mil-laser drill |
Min Width of Cutout (NPTH) | 0.8mm |
NPTH Hole Size Tolerance | ±.002″ (±0.05mm) |
Min Width of Slot Hole (PTH) | 0.6mm |
PTH Hole Size Tolerance | ±.003″ (±0.08mm) – ±.006″ (±0.15mm) |
Surface/Hole Plating Thickness | 20μm – 30μm |
Products Lead-Time
PCB Production Flow Chart
CERTIFICATE
FAQ
Q:What files do you use in bare pcb fabrication?
A:Gerber RS-274X,274D,Eagle and AutoCAD's DXF,DWG
Q:How can i know the processing about my PCB order?
A:Each Customer will have a sale to contact with you. Eastwin working hours:AM 9:00-PM 6:00(Beijing Time) from Monday to Friday.
we will reply your email in 2hours during our working time. And you also could contact with our sales by cellphone if urgent.
Q:How long will we get the quotation after providing pcb gerber file,completed bom list,part datasheet and PNP file?
A: The quotation will be sent in less than 2 work days, for some special components, you also could recommend supplier to us.
Q:If all PCBs will be tested before delivery if we provide the function testing method?
A:Yes, we ensure that each piece of PCB will be tested before shipment, we ensure the goods we sent with good quality.
A:Gerber RS-274X,274D,Eagle and AutoCAD's DXF,DWG
Q: What is the MOQ
A: No MOQ
Q:How can i know the processing about my PCB order?
A:Each Customer will have a sale to contact with you. Eastwin working hours:AM 9:00-PM 6:00(Beijing Time) from Monday to Friday.
we will reply your email in 2hours during our working time. And you also could contact with our sales by cellphone if urgent.
Q:How long will we get the quotation after providing pcb gerber file,completed bom list,part datasheet and PNP file?
A: The quotation will be sent in less than 2 work days, for some special components, you also could recommend supplier to us.
Q:If all PCBs will be tested before delivery if we provide the function testing method?
A:Yes, we ensure that each piece of PCB will be tested before shipment, we ensure the goods we sent with good quality.
Production Equipment
