220 В газовая огнетушительная панель

Категория: Fire Alarm Control Panel >>>
Поставщик: Zhongshan,Guta,Fire,Equipment,Technology,Co.,Ltd.

Цена:250,00 $ - 285,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	298.56 $*	313.40 $*
Aug-17-2025	295.51 $*	310.7 $*
Jul-17-2025	248.66 $*	260.37 $*
Jun-17-2025	290.88 $*	305.45 $*
May-17-2025	253.18 $*	266.15 $*
Apr-17-2025	285.5 $*	299.76 $*
Mar-17-2025	283.91 $*	297.45 $*
Feb-17-2025	280.9 $*	294.71 $*
Jan-17-2025	278.5 $*	292.12 $*

Характеристики

Product Description

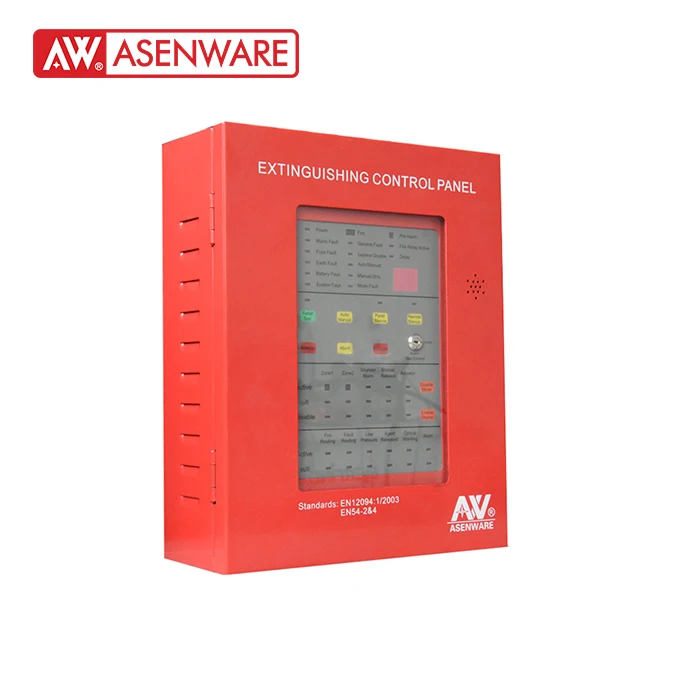

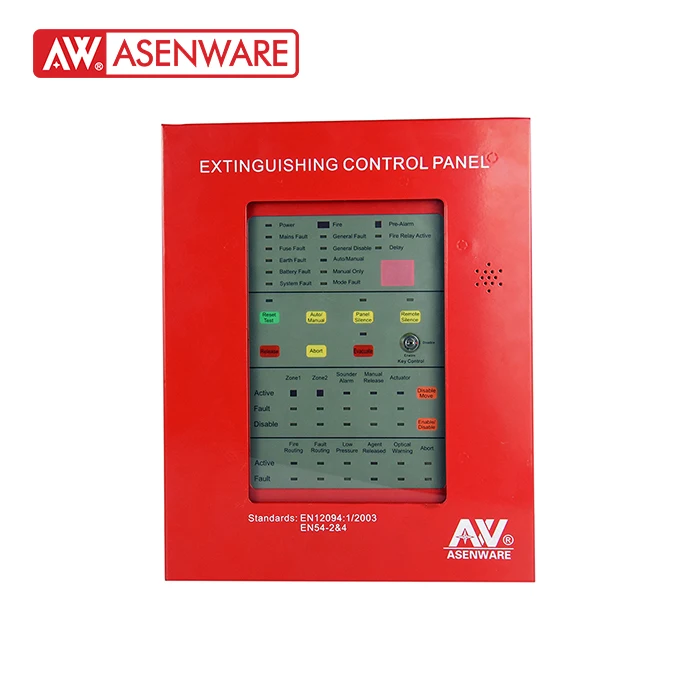

AW-GEC2169

AW-GEC2169 extinguishing control panel is designed in compliance with the requirements of European standards of EN-54-2, EN-54-4 and EN-12904-1. This panel can be used in FM200, CO2, IG541, Novec1230 and other gas fire extinguishing systems.

Specification

AC input	220VAC 50Hz
DC output from power board	24VDC (19V-28V) and 5VDC (4.9V-5.1V)
Voltage for MCU	5V for power board MCU, 3.3V for other MCU
Current at 24VDC from PSE	<450mA standby current
Maximum current from PSE	1.4A (except batteries charge current)
Auxiliary power output	24VDC, 200 mA max, current limited
Extinguishant release delay time	Adjustable 0 to 60seconds(5 second steps)
Battery replace resistance	1.6Ω±10% if needed
The maximum and minimum rated voltage for each input and output	Detector zone : 15.2V-28V Sounder :18-28V Fire protection/Fire routing :18-28V Fault routing :18-28V
Detector numbers in each zone	16 pcs
Zone alarm current	6-27mA
Alarm terminal maximum output current	200mA maximum
Communication ports	2 wires RS485 bus system
Fuse on power board	3A/ 250V Glass tube fuse 5*20(mm) ,quick blow
Panel dimension	(L)350(W)280(H)112.5mm
Net weight	With battery: 9.9kg Without battery: 8.2kg

Company Profile

Asenware Ltd

A fire alarm and fire suppression system manufacturer and whole fire safety solution provider since 2005,driven by a commitment to sound operations,ongoing innovation,and open collaboration,we have established a competitive fire safety products line.

Including addressable fire alarm system,conventional fire alarm system,central monitoring emergency light system,fire telephone and evacuate audio and telephone system,fire pump,fire hose and gas suppression system etc.

With 15-years development,our fire safety products,solutions and services has been provided for hundred of customer that from over 100 countries.

Certification&Exhibition
