Туннельный Тип экономичная электронная блокирующая воздушная душевая
- Категория: >>>
- Поставщик: Suzhou,Pharma,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 3570.18 $* | 3749.92 $* |
| Aug-17-2025 | 3540.24 $* | 3717.37 $* |
| Jul-17-2025 | 2970.78 $* | 3119.23 $* |
| Jun-17-2025 | 3480.73 $* | 3654.57 $* |
| May-17-2025 | 3030.60 $* | 3182.35 $* |
| Apr-17-2025 | 3420.95 $* | 3591.80 $* |
| Mar-17-2025 | 3390.45 $* | 3560.10 $* |
| Feb-17-2025 | 3360.37 $* | 3528.68 $* |
| Jan-17-2025 | 3330.41 $* | 3497.44 $* |
Характеристики
Shop Activities
Related Products
Technical Parameter
Model | PH-1300-P1 | PH-1300-PC1 | PH-1300-P2 | PH-1300-P3 | |||
Outer Dimensions W×D×H(mm) | 1300×1000×2100 | 1300×1500×2100 | 1300×2000×2100 | 1300×3000×2100 | |||
Inner Dimensions W1×D1×H1(mm) | 800×930×1960 | 800×1430×1960 | 800×930×1960 | 800×930×1960 | |||
Speed (m/s) | 25~27 | ||||||
Nozzle No. | 12 | 18 | 24 | 36 | |||
Structure | Cabin: Pre-painted cold work steel sheet.Stainless steel | ||||||
Door: 5mm glass and built-in automatic door closer | |||||||
Lighting | LED, built-in type | ||||||
Dust Collection Efficiency | Over 99.99% 0.3μm D.O.P TEST | ||||||
HEPA Dimension ×Quantity | 595×595×80×2pcs | 595×595×80×2pcs | 595×595×80×4pcs | 595×595×80×4pcs | |||
Showering Time | 0-99s adjustable(FACTORY SETTING 10S) | ||||||
Power Supply | 380V 50Hz, 3Phase/220V 60Hz 1Phase | ||||||
Detail Show

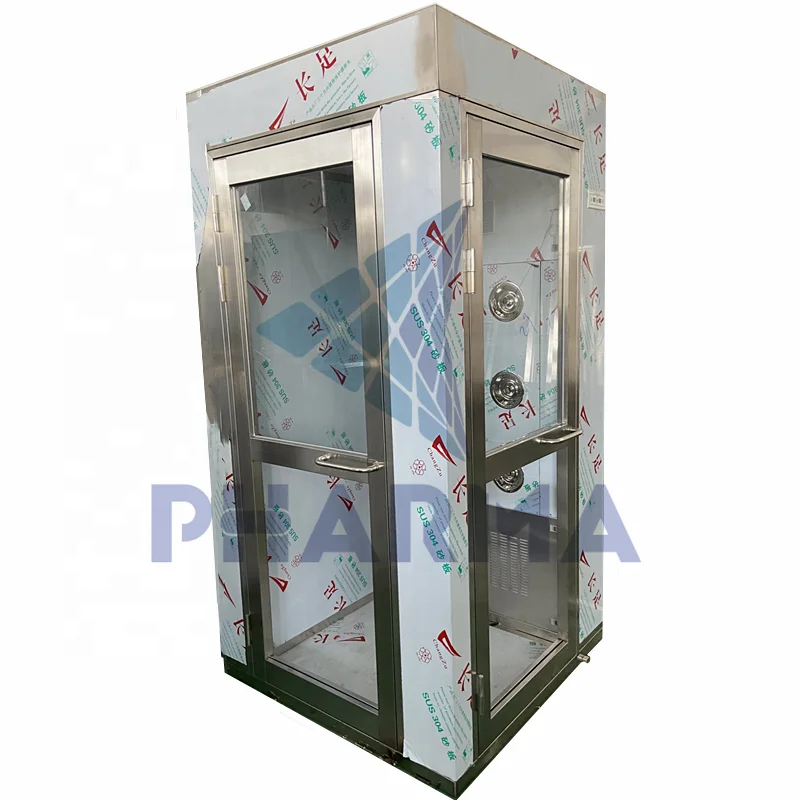

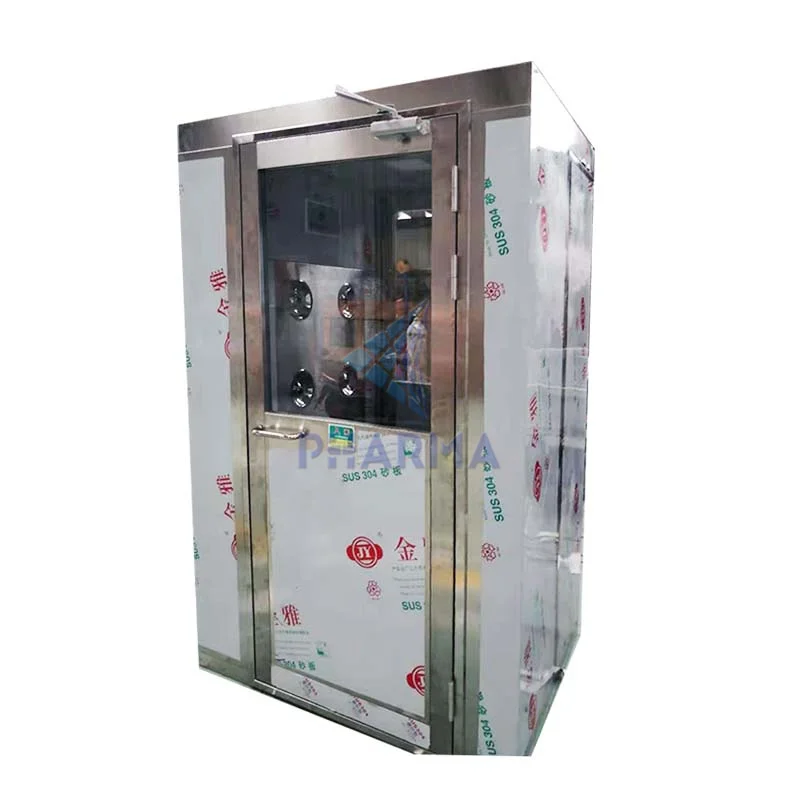

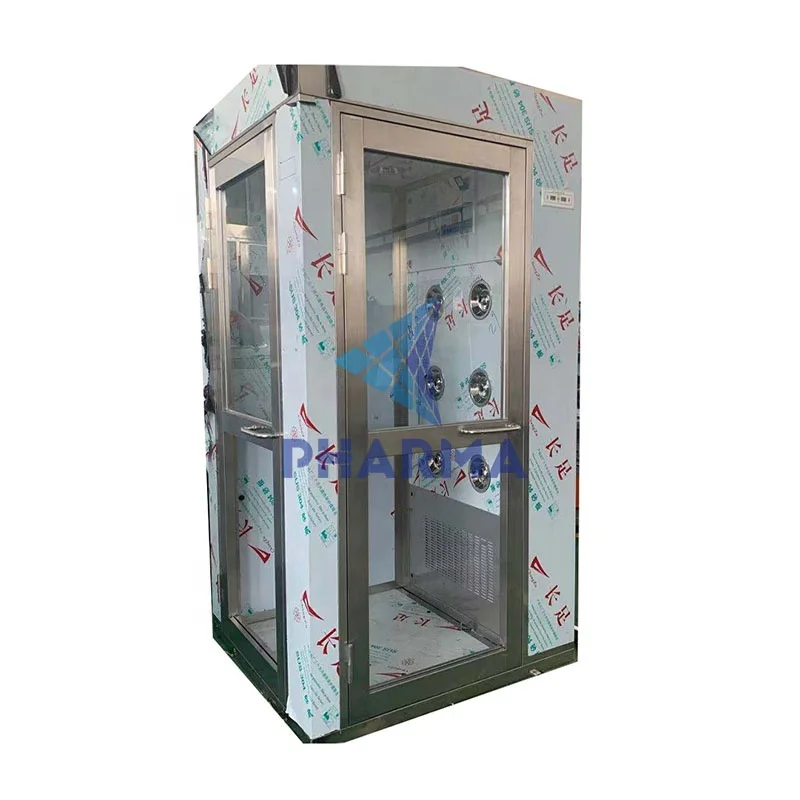

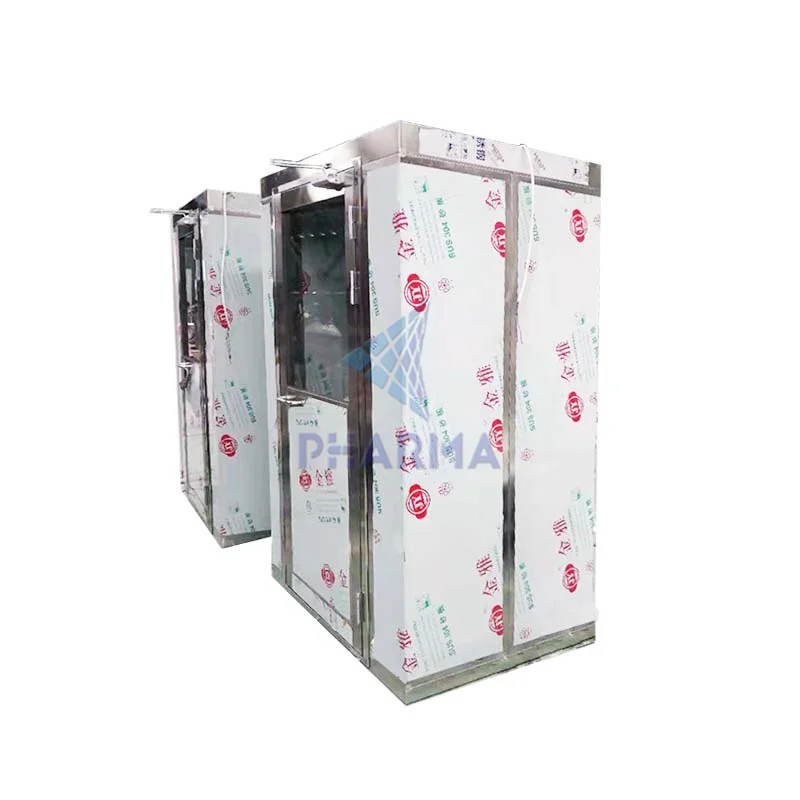

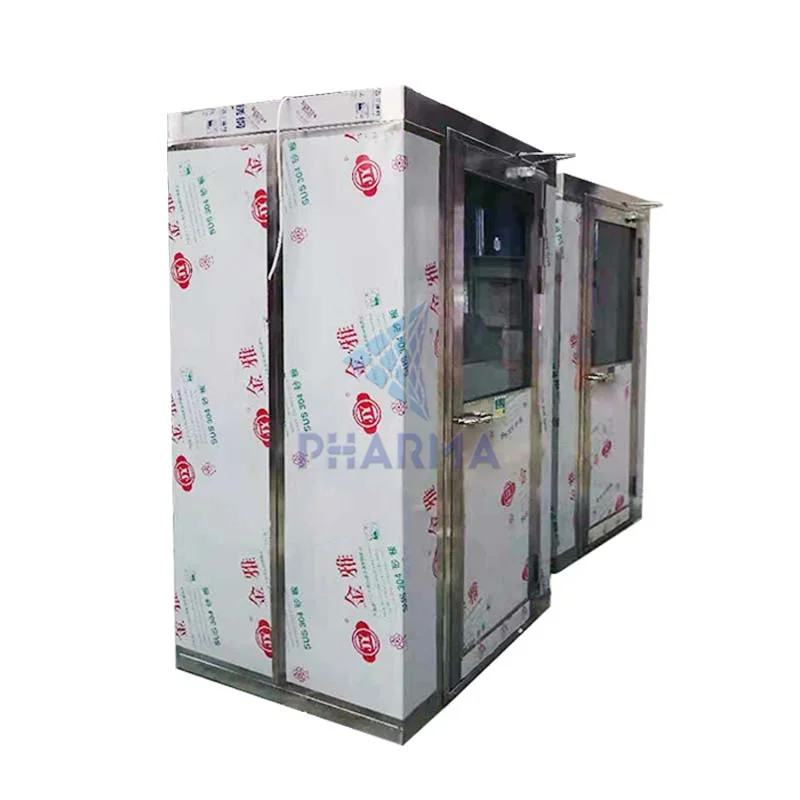

Electronic interlocking air shower
Personnel must pass through the air shower room when entering the clean room to avoid pollution to the clean room. The air shower room can remove dust and dirt particles from the personnel through the nozzles. The front and rear doors of the air shower room can be electronically interlocked.
Product Description
Air Shower is used to blow away dust on clothing, equipments, materials and tools before workers or objects
enter the Clean Room; meanwhile, its Air Lock function may effectively control personnel passing in and out,
as well as act as various levels of buffer room for clean room to prevent cross pollution.
enter the Clean Room; meanwhile, its Air Lock function may effectively control personnel passing in and out,
as well as act as various levels of buffer room for clean room to prevent cross pollution.
Features:
* Completely self-contained, Adjustable nozzles to remove surface contaminants
* Perfect for transferring personnel, carts and large equipment
* Versatile design allows you position the Air Shower inside or outside the clean room
* Dual HEPA Filters remove 99.99% of particles > 0.3 Microns from the air stream
* Equipped with interlocking doors, automatically released when power fails
* Economical to use and easy maintenance
* Emergency Stop buttons on both doors immediately disengage interlocks and halt air shower
* Lightweight and modular design enables easy shipping and transfer of the unit
* Full range of optional and standard air shower accessories
* Perfect for transferring personnel, carts and large equipment
* Versatile design allows you position the Air Shower inside or outside the clean room
* Dual HEPA Filters remove 99.99% of particles > 0.3 Microns from the air stream
* Equipped with interlocking doors, automatically released when power fails
* Economical to use and easy maintenance
* Emergency Stop buttons on both doors immediately disengage interlocks and halt air shower
* Lightweight and modular design enables easy shipping and transfer of the unit
* Full range of optional and standard air shower accessories
