Заводская поставка 5 шт. щетки для автоматической мойки полностью автоматическая туннельная Машина
- Категория: Car Washer >>>
- Поставщик: Wuxi,Yazhou,Precision,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 48249.73 $* | 49214.79 $* |
| Jul-20-2025 | 39131.38 $* | 39914.71 $* |
| Jun-20-2025 | 47489.78 $* | 48439.35 $* |
| May-20-2025 | 47109.10 $* | 48051.37 $* |
| Apr-20-2025 | 37611.63 $* | 38363.74 $* |
| Mar-20-2025 | 46349.36 $* | 47276.38 $* |
| Feb-20-2025 | 45969.93 $* | 46888.71 $* |
| Jan-20-2025 | 45589.88 $* | 46501.57 $* |
Характеристики
Model | TN324000 TN324010 |

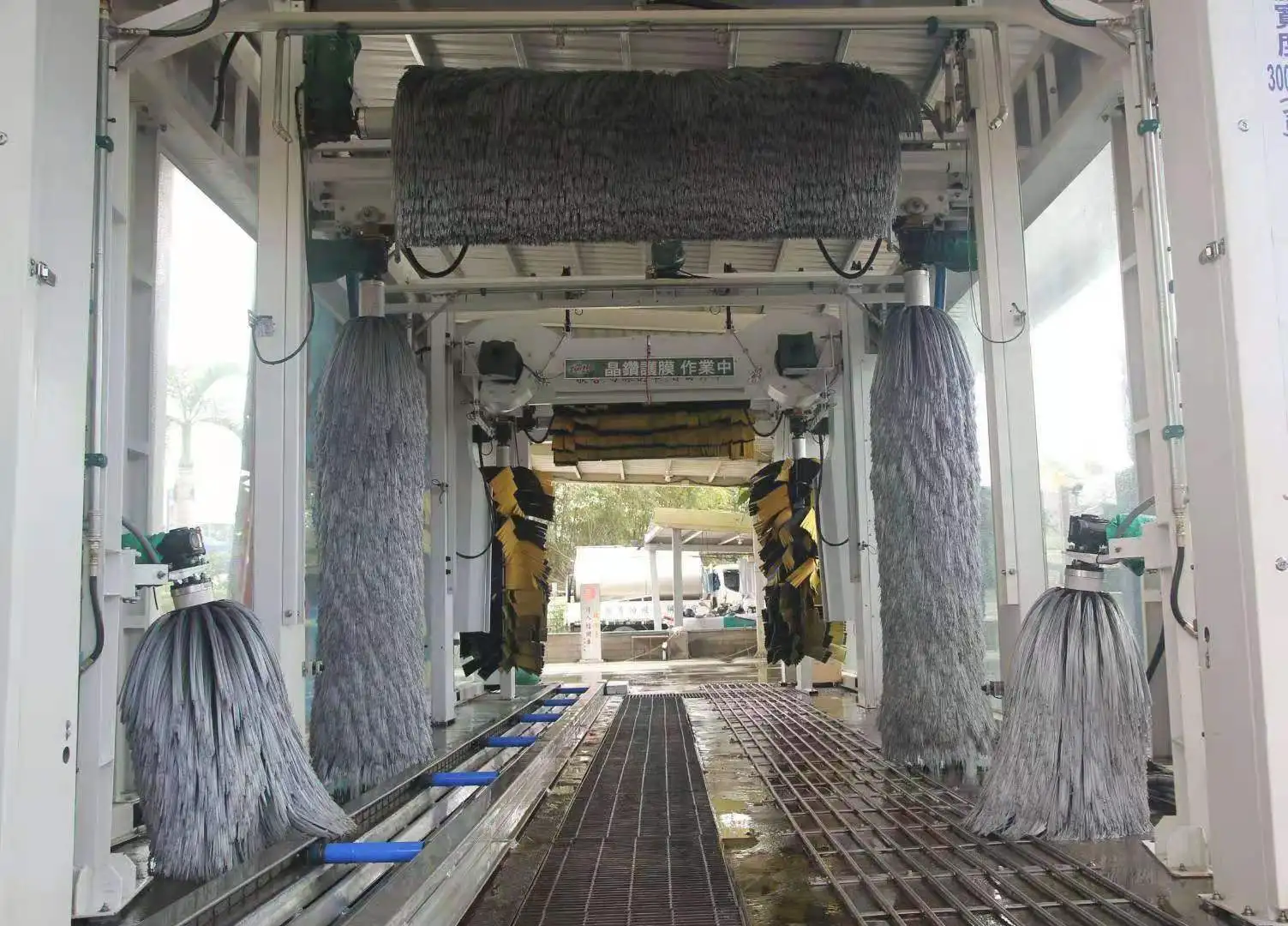

Standard Equipment | Horizontal brush *1 pc Vertical Brushes * 2 pc ( Left*1 & Right*1) Rock Brushes * 2 pc ( Left*1 & Right* 1) Fixed Blower * 4pc Foaming system Waxing system |
Dimension | 3700mm * 3100mm * 9160mm (W*H*L） |
Max. Washing size | 2300 mm * 2100 mm * 5300 mm (W * H * L) |
Operation area | 4100mm * 3100mm * 18160 mm (W*H*L） |
Conveyer Length | 7.68m |
Total power consumption | About 33kw |
Power Expense | 0.4 kwh ~0.6 kwh / car |
Water Expense | 80L~120L / car |
Wash speed | 35~40cars / h |
Vehicle type | Car, Taxi, Jeep, RV car , Van |
Tunnel Main Part Brand | ||||||
No. | Name | Brand | Origin | |||
1 | HMI | Weintek/Flexem | Taiwan/Shanghai | |||
2 | button | Schneider | France | |||
3 | Contactor | Schneider | France | |||
4 | Relay | Schneider,Omron | France/Japan | |||
5 | Protector | Schneider | France | |||
6 | Switch | Shilin | Taiwan | |||
7 | VFD(Inverter) | Shilin | Taiwan | |||
8 | PLC | Mitsubishi | Japan | |||
9 | Photosensor | Pepperl+Fuchs/MD | Germany/Italy | |||
10 | Proximity Sensor | Pepperl+Fuchs | Germany | |||
11 | Solenoid valve | Airtac | Taiwan | |||
12 | Dosing Pump | ProMinent/Ecolab | Germany | |||
13 | Reducer | Siti/ASIA WASH | Italy/Taiwan | |||
14 | Motor | SEW/ASIA WASH | Germany/Taiwan | |||
O:What are the different models of car washing machines available for purchase?
A:Tunnels and Roll-overs (or gantry) Touchless (with high-pressure water) are the most common for regular commercial use.
Q:What is the delivery time?
A:15-60 days after receiving the order confirmation. Generally, it depends on the model.
Q:How to install the machine?
A:We provide an installation manual and operation manual. Online service is open at any time. We will also provide the foundation drawings for the civil work if necessary. On-site installation is limited during the pandemic.
Q:What is the daily maintenance procedure?
A:Please follow the operational manual.
Q:How to solve errors and malfunctions?
A:Please follow the operational manual. It is recommended to connect the Internet to the machine, which allows our Engineer to debug remotely.
Q:What is the warranty?
A:1-year warranty for the machine in general. The POM conveyor belt is guaranteed for 2 years or 300 thousand washes. We suggest preparing common spare parts along with the machine.
Q:How much will the maintenance cost?
A:It is estimated to be 5% of the price in the 2nd year, 6% of the price in the 3rd year, 8% of the price in the 4th year, and under 10% of the price starting from the 5th year under the condition that the maintenance guidance is followed carefully and the machine operates every day non-stop for 8 hours.
Q:Can I get repair parts in the future?
A:Yes. We have inventory for common parts regularly. Special parts or old designs will have a different cost and production time.
Q:How long will the foundation civil work take?
A:7-10 days in general.
Q:What is the power consumption per car washing?
A:Please refer to the catalog. The blower is the most power-consuming part of the machine.
Q:What is the water consumption per car washing?
A:Please refer to the product specification. With proper water reclaim system, up to 70% of the water can be recycled to the system.
