Вращающийся стол для фрезерного станка с
- Категория: Table >>>
- Поставщик: Dalian,R&c,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.83 $* | 0.63 $* |
| Aug-17-2025 | 0.90 $* | 0.54 $* |
| Jul-17-2025 | 0.92 $* | 0.27 $* |
| Jun-17-2025 | 0.99 $* | 0.23 $* |
| May-17-2025 | 0.99 $* | 0.73 $* |
| Apr-17-2025 | 0.38 $* | 0.42 $* |
| Mar-17-2025 | 0.58 $* | 0.45 $* |
| Feb-17-2025 | 0.97 $* | 0.8 $* |
| Jan-17-2025 | 0.10 $* | 0.3 $* |
Характеристики
Factory machine tool accessories 4th axis rotary table DRC GXA-320H Horizontal rotary table for cnc milling machine
Product Description
DRC rotary table Features?
Horizontal rotary table for cnc milling machine
High quanlity CNC rotary table
CHARACTERISTICS:
Rotary table diameter Ø255, Ø320, Ø400.
The large through-hole is more convenient for automatic clamping fixture design.

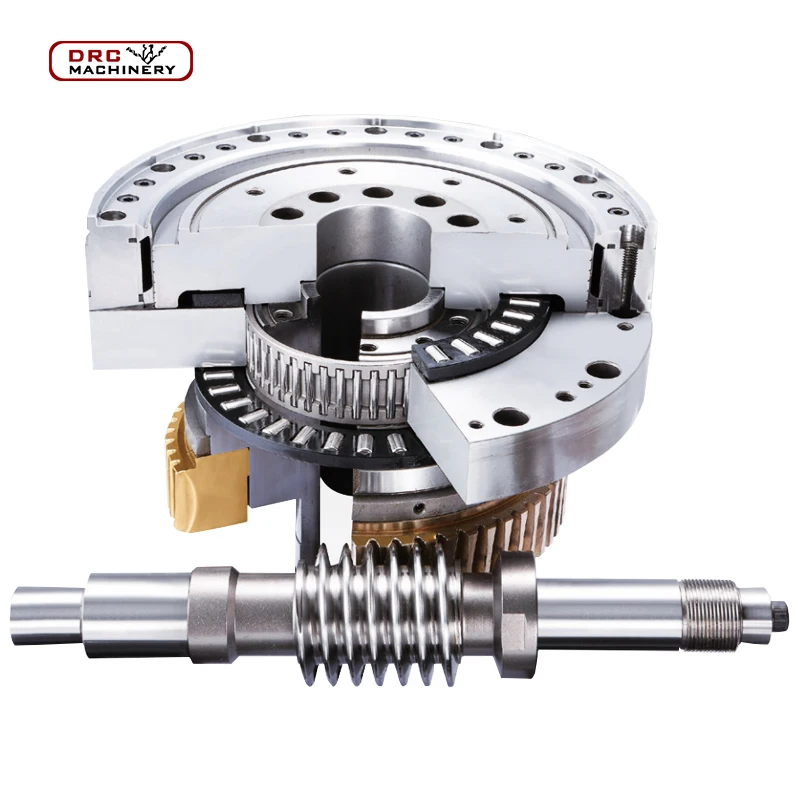

The main mandrel and the radial axial bearing are integrated.
The motor is mounted on the right (both vertical and horizontal).
High efficiency, high tooth depth double lead worm drive. .
Relationship between braking force and cutting force and efficiency of rotary table
The braking force of the rotary table is a key factor in supporting high-efficiency cutting forces and the highest safety factor must be maintained:
The braking force should be greater than 200% of the cutting force
The efficiency of metal machining cutting forces comes from complex conditions, including:
1.Machining center machine rigidity, spindle speed performance
2.Machining power output and adjustment of machining centers
3.Application of high speed tools
4.safe and stable clamping force
5.Peripheral auxiliary configuration
DRC has many models of rotary table to meet your needs, welcome to send an inquiry for more product information.
What Is The rotary table DRC GXA-255H series?
| model | GXA-255H | GXA-320H | GXA-400H |
| Rotary table diameter mm | Ø255 | Ø320 | Ø400 |
| Center hole diameter mm | Ø140H7 | Ø180H7 | Ø220H7 |
Center through hole diameter mm | Ø100 | Ø140 | Ø180 |
| Center height (vertical position) mm | 210 | 235 | 255 |
| Workbench T-slot width mm | 12H7 | 14H7 | 14H7 |
| Guide block width mm | 18 | 18 | 18 |
| Drive mode / drive pressure | oil pressure 5 | oil pressure 5 | oil pressure 5 |
| Tightening torque N.m | 900 | 1600 | 3000 |
| Reduction ratio | 1 / 120 | 1 / 120 | 1 / 144 |
| Maximum speed of disk surface min-1 | 22.2 | 22.2 | 11.1 |
Allowable load inertia capacity Kg.m2 | 2.43 | 5.12 | 10.2 |
| Minimum setting unit deg. | 0.001 | 0.001 | 0.001 |
| Indexing accuracy sec. | 15 | 15 | 15 |
| Repeat accuracy sec | 6 | 6 | 6 |
| Worm gear allowable torque N.m | 114 | 147 | 253 |
