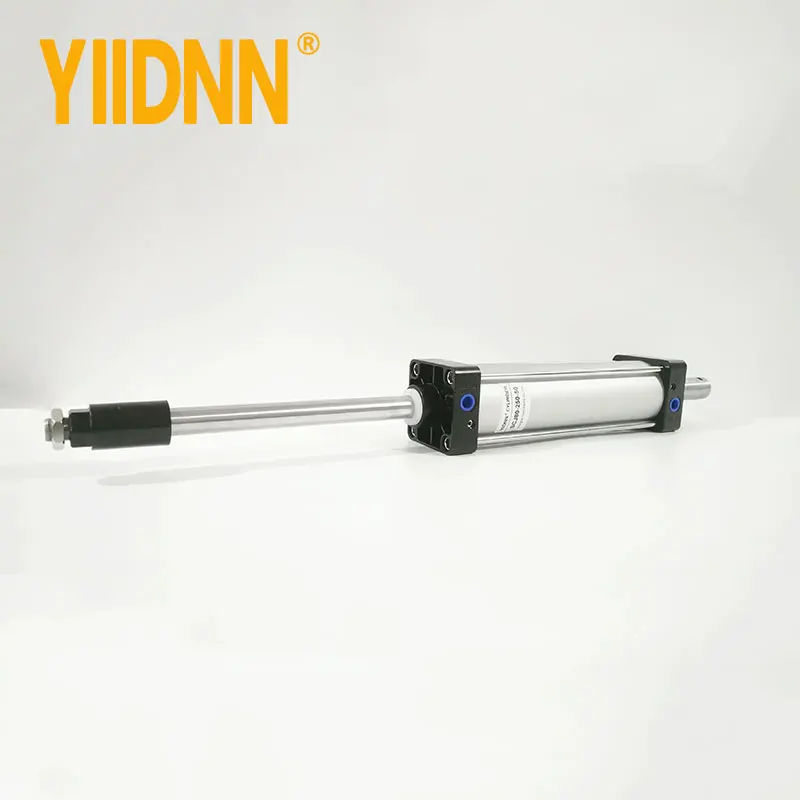

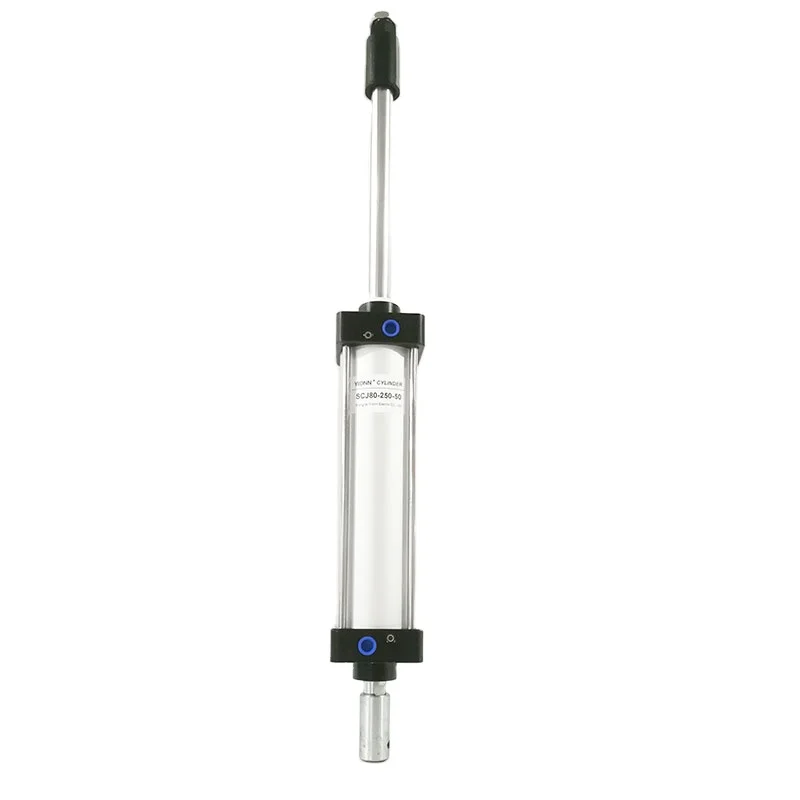

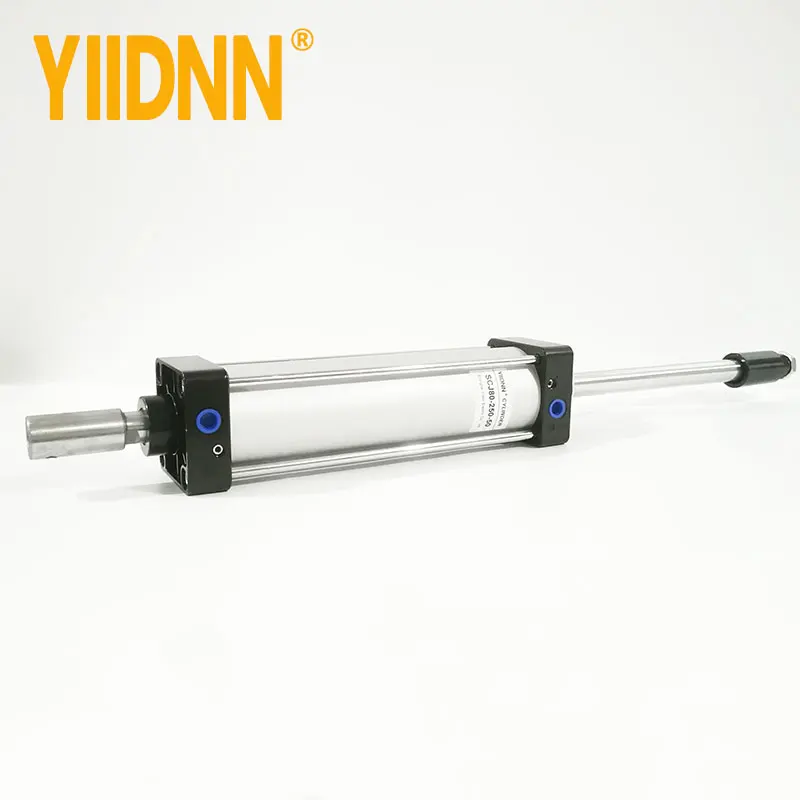

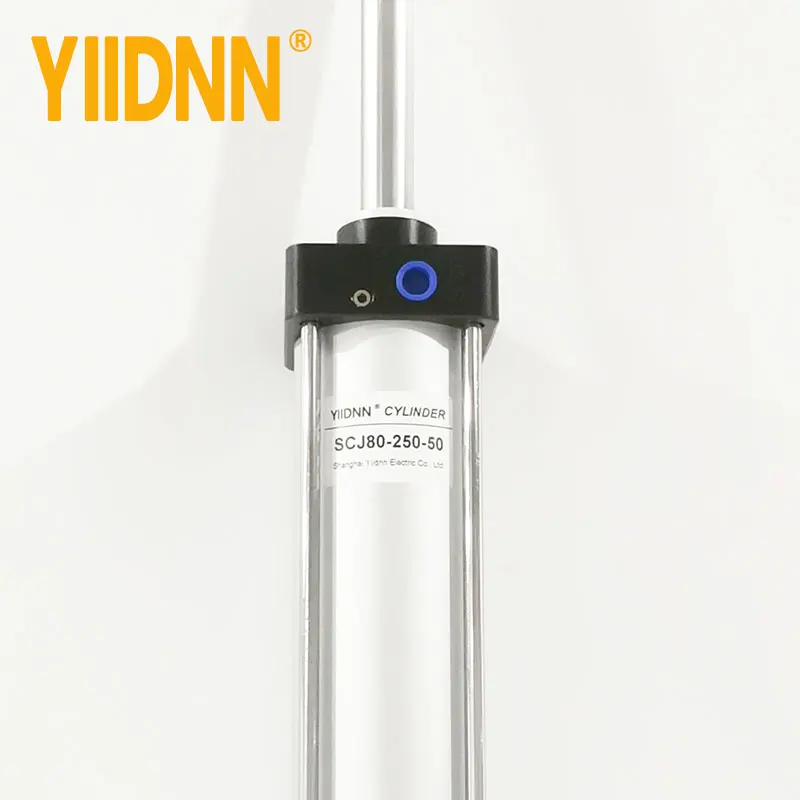

Пневматический воздушный цилиндр типа Airtac SCJ 80-250-50 диаметр отверстия 80 мм ход 250 двойной стержень поршень воздушного цилиндра с регулируемым ходом
- Категория: Pneumatic Cylinders >>>
- Поставщик: Shanghai,Yidong,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 24.76 $* | 24.22 $* |
| Jul-19-2025 | 20.2 $* | 20.4 $* |
| Jun-19-2025 | 24.46 $* | 24.42 $* |
| May-19-2025 | 24.71 $* | 24.86 $* |
| Apr-19-2025 | 19.31 $* | 19.18 $* |
| Mar-19-2025 | 23.69 $* | 23.98 $* |
| Feb-19-2025 | 23.0 $* | 23.44 $* |
| Jan-19-2025 | 23.7 $* | 23.19 $* |
Характеристики
Products Description
Product Feature
1. Standard cylinder manufactured by our enterprise.
2. The seal of piston adopts heterogeneous two way seal structure. It's dimension is tight and it has the function of grease reservation.
3. It is tie rod cylinder. The cylinder barrel and frontrear cap is jointed by tie rods with high reliability.
4. Compared with ISO1 5552 standard cylinder, SC series cylinder with the same bore size is shorter.
5. The buffer adjustment of cylinder is smooth and steady.
6. Cylinders and mounting accessories with several specifications are optional.
7. The seal material with high temperature resistance is adopted to guarantee the normal operation of cylinder at 150C.
1. Standard cylinder manufactured by our enterprise.
2. The seal of piston adopts heterogeneous two way seal structure. It's dimension is tight and it has the function of grease reservation.
3. It is tie rod cylinder. The cylinder barrel and frontrear cap is jointed by tie rods with high reliability.
4. Compared with ISO1 5552 standard cylinder, SC series cylinder with the same bore size is shorter.
5. The buffer adjustment of cylinder is smooth and steady.
6. Cylinders and mounting accessories with several specifications are optional.
7. The seal material with high temperature resistance is adopted to guarantee the normal operation of cylinder at 150C.
Specification | ||||||||||||||
Bore size(mm) | 32 | 40 | 50 | 63 | 80 | 100 | ||||||||
Acting type | Double acting | |||||||||||||
Fluid | Air(to be filtered by40pm filter element | |||||||||||||
Mounting type | SC | Basic FA FB CA CB LB TC TCM1 | ||||||||||||
SCD、SCJ | Basic FAL BTC TCM1 | |||||||||||||
Operating pressure | 0.15~1.0MPa(22~145psi) (1.5~10.0bar) | |||||||||||||
Proof pressure | 1.5MPa(215psi(15bar) | |||||||||||||
Temperature ℃ | -20~70 | |||||||||||||
Speed range mm/s | 30~800 | |||||||||||||
Stroke tolerance | 0~2500+1.0 251~10000+1.01001~15000+2.0 | |||||||||||||
Cushion type | Variable cushion | |||||||||||||
Adjustable cushion stroke | 21 | 28 | 29 | |||||||||||
Port size[Note 1] | 1/8" | 1/4" | 3/8" | 1/2" | ||||||||||
[ Note 1] PT thread， G thread are available. | ||||||||||||||
Add) Refer to P 353 for detail of sensor switch. | ||||||||||||||
Stroke | ||||||
Bore size (mm) | Standard stroke(mm) | Max.std stroke | Max. stroke | |||
32 | 25507580100125150160175200250300350400450500 | 1000 | 2000 | |||
40 | 255075801001251501601752002503003504004505006007008009001000 | 1200 | 2000 | |||
50 | 255075801001251501601752002503003504004505006007008009001000 | 1200 | 2000 | |||
63 | 255075801001251501601752002503003504004505006007008009001000 | 1500 | 2000 | |||
80 | 255075801001251501601752002503003504004505006007008009001000 | 1500 | 2000 | |||
100 | 255075801001251501601752002503003504004505006007008009001000 | 1500 | 2000 | |||
[Note] If the stroke is≥1600mm within the maximum stroke scope，it is treated as non-standard one. | ||||||
Please contact the company for other special strokes. | ||||||
Company Profile
Shanghai Yiidnn Electric Co., Ltd. is a comprehensive enterprise integrating R&D, manufacturing, processing, maintenance and sales. We mainly produce pneumatic presses, pneumatic components, cable markers, stainless steel ties, electrical accessories etc, and support non-standard customization.
Our slogan is "Stand East, Connect the World", adhering to the concept of "Science and Technology Innovation, Win-Win Cooperation", with "Excellent Products, Reasonable Prices, Honesty and Trustworthiness, Service First" as our goal Efforts to provide customers with better products and services, your needs are our greatest pursuit.
Our slogan is "Stand East, Connect the World", adhering to the concept of "Science and Technology Innovation, Win-Win Cooperation", with "Excellent Products, Reasonable Prices, Honesty and Trustworthiness, Service First" as our goal Efforts to provide customers with better products and services, your needs are our greatest pursuit.
Why Choose Us
Certifications
Packing & Delivery
FAQ
Q1: Is it a factory or a trading company?
Answer: We are a comprehensive enterprise integrating R&D, production, processing, maintenance and sales, with 7 years of experience.
Q2: Does it support non-standard or customized products?
Answer: Yes, please consult our sales staff for detailed information.
Q3: Do you support OEM?
Answer: Yes.
Q4: How does the factory conduct quality control?
Answer: Quality is very important. From the beginning to the end of production, we pay attention to quality control. Before packaging and shipping, each product will be fully assembled and carefully tested.
Q5: About the delivery time?
Answer: It depends on the quantity you ordered. Conventional products are basically in stock. Some special products and large orders will be put into production again according to your order.
Q6: Can you get some samples?
Answer: Yes, sample orders can be used for quality inspection and market testing.
