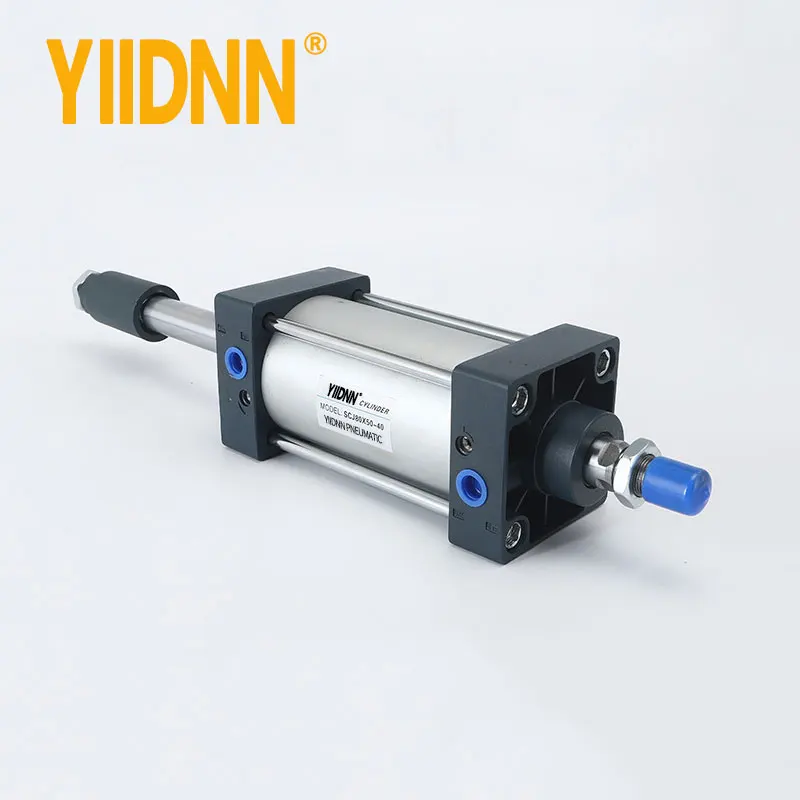

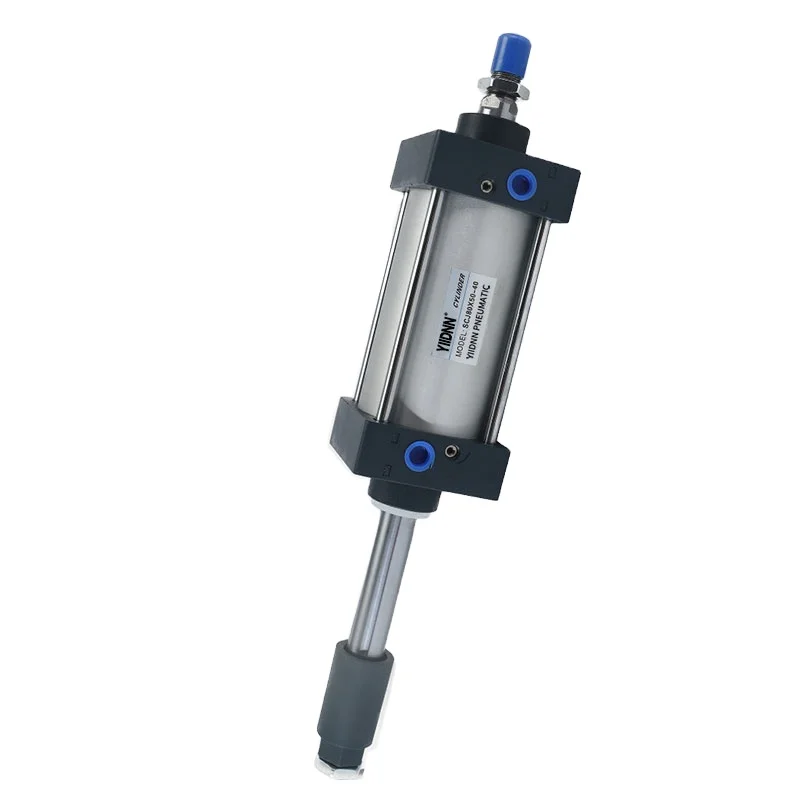

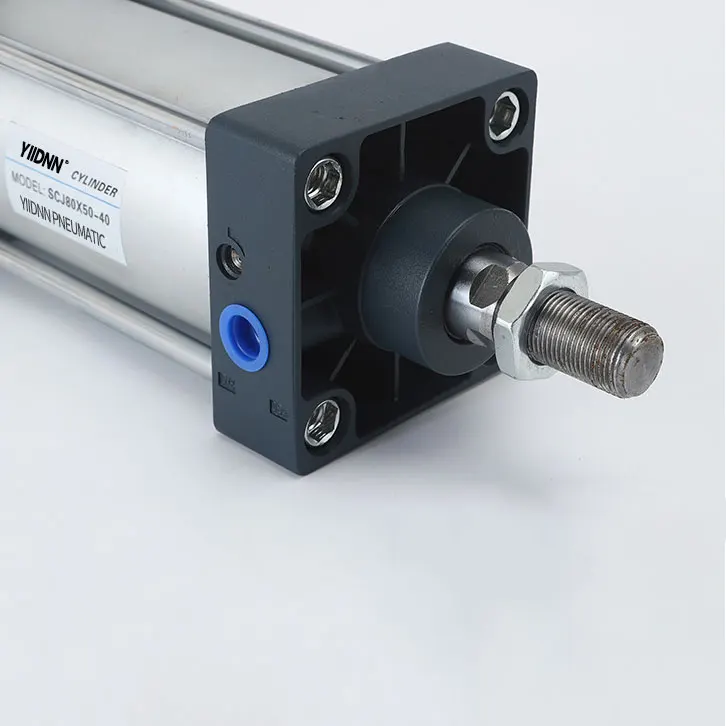

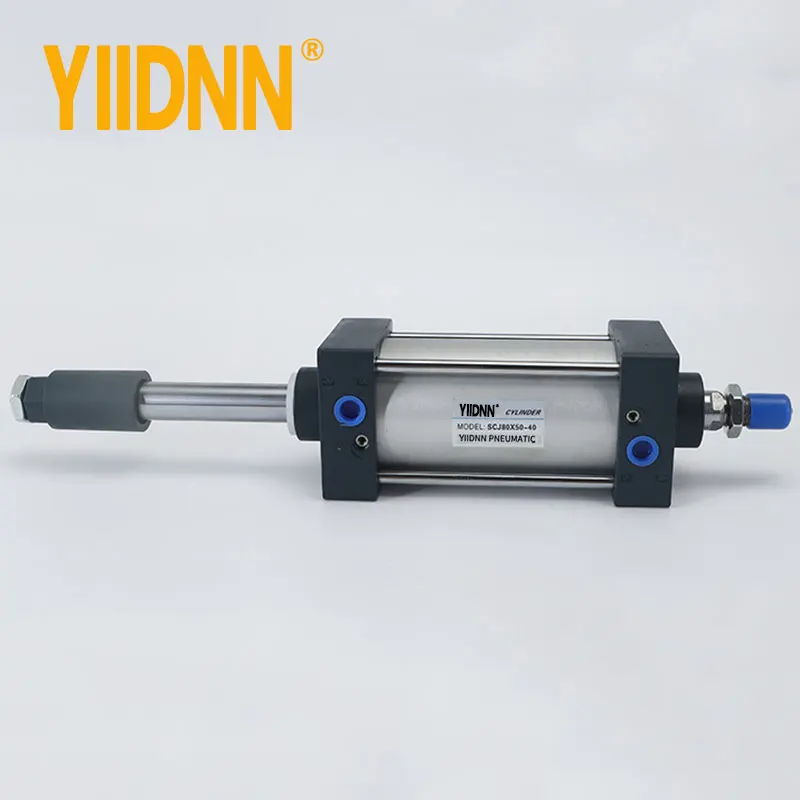

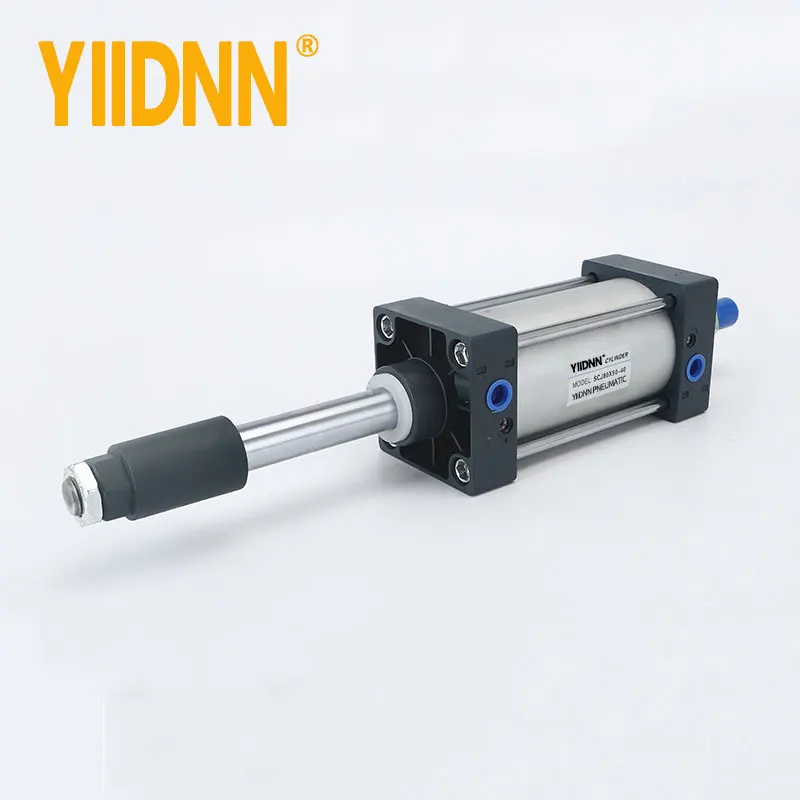

Scj Airtac Мини пневматический цилиндр квадратного типа Регулируемый SCJ80 * 50-40
- Категория: Pneumatic Cylinders >>>
- Поставщик: Shanghai,Yidong,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 17.31 $* | 18.1 $* |
| Aug-19-2025 | 17.23 $* | 18.23 $* |
| Jul-19-2025 | 14.7 $* | 15.30 $* |
| Jun-19-2025 | 16.6 $* | 17.4 $* |
| May-19-2025 | 14.17 $* | 15.15 $* |
| Apr-19-2025 | 16.12 $* | 17.86 $* |
| Mar-19-2025 | 16.11 $* | 17.37 $* |
| Feb-19-2025 | 16.38 $* | 17.71 $* |
| Jan-19-2025 | 16.61 $* | 17.1 $* |
Характеристики
Products Description
Product Feature
1. Standard cylinder manufactured by our enterprise.
2. The seal of piston adopts heterogeneous two way seal structure. It's dimension is tight and it has the function of grease reservation.
3. It is tie rod cylinder. The cylinder barrel and frontrear cap is jointed by tie rods with high reliability.
4. Compared with ISO1 5552 standard cylinder, SC series cylinder with the same bore size is shorter.
5. The buffer adjustment of cylinder is smooth and steady.
6. Cylinders and mounting accessories with several specifications are optional.
7. The seal material with high temperature resistance is adopted to guarantee the normal operation of cylinder at 150C.
1. Standard cylinder manufactured by our enterprise.
2. The seal of piston adopts heterogeneous two way seal structure. It's dimension is tight and it has the function of grease reservation.
3. It is tie rod cylinder. The cylinder barrel and frontrear cap is jointed by tie rods with high reliability.
4. Compared with ISO1 5552 standard cylinder, SC series cylinder with the same bore size is shorter.
5. The buffer adjustment of cylinder is smooth and steady.
6. Cylinders and mounting accessories with several specifications are optional.
7. The seal material with high temperature resistance is adopted to guarantee the normal operation of cylinder at 150C.
Specification | ||||||||||||||
Bore size(mm) | 32 | 40 | 50 | 63 | 80 | 100 | ||||||||
Acting type | Double acting | |||||||||||||
Fluid | Air(to be filtered by40pm filter element | |||||||||||||
Mounting type | SC | Basic FA FB CA CB LB TC TCM1 | ||||||||||||
SCD、SCJ | Basic FAL BTC TCM1 | |||||||||||||
Operating pressure | 0.15~1.0MPa(22~145psi) (1.5~10.0bar) | |||||||||||||
Proof pressure | 1.5MPa(215psi(15bar) | |||||||||||||
Temperature ℃ | -20~70 | |||||||||||||
Speed range mm/s | 30~800 | |||||||||||||
Stroke tolerance | 0~2500+1.0 251~10000+1.01001~15000+2.0 | |||||||||||||
Cushion type | Variable cushion | |||||||||||||
Adjustable cushion stroke | 21 | 28 | 29 | |||||||||||
Port size[Note 1] | 1/8" | 1/4" | 3/8" | 1/2" | ||||||||||
[ Note 1] PT thread， G thread are available. | ||||||||||||||
Add) Refer to P 353 for detail of sensor switch. | ||||||||||||||
Stroke | ||||||
Bore size (mm) | Standard stroke(mm) | Max.std stroke | Max. stroke | |||
32 | 25507580100125150160175200250300350400450500 | 1000 | 2000 | |||
40 | 255075801001251501601752002503003504004505006007008009001000 | 1200 | 2000 | |||
50 | 255075801001251501601752002503003504004505006007008009001000 | 1200 | 2000 | |||
63 | 255075801001251501601752002503003504004505006007008009001000 | 1500 | 2000 | |||
80 | 255075801001251501601752002503003504004505006007008009001000 | 1500 | 2000 | |||
100 | 255075801001251501601752002503003504004505006007008009001000 | 1500 | 2000 | |||
[Note] If the stroke is≥1600mm within the maximum stroke scope，it is treated as non-standard one. | ||||||
Please contact the company for other special strokes. | ||||||
