Характеристики
manual electric glass vacuum sucker glass lifting vacuum lifter
Main features of glass suction cups
It adopts negative pressure safe vacuum circuit and negative pressure digital display. Compared with traditional instrument display, the sensitivity is increased by 30%. The display is more accurate and intuitive, which guarantees the safety of glass suction and hanging to a large extent.
The heavy lifting weight is up to 540kg.
It can be electrically rotated within 360°, and tilted and turned electrically within 90°. (According to customer needs, you can use the electric hand spinner, the electric hand spinner, the hand hand spinner)
Can adapt to different glass sizes (convenient and fast, improve glass handling and installation efficiency)
It adopts negative pressure safe vacuum circuit and negative pressure digital display. Compared with traditional instrument display, the sensitivity is increased by 30%. The display is more accurate and intuitive, which guarantees the safety of glass suction and hanging to a large extent.
The heavy lifting weight is up to 540kg.
It can be electrically rotated within 360°, and tilted and turned electrically within 90°. (According to customer needs, you can use the electric hand spinner, the electric hand spinner, the hand hand spinner)
Can adapt to different glass sizes (convenient and fast, improve glass handling and installation efficiency)
Products Description
How to use glass suction cups
1. Start-up of the glass suction crane
Turn on the power switch on the control box, and the vacuum pump starts. First, the air in the accumulator is evacuated to ensure sufficient vacuum. When the pressure is lower than 50%, the sound and light alarm will alarm, and the vacuum pump will work automatically until the required vacuum is reached. pressure. When the pressure reaches the set pressure, the vacuum pump will automatically stop running to save power. At this time, the vacuum glass suction cup is in the ready state.
2. Positioning of glass suction crane
Control the movement of the lifting equipment so that the glass suction cup is close to the glass surface. At this time, the {precision} suction cup fully fits and seals the glass surface;
3. Glass adsorption
Push the manual hand slide valve on the operating handle. At this time, the suction cup is connected to the vacuum system, and the glass suction cup automatically adsorbs the glass. The vacuum pressure gauge will display the vacuum (pressure) at this time. When the pressure gauge shows 70% vacuum ( -0.7kg/f), it means it can be transported. This process takes about 10-15 seconds; during the transporting process, when the vacuum pressure is less than 55% (display value: less than 55), the vacuum pump automatically pressurizes to the set value 70 %. When the number of automatic pressurization exceeds 4 times during the transportation, the system will judge that the number of vacuum restarts exceeds the limit. At this time, the air tightness of the machine and {precision} needs to be checked. It can be used again after confirming that it is correct.
1. Start-up of the glass suction crane
Turn on the power switch on the control box, and the vacuum pump starts. First, the air in the accumulator is evacuated to ensure sufficient vacuum. When the pressure is lower than 50%, the sound and light alarm will alarm, and the vacuum pump will work automatically until the required vacuum is reached. pressure. When the pressure reaches the set pressure, the vacuum pump will automatically stop running to save power. At this time, the vacuum glass suction cup is in the ready state.
2. Positioning of glass suction crane
Control the movement of the lifting equipment so that the glass suction cup is close to the glass surface. At this time, the {precision} suction cup fully fits and seals the glass surface;
3. Glass adsorption
Push the manual hand slide valve on the operating handle. At this time, the suction cup is connected to the vacuum system, and the glass suction cup automatically adsorbs the glass. The vacuum pressure gauge will display the vacuum (pressure) at this time. When the pressure gauge shows 70% vacuum ( -0.7kg/f), it means it can be transported. This process takes about 10-15 seconds; during the transporting process, when the vacuum pressure is less than 55% (display value: less than 55), the vacuum pump automatically pressurizes to the set value 70 %. When the number of automatic pressurization exceeds 4 times during the transportation, the system will judge that the number of vacuum restarts exceeds the limit. At this time, the air tightness of the machine and {precision} needs to be checked. It can be used again after confirming that it is correct.
manual electric glass vacuum sucker glass lifting vacuum lifter
Product Specification
Lifting Capacity | kg | 400 | 600 | 800 | ||
Model | / | SSURY400 | SSURY600 | SSURY800 | ||
Cup Qty | / | 4 | 6 | 8 | ||
Single Cup Size | mm | 300 | 300 | 300 | ||
Single Cup Lifting Capacity | kg | 100 | 100 | 100 | ||
Rotation | / | 360°manual rotate | ||||
Tilting | / | 90° manual | ||||
Volte | V | DC12 | ||||
Charger | V | AC220/110 | ||||
Weight | kg | 70 | 90 | 100 | ||
Sucker Frame Size | mm | 850*750*300 | 1800*900*300 | 1760*1460*300 | ||
Extension Bar Length | mm | 500 | ||||
Control System | / | Integrated Control Cabinet and Wired Remote Control | ||||
manual electric glass vacuum sucker glass lifting vacuum lifter
Precautions for installation of glass suction cup battery
(1) According to the principle of upright placement in the up and down direction, it is forbidden to use the battery upside down.
(2) Do not give abnormal vibrations and shocks to the battery.
(3) Pay attention to insulation during installation.
(4) Do not install {precision} into a closed structure.
(5) During the installation process, pay attention to keeping a certain distance between the vacuum glass suction cup batteries to ensure air circulation.
(6) Please do not mix different types of batteries.
(7) Do not let the battery of the glass suction cup come into contact with it.
(1) According to the principle of upright placement in the up and down direction, it is forbidden to use the battery upside down.
(2) Do not give abnormal vibrations and shocks to the battery.
(3) Pay attention to insulation during installation.
(4) Do not install {precision} into a closed structure.
(5) During the installation process, pay attention to keeping a certain distance between the vacuum glass suction cup batteries to ensure air circulation.
(6) Please do not mix different types of batteries.
(7) Do not let the battery of the glass suction cup come into contact with it.

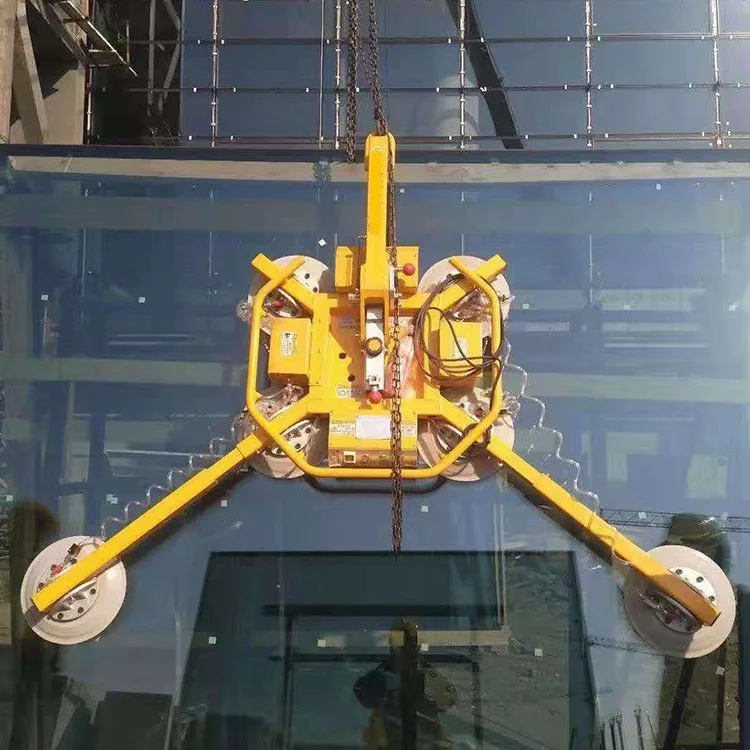

Applicable scene
Our Company

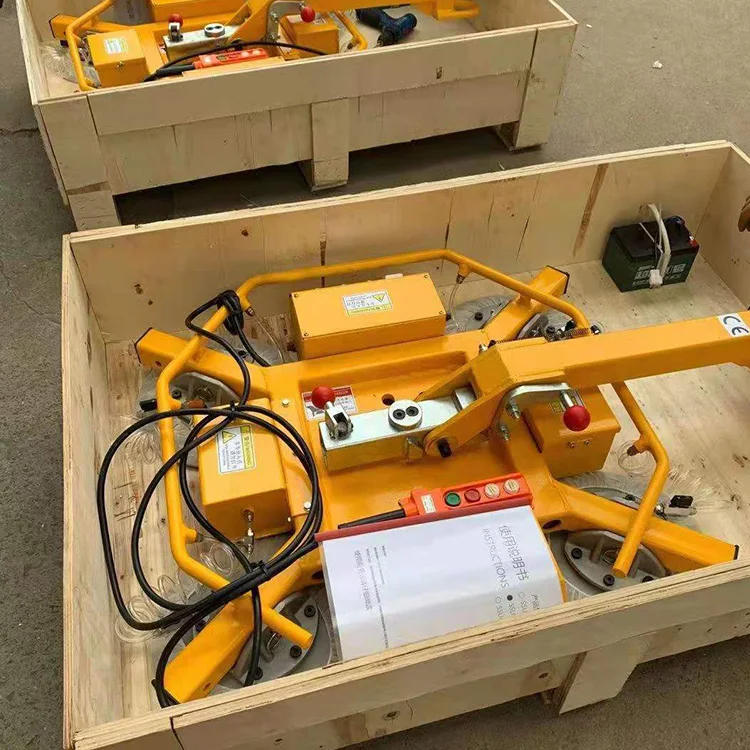

Packaging And Shipping
Our Service
Before sale
1. Quick response
2. Professional technical consulting services
3. Provide a variety of related information about the product
2. Professional technical consulting services
3. Provide a variety of related information about the product
On sale
1. Delivery on schedule
2. Strict factory acceptance
3. Use negotiated or suitable packaging for transportation
2. Strict factory acceptance
3. Use negotiated or suitable packaging for transportation
After sale
1.24 hours technical support
2. Long warranty
3. Sufficient spare parts guarantee
2. Long warranty
3. Sufficient spare parts guarantee
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO,EPA(USA),CCC
3: What about the delivery time?
A: 7-20 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
6.What about the service?
1). Quick response to every inquiry.
2). Professtional and detailed answer to any of customer's questions.
3). Strict QC and in time delivery.
4). Offer all relative material for customer to know and better use the machine.
5). Periodically after service follow up, offer any necessary support if needed.
6).For the new machine, within determined limits, the manufacture guarantees warranty for a period of 12 months after bought or 20
00 working hours(whichever comes first).
7).The warranty includes repairation or replace the parts for free which were proved to be defective in origin by the technical
department of the manufacture.
8).The repairation or replacement for the parts should not exceed the warranty period.
9).The warranty is valid on the condition of all the terms listed in the contract was observed.
