Description:

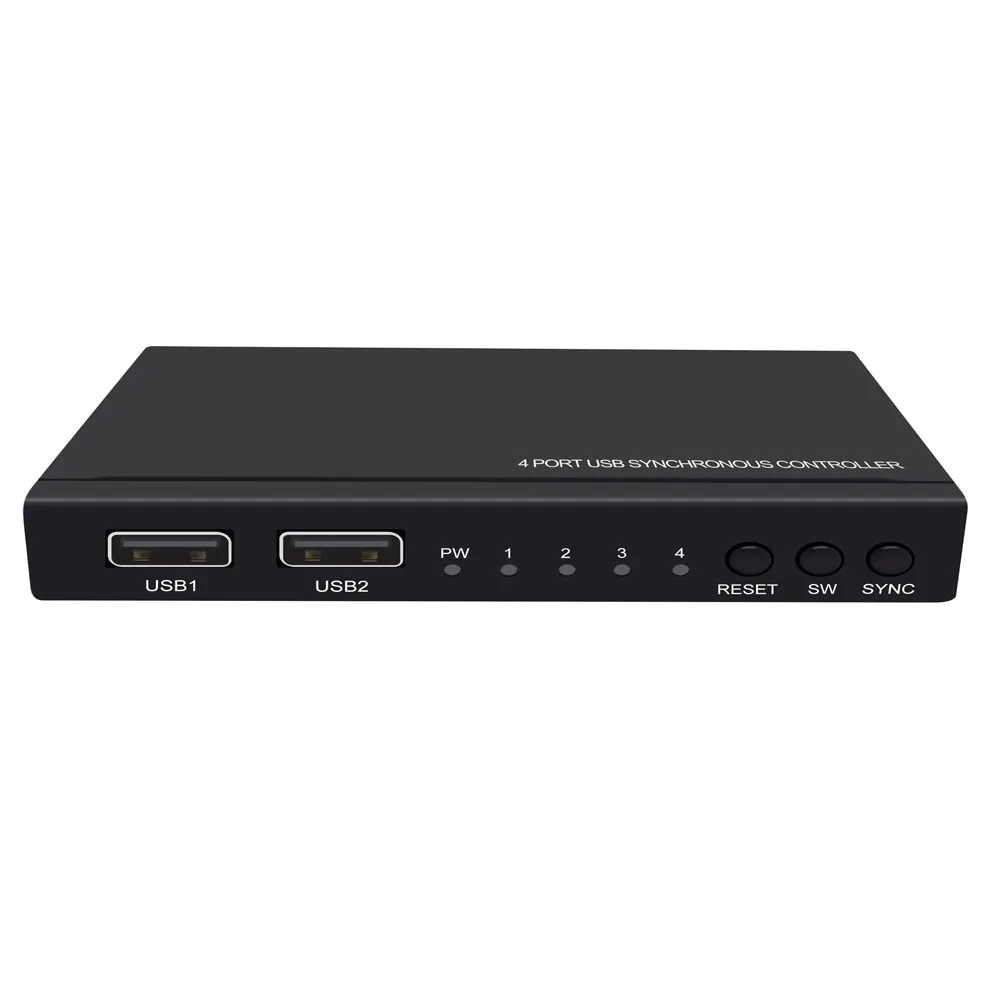

This is a four-port KM switcher. It is also a KVM switch after connecting the four-port picture splitter. It can realize four-to-one free switching of four sets of USB interfaces, or one-button four-port synchronous control, supporting a set of keyboard and mouse. Multiple computers can be controlled at the same time, or separately controlled, the data is completely synchronized, and can adapt to a variety of complex application environments. The device has excellent signal processing and transmission capabilities, making the transmission signal smoother and more stable. It is a reliable, high-performance and efficient USB switching method.



Product parameters:

Shell material: stretched aluminum shell

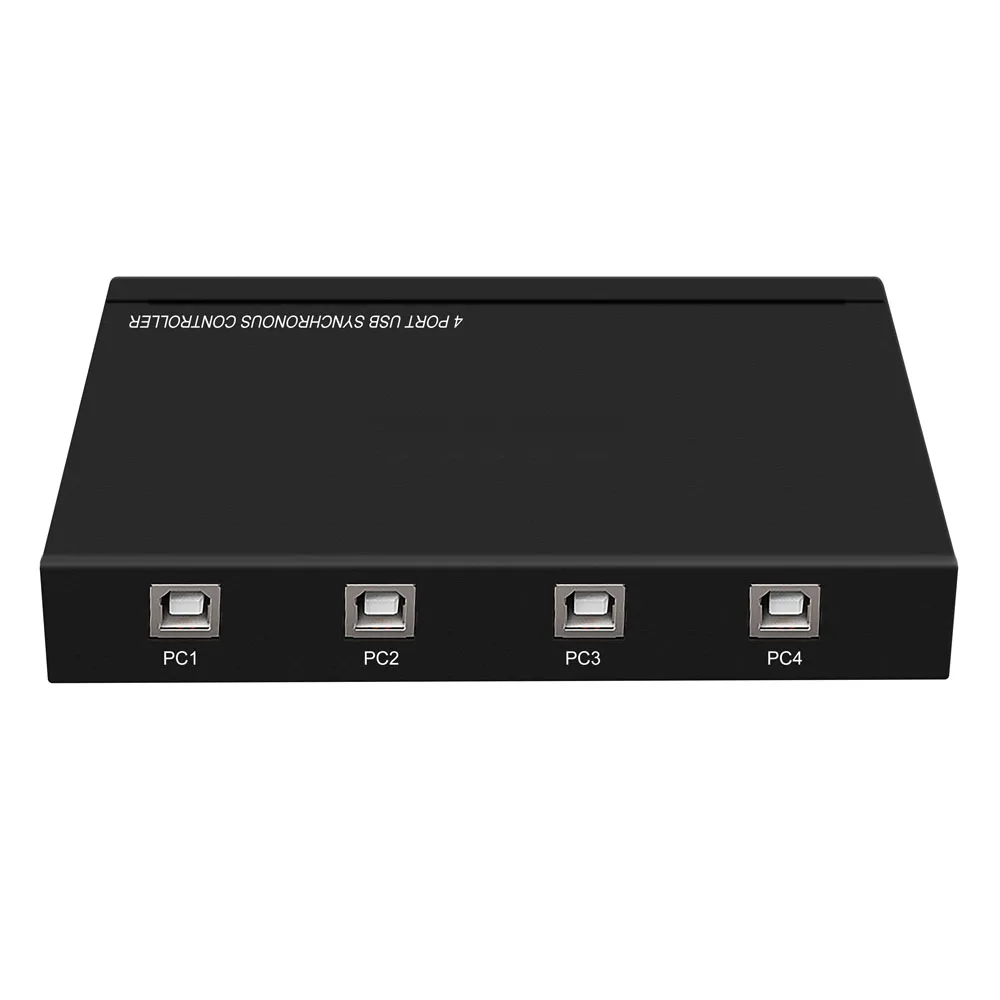

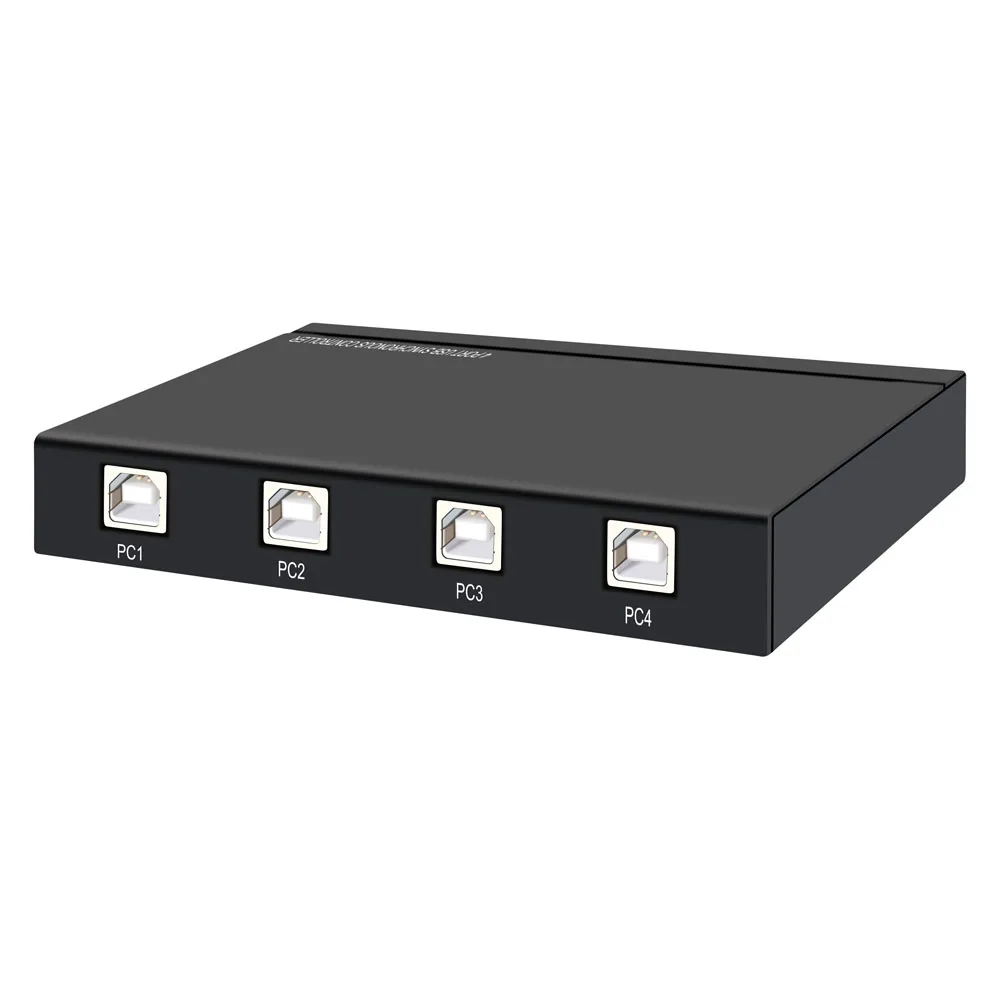

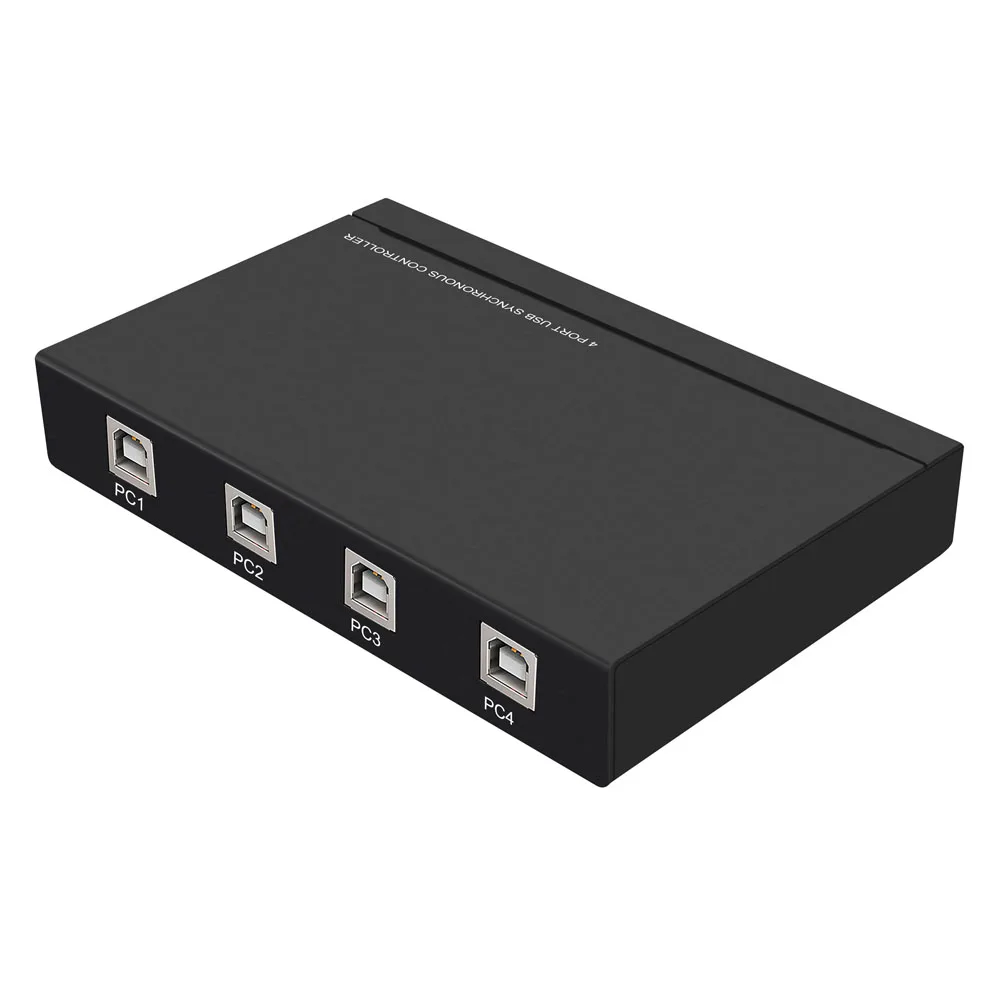

Input interface: 4-channel USB-B port

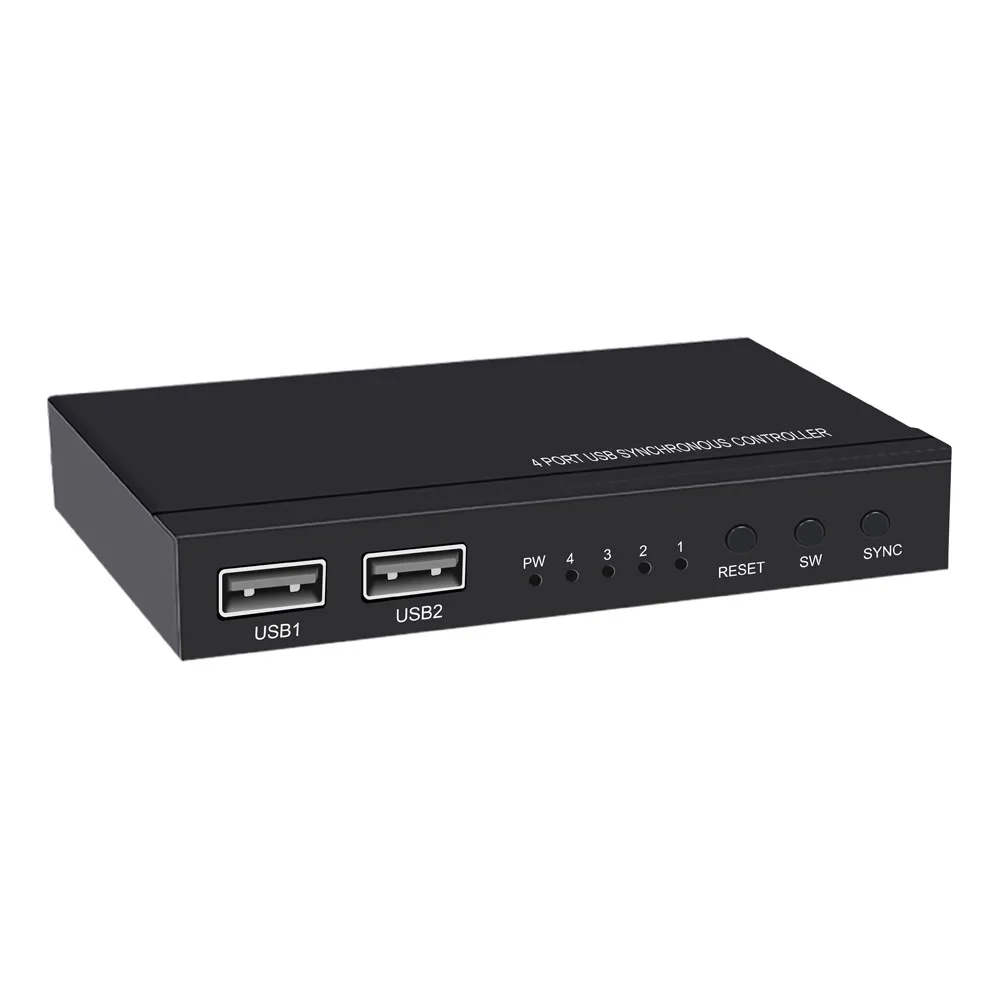

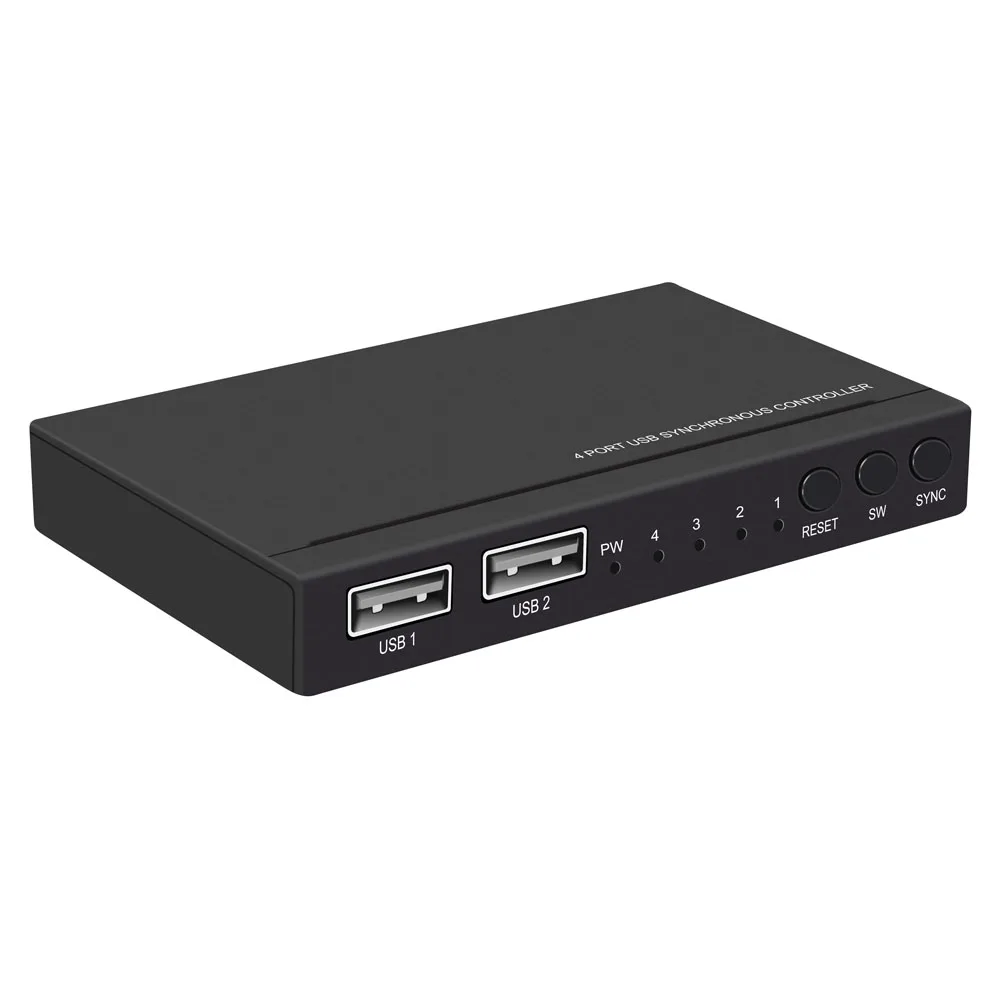

Output interface: 2-way USB-A port

Number of control PCs: 4

Propagation speed: USB2.0 full speed technology

Operating temperature range: -5~+65°C

Operating humidity range: 5~90% RH (non-compressed)

Compatible systems: Windows, Linux, unix, android, Dos, Netware

Product size: 100X63X18mm

Function: mouse traversing function, hot key switching, mouse and keyboard synchronization control, mouse and keyboard respectively control

KVM function: mouse and keyboard sharing



Hotkey use

Power-on

The default is in sync mode, the hotkey is on,

reset

Method 1: Press the reset button, press the “Reset” button, the LED indicator is completely off, the LED indicator lights up again, the indication can be used

Method 2: The device end disconnects all connections and then reconnects;

Switch function, method 1:

Ctrl+Ctrl+1 //Switch to PC1, the first way

Ctrl+Ctrl+2 //Switch to PC2, the second way

Ctrl+Ctrl+3 //Switch to PC3, the third way

Ctrl+Ctrl+4 //Switch to PC4, the fourth way

Synchronization function:

Ctrl+Ctrl+0 //Sync function on/off

 Crossing function:

                    Press "*" and "S" in sequence, then release "S" and "*" in sequence, and move the cursor from the edge of the screen of the first computer to another computer. It can be traversed in four computers.





Remarks: Now the synchronization function will be enabled by default after power-on, so no matter which port the USB is connected to, you can use ctrl+ctrl+0.



Precautions

1. It is recommended to use ordinary office mouse and keyboard, some high-end mouse and keyboard, with multimedia, mechanical keyboard, etc. may not be able to identify or conflict.

2. For the first connection, first connect the mouse and keyboard and then connect to the PC. After the connection is completed, depending on the computer configuration, it takes a few seconds to 2 minutes.



Equipment List:

Four KM switch main unit 1 set

USB cable:4

Instruction manual 1 copy





1. Four-way USB interface to achieve four-to-one free switching or one-button 4-port synchronous control;

2. Support USB2.0 full speed technology, speed up to 12Mbps, no need to drive;

3. Compatible with windows, linux, unix, android, dos, netware, operating system. ;

4. It can be switched by hot key mode and host key mode, which is convenient and quick;

5. Support the screen splitter to be used online;

6. Support mouse screen;

7. Both a synchronizer and a KM switch;

8. Built-in ESD electrostatic protection circuit to protect the system in all aspects;

9. Easy to install, plug and play, no need to set up;
