Ручная лебедка серии HM для легкого подъема и

Ручная лебедка серии HM для легкого подъема и

Категория: >>>
Поставщик: TOYO,KOKEN,K.K.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.48 $*	0.20 $*
Aug-16-2025	0.17 $*	0.82 $*
Jul-16-2025	0.55 $*	0.94 $*
Jun-16-2025	0.83 $*	0.48 $*
May-16-2025	0.15 $*	0.81 $*
Apr-16-2025	0.30 $*	0.88 $*
Mar-16-2025	0.69 $*	0.62 $*
Feb-16-2025	0.81 $*	0.93 $*
Jan-16-2025	0.32 $*	0.52 $*

Характеристики

Products Description

HAND MIGHTY
Manual Winch
HM series

Easy to lift or put down loads between 100kg and 500kg
manually. The compact HAND MIGHTY has been used for
lifting and putting down the light loads such as banners
in department stores.

Specification

Model

Rated Load

(kg)

Gear Ratio

Handle Length

(mm)

Handle Force

(kg)

Winding Length

(m)

Weight

(kg)

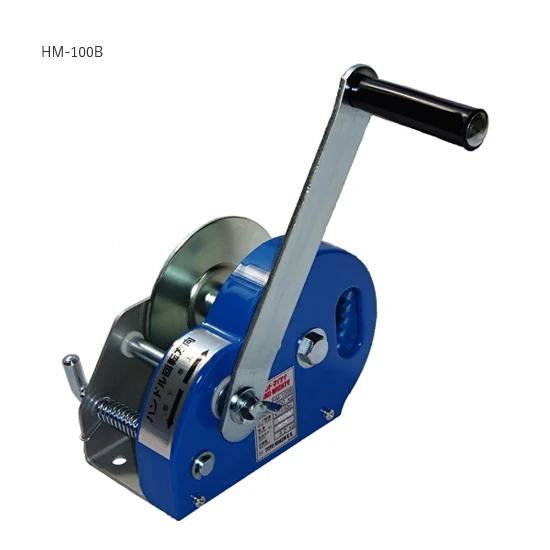

HM-100B

100

5:01

220

Φ4 × 30

3.6

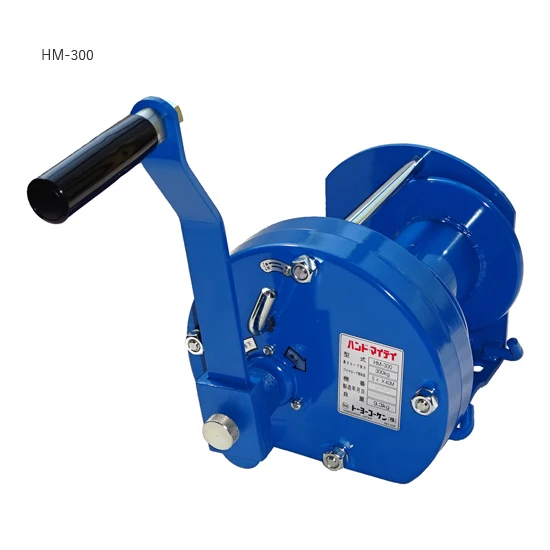

HM-300

300

4.5 :1

250

Φ5 × 40

10.3

HM-500

500（140）

12.5 : 1（3.5 : 1）

250

Φ5 × 40

11.2

Note 1. The value in ( ) indicates number in case of quick winding.

Note 2. A ratchet handle ( optional accessories ) can be attached to HM-300 or HM-500.

Note 3. HM series does not come with wire rope or lifting hook.

Certifications

Factory Information

Company Profile

TOYO KOKEN has a history of 60 years for winches and 40 years for manipulators, and our products used by many companies in a wide range of industries such as the construction and industrial machinery industry. Our products are designed under JIS (Japanese Industrial Standards), and we provide our customers with better products under the policies of ISO90001 and ISO14001.
