Производитель Чанчжоу huaen завод плоский вертикальный жгутовых полосок HE-217-T ткани с высоким качеством цифрового печати жаккардовый ткацкий станок
- Категория: Weaving Machines >>>
- Поставщик: Changzhou,Huaen,Garment,Machinery,Factory
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 58310.27 $* | 61226.98 $* |
| Aug-15-2025 | 57820.31 $* | 60711.51 $* |
| Jul-15-2025 | 48510.27 $* | 50936.71 $* |
| Jun-15-2025 | 56840.78 $* | 59682.92 $* |
| May-15-2025 | 49490.33 $* | 51965.59 $* |
| Apr-15-2025 | 55860.4 $* | 58653.50 $* |
| Mar-15-2025 | 55370.12 $* | 58139.27 $* |
| Feb-15-2025 | 54880.59 $* | 57624.51 $* |
| Jan-15-2025 | 54390.52 $* | 57110.79 $* |
Характеристики
Product Overview

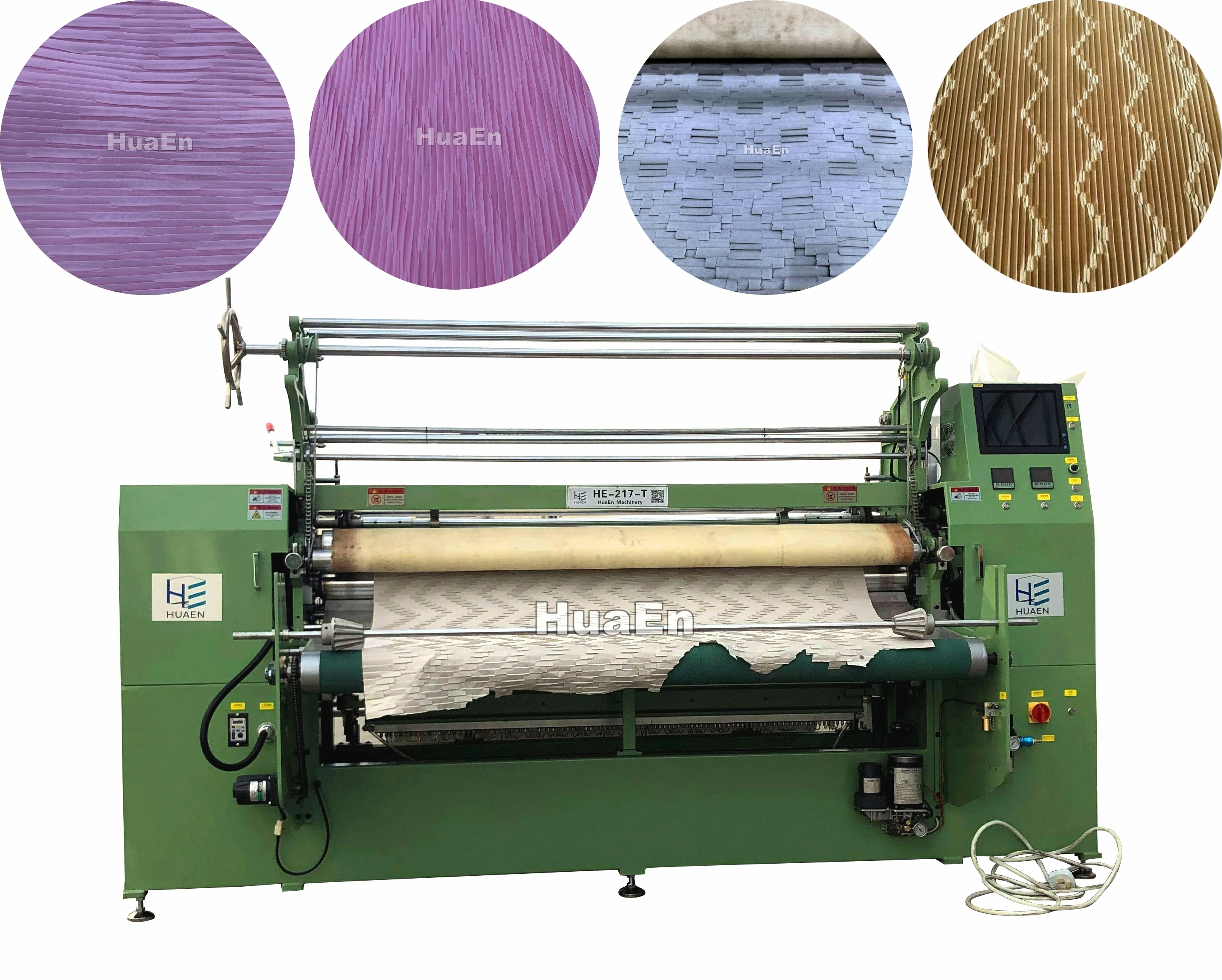

HE-217-T JACQUARD LOOM FOR PLEATING

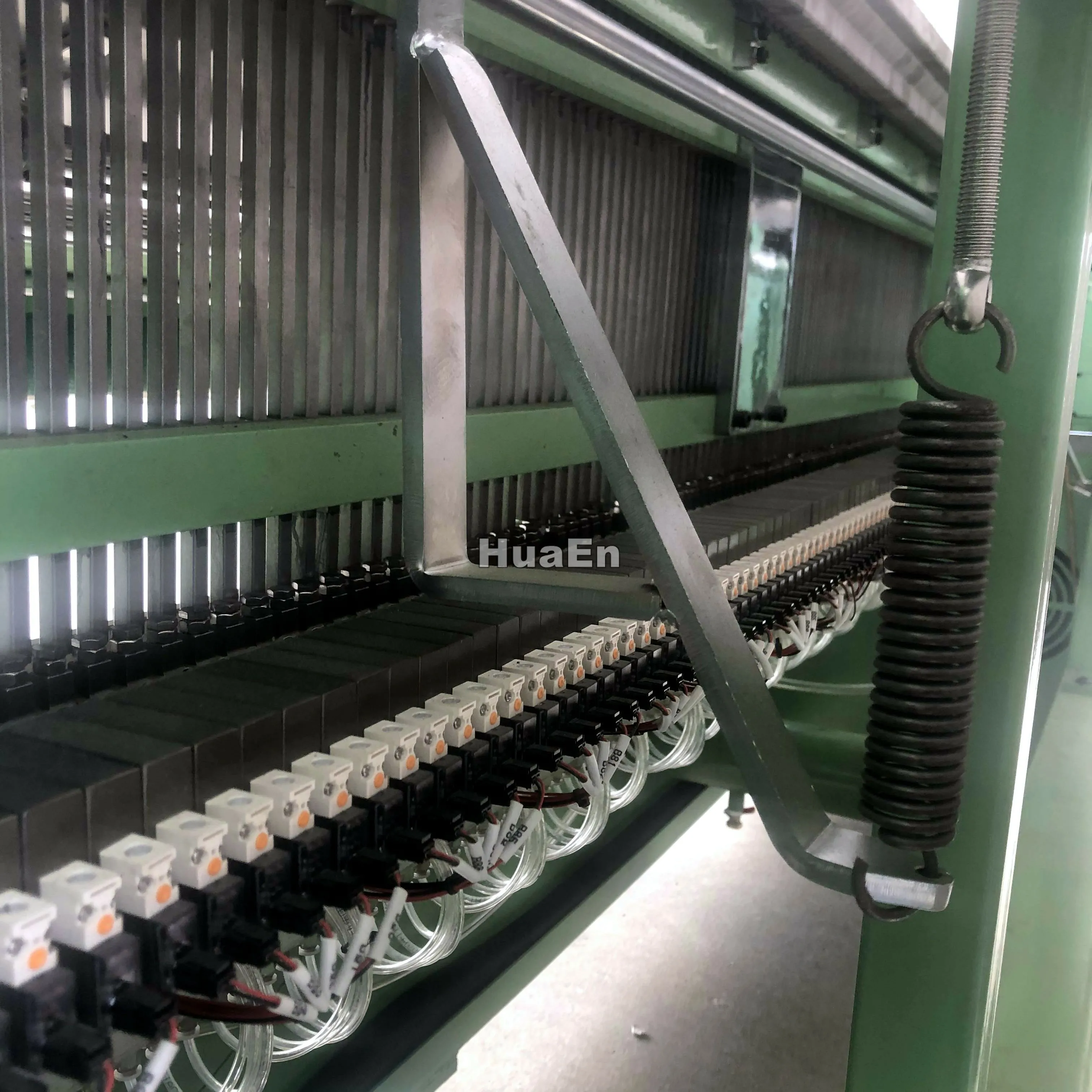

HE-217-T JACQUARD ROOM is applicable for fabric pleating (neither weaving nor kitting). It works with 100 pcs of independent pistons to push 100 pcs of independent "knives" regularly.
Pleat designs are programmed through PLC that is friendly to unskilled operators.

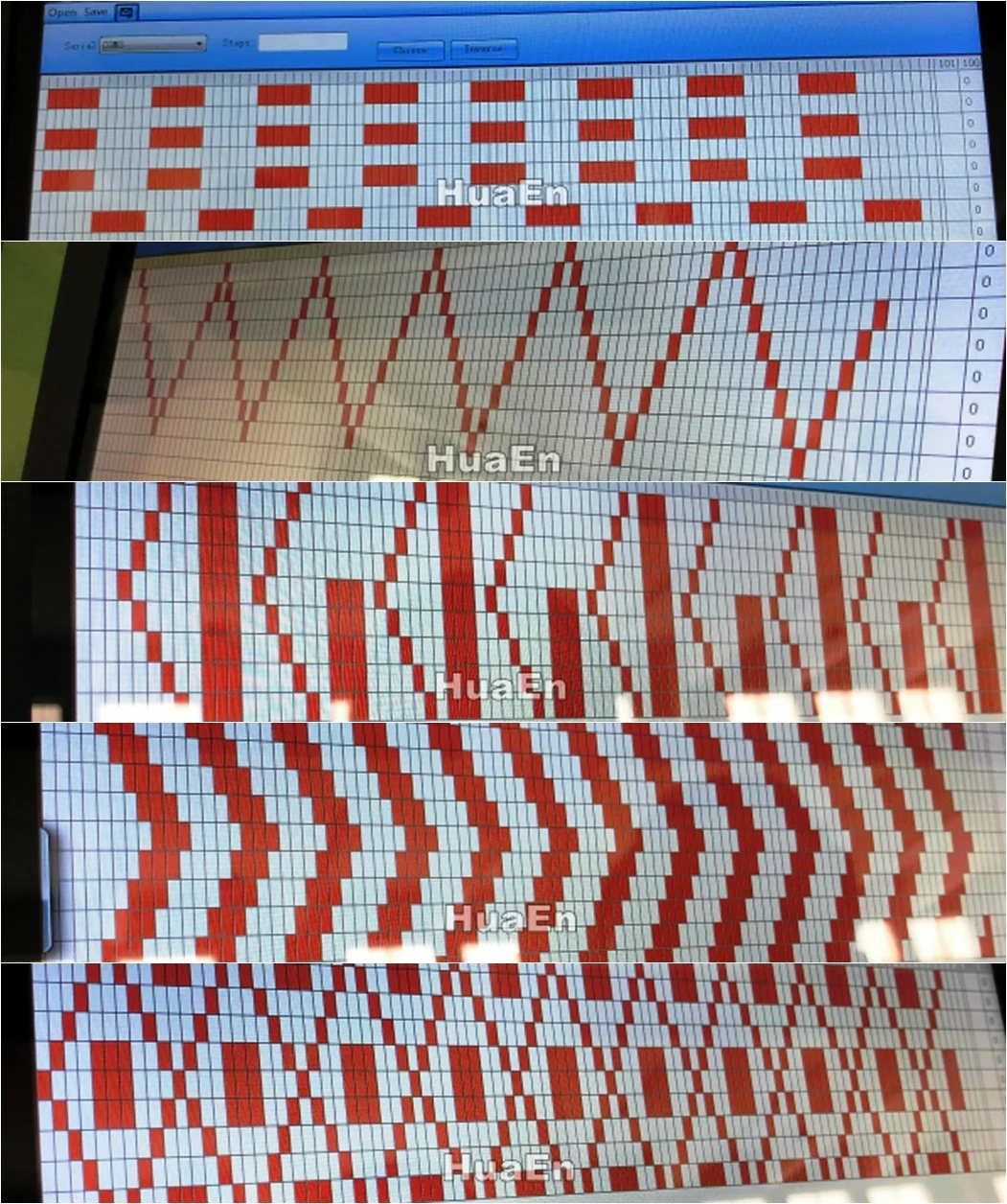

Jacquard loom designs

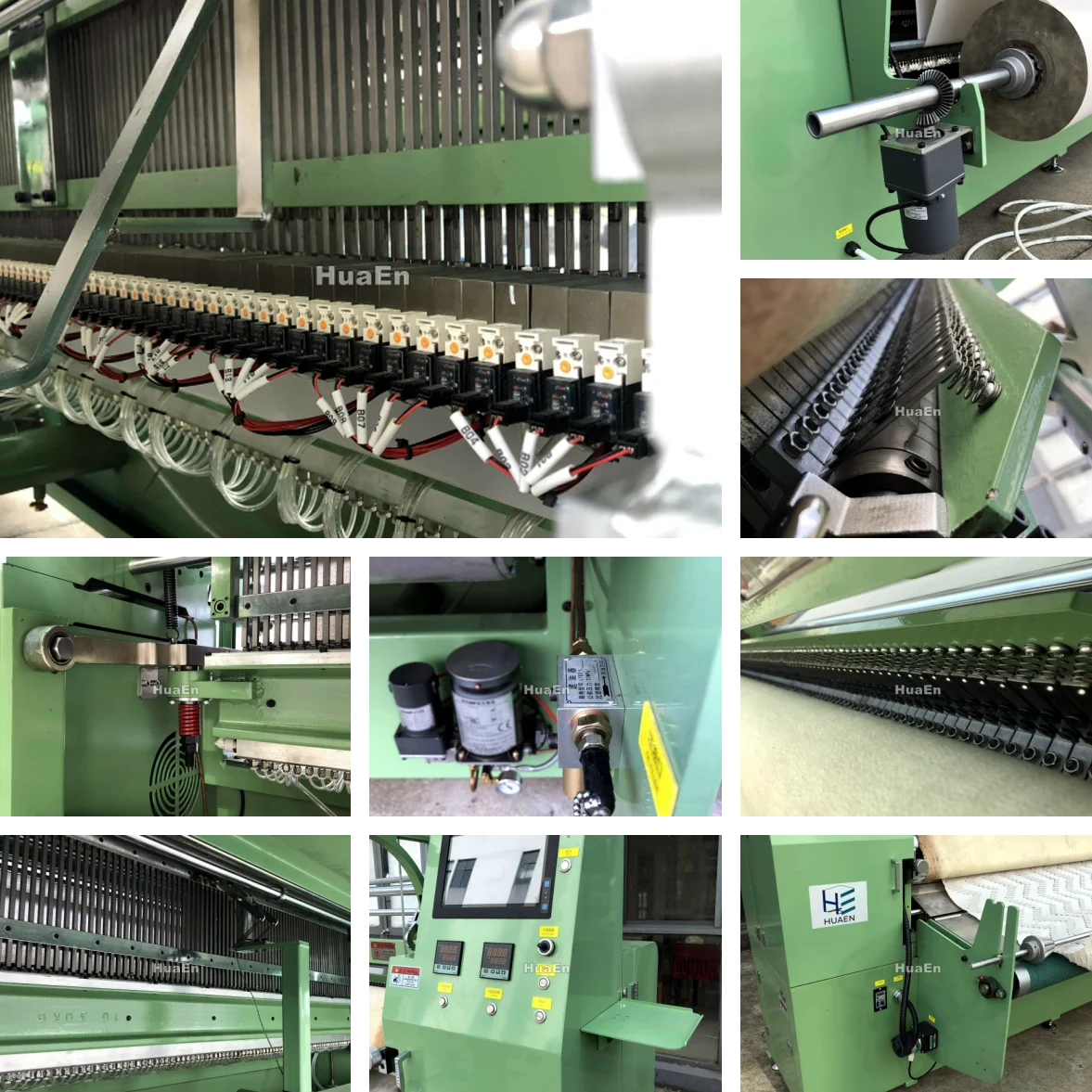

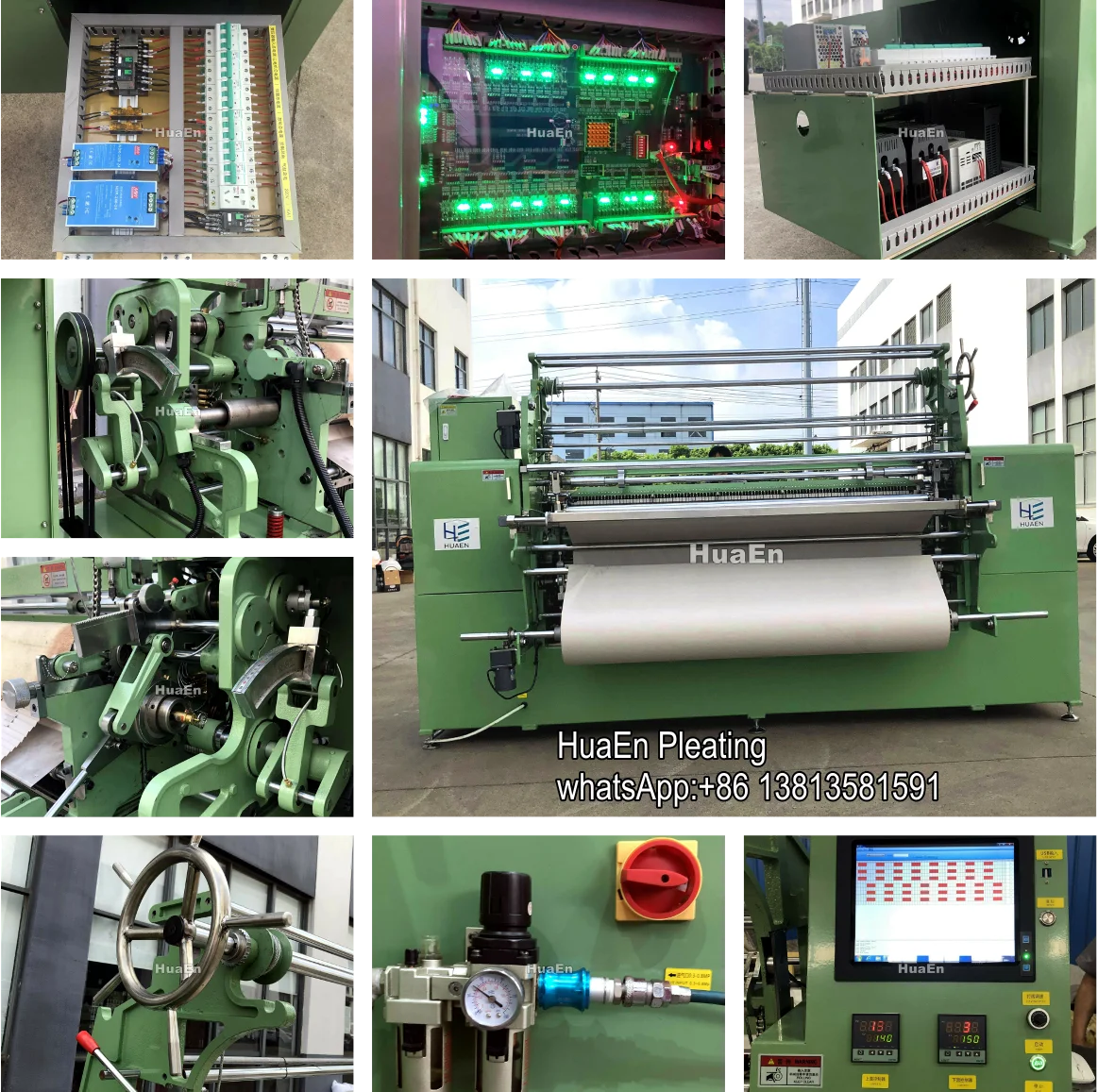

Details Images
PRODUCT SPECIFICATIONS
No | Item | Data | ||
1 | Motor Power | 1.5KW | ||
2 | Heating power | 1.1kW*9 | ||
3 | Operating weight | 1700kg | ||
4 | Qty. of pistons | 100pcs | ||
5 | Lubrication | Self-oiling / Automatic | ||
6 | Consumption | wool blanket & 30g smooth paper & compressed air | ||
7 | Pleating width | 1700mm | ||
8 | Pleating speed | 20-80 pleats/minutes |
PRODUCT CONFIGURATION
Windows system
PLC control
Pleat width and depth adjustable
Button lubrication automatically
Self-lubrication system.
SS304 and thickness up to 1cm
Robust machine for stable running
Extra mechanically stop and start
Not only computer stop and start
Product packaging
After-sale service
Certifications
