Реле общего назначения
- Категория: Relays >>>
- Поставщик: Wenzhou,Ningyue,Electric,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.10 $* | 0.26 $* |
| Aug-18-2025 | 0.55 $* | 0.34 $* |
| Jul-18-2025 | 0.23 $* | 0.14 $* |
| Jun-18-2025 | 0.4 $* | 0.74 $* |
| May-18-2025 | 0.86 $* | 0.59 $* |
| Apr-18-2025 | 0.1 $* | 0.31 $* |
| Mar-18-2025 | 0.38 $* | 0.61 $* |
| Feb-18-2025 | 0.90 $* | 0.99 $* |
| Jan-18-2025 | 0.4 $* | 0.16 $* |
Характеристики

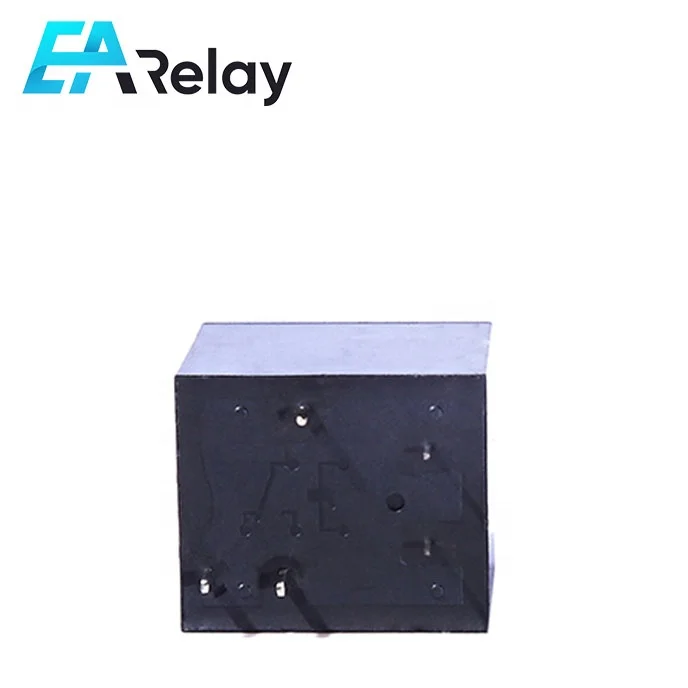

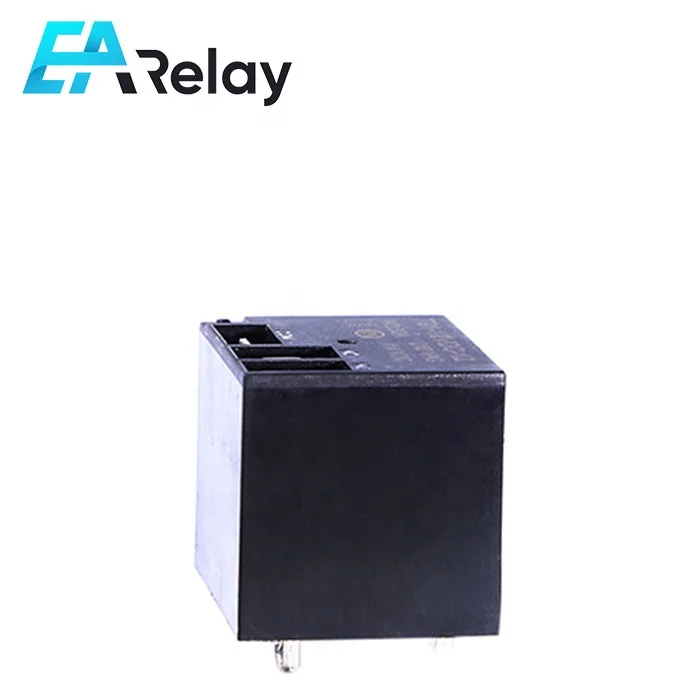

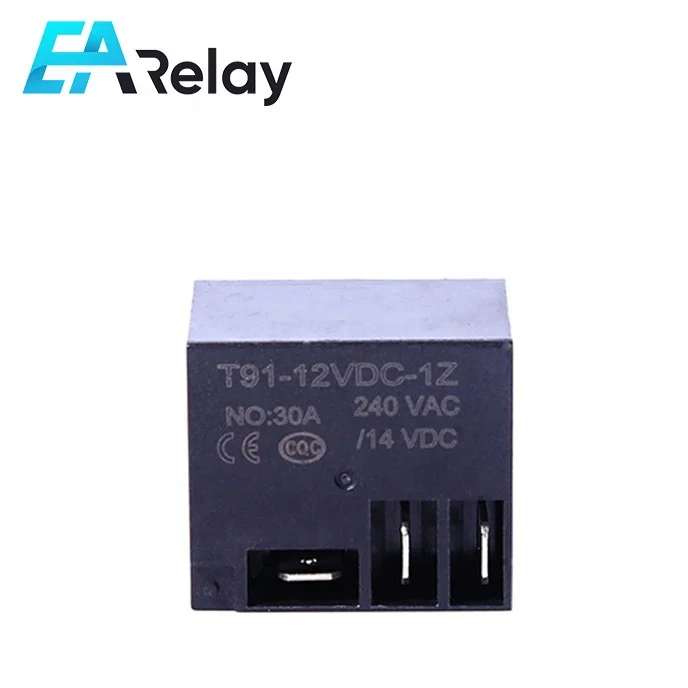

Product Display
Main Features
40A switching capability
1 form A、1 form C、contact form
Sealed IP65 and dust cover types
Outline dimensions: 32.4X27.5X27.8mm
1 form A、1 form C、contact form
Sealed IP65 and dust cover types
Outline dimensions: 32.4X27.5X27.8mm
Typical Application
* Universal, general-purpose
* – Projects and assemblies of electronic circuits on printed circuit boards ( PCB )
* – Projects and assemblies of electronic circuits on printed circuit boards ( PCB )
Specifications | ||
Contact Form | 1A, 1C | |
Contact Material | AgSnO2 | |
Max Operating Current | 40A | |
Max Operating Voltage | 250VAC/28VDC | |
Rated Load（Resistive load） | 40A 14VDC / 20A 28VDC 40A 125VAC / 20A 250VAC | |
Insulation Resistance | 100MΩ | |
Dielectric Strength（Coil and Contact） | 500VAC/M | |
Ambient Temperature | -40°C~+85°C | |
Operate/Release Time | 10ms/10ms | |
Mechanical Life | 1 X107 | |
Electrical Life | 1 X105 | |
Terminal Type | PC Board | |
Coil Ratings | ||||||||||||||
Standard | Normal voltage (VDC) | Pick-up voltage (VDC) | Drop-out voltage (VDC) | Coil resistance (Q±10%) | Parallel resistance (Q±5%) | Equivalent resistance (Q±10%) | Coil Power (W) | |||||||
12 | 8.4 | 1.2 | 90 | - | - | 1.6 | ||||||||
12 | 8.4 | 1.2 | 80 | 680 | 79.5 | 1.8 | ||||||||
24 | 16.8 | 2.4 | 360 | - | - | 1.6 | ||||||||
24 | 16.8 | 2.4 | 320 | 2700 | 317.6 | 1.8 | ||||||||
External Dimensions and Diagrams
Product Information
Company Profile
Payment & transportation
FAQ
1.What's your MOQ?
One carton (used to be 500 pieces) for air-shipping, and 5000 pieces for sea shipment.
2. How can I get quotation?
Just select your interesting items and click send for quotation, we’ll reply you details within 24 hours.
3. Whta's the delivery term?
Generally the quotation is bsed on FOB Ningbo/Shanghai.
4. What's the delivery time?
Generally 3 days for small orders and 7 days for bulk orders.
5. What's the payment terms?
30% deposit upon order confirmation, rest payment against copy of BL.
6. Why should I buy from you?
Choose us, you pay reasonable money to get best qulity items with ultimate technical support and services.
7. Payment Methods
a. Wire Transfer (also known as bank transfer, T/T)
b. Western Union / Money Gram
c. Paypal Payment (Credit Card Accept)
