Product Description

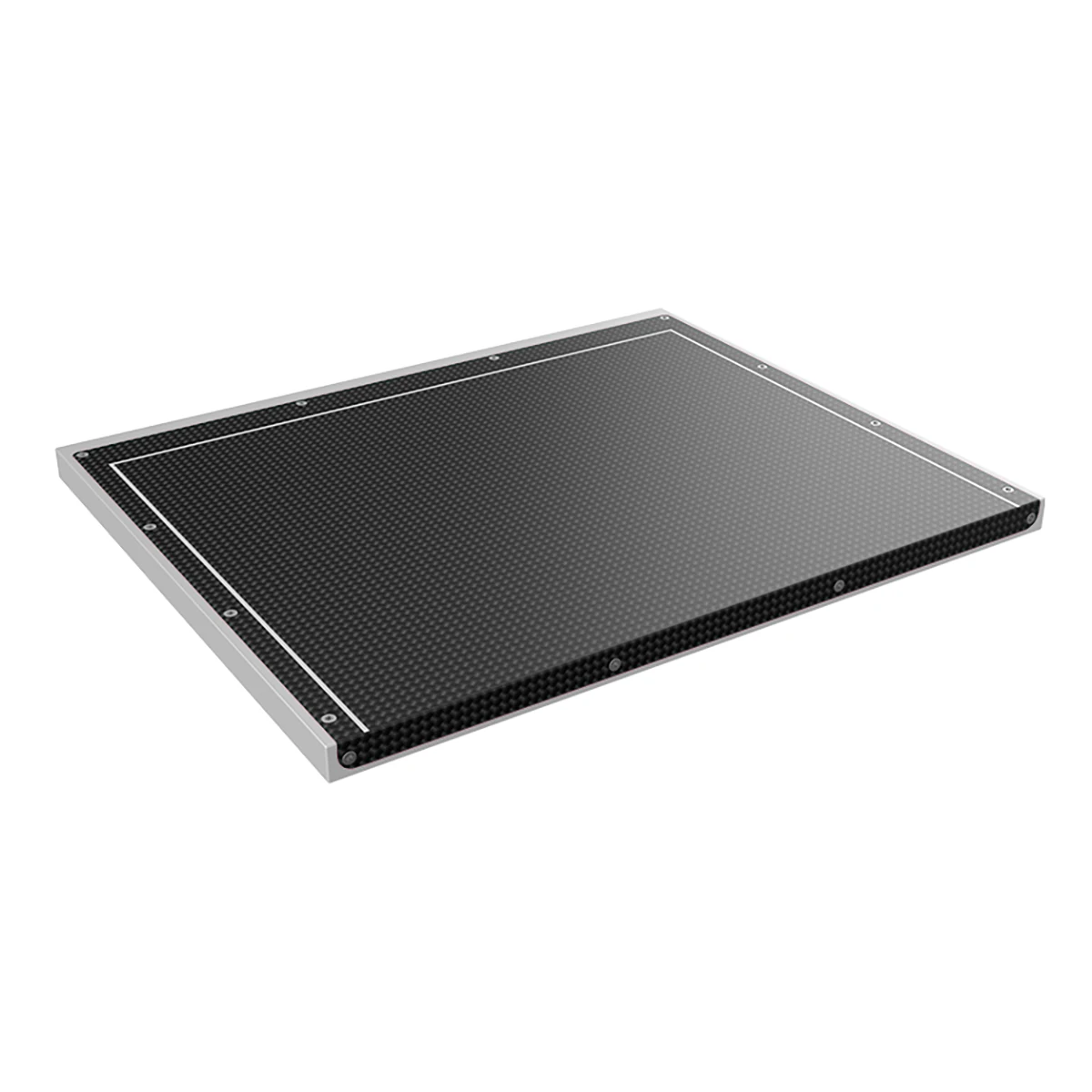

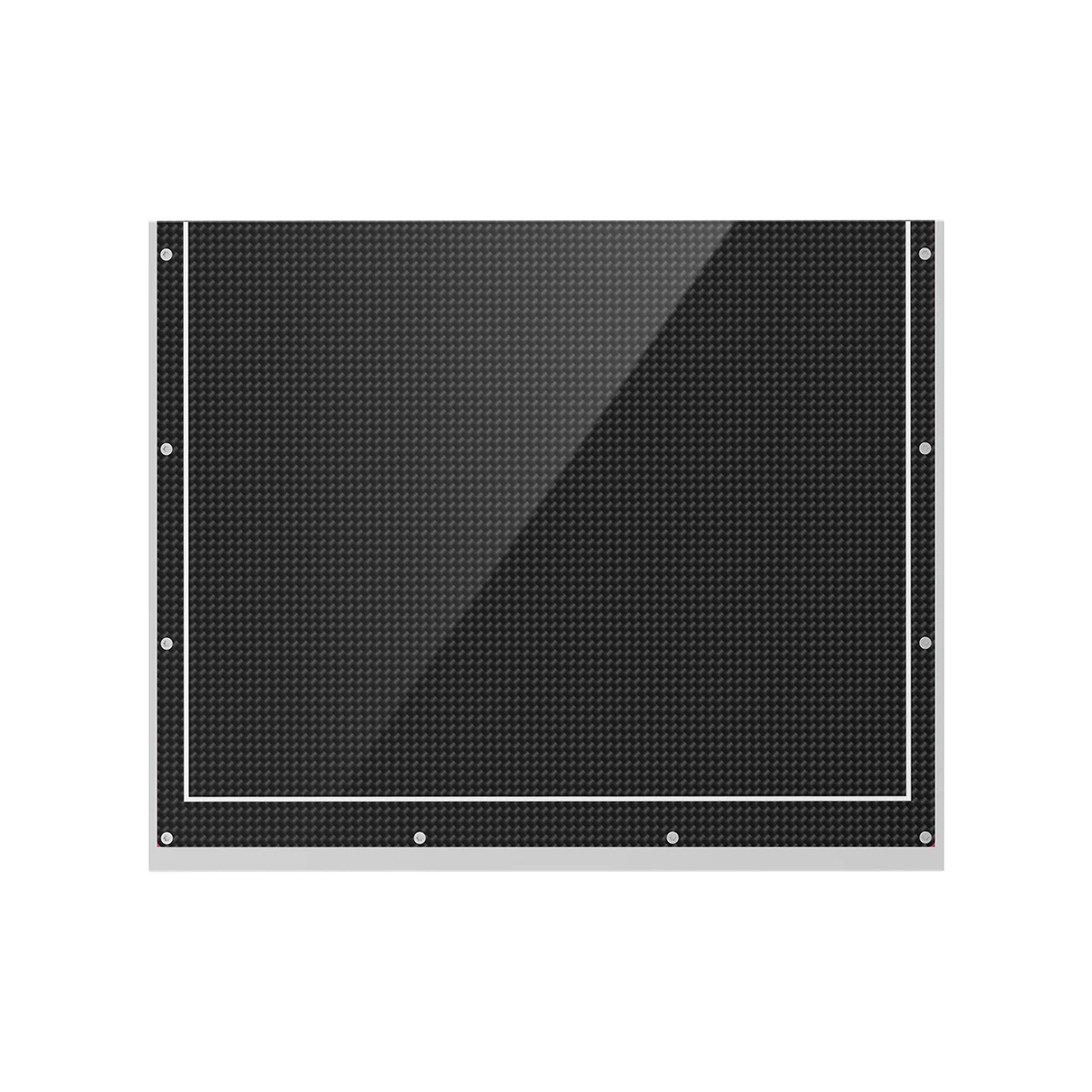

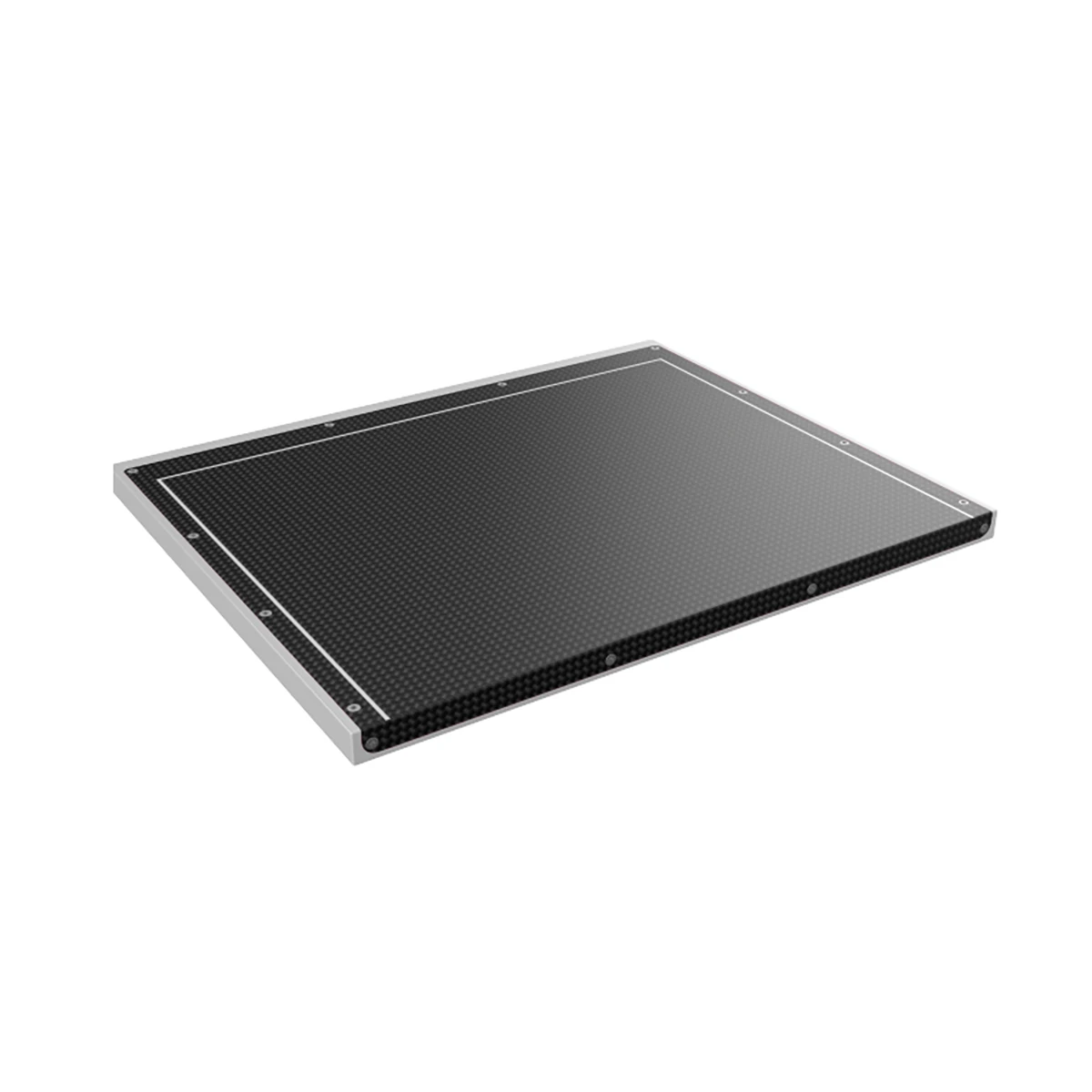

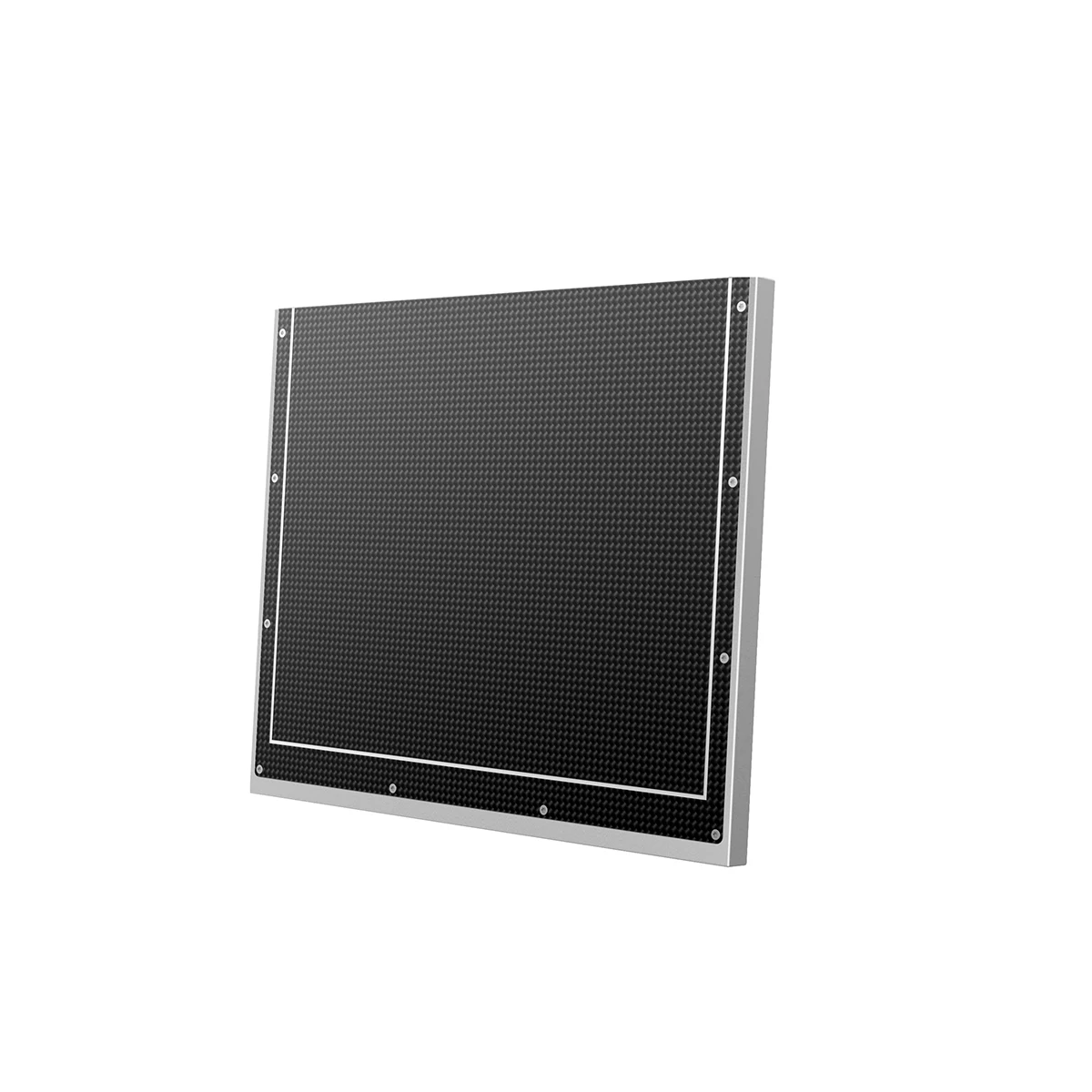

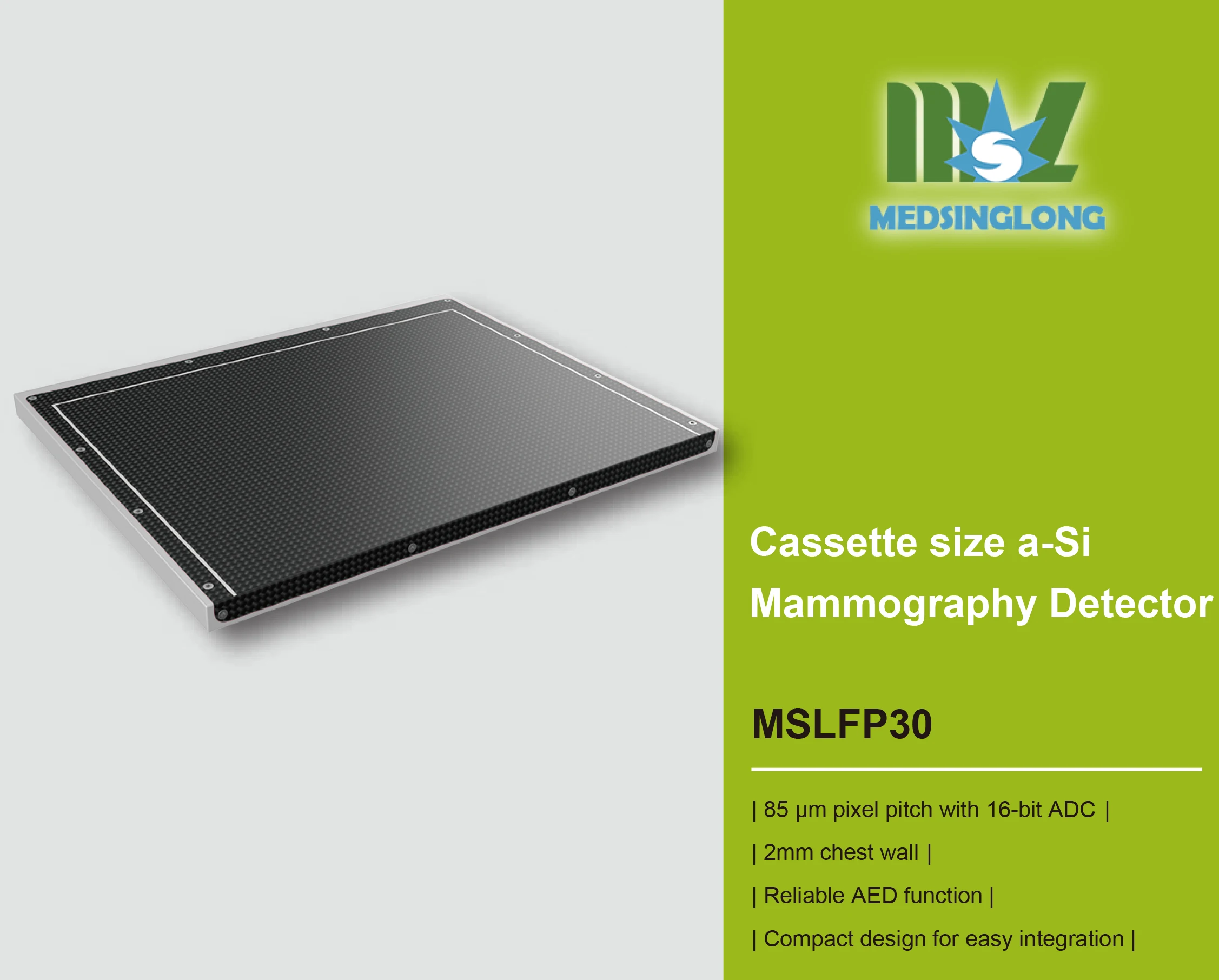

The MSLFP30 is a digital FPD detector with the patented Amorphous Silicon TFT sensor and needles directly deposited CsI: Tl scintillator technique of iRay technology. It is designed with the compact outline in order to retrofit the analog mammography system to digital. MSLFP30 has a quite large active area of 24x30cm with 85μm pixel pitch. The employed CsI (Cesium Iodide) scintillator makes the MSLFP30 achieve a special high DQE and MTF. The detector provides AED (Auto Exposure Detection) function via the specialized sensor to detect the X-ray for activing the FPD, and is also compatible with the existed AEC function of the analog mammography system. MSLFP30 supports FFDM applications.




Specification


Sensor technology
Amorphous silicon TFT/PD matrix panel
Scintillator
CsI (TI), needles directly deposited on the a-Si TFT panel
Pixel pitch
85µm
Effective active area
235mm x 290mm
Effective pixel matrix
＞ 2762 x 3408
AD conversion
16bit
Charge amplifier
Programmable gain amplifier
Energy range
25kV-40kV
Data\\Control interface

GigE
Trigger mode
Software, AED
AED function
Yes
Frame rate
2fps@Free run
Cycle time
Typical 15s
