80x80x38 мм Двигатель переменного тока 110 В 220 380 моторный Вентилятор промышленный вытяжной

Описание и отзывы

Трекер стоимости

Характеристики

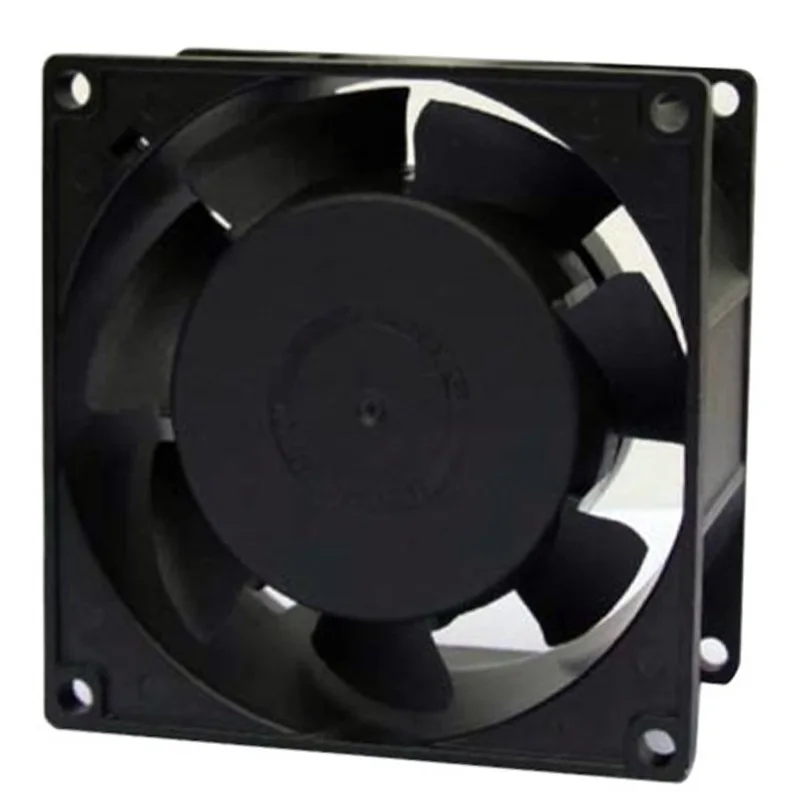

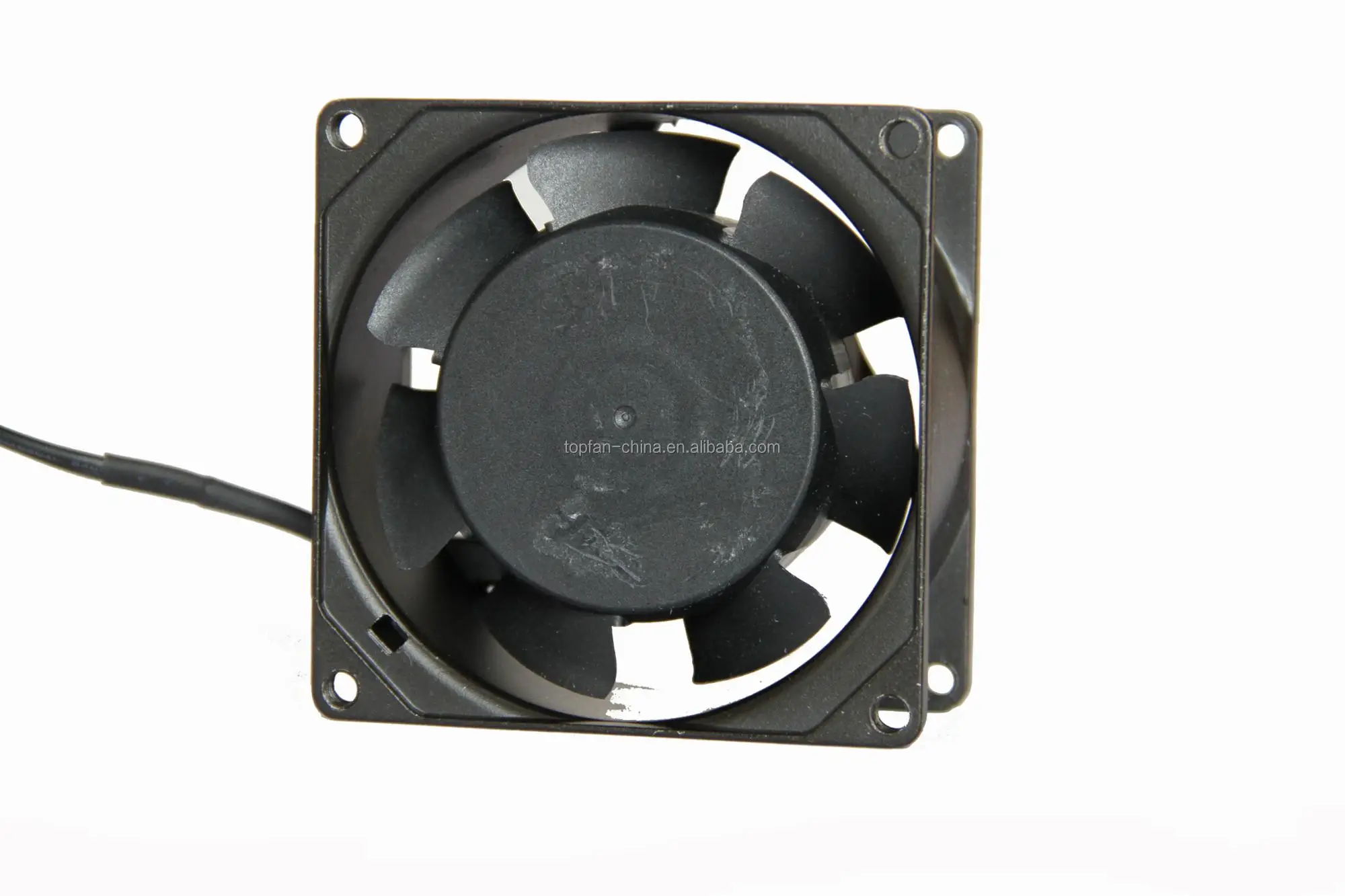

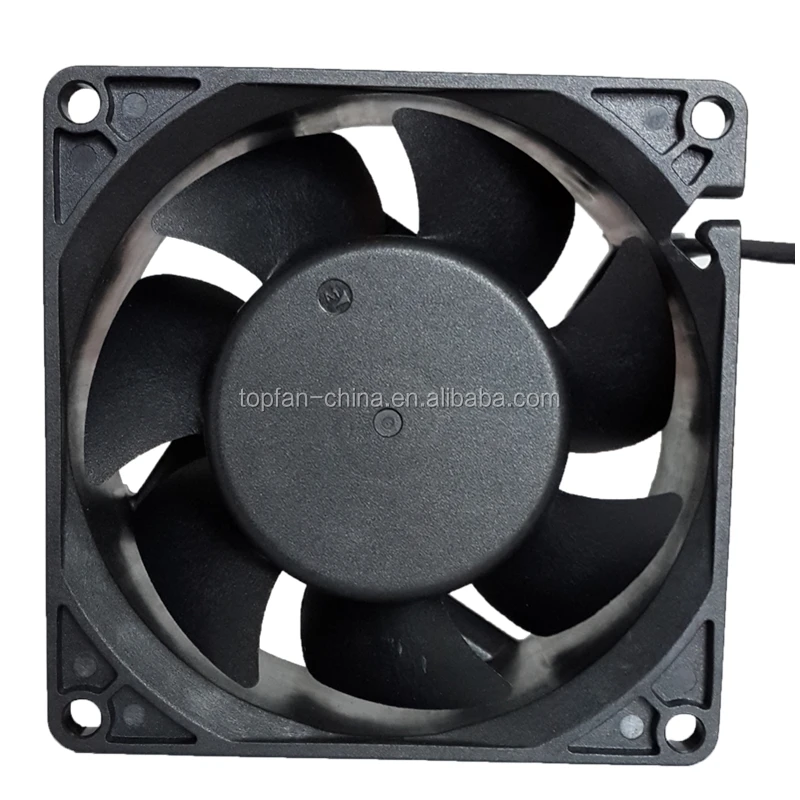

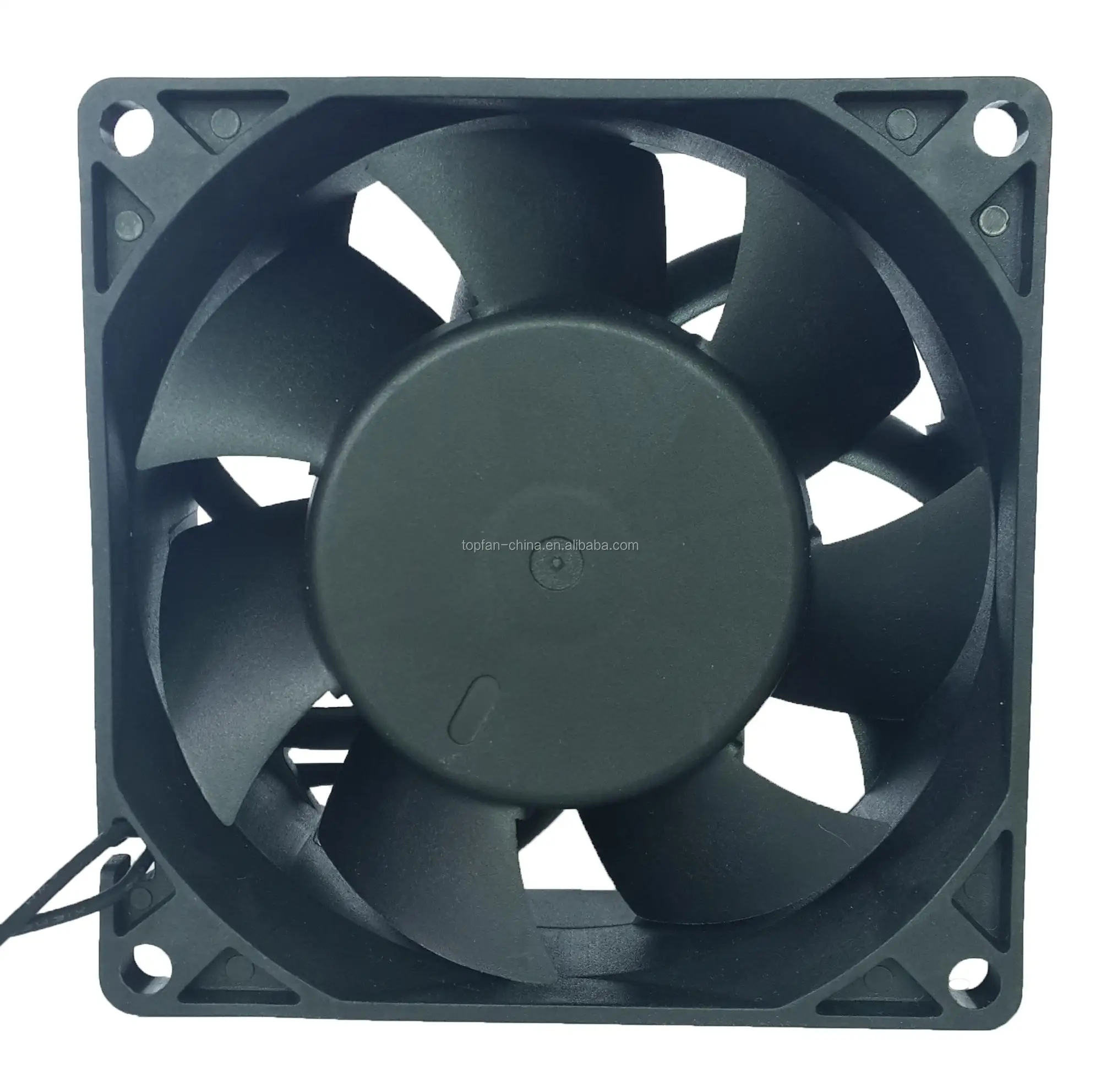

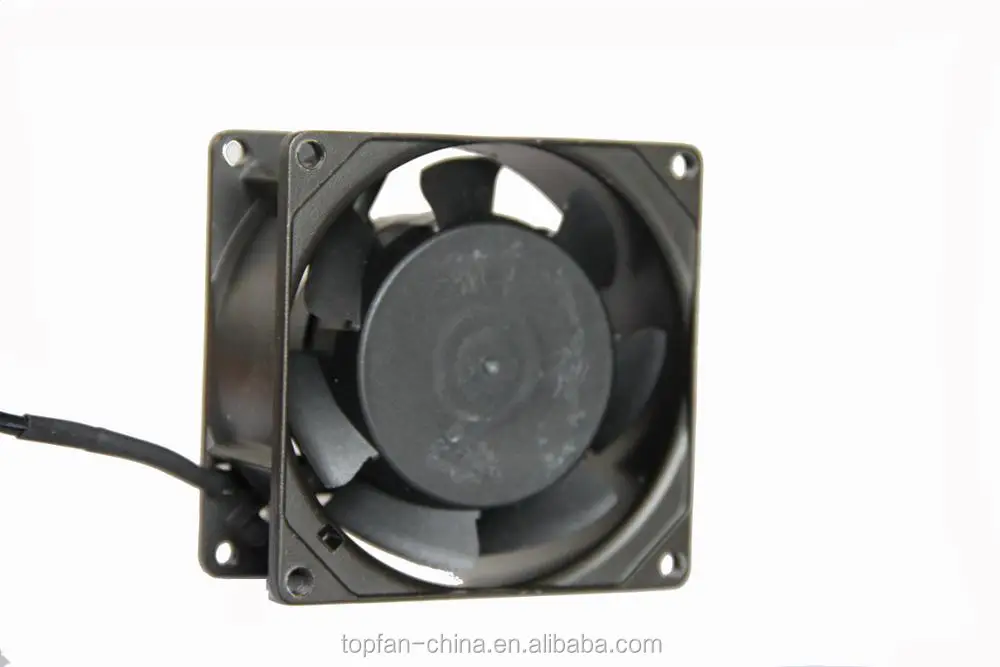

80x80x38mm AC Fan 110V 220V 380V Brushless Fan 80mm Exhaust Fan



Certifications: CE ROHS



Widely used in industrial equipment and medical equipment

Signal part is controlled by microcomputer





Model	Bearing    Type	Rated     Voltage	Freq.	Current        Amp	Input     Power	Speed	Max                             Air Flow		Max      Static Pressure	Noise     Level	Weight
Part No.	S B Y	VDC	Hz	Amp	Watt	RPM	CFM	m3/min	Inch-H2O	dB-A	g
MX8038ABH11	B	110/120	50/60	0.13	11	2600/3000	26/32	0.74/0.9	2.65/3.26	31/37	420
MX8038ABM11	B	110/120	50/60	0.12	11	2300/2700	25/29	0.7/0.82	2.54/2.95	30/35	420
MX8038ABH22	B	220/240	50/60	0.08	13	2600/3000	26/32	0.74/0.9	2.65/3.26	31/37	420
MX8038ABM22	B	220/240	50/60	0.07	13	2300/2700	25/29	0.7/0.82	2.54/2.95	30/35	420









Our company also developed and designed products including the following:

  A. Voltage category: DC voltage 3V, 5V, 12V, 24V, 48V, 74V, 110V, etc.;

                            AC voltage 24V, 48V, 74V, 110V, 220V, 380V, etc.;

     B. Bearing category:

     1. Sleeve Bearing: Working in an environment with an ambient temperature of 25°C and a relative humidity of 15% to 65%RH, the estimated life span is about 30,000 hours (about 3 years), and its price is cheap;

      2. ONE Bearing: The estimated service life is about 50,000 hours (about 4 years) when working in an environment with an ambient temperature of 25°C and a relative humidity of 15% to 65% RH, and the price is moderate;

3. Double ball bearing (TWO Bearing): It is estimated that the service life is about 50000-8000 hours (6 years) when working in an environment with an ambient temperature of 25°C and a relative humidity of 15% to 65% RH. The performance is stable but its price is reasonable ;

4. Hydraulic bearing (): working in an environment with an ambient temperature of 25°C and a relative humidity of 15% to 65% RH, the estimated life span is about 40,000 hours (about 3 years). Its price is more expensive than oil and cheaper than balls. It has a slightly longer life than oil-impregnated bearings, and the manufacturing process is slightly more complicated.

 C,Size(mm):

1,mini fan:1004,1204,1504,1708,1804,2006,2008,2508,2010,3004,3007,3006...

2,axial DC FAN:2006,2010,2507,2510,3007,3010,3015,3510,4010,4015,4020,4028,4510,4056,5010,5015,5018,5020,5025,6010,6015,6020,6025,6028,7010,7015,7020,7025,8010,8015,8020,8025,8038,9025,9038,12025,12032,12038,14025,17251,18060,20060,25489......

 3,DCBlwoerFAN:1504,1804,2006,2508,3007,3010,3015,3510,4010,4015,4020,4028,5010,5015,6015,6018,6028,7015,7525,7530,9330,9733,12032,13040....

4. EC FAN (AC TO DC FAN) :6025, 7025, 8025, 8038, 9025, 9038, 12025, 12038, 17251, 18060, 20060, etc. Tomorrow xin also committed to the research and development production of large size high power fan at the same time, the research and development of large size fan is not just 12038, 17251, such as heat dissipation axial flow fan also includes  92, 100, 120, 133, after 175, 225,  250 tilting type centrifugal fan, as well as air purifier, smoke lampblack machine and other special developed  200, 246, 300, 450 and other large type centrifugal fan.

5. AC FAN :6025, 7025, 8025, 9225, 9238, 12025, 12038, 17251, 18060, 20060, 22060, 25489 and other fans

6. Centrifugal fans: 90mm, 100mm, 120mm, 130mm, 140mm, 150mm, 225mm, etc.











Double ball bearing (TWO Bearing): When working in an environment with an ambient temperature of 25 ° C and a relative humidity of 15% to 65% RH, the estimated life is about 50,000 hours (6 years), the performance is stable but its price is expensive;

  C, series specifications

  Blower (DCBlwoerFAN): 40-50-60-70





Centrifugal fan: 90mm, 100mm, 120mm, 130mm, 150mm, 225mm, etc.



The characteristics of the products produced by our company: brushless DC, low power consumption, low noise, long life, ultra-small and ultra-thin, lead-free and environmentally friendly, high safety, good running stability, and low vibration. Our company has its own mold injection department, which opens its own mold and injection, which not only reduces the cost of the fan, but also controls the quality of the fan more in place. It can also be opened according to the customer's drawings, and the sample production can be put into production.



Hope to cooperate with you, welcome to contact with us

Thanks
