Всего 30 кг металлическая Кредитная карта для ювелирной разметки 20W 30W 50W Мини волоконная Лазерная гравировальная лазерная
- Категория: Industry Laser Equipment >>>
- Поставщик: Jinan,Zhancheng,Automation,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 1607.62 $* | 1687.42 $* |
| Aug-19-2025 | 1593.40 $* | 1673.96 $* |
| Jul-19-2025 | 1337.82 $* | 1404.74 $* |
| Jun-19-2025 | 1566.20 $* | 1644.66 $* |
| May-19-2025 | 1364.76 $* | 1432.71 $* |
| Apr-19-2025 | 1539.52 $* | 1616.82 $* |
| Mar-19-2025 | 1526.68 $* | 1602.16 $* |
| Feb-19-2025 | 1512.77 $* | 1588.82 $* |
| Jan-19-2025 | 1499.43 $* | 1574.61 $* |
Характеристики

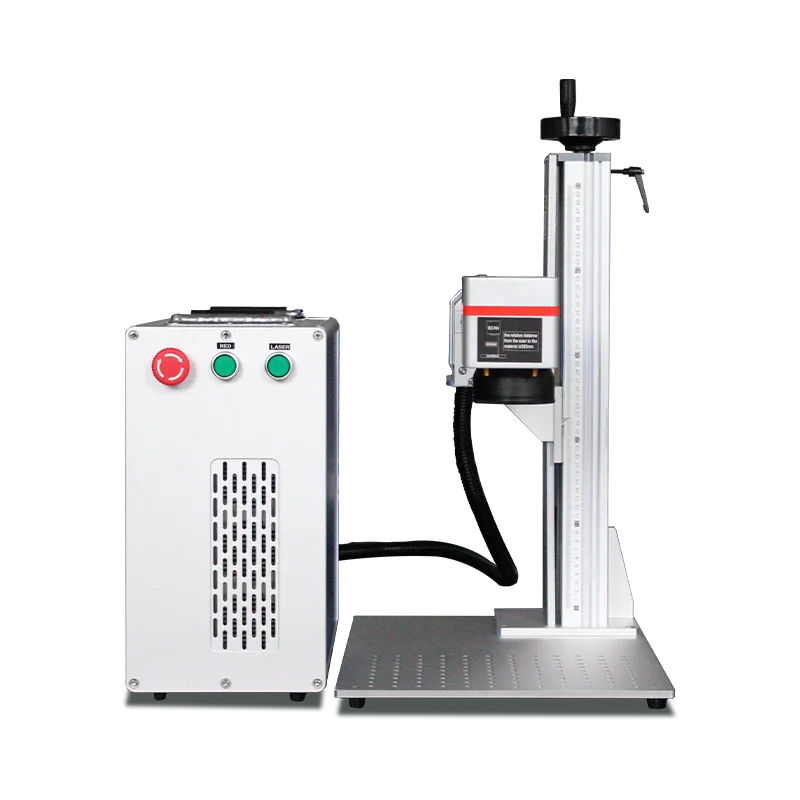

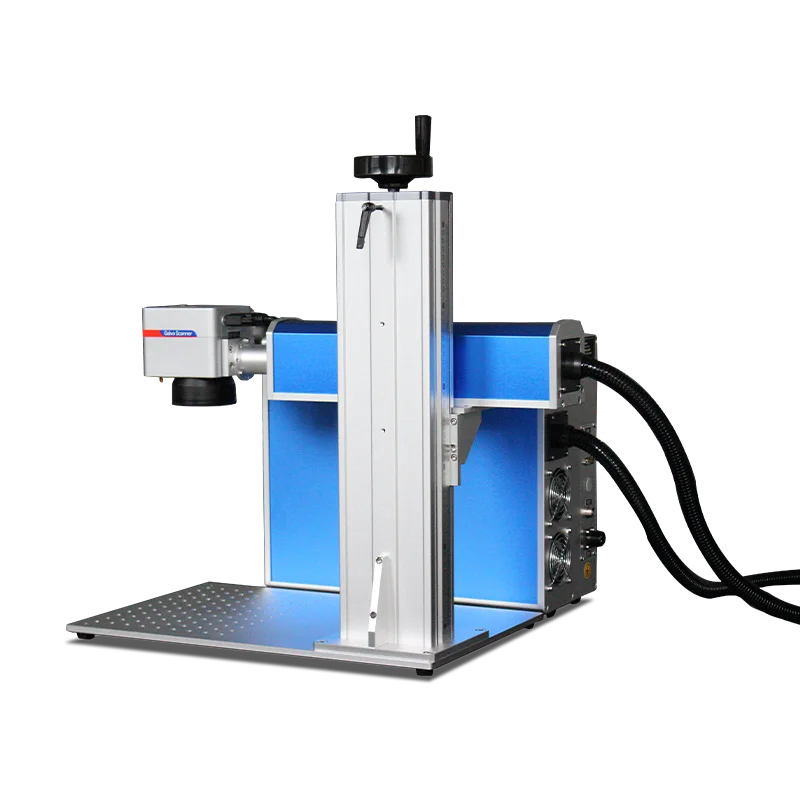

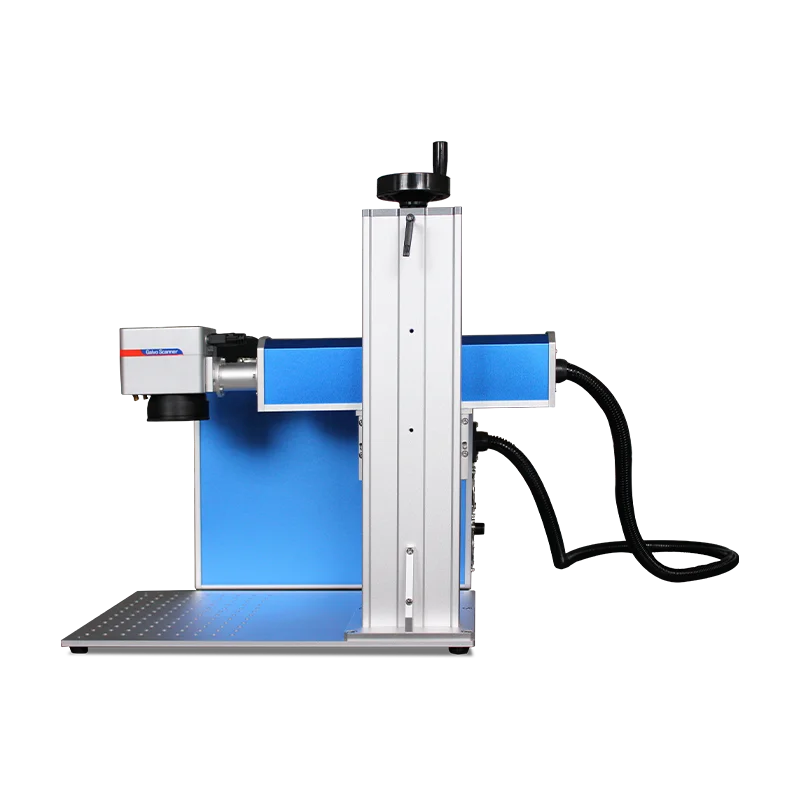

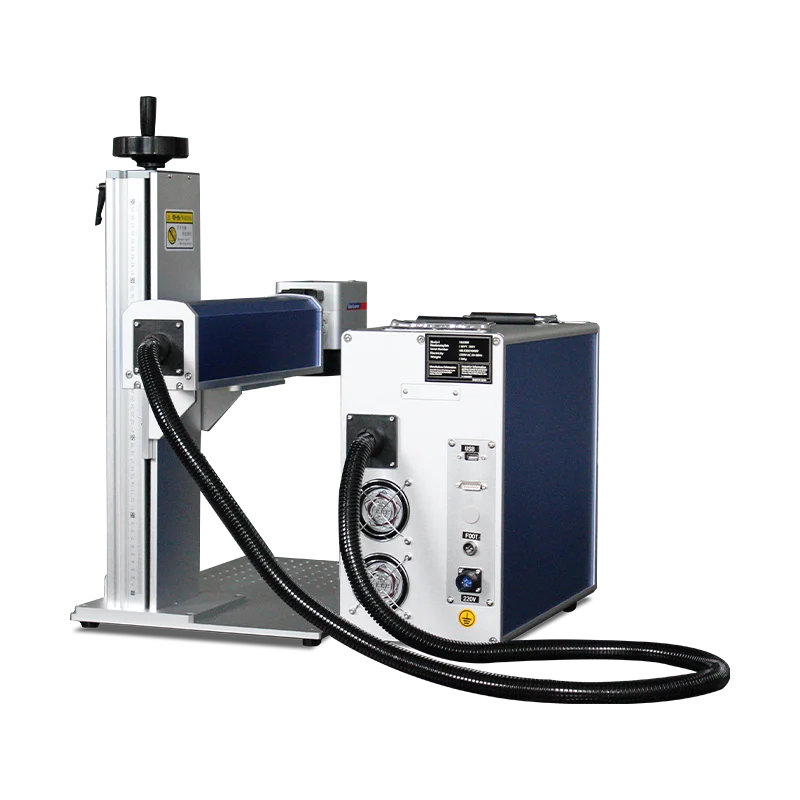

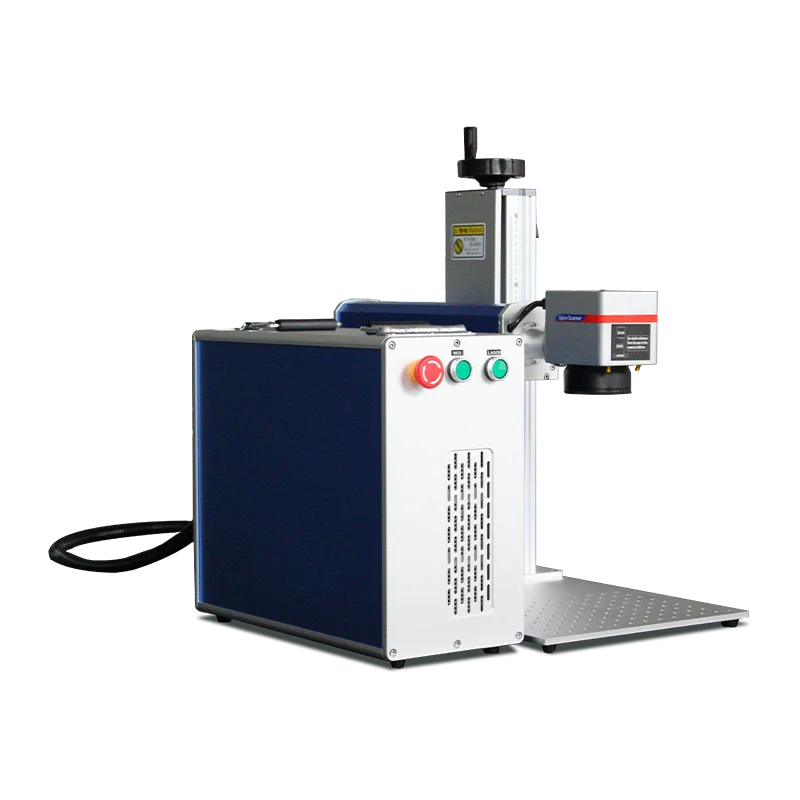

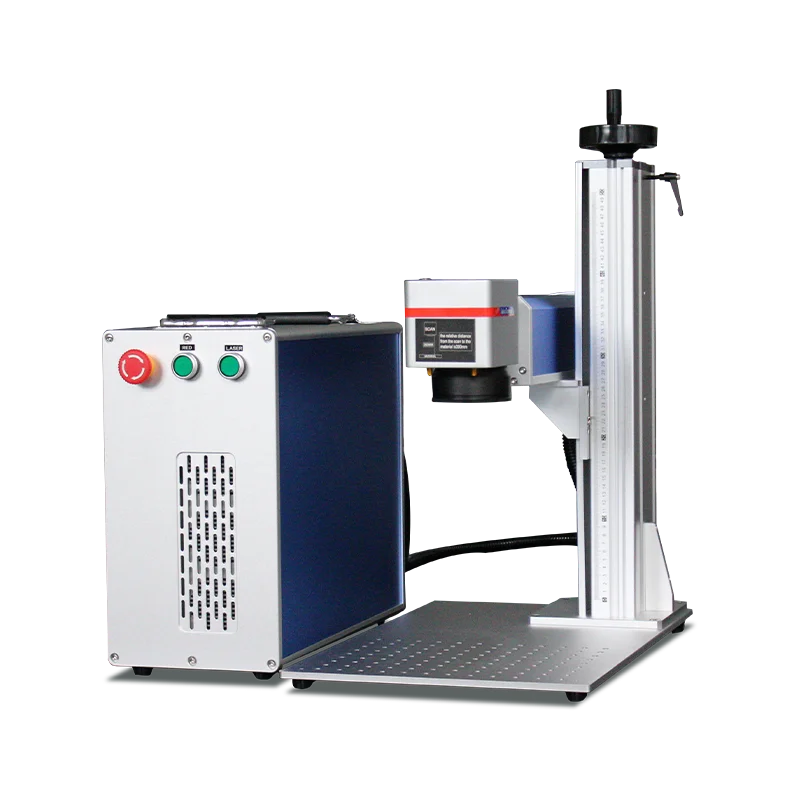

Only 30KG Metal Credit Card Jewelry Marking 20W 30W 50W Mini Fiber Laser Engraving Laser Iron Machine
Products Description
Laser Marking Machine Recommended Reason
Fiber Laser Marking machine,with Raycus/MAX/JPT/IPG laser source,can mark on the metal,with the smallest size 0.5mm,can mark the small letters on the metal. It not only can engrave metal but also can cut some thin metal plate for high power machine.
Multi-functional
It could Mark/Code/Engrave un-removable serials Numbers,batch Numbers, Expiry info, Best Before date,logo&any Characters that you
want.It could also mark QR code.
want.It could also mark QR code.
Simple Operation, Easy to use
The marking software supports almost all common formats, Just setting the simply program and click start can start to mark.
Optional rotary axis for different cylindrical
Optional rotary axis can be used to mark on different cylindrical objects. Such as ring, bracelet, bottle etc.
Different Colors For Options(All On Sale!) | ||
Model | ZCGX-DS | |
Laser Power | 20W 30W 50W 60W | |
Laser Source | Raycus/JPT/MAX/IPG | |
Marking Area | 110*110/150*150/175*175/ 200*200/300*300mm | |
Control Card | BJJCZ | |
Software | EZCAD Marking Software | |
Wavelength | 1064nm | |
Cooling Method | Air-cooling | |
Core Parts
Sino-Galvo Scanning Head
Marking Speed: 7000mm/s
Tracking Error: ≤180us
Small step response time: ≤0.4ms
BJJCZ Control Card
The international popular JCZ board and EZCAD operating software, easy to learn, accompanied by software manuals, to facilitate customer learning.
Raycus/JPT/MAX Laser Source
High peak power, high single pulse energy, and optional spot diameter. They can be widely used in non-metallic materials, such as gold, silver, copper, aluminum and non-high reflective materials such as stainless steel. In the fields of marking, precision machining, graphic engraving, etc., its marking application process is cheaper than traditional lasers and has more stable performance.
Up And Down Column
1.Our standard up and down column is 50cm in height, users can adjust the focal length of laser beam through the manual handle.
2.If you choose bigger marking size lens, we recommend you highten the column to 80cm.
3.If you choose autofocus galvo scanning head, we will configure electric up and down column for you.
Electric Button
Emergency stop button;
Laser button;
Red light button
Red light button
Metal material of higher quality and long working time.
Meanwell Power Supply
The world top pioneer manufacturer of standard power supplies in industrial machine.
1. Taiwan“MW" power supply with stable performance.
2. Professional technology and long lifetime.
1. Taiwan“MW" power supply with stable performance.
2. Professional technology and long lifetime.
Gift Tool Box For You
Free tool box with machine, there are protective glasses, power cable, foot switch, positioning bar, screwdriver, allen wrenches in it.
Sufficient tools will help you easily set-up the machine.
Real Manufacture With Own Professional Factory, Special Design Can Realized▶
Application&Advantage
Applicable material:
1. All metals: gold, silver, titanium, copper, alloy, aluminum, steel, zinc, stainless steel, carbon steel / mild steel, electrolytic plate, brass plate, galvanized sheet , Aluminum, all kinds of alloy plates, all kinds of sheet metal, rare metals, coated metal.
2. Non-metallic: non-metallic coating materials, industrial plastics, hard plastics.
Applicable industry:
1.Electronic Components: Resistors, Capacitors, Chips, Printed Circuit Boards, Keyboard, etc. 2.Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.3.Instrument: Panel Board, Nameplates, Precision equipment, etc.
4.Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.
5.Automobile Parts: Pistons&Rings, Gears, Shafts, Bearings, Clutch, Lights.
6. Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.
7. Part of nonmetals such as plastic animal ear tag, ear tag marking, pig ear tag marking, pet bowl marking etc.
————————Click Sample Photo To Watch Sample Making Video Online————————
Nylon Plastic Ear Tag
The text information of the two-dimensional code of ear tags is marked with a laser marking machine, which has the advantage of being color-resistant and permanent.
Logo Marking
The laser marking machine can burn a black mark on the metal surface with a laser, and can complete the marking of Logo, house number, etc.
Deep Relief Engraving
High power machine is suitable for deep engraving, specially for relief result, we recommend you choose 2.5D machine to make STL. file.
Bottle Cup Marking
The machine can be equipped with rotating shafts and other accessories, and can mark on curved surfaces such as bottles, cups, etc.
Jewelry Making
Laser marking machine is suitable for jewelry making, the software can import vector diagrams, and design drawings in various formats can be used
Metal Accessory
Suitable for marking pet tags, personalized customization, clear patterns, support for pictures and text.
More Applications You Want To See, Contact Our Online Customer Support Alice Yuan▶
Customer Feedback
Company Profile
Jinan Zhancheng Automation Equipment co., LTD. is a professional research and development, production and sales of laser equipment enterprises. Companies and many large well-known enterprises at home and abroad to establish long-term stability of the interactive relations of cooperation, for most users to provide perfect laser processing solutions and the corresponding supporting facilities, widely used in auto parts, instruments, measuring tool cutting tools, electronic communications, aerospace, petrochemical, military products, medicine, food packaging, etc.
5000+ laser marking machine products have been sold!!!
300+ customers have cooperated!!!
300+ customers have cooperated!!!
Absolute genuine guarantee, comprehensive after-sales service, and experienced technical staff!!
Real Manufacture, Each Machine Will Be Checked Carefully Before Delivery⭐⭐⭐⭐⭐
24 Hours Continuous Test, Guarantee Machines Are In Good Condition⭐⭐⭐⭐⭐
Remote software teaching support, email/WhatsApp/Tel online service⭐⭐⭐⭐⭐
24 Hours Continuous Test, Guarantee Machines Are In Good Condition⭐⭐⭐⭐⭐
Remote software teaching support, email/WhatsApp/Tel online service⭐⭐⭐⭐⭐
Patent and CE Certification
*Our company has obtained a number of qualification certifications, which makes our product quality, delivery and purchase more complete and guaranteed.
*What we present is all formal, no concealment, no deception is the working attitude of all members of our ZCLASER.
* Consider the problem from the perspective of the customer and make the best effect.
* Consider the problem from the perspective of the customer and make the best effect.
Shipping And Packing
1. first we will wrap it with plastic wrap to prevent dust;
2. then wrap a layer of foam to protect the corners and corners;
3. wrap the carton with another layer to fix the machine,
4. and finally use a wooden box on the outside.
**The size of the wooden box is customized, so the machine will not shake and bump corners.
2. then wrap a layer of foam to protect the corners and corners;
3. wrap the carton with another layer to fix the machine,
4. and finally use a wooden box on the outside.
**The size of the wooden box is customized, so the machine will not shake and bump corners.
FAQ
1. Could I have prices of your products?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
3.Will the package damaged during transportation?
Our package is considerate all the damage factors and make it to be safe, please contact our online service to see our strict package process.
5.If I want to ship by express, how to save shipping cost?
We provide the carton package with peal cotton which will light in weight and of high safety.
2.How can choose a suitable machine?
Please tell me your: 1) Max work size:choose most suitable model.2) Materials and Cutting thickness:choose most suitable laser and power.
4.How to install and run the machine?
We provide whole installment video of both portable and desktop machine, and we offer remote teaching for software installment.
6.When will you make delivery after receiving order?
For no customization design type, delivery time will almost within 7 working days, welcome to contact our online sale.
