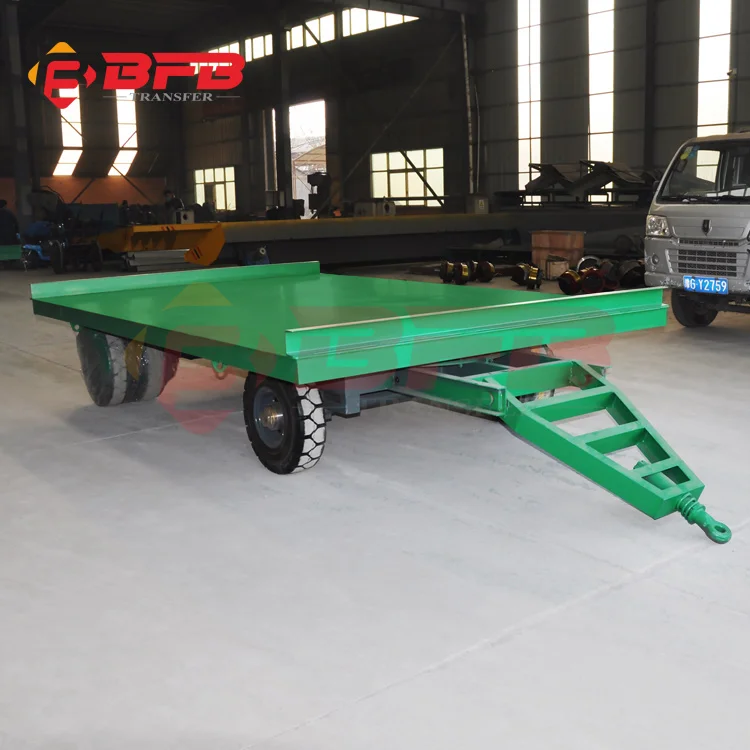

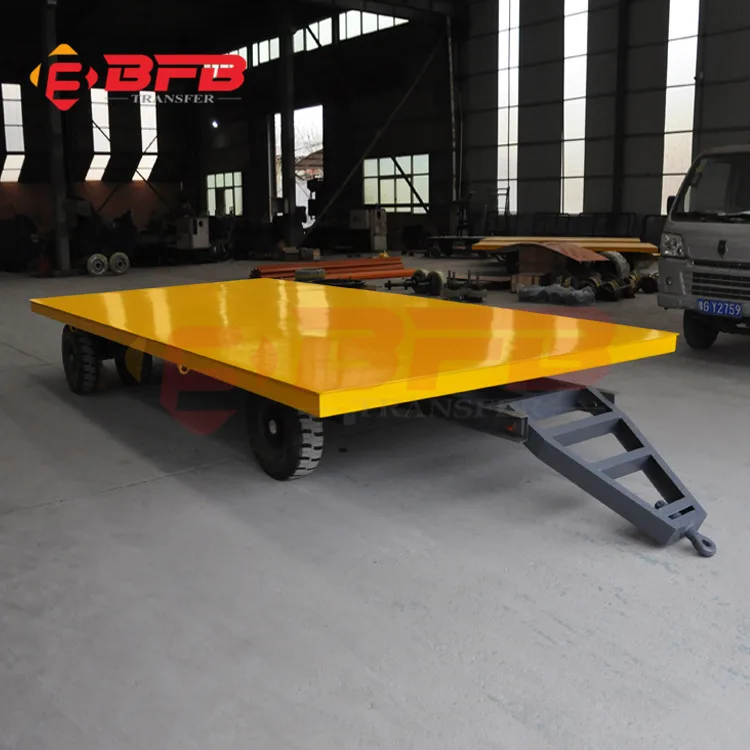

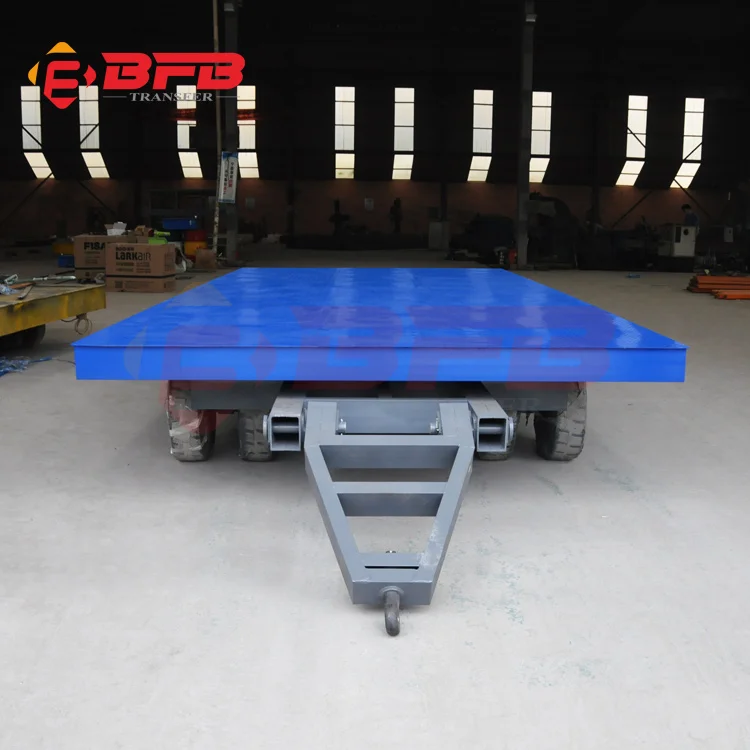

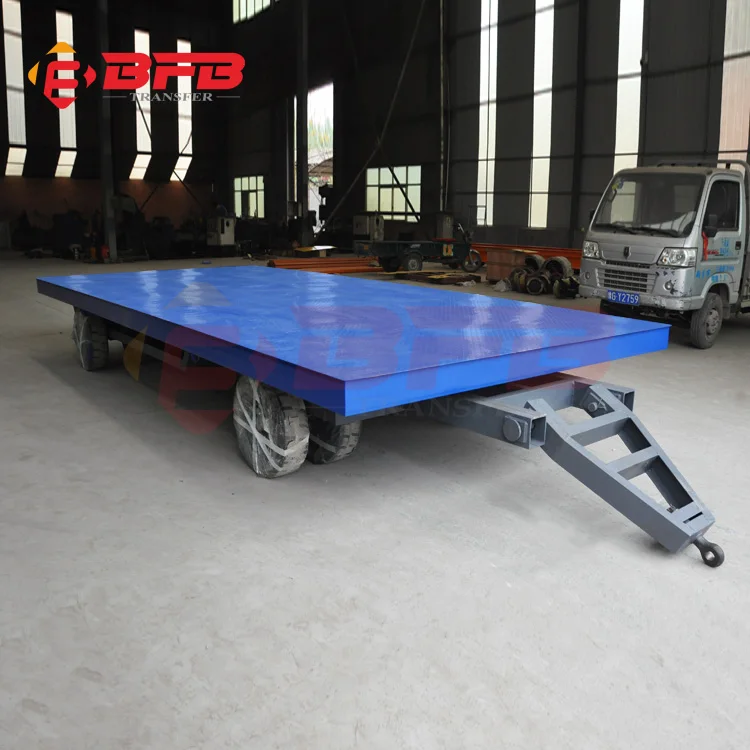

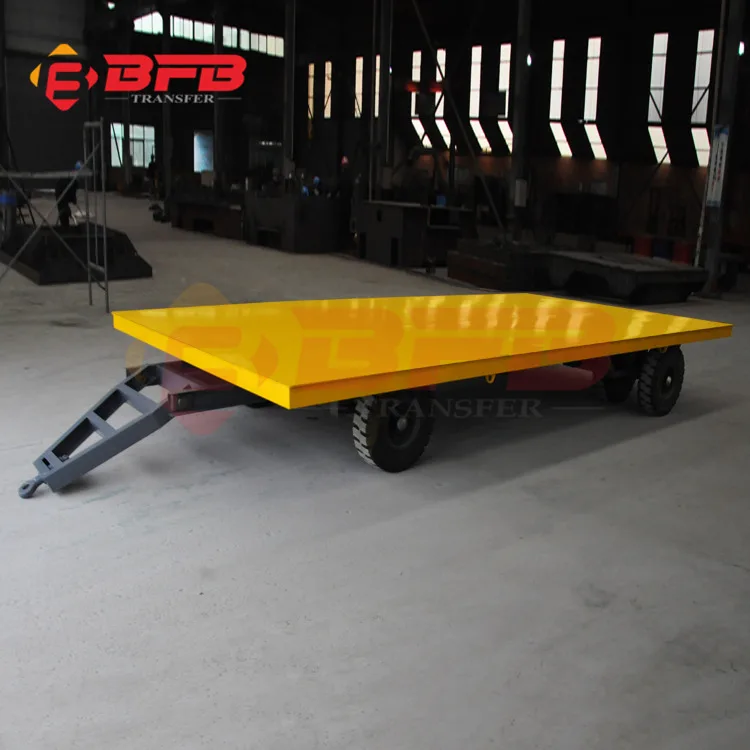

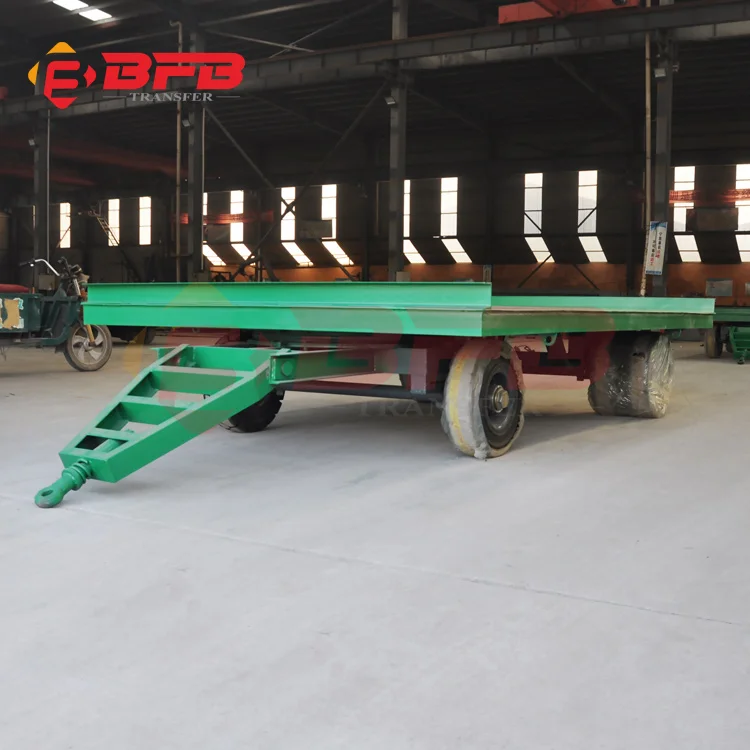

The car trailer can be used in all kinds of environment with no limited using frequency.



Its application range includes: mold field, car field, steel, iron, heavy industry, light industry, chemical, mine, ship, project, spaceflight, coal, nuclear energy, hydraulic engineering,etc.



For material transport: mould, boiler, coil items, transformer, shaft, drum, steel ladle, steel structure, steel pipe, mould, beam, container, heavy machine, heavy equipment, Aluminum product, compressor, polycrystalline silicon, motor, coil, scrap, pallet...



All can be customized as per customers’ requirement.And our business is meeting your business need, hope our professional team can help you well with rich experience.



The car trailer has been exported to Mexico for shaft transport, which also is our customized products as per our customer's requirement with U frame, it makes the transport more stable. What's more, all design are for your convenience, it can be devided in two kinds, the fixed and the dismountable, you can transfer other material when you don't use the frame.





• The kind of car trailer is with Simple structure;


• The kind of car trailer is with professional elaborate design(lifting hole is designed on the trailer );


• Safe devices are installed in the car trailer ;


• The turning can be realized easily for this kinds of car trailer with small turning radius;


• Customization can be supported for the car trailer ;


• The car trailer is large load bearing with overload rate of 25%;


• The car trailer is with low cost with high quality;


• The hydraulic lifting device can be equipped as per customers' demand


• The V frame can be installed for rounded material as per your need


• Environmental and flexible;


• Long service lifetime and easy towing for this kinds of car trailer


• The running distance of this kinds car trailer is not limited.





Model		2T	10T	20T	30T	50T	63T	150T
Rated load (T)		2	10	20	30	50	63	150
Table size	length(L)	2000	3600	4000	4500	5500	5600	10000
	Width(W)	1500	2000	2200	2200	2500	2500	3000
	Height(H)	450	500	550	600	650	700	1200
Wheel Base (mm)		1200	2600	2800	3200	4200	4300	7000
Wheel Diameter(mm)		Φ270	Φ300	Φ350	Φ400	Φ500	Φ600	Φ600
Ground Clearance (mm)		50	50	2.2	50	50	6.3	15
Max Wheel Load (KN)		14.4	42.6	77.7	110.4	174	75	75
Reference Weight(t)		2.8	4.2	5.9	6.8	8	10.8	26.8



















Product Name	Model No.	Power Supply Mode	Load Capacity	Other Items	Usage
Rail Transfer trailer	KPD	Conductor Rail	Load range 1-300ton, can be customized per client demand	Running distance	Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc
Battery Powered Transfer Car	KPX	Battery		Using frequency
Motorized Transfer Trolley	KPJ	Cable Drum		Running distance
Busbar Powered Handling trailer	KPC	Busbar		Working shop
Towed Rail Trailer	KP	Tractor	1-100t	Working shop
Steerable Towed Car	BWT	Tractor	Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded.	Working environment
Trackless Handling Machine	BWP	Battery		Working path



1.Q: Whether you product can be customized?

   A: Sure. All our products are customized as per customers’ requirement, because different products are with different requirements of specification. The proper solution will be provided according to your true demand.

2.Q: How to ensure your product quality?

   A: The product will be tested before delivery, and the quality certification will be sent you to check. And if any doubt, you can come to our factory and test it by yourself, or you can let some third-parties to do the inspection for you.

3.Q: How about the delivery time?

   A: Generally speaking, the delivery time is 45 days. But it depends on the quantity and products requirement, we will try our best to deliver it as soon as possible.

4.Q: How about the payment term?

   A: Generally speaking, we accept 50%T/T deposit in advance,the balance 50% is paid by T/T before dispatch. however, 30% T/T deposit in advance,the balance 70% is paid by T/T before dispatch also can be accepted to meet your demand in order to further cooperation. Of course, The L/C also is OK.

5.Q: If meeting urgent demand, what should I do?

   A: Please do not hesitate to let us know before making order, we will try our best to shorten the period on the basis of guaranteeing the quality and prioritize your productions’ manufacture.
