Поликристаллическая солнечная батарея на заказ 36 ячеек поликристаллический модуль солнечной энергии для системы использования в
- Категория: Solar Cells >>>
- Поставщик: Anhui,Chinaland,Solar,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 7.94 $* | 7.93 $* |
| Aug-16-2025 | 7.18 $* | 7.29 $* |
| Jul-16-2025 | 6.69 $* | 6.29 $* |
| Jun-16-2025 | 7.34 $* | 7.83 $* |
| May-16-2025 | 6.26 $* | 6.99 $* |
| Apr-16-2025 | 7.24 $* | 7.95 $* |
| Mar-16-2025 | 7.42 $* | 7.44 $* |
| Feb-16-2025 | 7.11 $* | 7.25 $* |
| Jan-16-2025 | 7.85 $* | 7.47 $* |
Характеристики
Product Description
Model | CHN10P-36 | CHN20P-36 | CHN30P-36 | CHN40P-36 | CHN50P-36 | CHN60P-36 | |||||||
Peak Power Watts(Pmax/W) | 10W | 20W | 30W | 40W | 50W | 60W | |||||||
Maximum Power Voltage(Vmp/V) | 18.1 | 18.2 | 18.4 | 18.6 | 18.6 | 18.6 | |||||||
Maximum Power Current(Imp/A) | 0.55 | 1.10 | 1.63 | 2.15 | 2.60 | 3.23 | |||||||
Open Circuit Voltage(Voc/V) | 22.1 | 22.1 | 22.6 | 22.8 | 22.8 | 22.8 | |||||||
Short Circuit Current(Isc/A) | 0.60 | 1.19 | 1.76 | 2.32 | 2.9 | 3.48 | |||||||
Power Tolerance | 0~+5w | ||||||||||||
Model | CHN70P-36 | CHN80P-36 | CHN90P-36 | CHN100P-36 | CHN110P-36 | CHN120P-36 | |||||
Peak Power Watts(Pmax/W) | 70W | 80W | 90W | 100W | 110W | 120W | |||||
Maximum Power Voltage(Vmp/V) | 18.6 | 18.6 | 18.6 | 18.6 | 18.6 | 18.6 | |||||
Maximum Power Current(Imp/A) | 3.76 | 4.3 | 4.89 | 5.43 | 5.91 | 6.45 | |||||
Open Circuit Voltage(Voc/V) | 22.8 | 22.8 | 22.8 | 22.6 | 22.6 | 22.6 | |||||
Short Circuit Current(Isc/A) | 4.06 | 4.65 | 5.28 | 5.87 | 6.39 | 6.97 | |||||
Power Tolerance | 0~+5w | ||||||||||
\t\t\t\t\t\t\t\t\tDetailed Production \t\t\t\t\t\t\t
Glass
> Antireflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional)

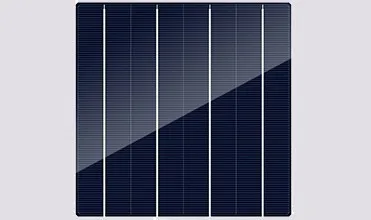

Solar Cell
> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID

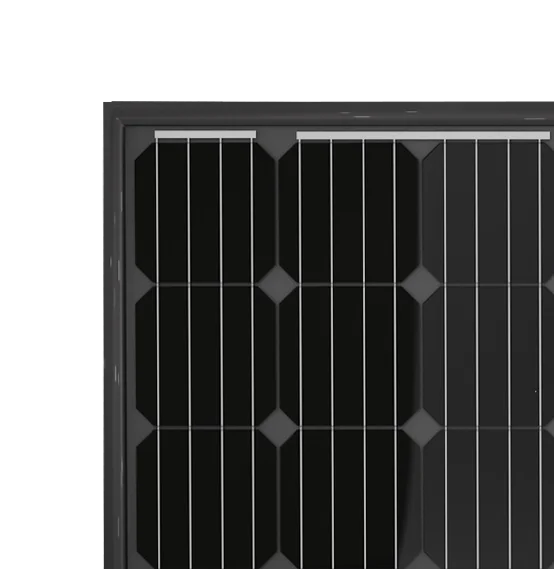

Frame
> Conventional frame
> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serrated-clip design tensile strength
> Seal-lip designglue injection
TEVA
>91% Higher Transmittance EVA,
>Higher GEL Content To Provide Good Encapsulation And Protect Cells From Vibration With Longer Durability
Junction Box, Cable and MC4
> IP67 Waterproof, Closed
> 4mm2, 6mm2 Wire Size Range
> -40 ℃ to +85 ℃ Temperature Range
> Innovative full-glue-filled junction box Outstanding sealability
> 4mm2, 6mm2 Wire Size Range
> -40 ℃ to +85 ℃ Temperature Range
> Innovative full-glue-filled junction box Outstanding sealability
.
Package &Delivery
Factory
Project
300KW On Grid Project
Location: Sweden
Year: 2016
30KW Off Grid Project
Location: Sudan
Year: 2014
500KW Hybrid Project
Location: Indonesia
Year: 2018
20KW On Grid Project
Location: Maldives
Year: 2015
Related Products
\t\t\t\t\t\t\t\t\tContact Us \t\t\t\t\t\t\t
FAQ
Q1. What's the payment term?
A. 30 T/T in advance, paid the balance before shipment.
Q2. How's the delivery time?
A. It will take about 7 days for production
Q3. Would you accept to use our logo?
A. Welcome to do OEM.
Q4. Are you tier 1?
We are not tier1, we are a factory that do OEM for Tier1 brand, like Jinko, Trina, and Canadian solar so on. The quality is equal to Tier1 solar panel.
