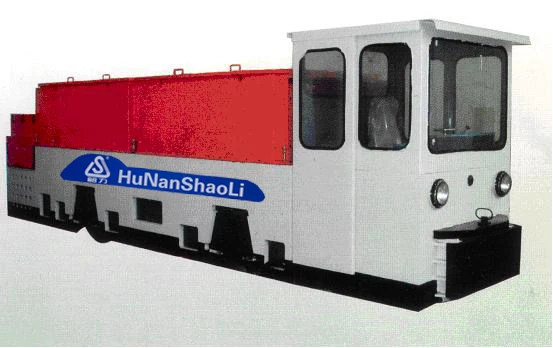

45 тонн узкие Gauge электрические батареи шахтерские для добычи полезных ископаемых и

Описание и отзывы

Трекер стоимости

Характеристики

Model	CTY45-9/450	Model
Weight	45T	Weight
Track Gauge	900mm	Track Gauge
Wheel Base	2600mm	Wheel Base
Minimum Turn Radius	25m	Minimum Turn Radius
Wheel Diameter	Φ840mm	Wheel Diameter
Motor Power	110*2KW	Motor Power
Frequency Changer	NKJ-2*180/540	Frequency Changer
Storage Battery	630Ah	Storage Battery
Max. Traction Force	115kN	Max. Traction Force
Hourly Control Traction	89kN	Hourly Control Traction
Hourly Speed	8.9km/h	Hourly Speed
10‰ Rampway Tractable Load	443t	10‰ Rampway Tractable Load
20‰ Rampway Tractable Load	298t	20‰ Rampway Tractable Load
30‰ Rampway Tractable Load	219t	30‰ Rampway Tractable Load
35‰ Rampway Tractable Load	192t	35‰ Rampway Tractable Load
Dimensions(Length*Width*Height)	8120(8720,anti-skid device)*1500*2400	Dimensions(Length*Width*Height)



Frame

Constructed in welded steel and suspended by leaf spring or rubber studs on grease bearing seats with tapered roller bearings.

Speed control

In order to achieve continuous and stepless speed regulation, they have an electronic speed controller with high reliability.

The AC converters convert the DC from trolley line into AC and the controller adjusts the speed of AC motors by the power frequency of the AC converter.

AC motor

Comparing with DC motors, the 3 phases AC motors have no carbon brushes and any other quick-wear parts.

Brakes

Pneumatic brake to the four wheels by brake shoes. Stop brake by manual mechanical brake.

Sanders

Pneumatic (or mechanical) sanding system to the rails.

Buffers and motor suspension

The locomotive has two buffers with spring shock absorption to achieve complete shock absorption against collisions. Equally, the motor is suspended from the chassis by a brace with springs.
