Стальная арматурная винтовая машина для прокатки резьбы по более низкой цене
US $580.00-$670.00
Полностью автоматическая многофункциональная машина для прокатки резьбы от китайского
- Категория: Metal Moulding Machinery >>>
- Поставщик: Xingtai,Judu,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 5688.19 $* | 5972.69 $* |
| Aug-17-2025 | 5640.78 $* | 5922.13 $* |
| Jul-17-2025 | 4732.22 $* | 4969.12 $* |
| Jun-17-2025 | 5545.91 $* | 5822.9 $* |
| May-17-2025 | 4828.85 $* | 5069.56 $* |
| Apr-17-2025 | 5449.13 $* | 5721.30 $* |
| Mar-17-2025 | 5401.42 $* | 5671.70 $* |
| Feb-17-2025 | 5354.40 $* | 5622.42 $* |
| Jan-17-2025 | 5306.49 $* | 5571.53 $* |
Характеристики
Full automatic multifunction thread rolling machine China supplier
Product Description
Z28-150 type thread rolling machine china supplier main purpose
The model steel rod threading machine is compact, solid, reasonable design,easy maintenance and other characteristics by the majority of customers. This product is better than other similar models of products for normal thread,shaped bolts,thread thread processing,free transfer disorder.
Product parameters of thread rolling machine china supplier
Item | Parameter | ||
Object part for rolling | Max Diameter | Radial direction feeding | Φ56mm |
Axix direction feeding | Φ30mm | ||
Thread range | Max thread range | Radial direction feeding | 5.5mm |
Axix direction feeding | 3.5mm | ||
Inner dia of both roller wheels | Φ54mm | ||
Dia of two roller wheels | Φ120-170mm | ||
Core distance ranges of both roller wheels | 125-225mm | ||
Thickness ranges of both roller wheels | 30-100mm | ||
Maximum hydraulic feedling power | 160kn | ||
Two main axis obliquity | ±5°c | ||
Both main axle rotation speed(YPM)(exchange gear) | (exchange gear)37/46/63/79rpm | ||
Hydraulic auto-feeding time regulation scope | Hydraulic rolling | 0.1-99.9s | |
Hydraulic cease | 0.1-99.9s | ||
Mechanical transmission motor | 7.5kw | ||
Hydraulic transmission motor | 2.2kw/1450r/min | ||
Cooling electric pump | 120w | ||
Outer sizes(L*W*H) | 1550×1550×1450mm (Excluding external hydraulic station) | ||
Machine weight | 2000kg | ||
Detailed Images

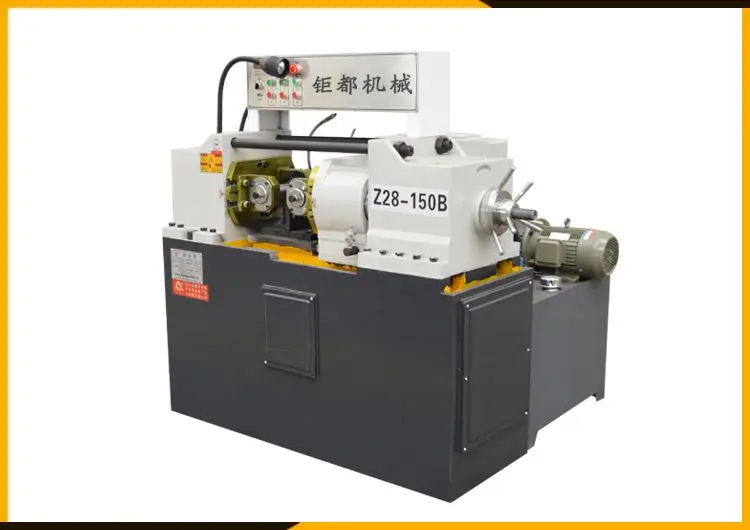

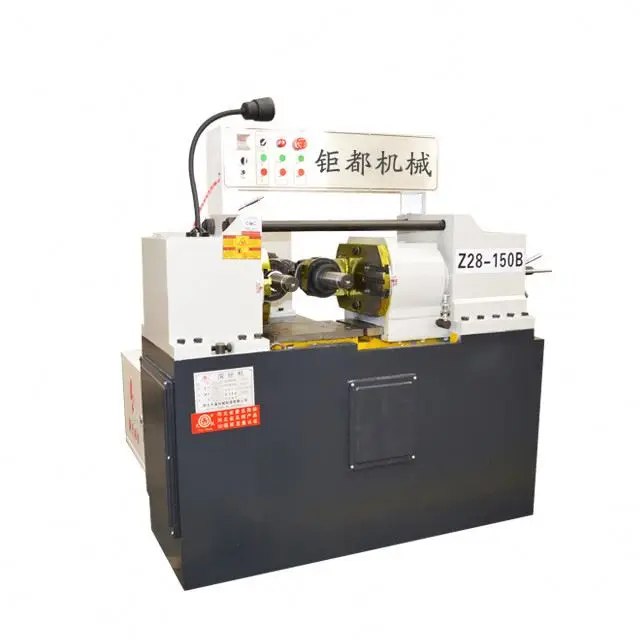

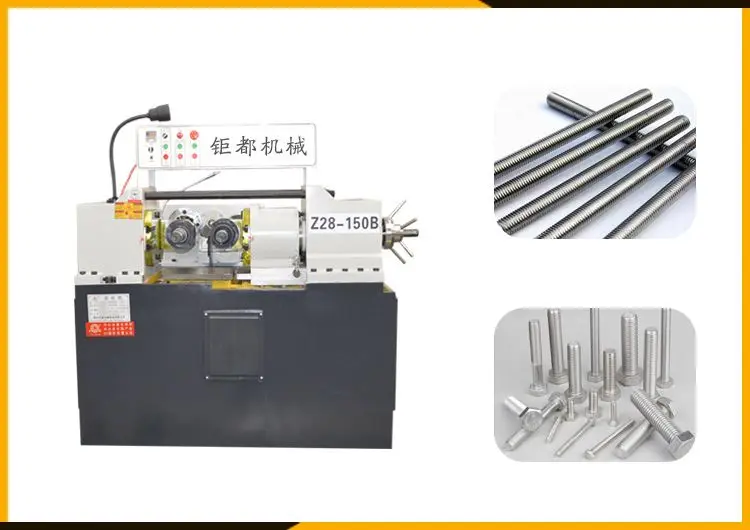

thread rolling machine china supplier detailed picture

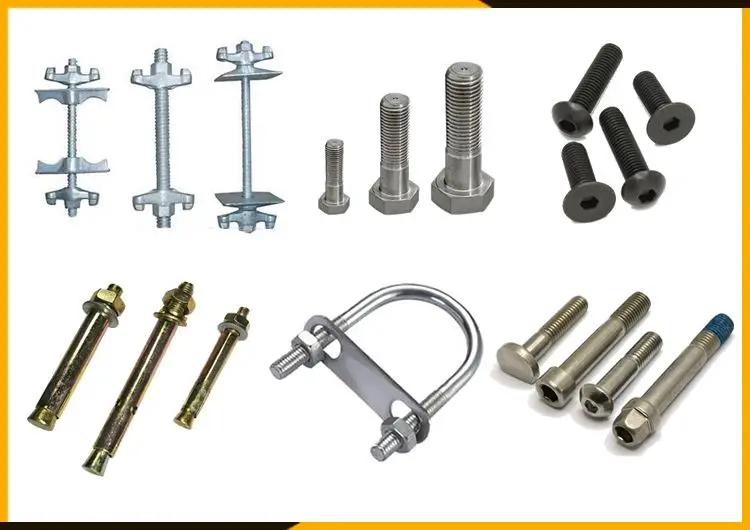

Finished workpiece from thread rolling machine china supplier
Related Products
We have Many models thread rolling machine china supplier, Z28-215, Z28-150B,Z28-80B,Z28-50,Z28-40,and so on.
All the diameter we can thread rolling, pls provice us the diameter and the type of your raw material, then i will recommed you the best model fit for you.
Packaging & Shipping
thread rolling machine china supplier packaging is professional export CTN,WOODEN CASE.
Shipping is FCL,LCL by sea,train within 5-7 days,any port
Company Information
Found since 1999,Xingtai GreatCity Machinery Company has developped a category of machines that it is useful for customer in thread rolling machine china supplier area. We do believe that this evolution permits us to offer you a good and high quality of machine at a lowest price for your satisfaction and in order to get a high level of efficiency.
Contact
Welcome to consult our thread rolling machine china supplier and visit our factory,feel free to contact me if having any questions.
Xingtai Judu Technology Co Ltd
greatcity brand
Ms kitty
Whatsapp: 0086 15512868421
