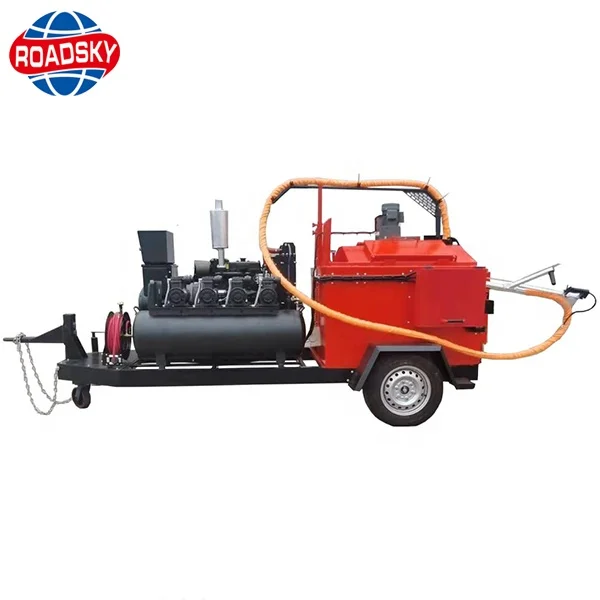

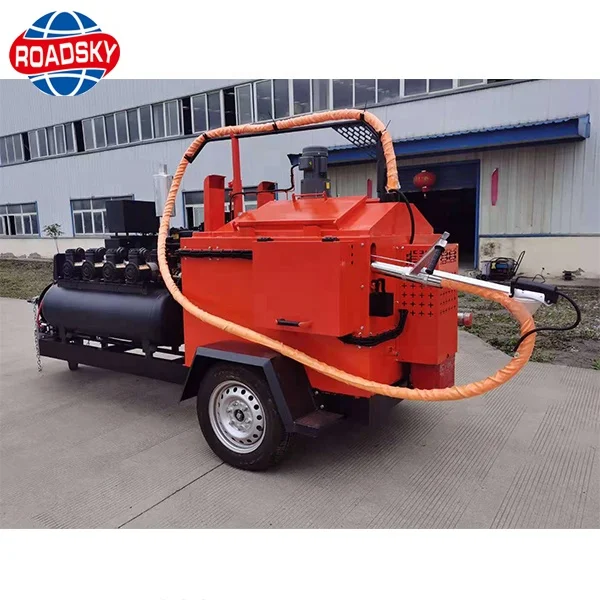

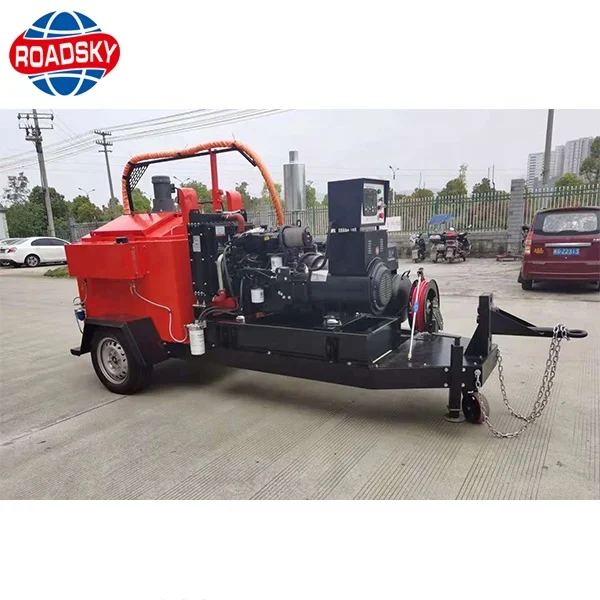

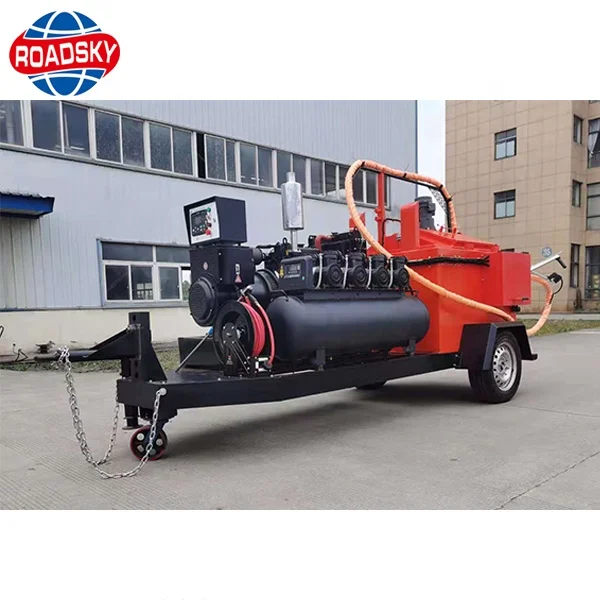

RS-500 прицепные асфальтированная дорога машина для

Size

390*174*210cm

Weight

1850kg

Engine Power

30KW

Engine type

4 cylinder diesel engine

Fuel

Diesel oil

Diesel fuel capacity

50L

Working Pressure

6-9Mpa adjustable

Combustor

Italian RIELLO 445T1

Volume

500L

The heating system composed of the original imported "Italian RIELLO" burner can not only provide the ideal heating effect, but also stable and sustainable.Through the advanced microcomputer control technology, the burner can be automatically opened and closed by setting the heating temperature on the control panel.It not only saves energy consumption, but also realizes the "intelligent" operation in the true sense.

Brand engine, four cylinder diesel engine, stable performance, for the equipment to provide sufficient power system.

Heat conduction oil interlayer design is adopted for hot melt kettle, which can heat special sealant or ordinary asphalt.The bottom of the hot melt kettle is equipped with multiple glue suction mouth, the output pump can suck in the various parts of the kettle, greatly speeding up the melting and discharging speed.At the same time, it is equipped with pressure relief valve, which effectively protects the electric heating pipe.

The discharge hose adopts electric heating throughout the process. In addition to the automatic discharge switch, it is specially equipped with the design of anti-leakage valve, which eliminates the waste caused by material leakage and road pollution.

Burning furnace exhaust gas emissions using spiral flue, throttle flue gas emissions, so as to avoid high temperature flue gas too fast into the air, so as to better control the heat loss rate, increase the combustion value, and then reduce the time of each working cycle of the burner and extend the thermal cycle.

It is safer and more convenient to place the gun head bracket during the rest of the working period, and has a good heat preservation function.

Electric heating tube support frame: 270°C rotary support of electric heating tube with excellent elasticity, bearing more than 50% of the weight of electric heating tube, so that the electric heating tube uniform force, prolong the service life;

The height of the traction part is adjustable

Hand lift:

When the equipment is connected with the traction vehicle, the hand lift makes the traction rod at the front end of the equipment rise to the same height as the traction vehicle hook, and then connect it with the traction vehicle.

Power Control box

Intelligent temperature controller control panel

The whole process of constant temperature control, monitoring heat conduction oil, filling material, electric heating hose three temperature, computer automatic control (automatic insulation when reaching the construction temperature) to achieve the precise control of heating temperature of different sealing materials.

Air compressor
Efficient clearance of gap dust

The large flow discharge valve can be matched with the filling trolley, which can be constructed at the same time with higher efficiency.

Large size anti-splash symmetrical double door feeding mouth design, convenient glue material to join, more safe, optional door stop mixing mode.
