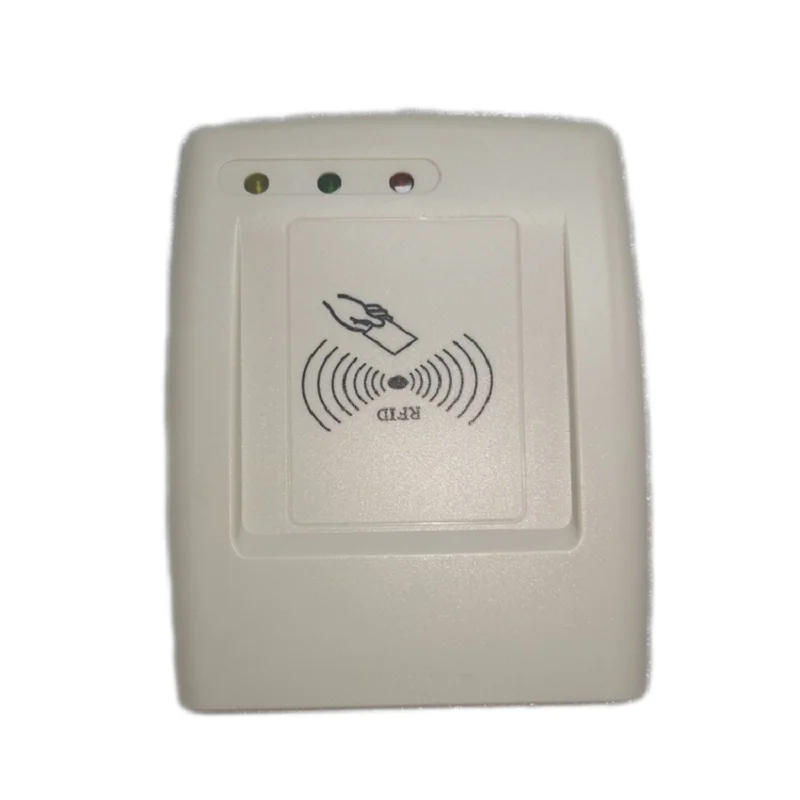

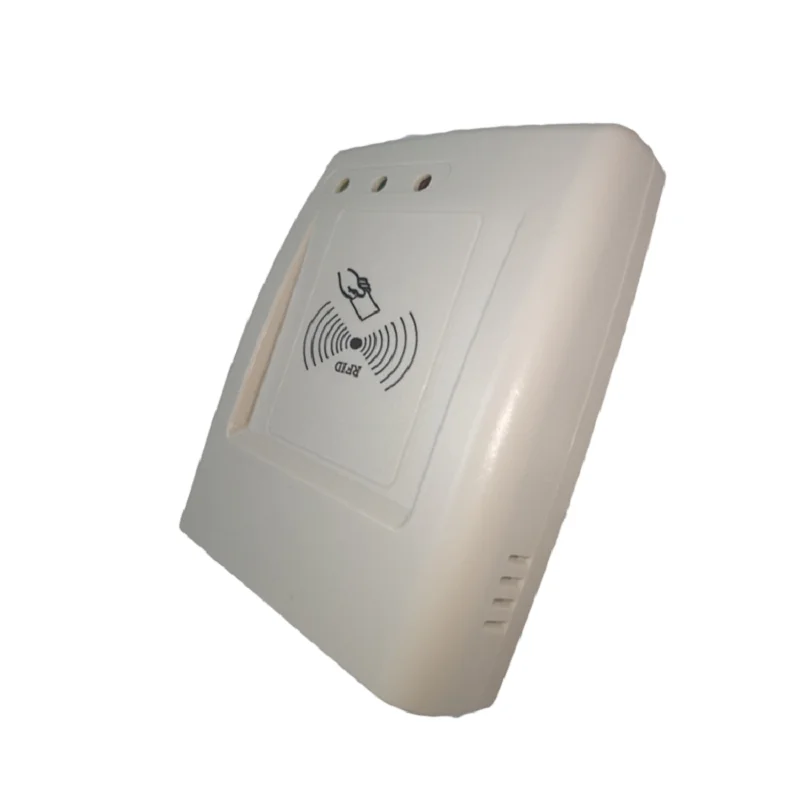

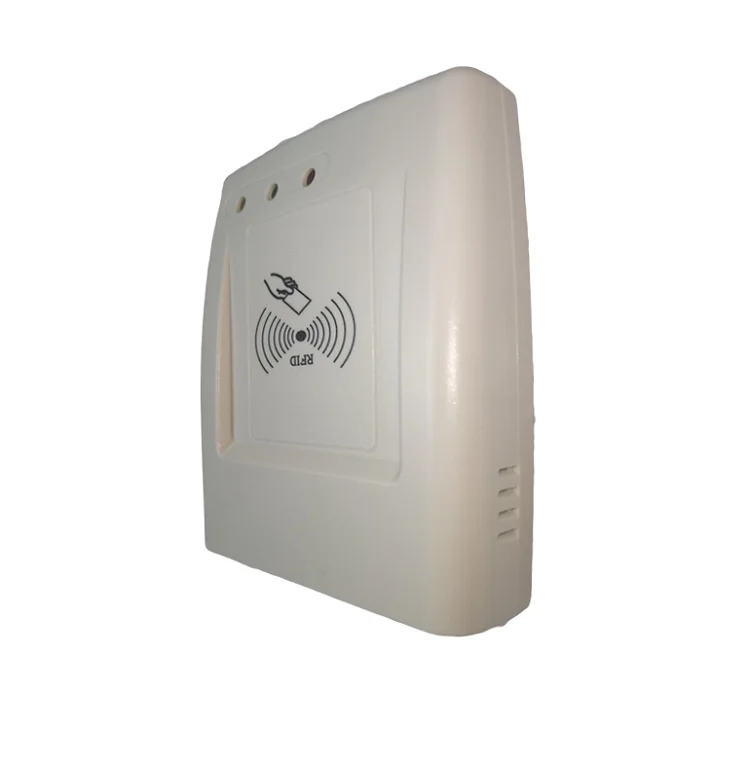

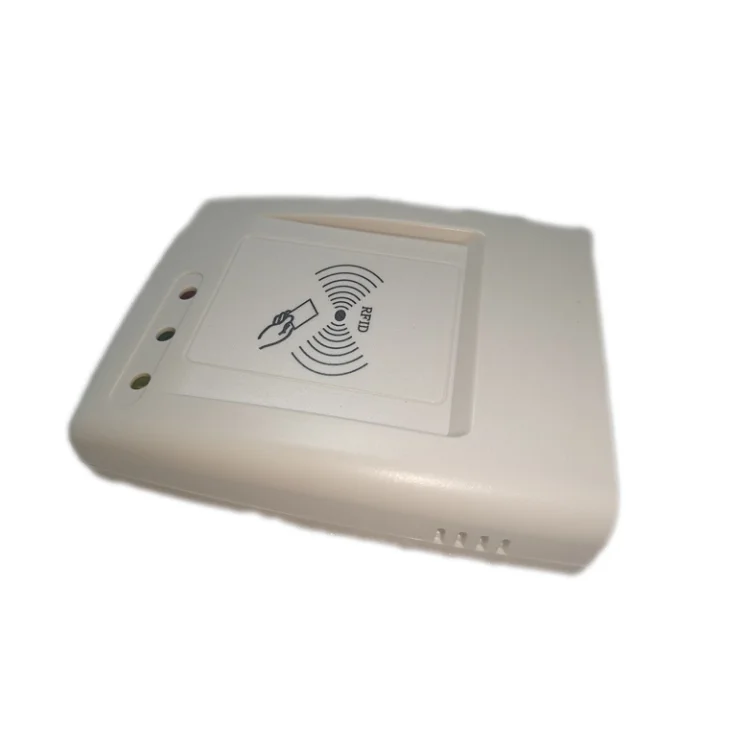

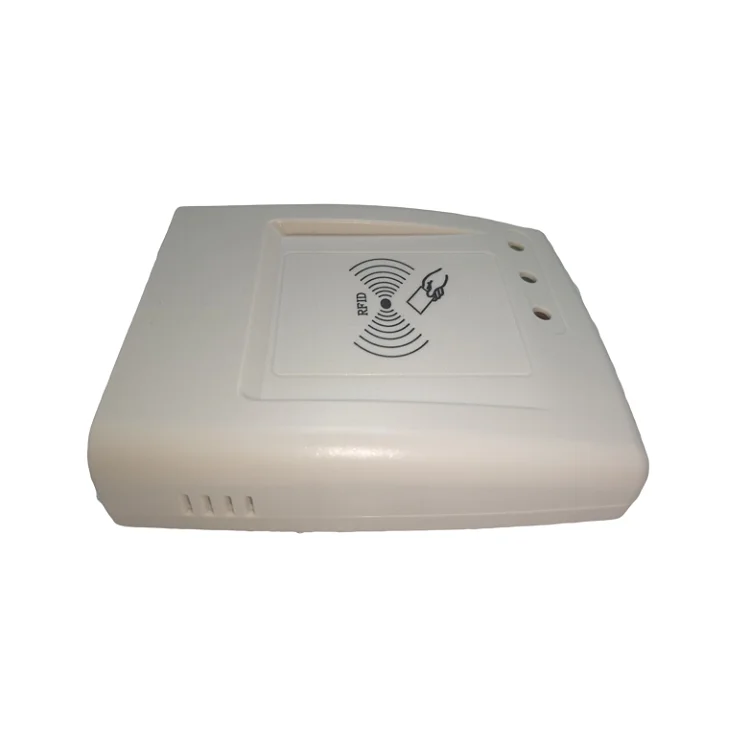

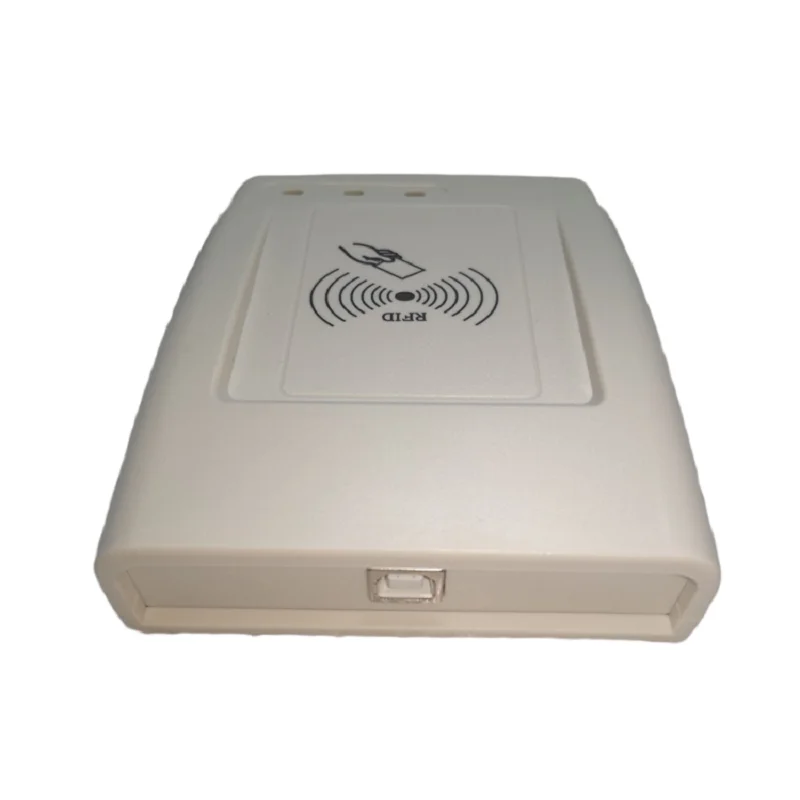

Китайская поставка эффективный магнитный считыватель карт Rfid

P/N

USB Plus-Nano

Operating Voltage

DC 5.0V

Standby State Current

<4mA

Working Current

Continuous working current <700mA @ 5.0V (27dBm Output). Sleep state current <5mA @ 5.0V

Start Time

<10mS

Operating Temperature

-30°C - + 70 °C

Storage Temperature

- 40 °C - + 85 °C

Working Humidity

< 95% ( + 25 °C)

Air Interface Protocol

EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C

Working Spectrum Range

915Mhz – 928Mhz
865MHz – 868MHz(Optional)

Work Area Support

• FCC (NA, SA) 915-928 MHz
• ETSI (EU, India) 865.6-867.6 MHz
• TRAI 865-867 MHz (India)
• KCC (Korea) 917.1-920.8 MHz • Japan 916.8 – 923.4 MHz
•ACMA (Australia) 920-926 MHz
•SRRC-MII (P.R.China) 920-925 MHz
•‘ Open’ (Customizable channel plan;
865-870 MHz and 915-928 MHz)

Output Power Range

0-27dBm

Output Power Accuracy

+/- 1dBm

Output Power Flatness

+/- 1dBm

Receiving Sensitivity

-45dBm ~ -60dBm
