Двойной винтовой экструдер винт и цилиндр для экструдера

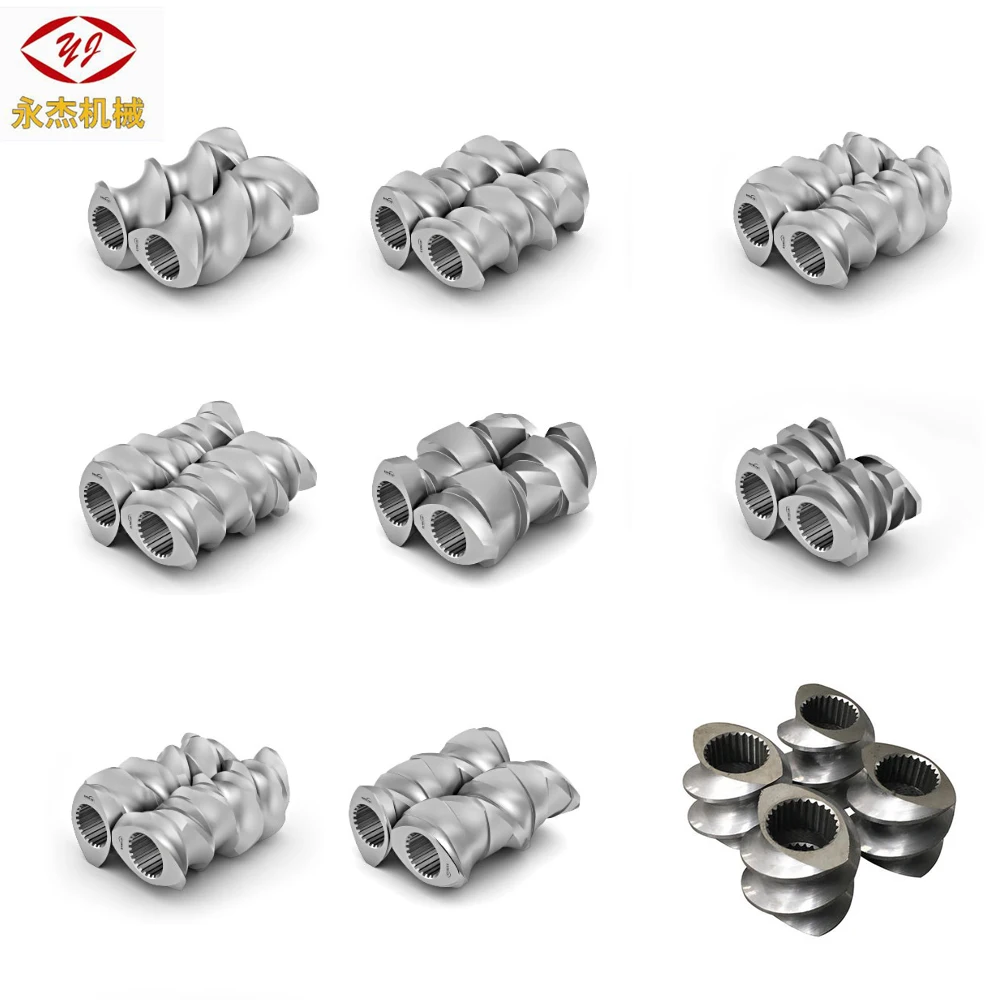

Screw element type for each function: Feeding, Melting, Mixing, Venting, Pressurization

The intermeshing screws co-rotate and wipe each other with narrow clearance so that no residues are left in the screw flights and cleaning effort is thus reduced.

The function of screw element si mainly used to convey materials. Feeding and degassing sections generally have the long pitch to improve the material conveying and degassing. For material of low bulk density, feeding sections can use deep channel components to increase feeding capacity. The metering extruded segmented screw elements generally adopt the small pitch which is used to pressurize, improve the density of the material at the die head, and make the extrusion more stable.

The kneading block is generally used for melting and mixing of the material. Heat energy is generated by mechanical shear. Together with heating of the barrel, material can be melted and mixed quickly, with special elements to distribute the material more evenly.

The screw shaft system is characterized by the following:

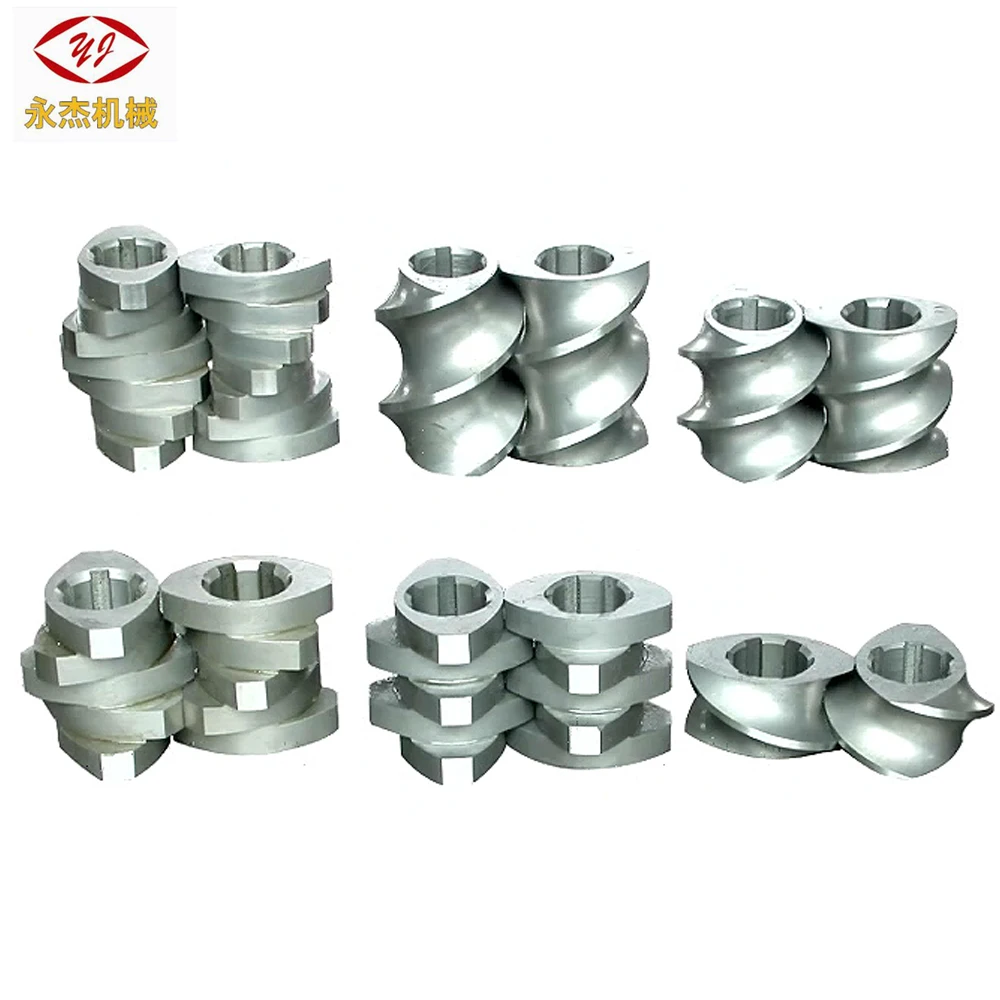

1. Screw elements with various pitches and lengths

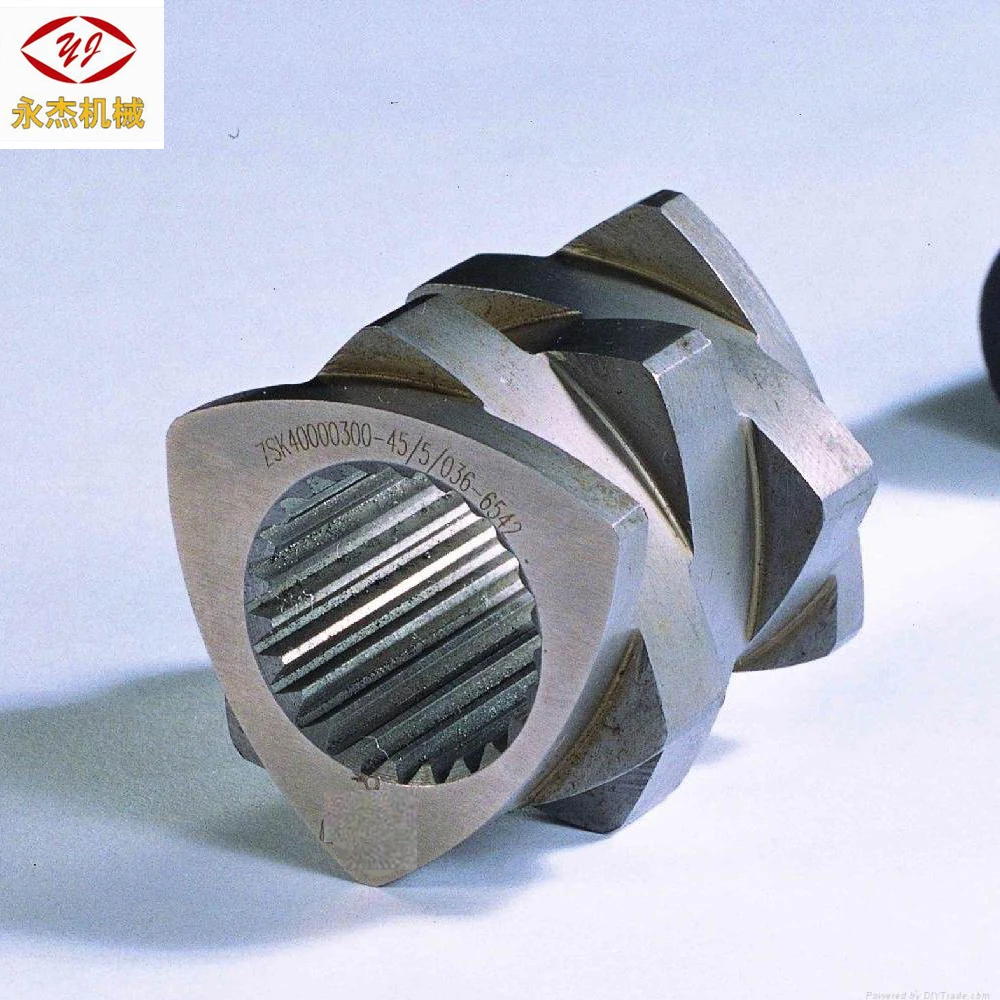

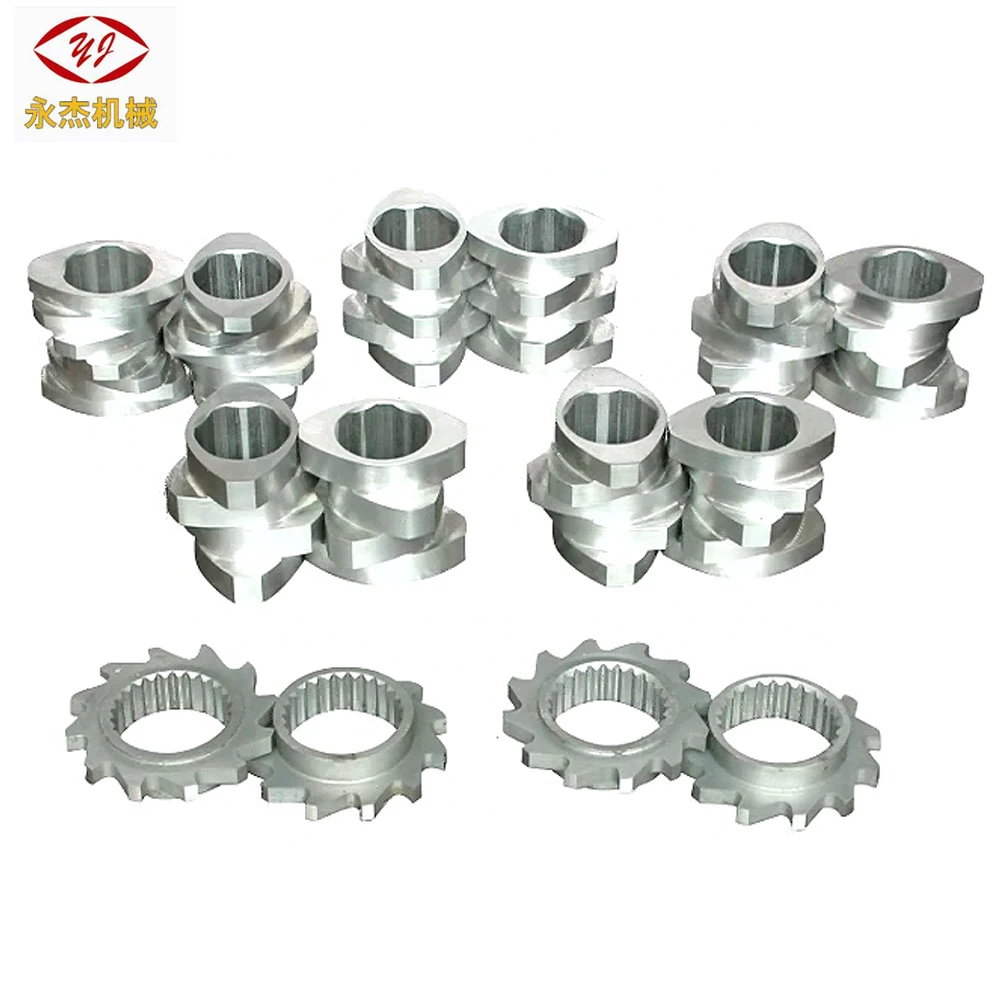

2. Kneading blocks with various angles of stagger, numbers of kneading disks and disk widths

3. Screw tips to fix the screw set axially

4. Gear teeth connection to ensure power flow between the screw shaft and screw elements.

MANUFACTRUING OF Screw and Barrel for Plastic Extruder Machine

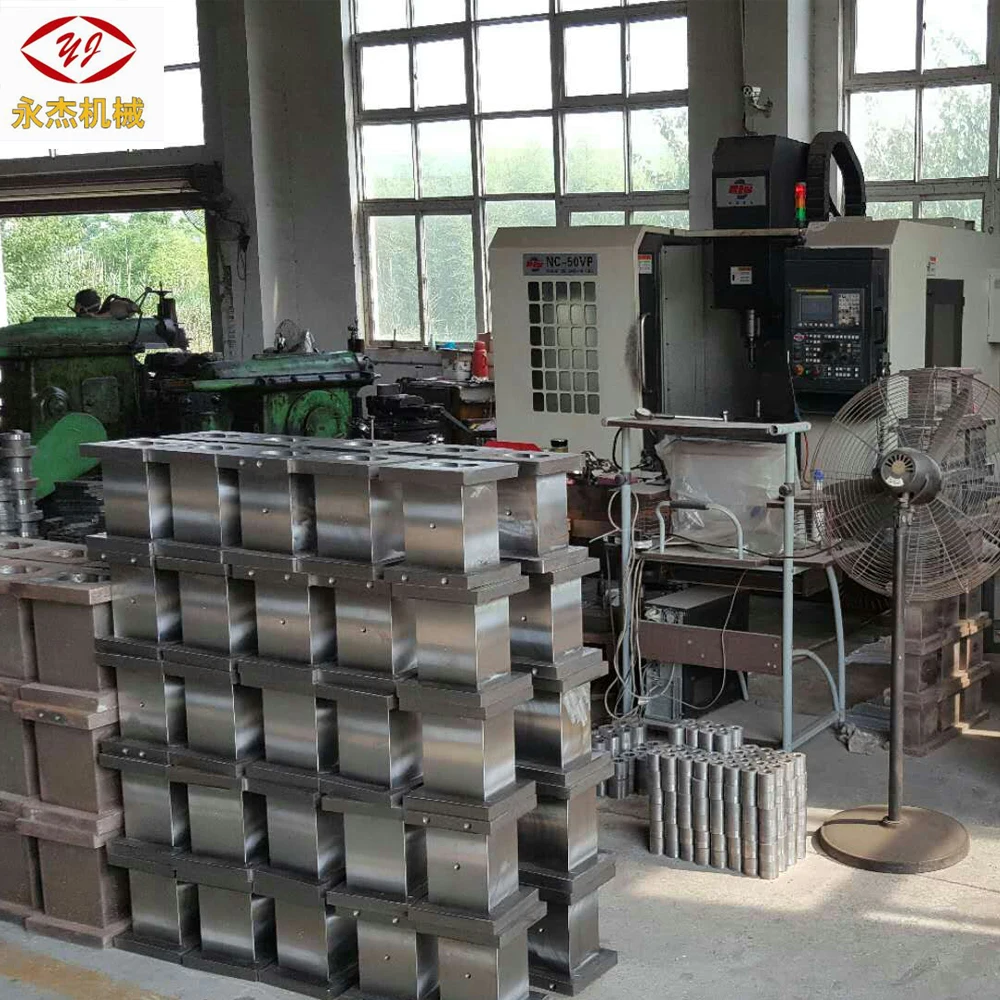

Advanced CNC equipment is used for processing to ensure teh precision of the products. Through the reasonable process, the consistency of the screw elements can reach 0.02mm, ensureing the interchangeability of the parts.

CUSTOMIZED Screw and Barrel for Plastic Extruder Machine

With the application of plastic industry constantly refreshed, more and more customized requirements are from our clients. We serve the customers for a long time, and we had rich experiences. According to the material requirements for the corresponding screw configuration, we can also customize components.
