Роскошная стеклянная теплица 16x10
US $800.00-$1800
Теплица NSR экономичная пластиковая теплица для овощей из
- Категория: Multi-span Greenhouses >>>
- Поставщик: Shandong,New,Silk,Road,Greenhouse,Engineering,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 5.34 $* | 5.56 $* |
| Aug-17-2025 | 5.46 $* | 5.73 $* |
| Jul-17-2025 | 4.7 $* | 4.71 $* |
| Jun-17-2025 | 5.18 $* | 5.53 $* |
| May-17-2025 | 4.31 $* | 4.55 $* |
| Apr-17-2025 | 5.60 $* | 5.44 $* |
| Mar-17-2025 | 5.22 $* | 5.20 $* |
| Feb-17-2025 | 4.49 $* | 4.75 $* |
| Jan-17-2025 | 4.33 $* | 4.7 $* |
Характеристики
Products Description
NSR GREENHOUSE - Korean Style Multi-Span Agricultural Film Greenhouse
* Korean style multi-span film greenhouse is a kind of greenhouse with complex structure.
* The surface of the greenhouse is covered with double-layer plastic film, specially designed for Uzbekistan.
* The multi-span greenhouse has a high space utilization rate. Ventilation windows can be set on the top and around, with strong ventilation capacity, and the greenhouse is usually equipped with a thermal insulation system.
* It can be used for teaching and research of breeding, planting, aquaculture, animal husbandry, exhibitions, ecological restaurants, vegetables and fruits.
* The surface of the greenhouse is covered with double-layer plastic film, specially designed for Uzbekistan.
* The multi-span greenhouse has a high space utilization rate. Ventilation windows can be set on the top and around, with strong ventilation capacity, and the greenhouse is usually equipped with a thermal insulation system.
* It can be used for teaching and research of breeding, planting, aquaculture, animal husbandry, exhibitions, ecological restaurants, vegetables and fruits.
Product Name | Korean Style multi-span agricultural film greenhouse |
Span | 6m/8m/9.6m/10m/12m/Customized |
Length | 20m/50m/100m/Customized |
Shoulder Height | 1.5m-1.8m / Customized |
Roof Height | 3.5m-5.8m / Customized |
Wind Load | 0.6 kn/㎡ |
Snow Load | 0.5 kn/㎡ |
Max Rain Quantity | 140mm/h |
Greenhouse system description

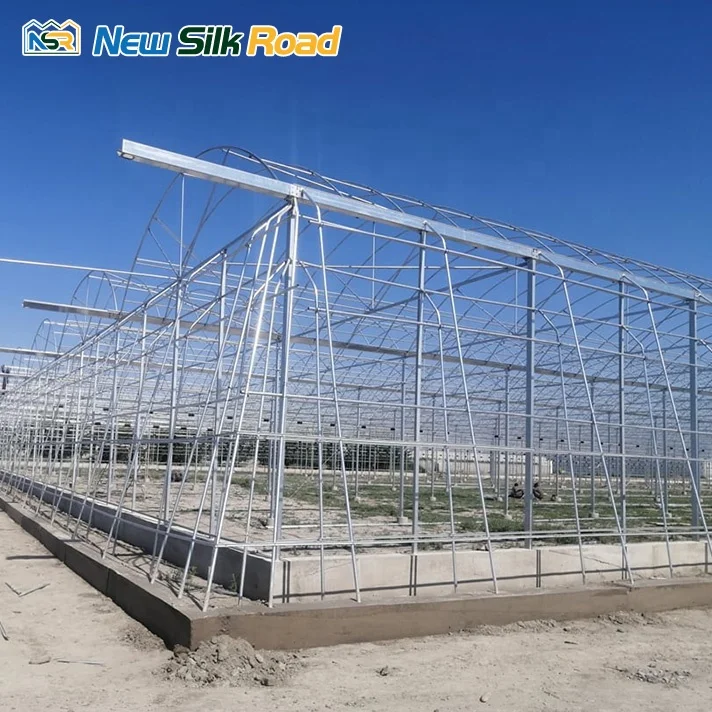

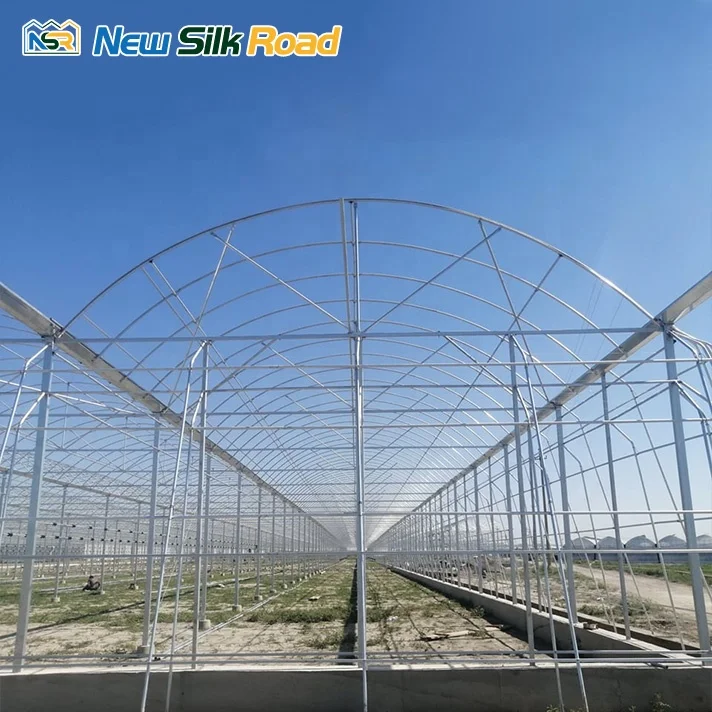

Greenhouse Frame
1. Suitable for areas with high requirements for ventilation on the top of the greenhouse;
2. Suitable for use in areas with snow;
3. The steel materials used in the frame structure and connecting parts of the greenhouse are all hot-dip galvanized;
4. The greenhouse frame structure design complies with the Chinese national standard "GB50017-2003 Steel Structure Design Code";
5. The steel used in the greenhouse complies with the Chinese national standard "GB700-88 Carbon Structural Steel Standard";
2. Suitable for use in areas with snow;
3. The steel materials used in the frame structure and connecting parts of the greenhouse are all hot-dip galvanized;
4. The greenhouse frame structure design complies with the Chinese national standard "GB50017-2003 Steel Structure Design Code";
5. The steel used in the greenhouse complies with the Chinese national standard "GB700-88 Carbon Structural Steel Standard";

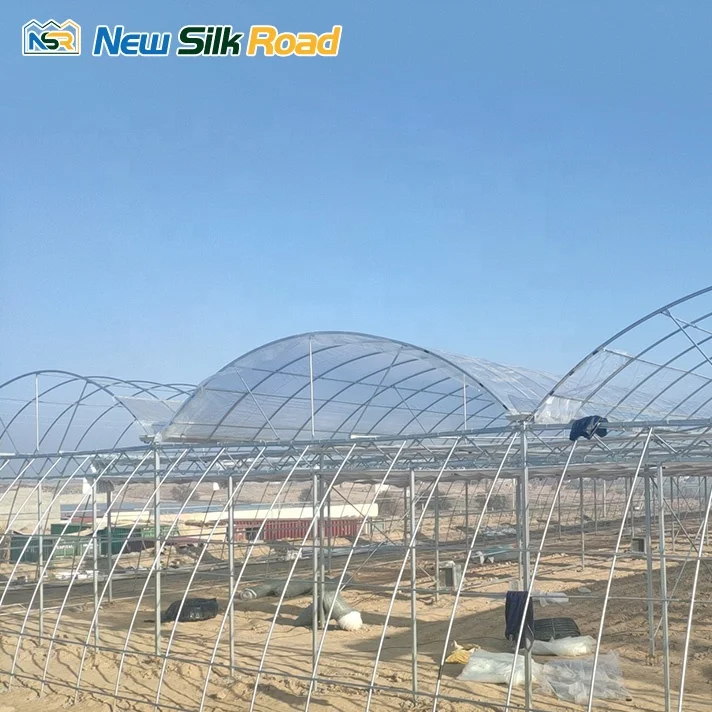

Film type | PE/PO |
Film color | Colorless/light blue/custom |
Film thickness | 0.1mm/0.12mm/0.15mm/0.18mm /0.2mm/Customized |
Service life | 3 years/5 years/Customized |
Film effect | Anti-ultraviolet, Anti-fog, Anti-aging. |
Greenhouse Ventilation System

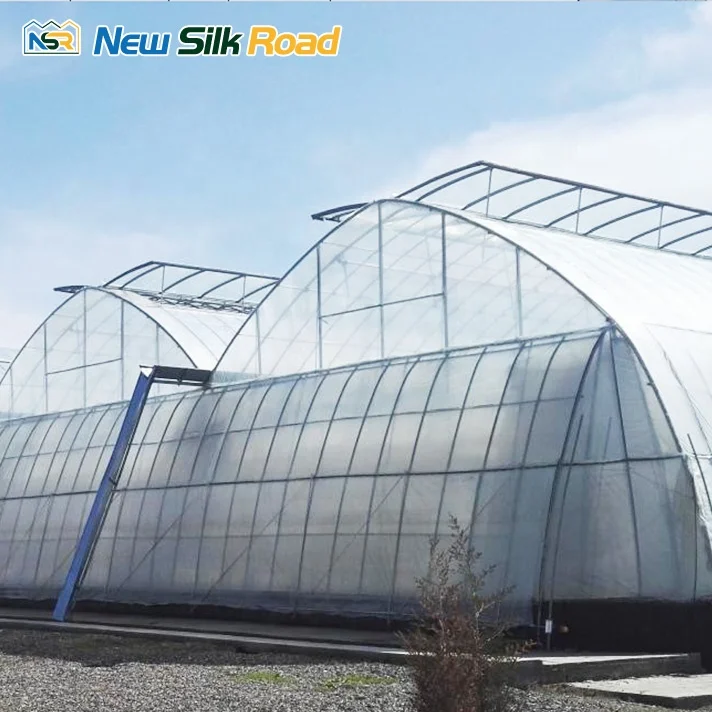

Top Ventilation System Of The Greenhouse
1. There are vents at the top of each arch at the top of the greenhouse, which can be opened on one side or on both sides.
2. The vent opening method is an electric gear switch.
3. Install anti-insect nets on the vents.
2. The vent opening method is an electric gear switch.
3. Install anti-insect nets on the vents.
Side Ventilation System Of The Greenhouse
1. There are vents on both sides of the greenhouse.
2. The vent opening method is electric roll film switch.
3. Insect nets are installed in the vents.
2. The vent opening method is electric roll film switch.
3. Insect nets are installed in the vents.
Greenhouse shading system
External Shading System
1. The external shading system is fixed on the top of the greenhouse frame, and the shading net is supported by columns and beams.
2. The framework of the sunshade system is the same as that of the greenhouse, using hot-dip galvanized steel pipes.
3. The outer sunshade net is made of black HDPE material and fixed with black polyester rope.
2. The framework of the sunshade system is the same as that of the greenhouse, using hot-dip galvanized steel pipes.
3. The outer sunshade net is made of black HDPE material and fixed with black polyester rope.

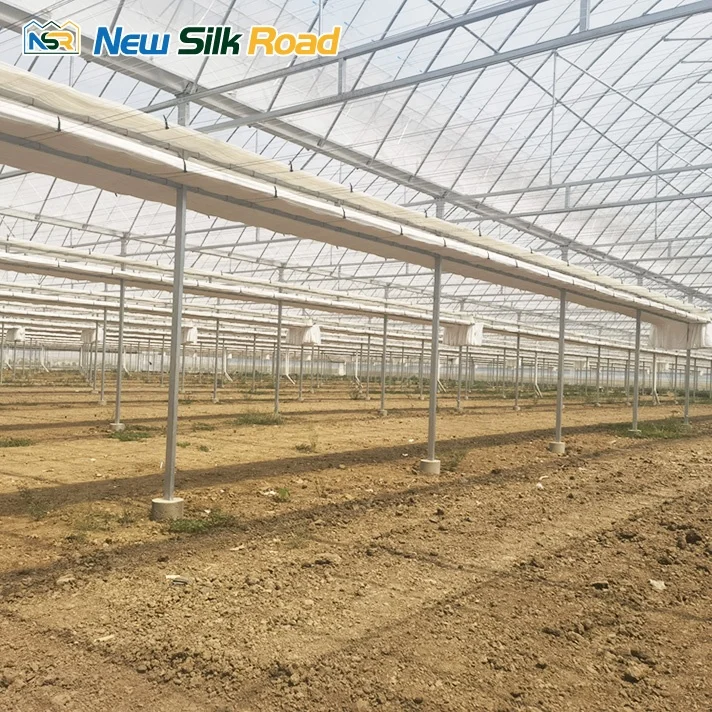

Internal Shading System
1. The internal shading system is fixed under the circular arch of the greenhouse.
2. The sunshade net of the internal sunshade system is made of aluminum foil + polyester yarn, and the white filter can reflect sunlight and reduce the heat in the greenhouse.
3. The sunshade net has a moisturizing and anti-condensation function, and the woven structure allows sufficient water vapor to pass through and prevents condensation on the lower part of the sunshade net.
2. The sunshade net of the internal sunshade system is made of aluminum foil + polyester yarn, and the white filter can reflect sunlight and reduce the heat in the greenhouse.
3. The sunshade net has a moisturizing and anti-condensation function, and the woven structure allows sufficient water vapor to pass through and prevents condensation on the lower part of the sunshade net.

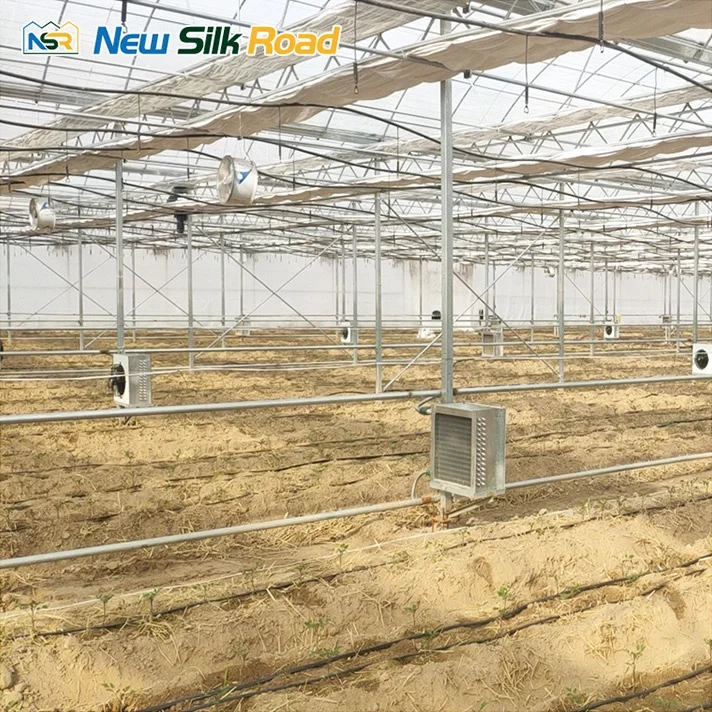

Greenhouse heating system
Heating Boiler
1. According to the area to be heated, different specifications of boilers can be selected.
2. The fuel for the boiler includes natural gas, coal, diesel, biomass, etc.
2. The fuel for the boiler includes natural gas, coal, diesel, biomass, etc.
Radiator
1. According to the area to be heated, different specifications and quantities of radiators can be selected.
2. The heating methods of the radiator include water heating, electric heating, gas, oil and so on.
2. The heating methods of the radiator include water heating, electric heating, gas, oil and so on.
Air Conditioner
1. According to the area to be heated, different specifications and quantities of air conditioners can be selected.
2. It can cool down in summer and heat up in winter.
2. It can cool down in summer and heat up in winter.
Greenhouse cooling system
Cooling Fan
1. The cooling fan is a negative pressure fan, which can exhaust the air in the greenhouse, thereby taking away the heat in the greenhouse.
2. Products of different specifications can be selected according to different greenhouse lengths. Commonly used specifications are 1380*1380mm, 1000*1000mm, etc.
2. Products of different specifications can be selected according to different greenhouse lengths. Commonly used specifications are 1380*1380mm, 1000*1000mm, etc.
Cooling Pad
1. The air enters the greenhouse through the Cooling Pad, which plays the role of cooling, humidifying, and air dust removal.
2. The commonly used heights are 1.5 meters and 2 meters, and the thickness is usually 10cm and 15cm.
2. The commonly used heights are 1.5 meters and 2 meters, and the thickness is usually 10cm and 15cm.
Greenhouse Cooling System
1. Through the combination of Cooling fan and Cooling pad, the temperature in the greenhouse can be reduced by more than ten degrees. Combined with the circulation fan and sunshade system, it will have a better cooling effect.
2. In addition, there are high-pressure spray cooling systems and air-conditioning cooling systems.
2. In addition, there are high-pressure spray cooling systems and air-conditioning cooling systems.
Manufacturing Technique
FAQ
Q1: Are you a trading company or a manufacturer?
Answer: We are the manufacturer. Our factory produces the main structure of the greenhouse. The equipment of each system in the greenhouse is purchased from the best professional factory in China. We will do our best in every detail.
Q2: How to get a quotation for the greenhouse?
A: Could you please tell me your specific requirements, such as how much greenhouse area is needed? What will be grown in the greenhouse? Do you need a hydroponic system? We provide the corresponding quotation according to your request.
Q3: How should I choose a greenhouse system?
A: Please tell us the location of the greenhouse project, we will make our own suggestions based on the local climate, and then we will communicate the details.
Q4: Do you provide turnkey projects? What should we do if we do not assemble the greenhouse after purchase?
A: We are temporarily unable to provide turnkey projects, only greenhouse materials. But we have professional after-sales service engineers who will provide you with detailed greenhouse drawings. You can communicate with him from time to time. If necessary, we can also send engineers to your country to guide the installation of greenhouses.
Q5: Can you provide samples? Is it free or extra?
A: We can provide some samples for free, such as steel pipes, coverings, connectors, etc. The equipment in the greenhouse cannot provide free samples. We can mail it to you for free.
Answer: We are the manufacturer. Our factory produces the main structure of the greenhouse. The equipment of each system in the greenhouse is purchased from the best professional factory in China. We will do our best in every detail.
Q2: How to get a quotation for the greenhouse?
A: Could you please tell me your specific requirements, such as how much greenhouse area is needed? What will be grown in the greenhouse? Do you need a hydroponic system? We provide the corresponding quotation according to your request.
Q3: How should I choose a greenhouse system?
A: Please tell us the location of the greenhouse project, we will make our own suggestions based on the local climate, and then we will communicate the details.
Q4: Do you provide turnkey projects? What should we do if we do not assemble the greenhouse after purchase?
A: We are temporarily unable to provide turnkey projects, only greenhouse materials. But we have professional after-sales service engineers who will provide you with detailed greenhouse drawings. You can communicate with him from time to time. If necessary, we can also send engineers to your country to guide the installation of greenhouses.
Q5: Can you provide samples? Is it free or extra?
A: We can provide some samples for free, such as steel pipes, coverings, connectors, etc. The equipment in the greenhouse cannot provide free samples. We can mail it to you for free.
