Новый Дизайн Электрический трехколесный грузовой автомобиль с 3 колесами сброса приведенный в действие мотор комплект 1 тонный
- Категория: Used Loaders >>>
- Поставщик: Henan,Huansheng,Mechanical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 952.98 $* | 1000.56 $* |
| Aug-18-2025 | 944.3 $* | 991.46 $* |
| Jul-18-2025 | 792.94 $* | 832.39 $* |
| Jun-18-2025 | 928.22 $* | 974.6 $* |
| May-18-2025 | 808.45 $* | 848.95 $* |
| Apr-18-2025 | 912.94 $* | 958.24 $* |
| Mar-18-2025 | 904.9 $* | 949.44 $* |
| Feb-18-2025 | 896.65 $* | 941.20 $* |
| Jan-18-2025 | 888.62 $* | 932.16 $* |
Характеристики

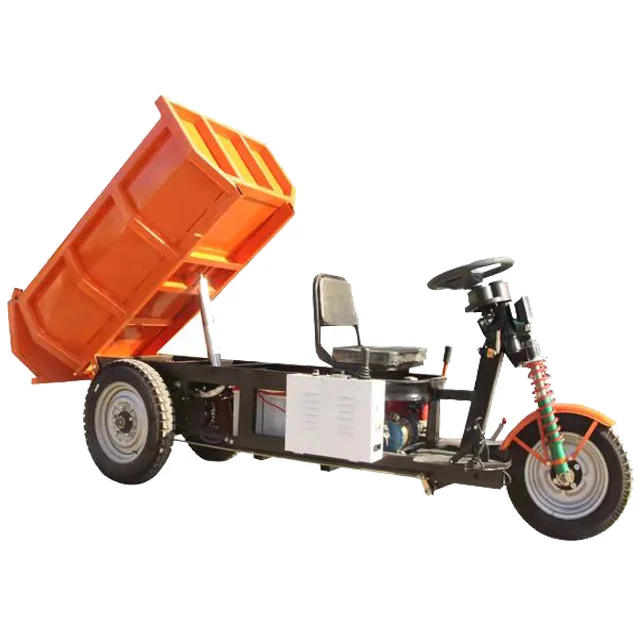

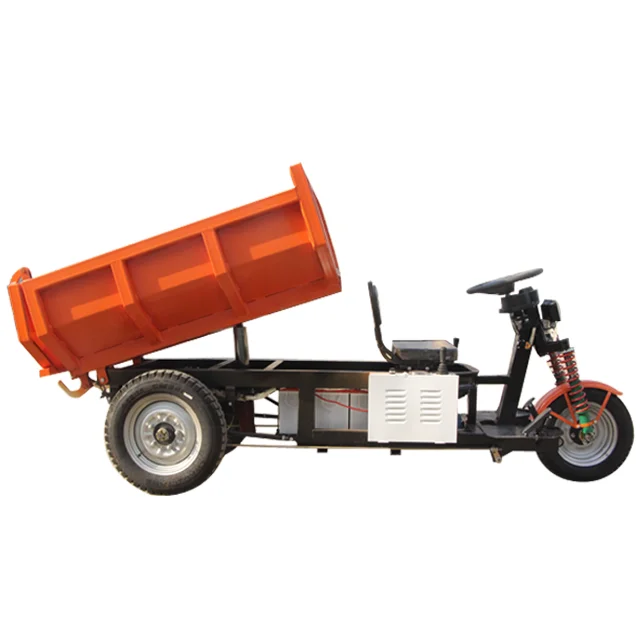

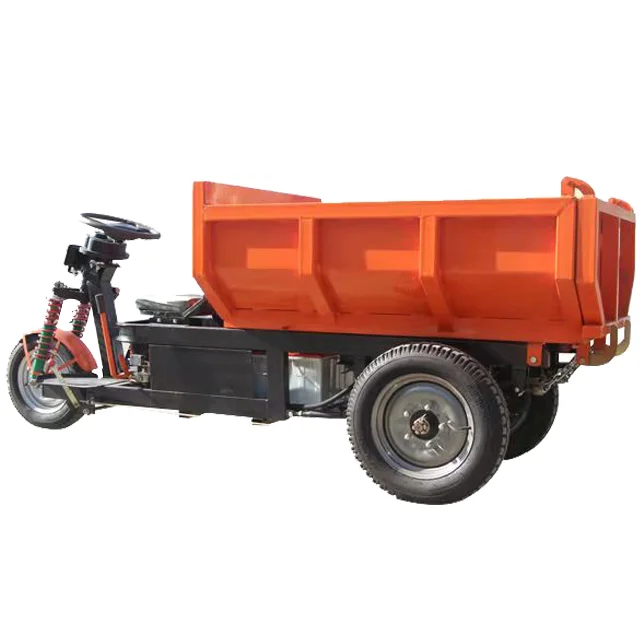

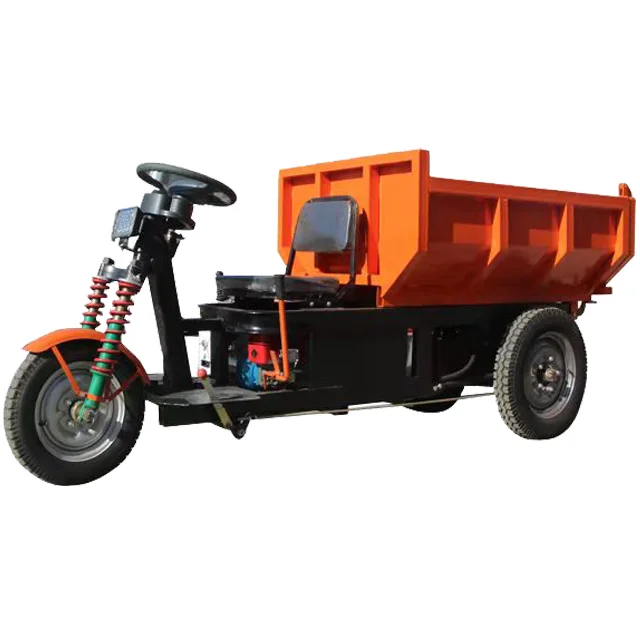

New Designed Electric Cargo Tricycle With 3 wheels Dumping Powered Motor kit
1 ton Mini Dumper
Main Parameter Table | ||||||
Model | HS-150 | Driving Motor | 1000W | |||
Loading Capacity | 1000kg | Lifting Motor | 1000W | |||
Overall Size | 2600*1000*1200mm | Front Tire | 400-12 | |||
Cargo Box Size | 1500*1000*400mm | Rear Tire | 450-14 | |||
Weight | 520kg | Operating Speed | 15-25km/h | |||
Battery | 48V | MOQ | 1 unit | |||
Working Platform Height | 600mm | Color | Customer demand | |||
First Charge 10-12 hours , Usually charge 6-8 hours. Single charge can work for 10-12 hours. | ||||||
Details Images
--Battery--
HS-150
Four lead-acid batteries are used to store electricity, each 12V, the whole vehicle is 48V, and it is equipped with a 48V fast charger.
It can be discharged continuously for 10-12 hours after one charge,

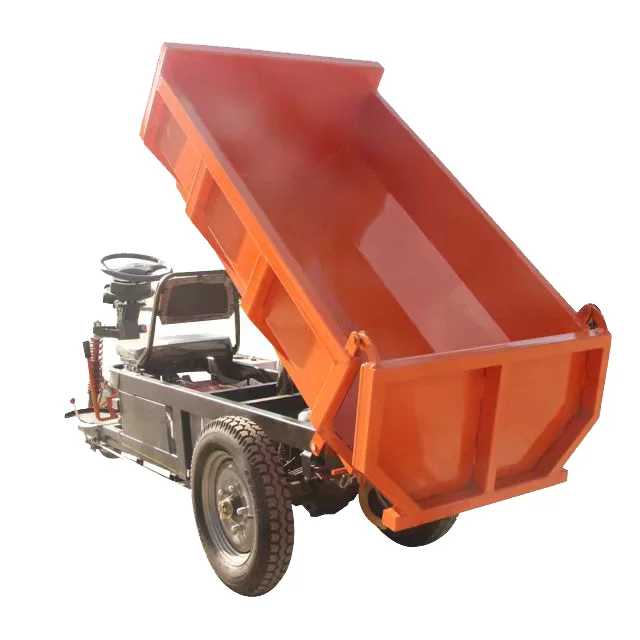

--Hydraulic Lifting System--
The Tricycle body needs to be unloaded, push the lifting rod backward, the hydraulic oil will enter the lower cavity of the cylinder, and the Tricycle body will start to rise.
The Tricycle body needs to be lowered, press down the lifting rod, and the Tricycle body will automatically lower, with simple operation and convenient unloading.
The Tricycle body needs to be lowered, press down the lifting rod, and the Tricycle body will automatically lower, with simple operation and convenient unloading.
Chaoyang Tire
Front Tire 400-12
Rear Tire 450-14
This dump truck adopts the famous Chinese brand Chaoyang pneumatic tires. The front tires is 400-12 and the rear tires are 450-14. It is used to support the whole vehicle. It has strong endurance, cushioning external impact, high and low temperature resistance, and is suitable for a variety of Work under the road.
--Driving Motor--
HS-150 It uses a 1000W motor to drive the vehicle. The motor has strong power to drive the entire vehicle. This motor has a long mileage and stable driving.
--Damping system--
Shock absorption has a very important purpose in the use of tricycles, which can alleviate the vibration of electric vehicles and protect the vehicles from damage.
--Distribution Cabinet--
The high-performance power distribution cabinet is equipped with the vehicle control system, power-off switch, forward and backward, and LED light switch.
Customer Photos
Related Products
Electric Mini Dumper 1 ton 2 tons 3 tons Loading Capacity
Packing & Shipping
1-4 units We usually customize the wooden box for your shipment.
20 foot can be hold 10 units. 40 foot can be hold 24 units.
Company Profile
Please contact us for more details and discounts! Whatsapp+86 13071088022
