Product Overview

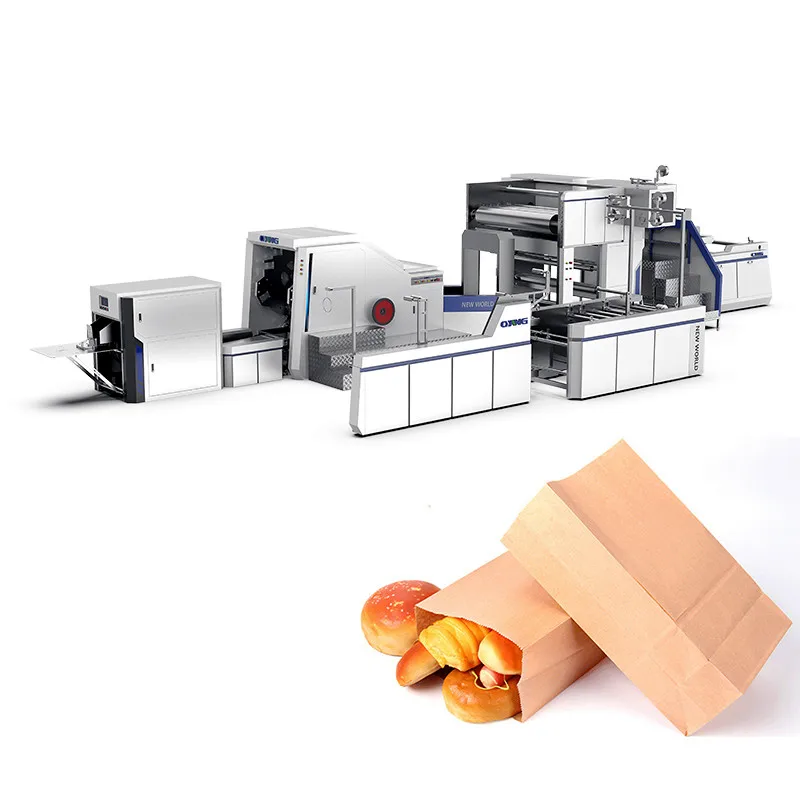

paper bags making machine kraft paper bag making machine B330 square bottom paper bag machine China
NEW WORLD-B series it uses paper roll in blank or printed as raw material, consists of automatic centre forward glue, printing tracking, fixed length and cutting, bottom indentation, folding bottom, bottom glue. This machine really realized the full automation production, can effectively save the labor cost.
FEATURES AT A GLANCE
*Use PFXGP Touch Screen Human-Computer Interface, operate and control easily.
*Adopt YASKAVA JAPAN Motion Control, integrated with optical fiber, ensure high speed running steadily.
*YASKAVA JAPAN Servo Motor and Germany Original SICK Photoelectric Eye Correction, tracking printing bag accurately.

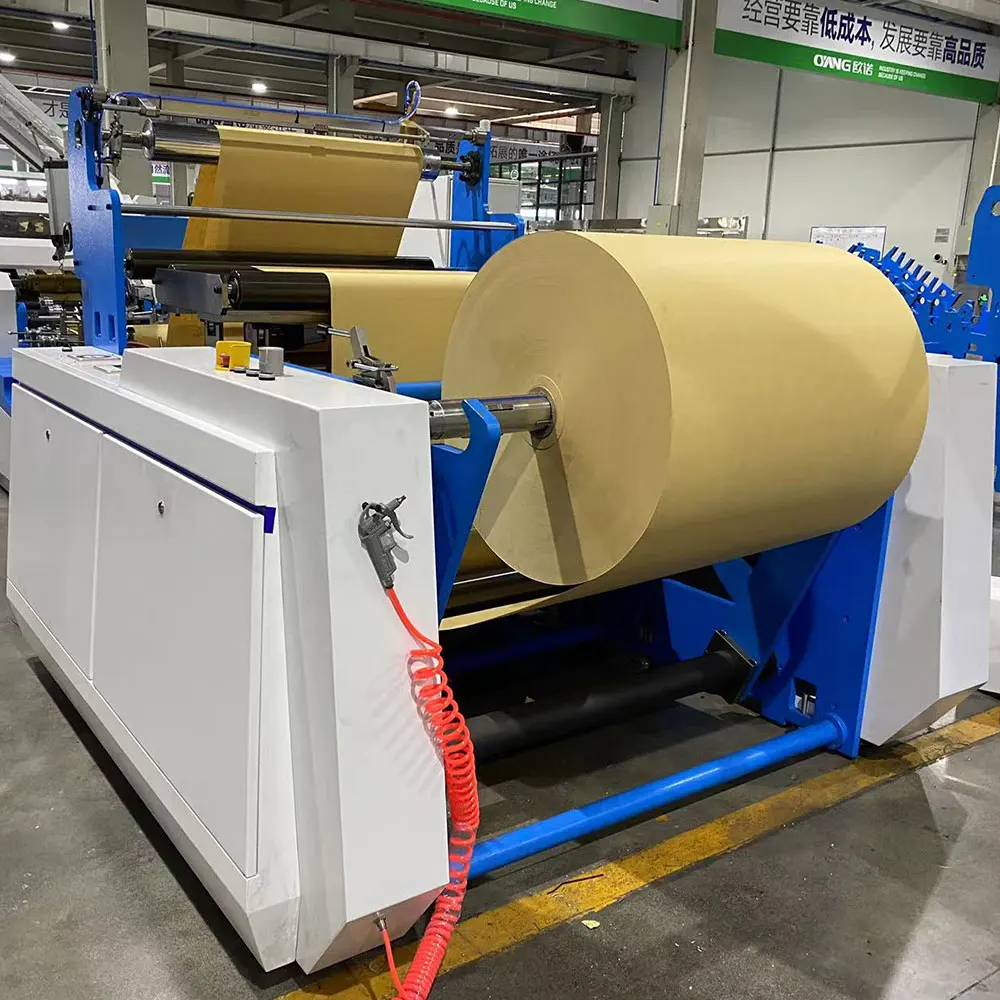

*Raw material load adopt Hydraulic pressure cylinder up and down structure, unwinding adopt auto tension control.
*Raw material load adopt Hydraulic pressure cylinder up and down structure, unwinding adopt auto tension control.
*Raw material unwinding EPC adopt ARISE, Reduce adjustment time.
sample bag
sample bag
sample bag
BAG FORMING DIAGRAM
Descriptions of paper bags
PRODUCT SPECIFICATIONS
Model | New world -B220 | New world -B330 | New world -B400 | New world -B550 |
Paper bag length (Cutting length) | 191-430mm | 280-510mm | 280-600mm | 380-770mm |
Paper bag width | 80-220mm | 150-330mm | 150-400mm | 220-550mm |
Paper bag bottom width | 50-120mm | 70-180mm | 90-200mm | 100-210mm |
Paper thickness | 45-130g/m2 | 60-150g/m2 | 70-150g/m2 | 80-150g/m2 |
Paper roll width | 290-710mm | 470-1000mm | 510-1230mm | 630-1550mm |
Roll paper diameter | 1300mm | 1300mm | 1300mm | 1300mm |
Machine MAX Speed | 250pcs/min | 200pcs/min | 200pcs/min | 150pcs/min |
Paper bag speed | 100-200 pcs/min | 100-160 pcs/min | 100-160 pcs/min | 100-150 pcs/min |
Machine power | 380V 3 Phase 9kw | 380V 3 Phase 11kw | 380V 3 Phase 15.5kw | 380V 3 Phase 18.8kw |
Machine weight | 5600kg | 8000kg | 9000kg | 11000kg |
Machine size | 8600×2600×1900 mm | 9500×2600×1900 mm | 10700×2600×1900 mm | 13000×2600×2000 mm |
PRODUCT CONFIGURATION

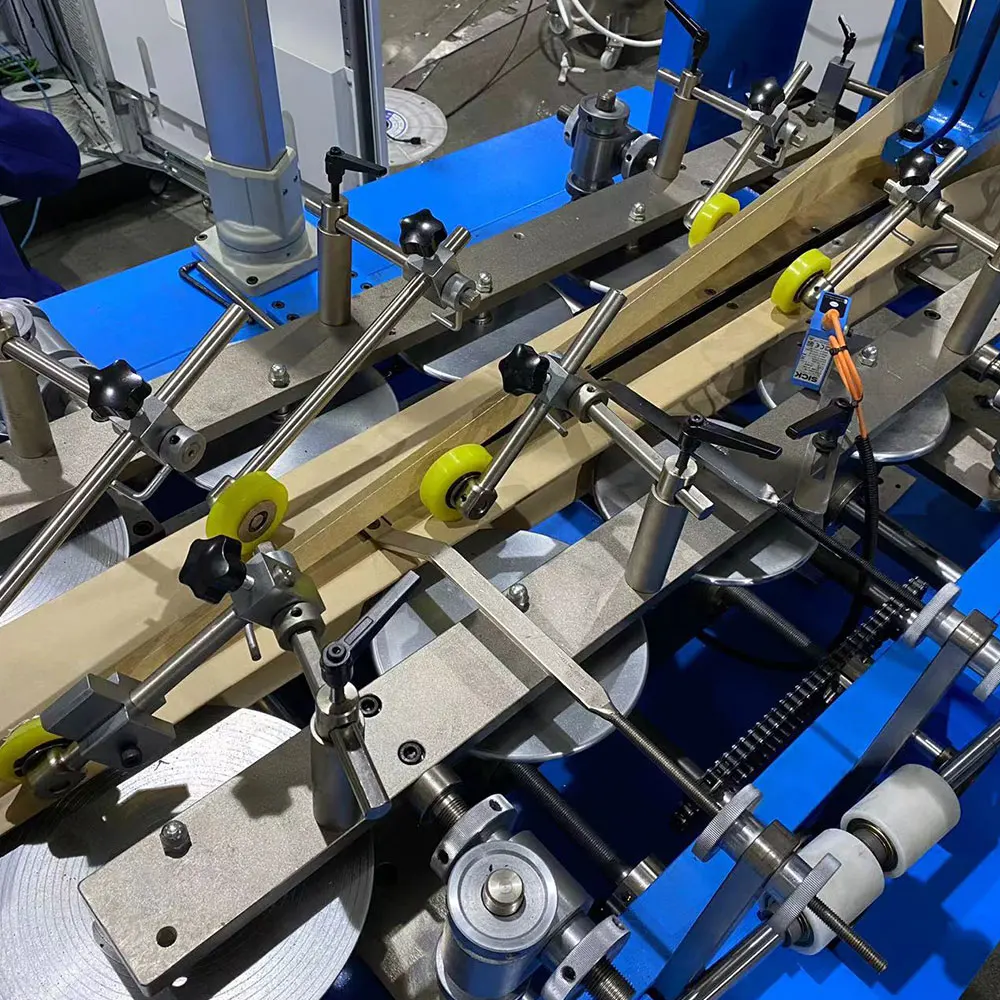

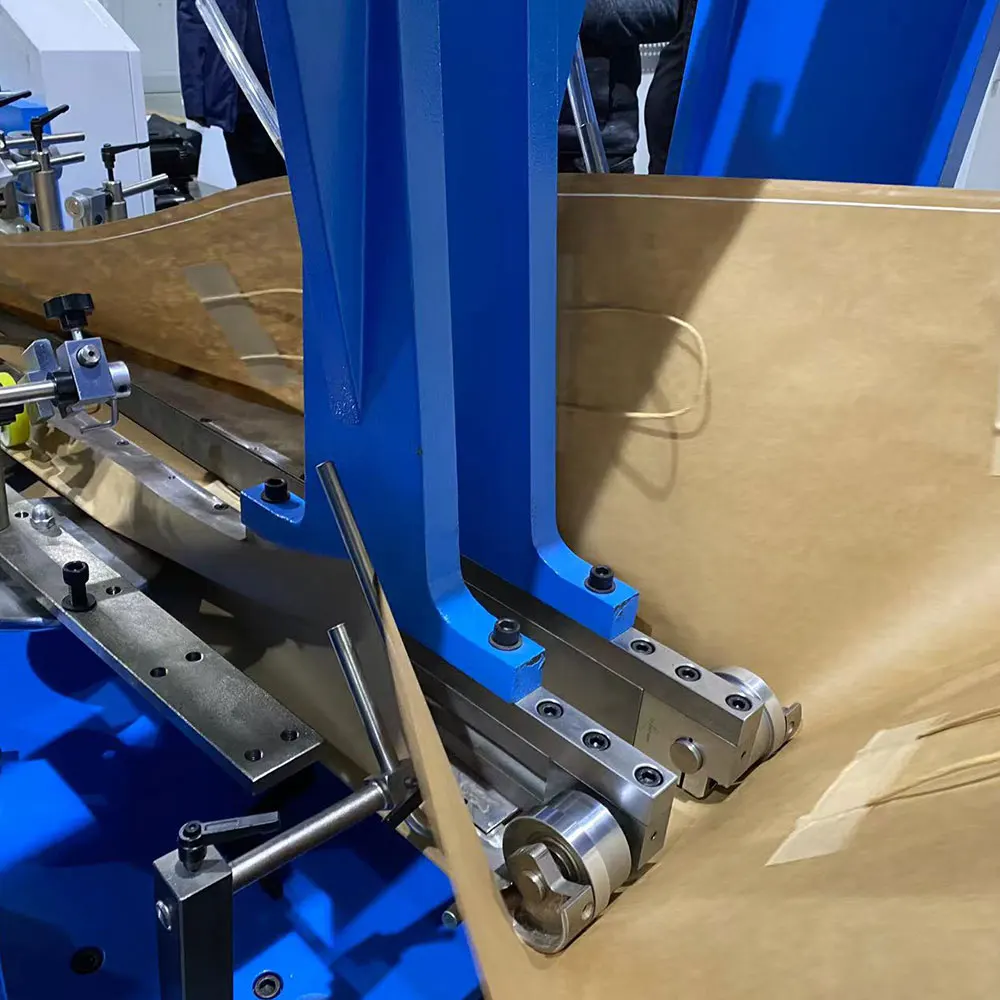

Bag forming structure

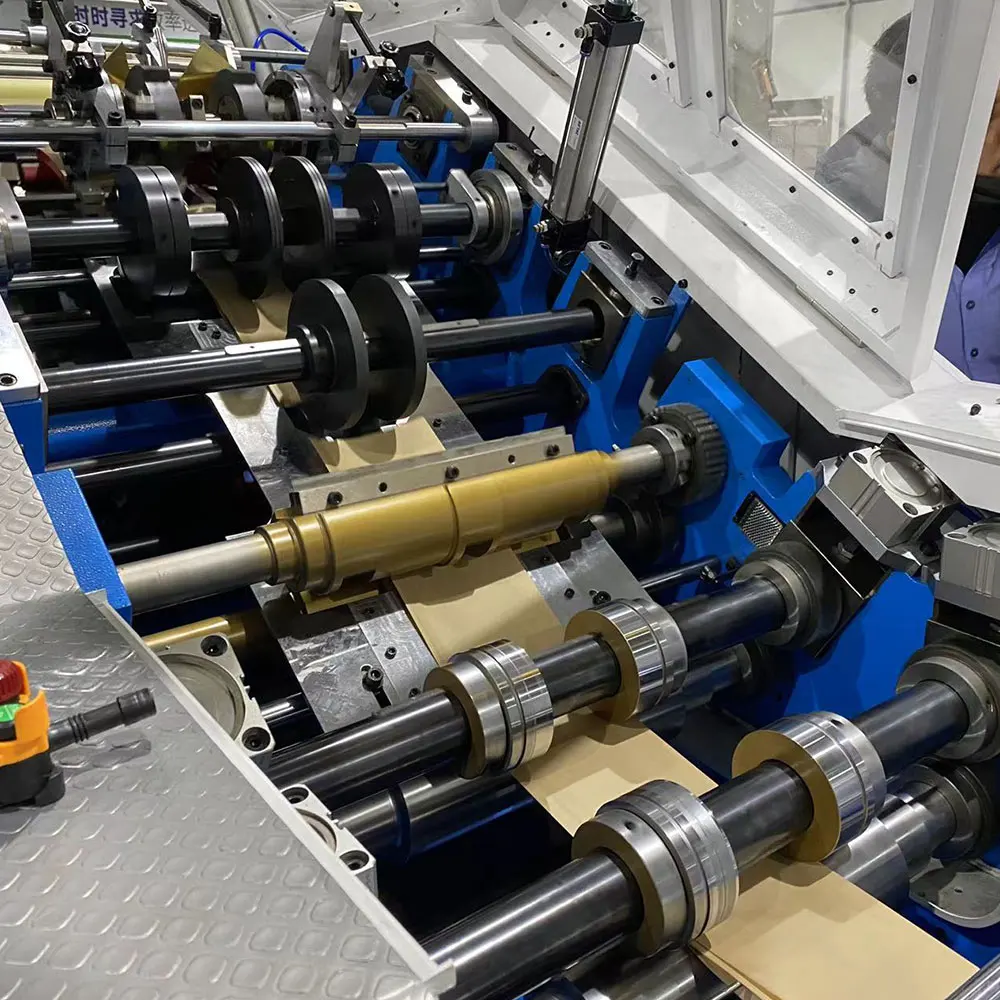

Bag cutting and sealing structure
Big drum structure
Manufacturing Technique
SALES AND SERVICE NETWORK
HOT SALE MACHINES
AUTOMATIC HANDLE PAPER BAG MACHINE
SQUARE BOTTOM PAPER BAG MACHINE
V BOTTOM PAPER BAG MACHINE
OUR COMPANY (130000㎡)
ZHEJIANG OUNUO MACHINERY CO.,LTD
Our company covered 130000㎡ workshop, more than 400 employees. We have 15 invention patents, 60 untility model patent and 6 appearance patents so far. Professional in making non-woven bag making machine line (Biggest in China)and paper bag machine line for more than 15 year experience. The machines were sold more than 125 countries.
OUR OFFICE
Recreational area
Manager office
Meeting room
OUR OFFICE
Workshop corner
Japan "Mazak" & "Okuma" , Taiwan Weili CNC center(more than 100 sets)
Warehouse corner
FAQ
Q1：What kind of this machine can making ?
A1：This machine is mainly for square bottom papaer bag.
Q2：Is the bag size adjustable?
A2：The bag size is adjustable within machine size range.
Q3：what is the packing of the delivery?
A3：Wooden packing.
Q4：How many container we need for this machien ?
A4：According diffent machien size ,machine may loaidng up to 9m in container.
Q5：How to doing the after service?
A5：We support machine working manual,machine install and running video.Support the technician to install and guildance.
