Главная
Все Категории
Aluminum Wire
Эмалированная медная и плакированная алюминиевая

Эмалированная медная и плакированная алюминиевая

Категория: Aluminum Wire >>>
Поставщик: Hangzhou,Jayuan,Industrial,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.70 $*	0.95 $*
Aug-15-2025	0.95 $*	0.63 $*
Jul-15-2025	0.13 $*	0.10 $*
Jun-15-2025	0.13 $*	0.6 $*
May-15-2025	0.74 $*	0.93 $*
Apr-15-2025	0.74 $*	0.11 $*
Mar-15-2025	0.52 $*	0.75 $*
Feb-15-2025	0.38 $*	0.44 $*
Jan-15-2025	0.22 $*	0.16 $*

Характеристики

Products Description

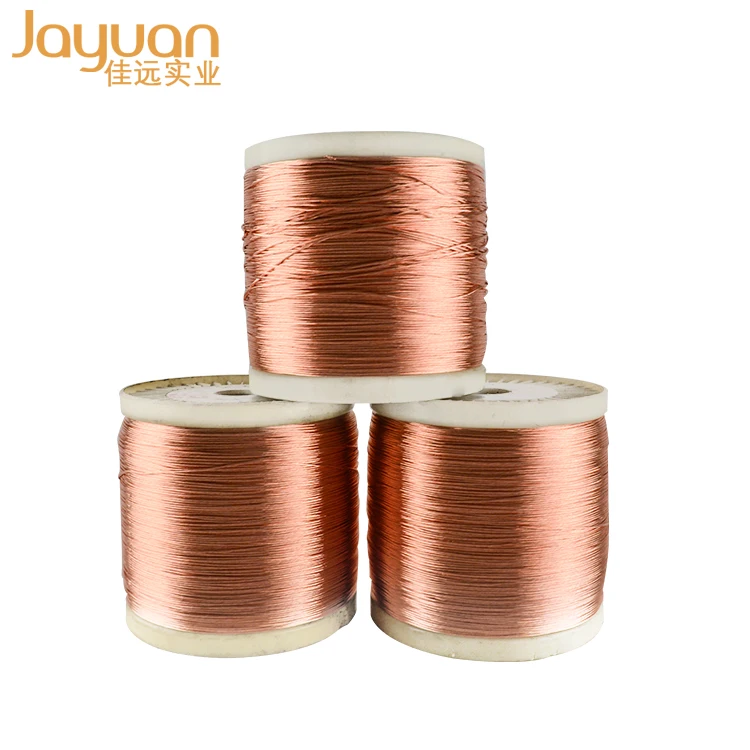

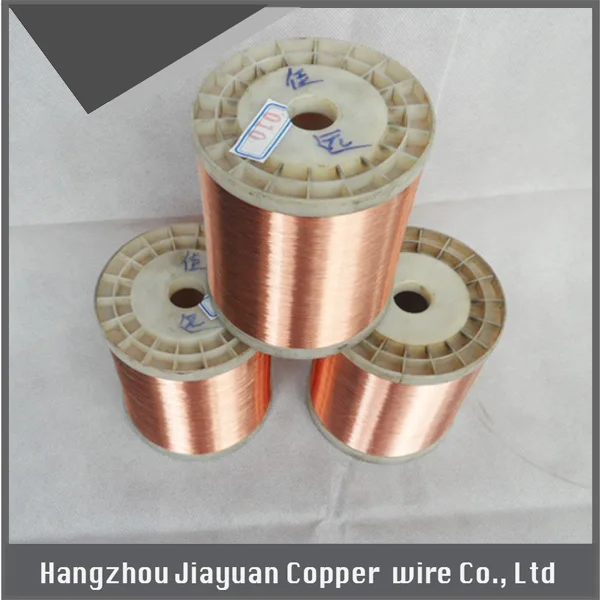

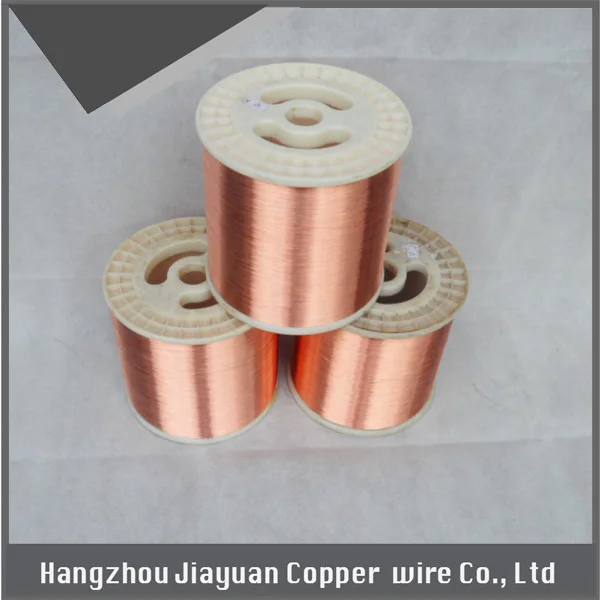

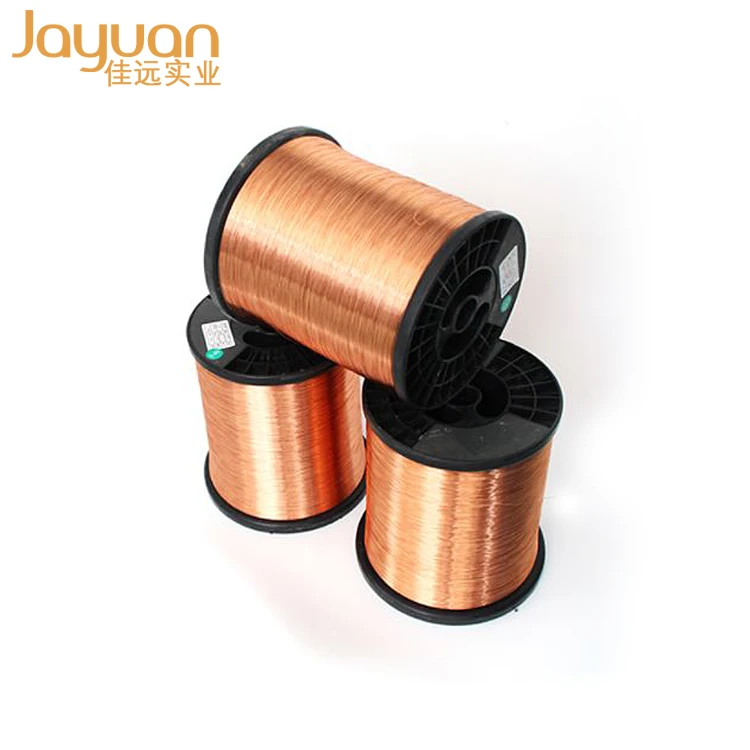

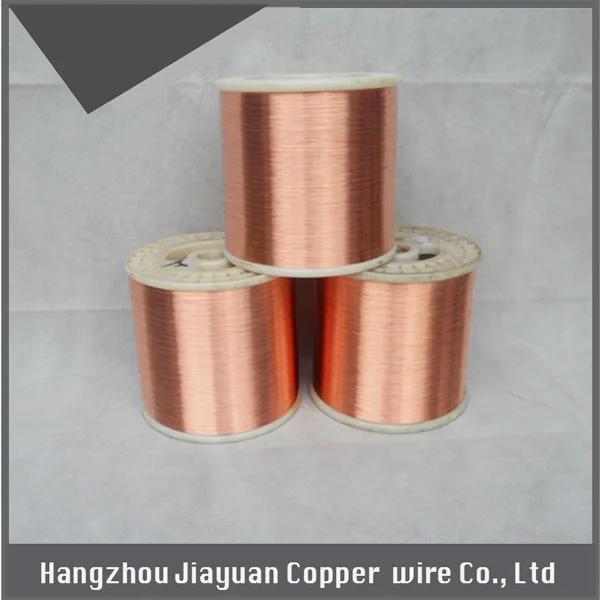

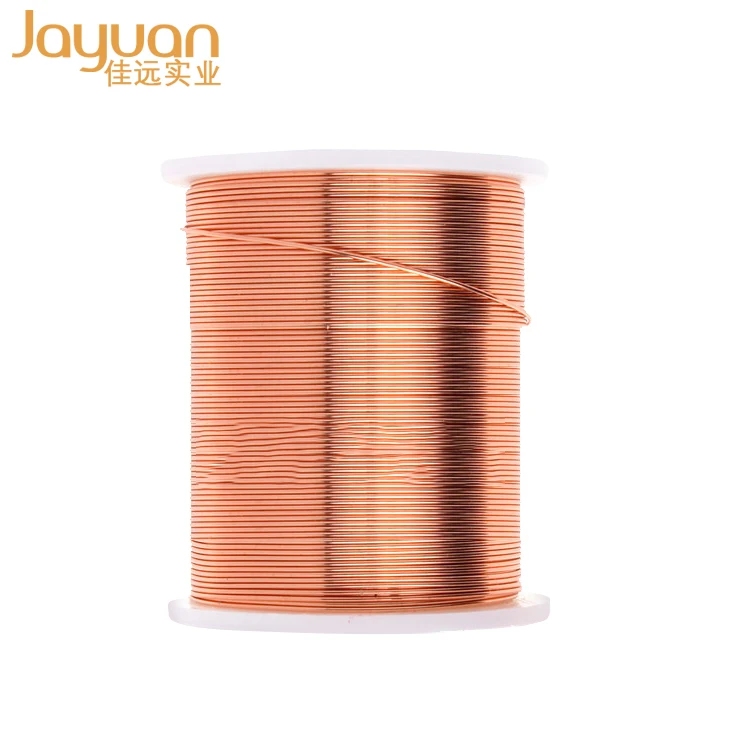

JAYUAN CCA Wire

Copper-clad aluminum wire has high electrical conductivity, enhanced tensile strength and elongation, and good weldability.

Copper-clad aluminum wire is covered with a layer of pure copper concentrically on its surface, so it has the same weldability as

pure copper wire, which greatly improves the mechanical properties and applicability of the product.

Advantages of JAYUAN CCA Wire

1.Lighter than copper:

The outer copper covers the inner aluminum core, combining the excellent electrical conductivity of copper with the lightness of aluminum.
2.Flexible:

It can be further processed into flat and thin lines like copper wire, and can be tinned.
3.Good ductility and cost savings:

CCA is about 32 to 40% as dense as copper and 2.45 to 3.00 times longer than copper of the same weight and diameter, which helps cable manufacturers reduce production costs.
4.Saving resources:

Copper resources can be better saved by using coated copper.
5.Unpolluted:

No pollution is emitted during the production process.
6.Easy to transport:

Finished cables using copper wire are lighter.

Applications of JAYUAN CCA Wire

CCA wire widely used in Cable TV signal and large volume communications net work signal transmission, control signal cable, welding cable and so on .
High Frequency Signal Transmission :
1. TV coaxial cable
2. 50Ω Radio frequency (RF) cable
3. Flexible RF coaxial cable inner conductor material
4. Computer cable and other data cable inner conductor material
5. Superfine coaxial cable inner conductor material

Data of JAYUAN CCA Wire

Specification	Copper in volume (%)	Copper in mass (%)	Length comparison	Density (g/cm3)	Max.DC resistivity Ω.mm2/m (20°C)	Conductivity (%IACS) Min
CCA-10%Copper	8~12	27	2.65:1	3.32	0.02743	63
CCA-15%Copper	13~17	37	2.45:1	3.63	0.02676	65
Copper Wire	100	100	1:01	8.89	17241	100

Company Profile

Factory & Event Showcase

These are pictures of Wires' Production Line.

Due to China is also a Raw Copper Importer role in worldwide, so price of pure copper changes every day. So don't be upset if today's quote is high, maybe tomorrow it getting lower!

All the Factory normally purchase raw material copper, and drawing the wires themselves.

Wires have two types, as soft and hard.

We attended many exhibitions, went to Africa, Europe and Middle-east. They like our stable quality and understand our quotation plan.

Think stand as our Customers.
