5 МП Мини USB веб-камера CMOS OV5640 датчик Промышленная видеокамера для мониторинга

5 МП Мини USB веб-камера CMOS OV5640 датчик Промышленная видеокамера для мониторинга

Категория: >>>
Поставщик: Shenzhen,Ailipu,Technology,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.69 $*	0.37 $*
Aug-15-2025	0.78 $*	0.0 $*
Jul-15-2025	0.34 $*	0.38 $*
Jun-15-2025	0.5 $*	0.94 $*
May-15-2025	0.25 $*	0.55 $*
Apr-15-2025	0.94 $*	0.6 $*
Mar-15-2025	0.89 $*	0.70 $*
Feb-15-2025	0.20 $*	0.24 $*
Jan-15-2025	0.72 $*	0.16 $*

Характеристики

5MP Mini USB Webcam CMOS OV5640 Senser Industrial Video USB Camera For Security Monitoring

Key Features

*5Megapixel CMOS OV5640 sensor for high quality image.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance – ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.
*High frame rate–30 fps in 1280X720 resolution.
*High quality lens, 2.1/2.8/3.6/6/8/12mm lens, fisheye lens
*Low power consumption – ideal for portable equipment.

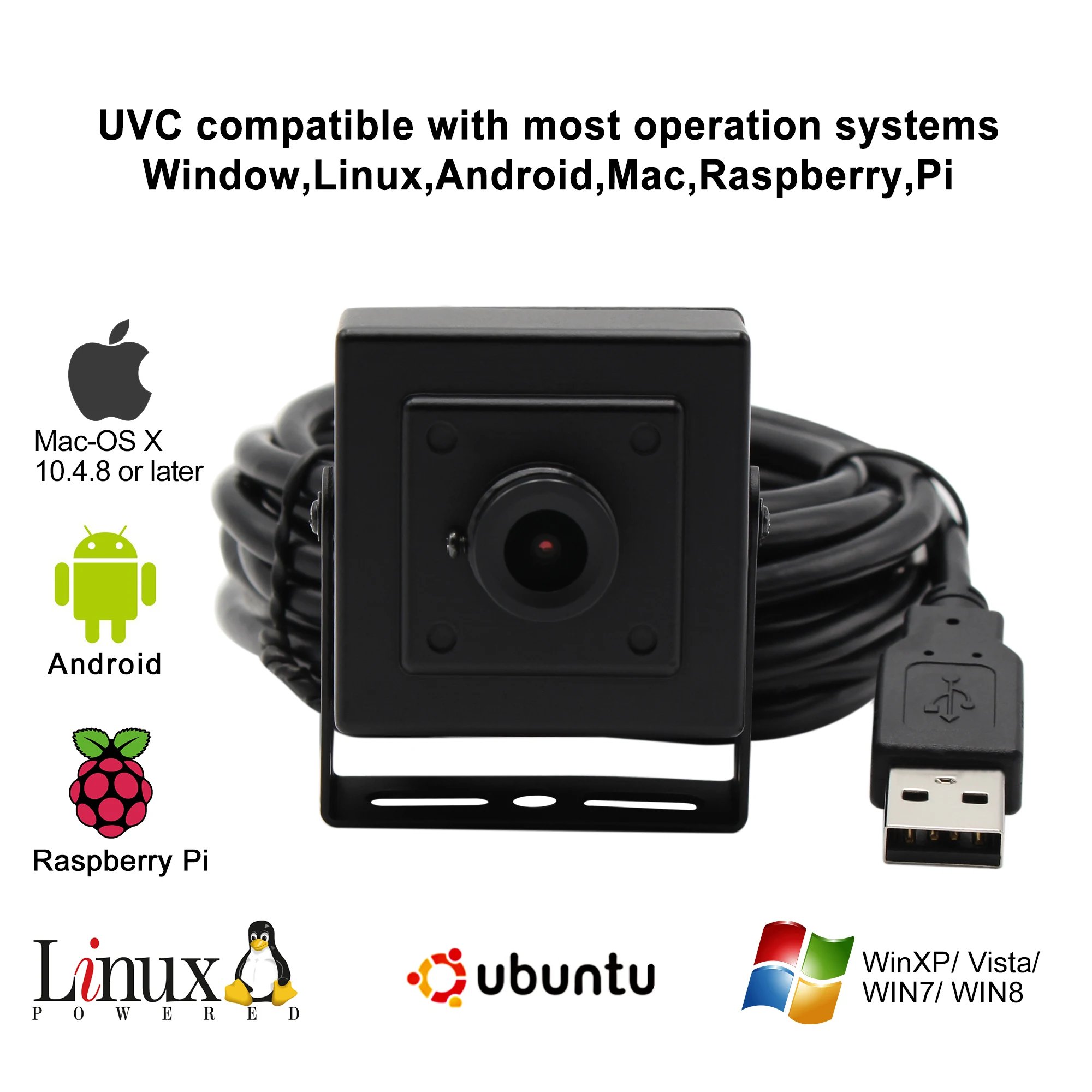

*UVC for use in Linux, Windows , MAC, Android

Specification

Optional models	ELP-USB500W02M-BL21(2.1mm lens) ELP-USB500W02M-BL28(2.8mm lens) ELP-USB500W02M-BL36(3.6mm lens) ELP-USB500W02M-BL60(6mm lens) ELP-USB500W02M-BL80(8mm lens) ELP-USB500W02M-BL12(12mm lens) ELP-USB500W02M-BL170 (170 degree fisheye lens) ELP-USB500W02M-BFV(2.8-12mm varifocus lens)
Sensor	1/4" CMOS OV5640
Lens size	500W, 5.0megapixel, Max. 2592(H)x1944(V)pixels
Max. Resolution	2592X1944
Picture format	MJPEG
USB Protocal	USB2.0 HS/FS, USB1.1 FS
Support free driver	USB Video Class(UVC)1.1
Auto exposure AEC	Support
Auto white blance AEB	Support
Frame rate	2592 (H) x 1944 (V) pixels MJPEG 15fps YUY2 3fps 2048 (H) x 1536 (V) pixels MJPEG 15ps YUY2 3fps 1600 (H) x 1200 (V) pixels MJPEG 15fps YUY2 3fps 1920 (H) x 1080 (V) pixels MJPEG 15fps YUY2 3fps 1280 (H) x 1024 (V) pixels MJPEG 15fps YUY2 7.5fps 1280 (H) x 720 (V) pixels MJPEG 30fps YUY2 7.5fps 1024 (H) x 768 (V) pixels MJPEG 30fps YUY2 15fps 800 (H) x 600 (V) pixels MJPEG 30fps YUY2 30fps 640 (H) x 480 (V) pixels MJPEG 30fps YUY2 30fps 320 (H) x 240 (V) pixels MJPEG 30fps YUY2 30fps
Adjustable parameters	Brightness/Contrast/Color saturation /Definition/Gamma/WB
Night vision	optional, can choose IR board
view angle	30-150 degree optional
voltage	DC 5V
current	150mA
work temperature	DEGREES(-20~70)
Size	32x32mm/38*38
Support OS	WinXP/Vista/WIN7/WIN8 Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC Android 4.0 or above

5MP usb camera with 2.8-12mm varifocus lens

5MP usb camera with Fisheye lens

Packing & Delivery

Box for camera module without case

Camera module without case, 2PCS/ Box, 48 Boxes(96PCS)/Carton, Dimension:39x36x32cm

Box for camera with case

Camera with case, 1PCS/ Box, 48 Boxes (48PCS)/Carton, Dimension: 39x36x32cm

Each product will be wrapped by bubble bag and put into a small inner carton, and then loaded into a master carton.

Payment and Delivery terms:

T/T: 100% payment before shipping; Western Union, Paypal, all available.

In general, we use international express, DHL, UPS, FEDEX, EMS, TNT, etc.
Large order: by air or sea, you could choose it.
If you have your own forwarder, please tell us the detailed information.

Our Company

Shenzhen Ailipu Technology Co.,Ltd start in 2005,already 16 years history, is a professional manufacturer of USB Camera. Ailipu has its own brand ELP, which already well know in video camera system.

With its own unique R&D team as the basic, oriented by dedicated sales team,Shenzhen Ailipu Technology Co., Ltd already developed into a prefessional video products company integrate with developing, production, sales and also service all together.

At present,Shenzhen Ailipu Technology Co., Ltd produce all kinds of USB Cameras for industrial vision. Recently, Ailipu company present new USB cameras module range from Super Sharp 4K camera,13Megapixel camera,8Magapixel camera,and also 30W Pixel, 1megapixel, 2megapixe, 3megapixel, 5 megapixel to 5megapixel autofocus etc., which already widely used in all kinds of industrial system.

Shenzhen Ailipu manufacturer can also OEM or customize products specially by customers' requirements.

We always believe"Together everybody achives more", and we are looking forward your choice and join, we fought together,open up a new future of video surveillance industry.

Exhibition

Partner

Certifications

Sample Room & Production Process

FAQ

1. Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.

2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.

3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.

4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module

5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens

6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System, Mac

7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL

8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.

9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.

10. Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi,
VLC Player
