Производители предоставляют самую дешевую цену волоконный сварочный аппарат lightweld 1500 ручной
- Категория: >>>
- Поставщик: Shandong,Wolei,Cnc,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 11079.46 $* | 11633.70 $* |
| Aug-20-2025 | 10986.47 $* | 11535.14 $* |
| Jul-20-2025 | 9217.74 $* | 9678.34 $* |
| Jun-20-2025 | 10800.4 $* | 11340.60 $* |
| May-20-2025 | 9403.77 $* | 9873.43 $* |
| Apr-20-2025 | 10613.43 $* | 11144.43 $* |
| Mar-20-2025 | 10520.18 $* | 11046.48 $* |
| Feb-20-2025 | 10427.57 $* | 10948.63 $* |
| Jan-20-2025 | 10334.32 $* | 10851.78 $* |
Характеристики
Advantages of lightweld 1500w laser welding machine:
1. Compared with MIG or TIG, LightWeld can greatly accelerate the welding speed compared with MIG or TIG, and it is easy to learn and operate;
2. A wider range of materials and thicknesses provide consistent results with higher quality without deformation, undercut or burn through.
3. Reduce the heat of the affected area, traditional post-processing grinding or polishing, improve productivity, reduce waste and reduce cost per piece
2. A wider range of materials and thicknesses provide consistent results with higher quality without deformation, undercut or burn through.
3. Reduce the heat of the affected area, traditional post-processing grinding or polishing, improve productivity, reduce waste and reduce cost per piece
Product Paramenters
Model | DW-1500 | |
DW-1500Laser power | 1500W | |
Center wavelength | 1070+-5nm | |
Laser frequency | 50Hz-5KHz | |
Work patterns | Continuous | |
Electricity demand | AC220V | |
Output fiber length | 5/10/15m (Optional) | |
Cooling method | Water Cooling | |
Dimensions | 1150*760*1370mm | |
Weight | 275kg(About) | |
Cooling water temperature | 5-45℃ | |
Average consumed power | 2500/2800/3500/4000W | |
Laser Energy Stability | <2% | |
Air humidity | 10-90% | |
The above data is for reference only, the actual product shall prevail | ||
Details Images

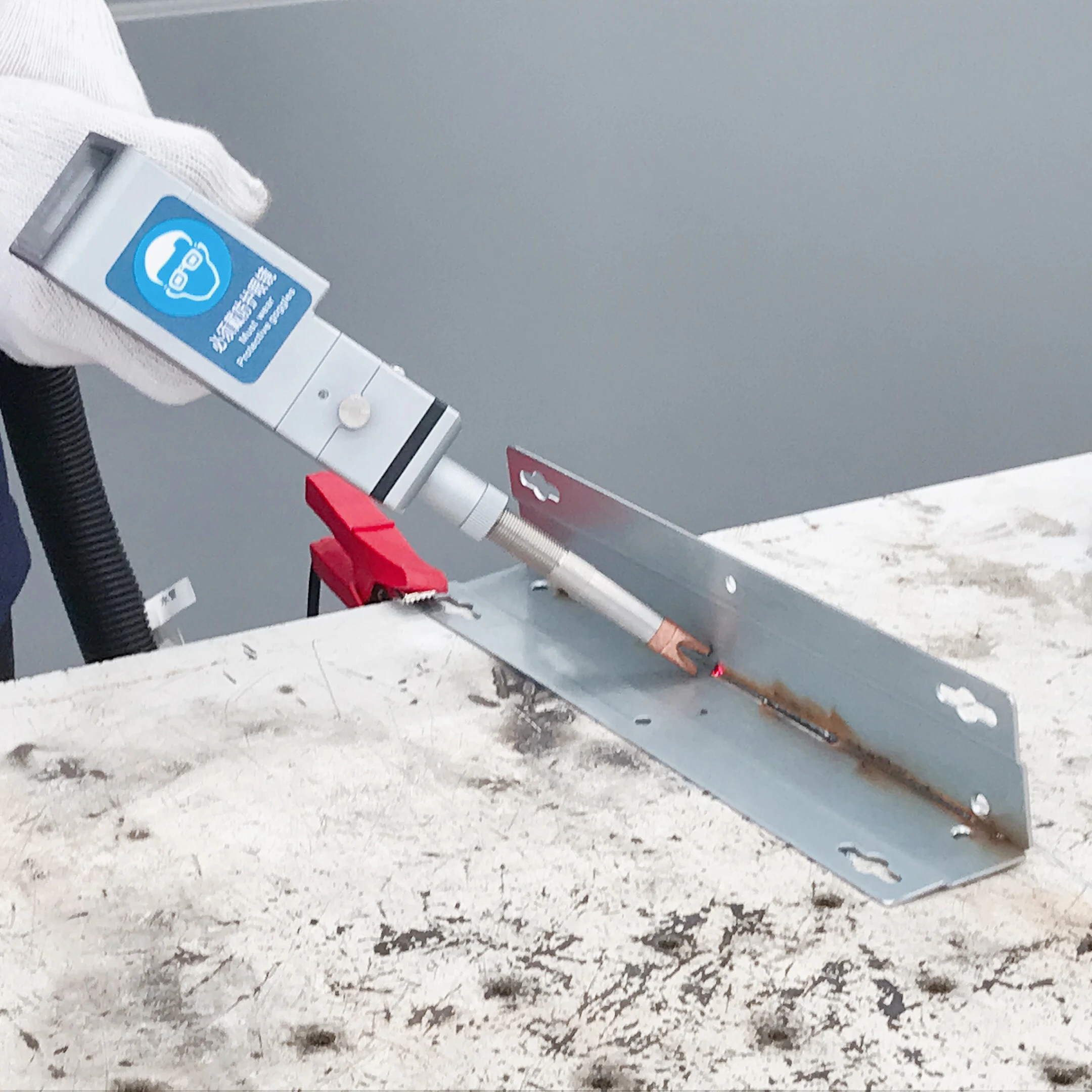

QILIN double hundred welding torch head
With strong penetrating power, it can be used for penetration welding, stitch welding, or thicker materials.
The direction width can be adjusted, and it has a certain penetration force to the thick plate. It is used for the tailor welding of fillet resistance welding.
Optional: QILIN/WSX/HW
Laser
The beam quality is good, with very good monochromaticity, directionality and stability; small size, simple structure, small and flexible design, easy to use
Optional: GW/Recipe/Raycus
Cold water system
The imported compressor, water tank and pump are made of stainless steel, and the heat transfer coil is made of stainless steel to ensure the working stability of the chiller and good cooling effect
Automatic wire feeder
The system adopts microcomputer control, step reduction motor drive, high wire feeding precision and good repeatability
Lightweld 1500w laser welding machine product effect:
Lightweld 1500w laser welding machine is suitable for welding gold, silver, titanium, nickel, tin, copper, aluminum and other metals and their alloy materials. It can achieve the same precision welding of metals and dissimilar metals. It has been widely used in aerospace equipment, shipbuilding, and instruments Instrumentation, electromechanical products, automobile and other industries.
Lightweld 1500w laser welding machine Applications:
It is widely used in many industries such as kitchen, household appliances, advertising, moulds, stainless steel doors and windows, handicrafts, household goods, furniture, auto parts, etc.

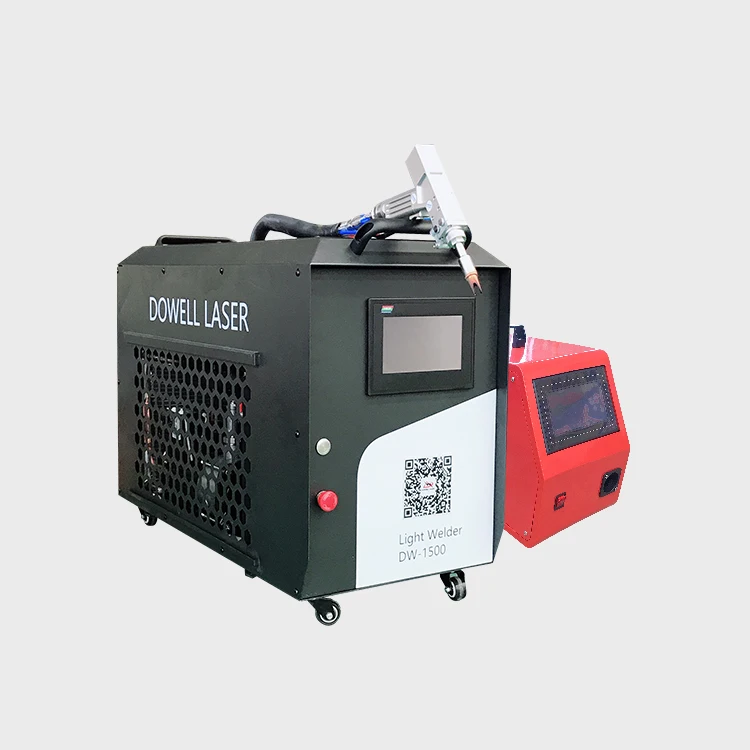

Lightweld 1500w laser welding machine
Why Choose Us
10,000 square meters production plant
12 years focus on laser equipment manufacturing
Customized equipment available
Full range of models and specifications
Professional technical team
Free samples, free plant visit
Company Profile
Certifications
FAQ
Q1: Do you provide after-sales service?
A1: The machine is guaranteed for 2 years and provides door-to-door service.
Q2: How long is the delivery time?
A2: 7-12 days for normal machines, 12-14 days for customized machines.
Q3: What payment methods are supported?
A3: Alibaba Trade Guarantee/TT/Western Union/Payple/LC/Cash/DA/DP.
Q4: Do you support customization?
A4: Yes, we will customize the service for you according to different cutting materials
thickness.
Q5: I don't know how to use it after I received it, or I encountered a problem in the process of using it. what do I do?
A5: We have detailed user manuals and video materials for you to learn. In addition, we provide door-to-door service.
Q6: What is the cooling method of the machine?
A6: Water cooling
A1: The machine is guaranteed for 2 years and provides door-to-door service.
Q2: How long is the delivery time?
A2: 7-12 days for normal machines, 12-14 days for customized machines.
Q3: What payment methods are supported?
A3: Alibaba Trade Guarantee/TT/Western Union/Payple/LC/Cash/DA/DP.
Q4: Do you support customization?
A4: Yes, we will customize the service for you according to different cutting materials
thickness.
Q5: I don't know how to use it after I received it, or I encountered a problem in the process of using it. what do I do?
A5: We have detailed user manuals and video materials for you to learn. In addition, we provide door-to-door service.
Q6: What is the cooling method of the machine?
A6: Water cooling
