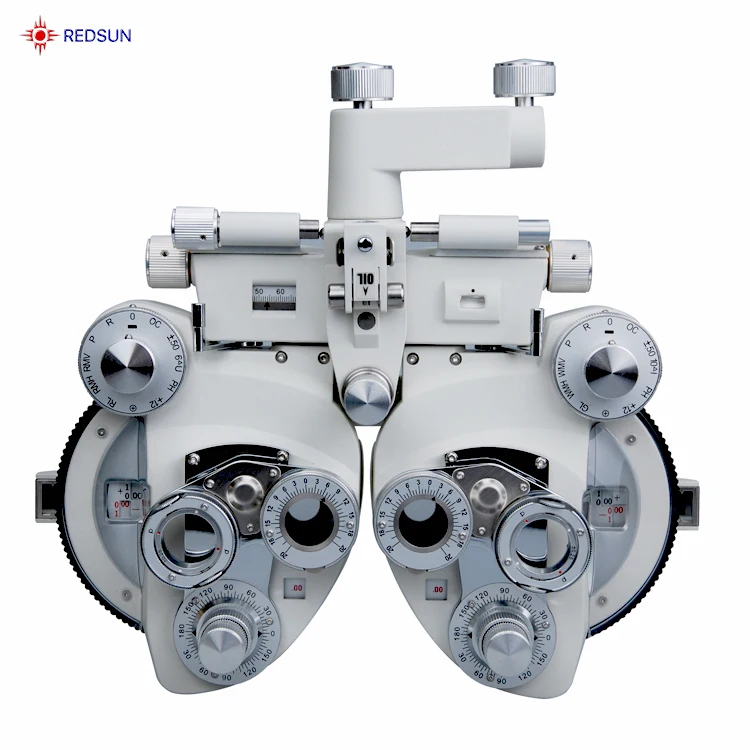

Ophthalmic phoropter



Model:VT-5C



Specifications:
Sphere power: Range: +16.75 to -19.00D
Step: 0.25D
Cylinder power: Range: 0.00D to -6.00D
(0.00D to 8.00D with additional lens of-2.00D)
Step: 0.25D
Cylinder axis: 0 to 180° , 5° Steps
Cross Cylinder: ± 25 diopters
Cross-cylinder lens: ± 0.25D

Rotary prisms: 0Δ To 20Δ , 1Δ Steps
Auxiliary lens dial: [O]-Open aperture (two positions)
[R]-Retinoscopic lens, +1.50D
[P]-Polarizing lens, (45° Left eye, 135° Right eye)
[WMV]or[RMV]-Maddox rod, vertical
White _ left eye
Red _ right eye
[WMH]or[RMH]-Maddox rod, horizontal
White - left eye
Red - right eye
[GL]- Green Lens
[RL]-red Lens
[+. 12]- +0.12D Sphere
[pH]- Pin hole

[10Δ I]or [6Δ U]-10Δ Base-in-left eye
6Δ Base-up-right eye (Dissociating prisms)
[± . 50]-± 0.50 fixed cross cyliner
[OC]- Occluder
P. D. Adjustment: 48-75mm, 1mm steps
Standard Accessory: One near point card with holder and rod, dust cover, face shield and case for lenses.
Standard Accessory lens: Two-. 12D and -2.00 cylinder lenses. Two plano lenses for sealing front opening

Net Dimensions: 345× 295× 85(mm)
Net weight: Approx. 4.5Kg
Package Dimensions: 380× 350× 155(mm)
Gross weight: 6Kg





Sphere power: Range	+16.75 to -19.00D   0.25 Sstep
Cylinder power: Range	0.00D to -6.00D
Cylinder axis:	0 to 180° , 5° Steps
Cross Cylinder	± 25 diopters
Cross-cylinder lens	± 0.25D
Rotary prisms	0Δ To 20Δ , 1Δ Steps
[R]-Retinoscopic lens,	+1.50D
[P]-Polarizing lens,	(45° Left eye, 135° Right eye)
Gross weight	6Kg
