Уникальный конструкторный подъемник SC200/200 гарантированного
- Категория: Construction Lifter >>>
- Поставщик: Shandong,Gaoan,Construction,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 35700.46 $* | 37485.69 $* |
| Aug-16-2025 | 35400.85 $* | 37170.37 $* |
| Jul-16-2025 | 29700.56 $* | 31185.29 $* |
| Jun-16-2025 | 34800.39 $* | 36540.24 $* |
| May-16-2025 | 30300.41 $* | 31815.70 $* |
| Apr-16-2025 | 34200.26 $* | 35910.24 $* |
| Mar-16-2025 | 33900.58 $* | 35595.72 $* |
| Feb-16-2025 | 33600.68 $* | 35280.45 $* |
| Jan-16-2025 | 33300.63 $* | 34965.63 $* |
Характеристики
Specification
SC200/200 | ||||
Rated deadweight（Kg） | 2×2000 | |||
Rated members（Kg） | 2×12 | |||
Rated lifting speed（m/min） | 34.4 | |||
Maximum lifting height（m） | 452 | |||
Guide rail frame dimensions（m） | 0.65×0.65×1.508 | |||
Hoisting cage size（m） | 3.2*1.5*2.3/3.0×1.5×2.3 | |||
Type no. | YZZ132M-4 | |||
motor | power（KW） | 3*11 / 2*13 | ||
Center distance of reducer（mm） | 125 | |||
reducer | Transmission ratio | 1:16 | ||
Safety device | form | progressive | ||
Movement speed m/min | MAX 60 | |||
Braking torque（N.m） | ≥4000 | |||
Product Description

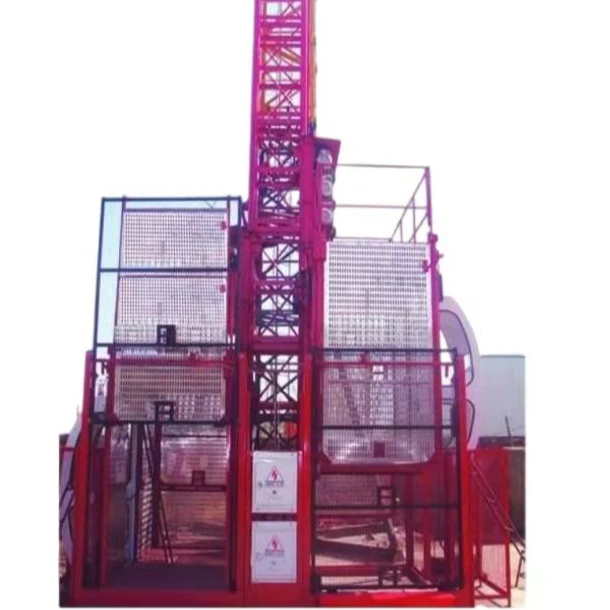

SC hoist lift
SC series construction lift is a new generation of construction lift products designed and launched by Shandong Gao 'an
Construction machinery Co., LTD. It has advanced technical performance, safe and reliable use, convenient maintenance and other prominent characteristics. Modern construction is the most ideal vertical transport equipment.
Due to the computer aided design of the machine, compared with the traditional construction lift, it has beautiful shape, light structure, convenient disassembly, safe and reliable, strong applicability, widely used characteristics, starting weight from 1000kg to 2000kg, running speed from 26m/min to 33m/min, after the addition of inverter control, It can realize 0 ~ 60m/min stepless speed regulation to meet the needs of different users. This machine has better technical performance, more safe and reliable working mechanism, more compact structure, this product has the following prominent features:
1. Safety protection device is complete and reliable. With the national patent technology of anti-falling safety device, so that the reliability of the machine in the first similar products.
2. Combined design, through different collocation, can be combined out of different speed, different lifting weight
specifications. The standardization, practicability and universalization of the products are greatly improved.
3. Smooth operation and comfortable ride. Because the driving unit is placed above the top of the cage, the clearance in the cage increases; At the same time, it also makes the transmission more stable, the mechanical vibration is smaller, and brings a comfortable and spacious environment to the construction operators.
4. Overweight protection, more effective to ensure the use of equipment safety.
Use this machine is your wise choice, the product will be able to become your modern construction right-hand man, for you to improve the efficiency of construction. (Due to the continuous improvement of the product, the specification is inconsistent with the actual product, the actual product shall prevail)
Construction machinery Co., LTD. It has advanced technical performance, safe and reliable use, convenient maintenance and other prominent characteristics. Modern construction is the most ideal vertical transport equipment.
Due to the computer aided design of the machine, compared with the traditional construction lift, it has beautiful shape, light structure, convenient disassembly, safe and reliable, strong applicability, widely used characteristics, starting weight from 1000kg to 2000kg, running speed from 26m/min to 33m/min, after the addition of inverter control, It can realize 0 ~ 60m/min stepless speed regulation to meet the needs of different users. This machine has better technical performance, more safe and reliable working mechanism, more compact structure, this product has the following prominent features:
1. Safety protection device is complete and reliable. With the national patent technology of anti-falling safety device, so that the reliability of the machine in the first similar products.
2. Combined design, through different collocation, can be combined out of different speed, different lifting weight
specifications. The standardization, practicability and universalization of the products are greatly improved.
3. Smooth operation and comfortable ride. Because the driving unit is placed above the top of the cage, the clearance in the cage increases; At the same time, it also makes the transmission more stable, the mechanical vibration is smaller, and brings a comfortable and spacious environment to the construction operators.
4. Overweight protection, more effective to ensure the use of equipment safety.
Use this machine is your wise choice, the product will be able to become your modern construction right-hand man, for you to improve the efficiency of construction. (Due to the continuous improvement of the product, the specification is inconsistent with the actual product, the actual product shall prevail)
Company Profile
Shandong GaoAn construction machinery co.,ltd was established in 2009, with a registered capital of 15 million yuan. The factory covers an area of more than 6000 square meters, and has more than 80 employees. GaoAn is mainly engaged in various types of tower cranes and construction hoists, with stable product quality, reliable performance, low repair rate and easy installation and disassembly.
1. The company's main products of tower cranes are: QTZ63 series, QTZ80 series, QTZ100 series, QTZ125 series,QTZ160 series, QTZ200 series, QTZ250 series, QTZ315 series, QTZ400 series and QTZ900 series of TC model and PT model tower cranes, the relevant accessories are Schneider and other well-known suppliers, our products use use Jinan Iron and Steel Group Q355B manganese steel and other special high-grade steel,standard mast section size specification is complete, can customize all kinds of fixed type and chip type mast sections of various sizes according to customer requirements.
2. The company produces and manufactures the fourth generation wide beam SC100 / 100 and SC200 / 200 series construction hoists,which are equipped with frequency control double-motor drive unit and frequency control three-motor drive unit, and can also choose DOL drive unit. The drive unit is the most advanced gear drive, which is free of oil and maintenance within 5 years. Its lifting height can be customized according to customers, and the relevant accessories are from Schneider and other well-known suppliers.
♦ Each lift has undergone rigorous technical inspection and whole machine test before leaving the factory to ensure the quality.
♦ Frequency speed regulating hoist Smooth running,Energy saving and environmental protection and with long service time.
♦ Frequency speed regulating hoist Smooth running,Energy saving and environmental protection and with long service time.
