RAT-100Dse покрытый кожухом стеклянный реактор (100L хорошо кронштейн
- Категория: Reactors >>>
- Поставщик: Wuxi,Shenco,Bio.,Tech.,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 11008.42 $* | 11558.17 $* |
| Aug-19-2025 | 10915.2 $* | 11461.24 $* |
| Jul-19-2025 | 9158.4 $* | 9616.14 $* |
| Jun-19-2025 | 10730.69 $* | 11267.93 $* |
| May-19-2025 | 9343.38 $* | 9810.47 $* |
| Apr-19-2025 | 10545.48 $* | 11072.41 $* |
| Mar-19-2025 | 10453.28 $* | 10976.10 $* |
| Feb-19-2025 | 10360.31 $* | 10878.38 $* |
| Jan-19-2025 | 10268.9 $* | 10781.89 $* |
Характеристики
Product Overview

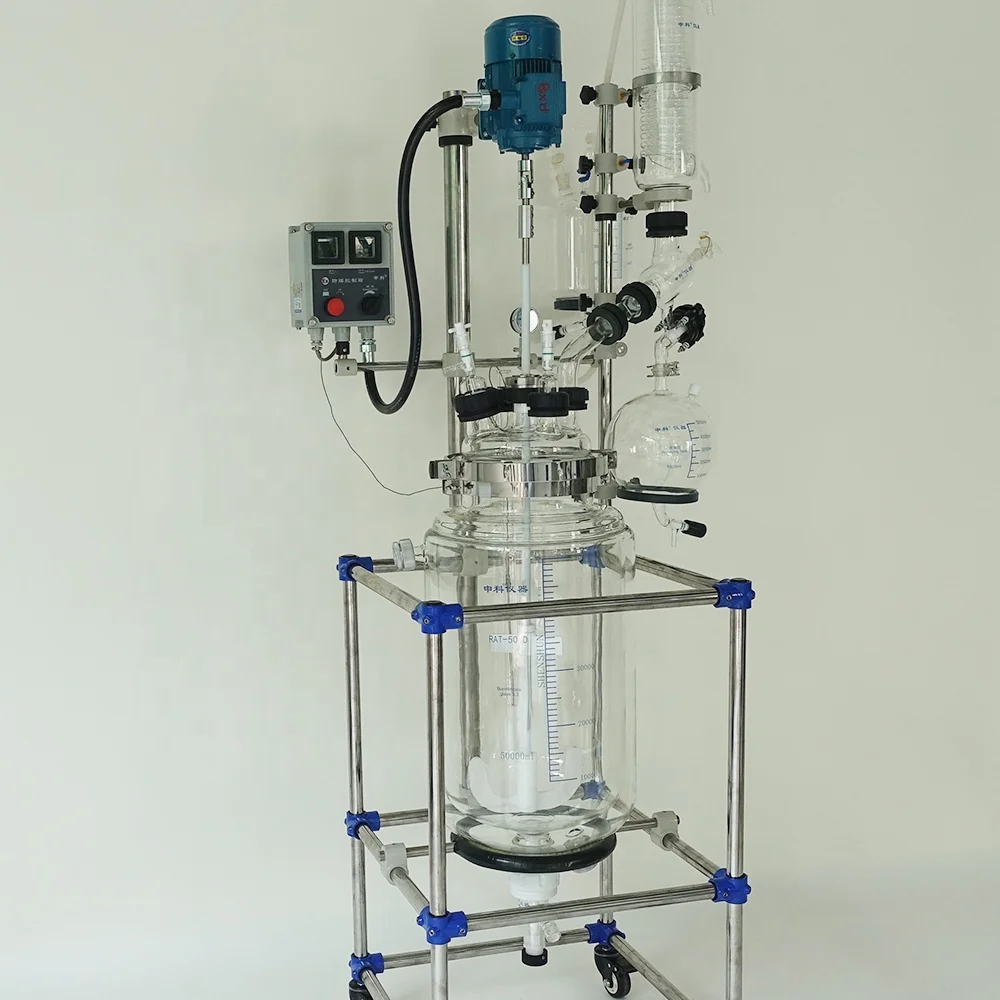

RAT-100Dse (Well bracket type)

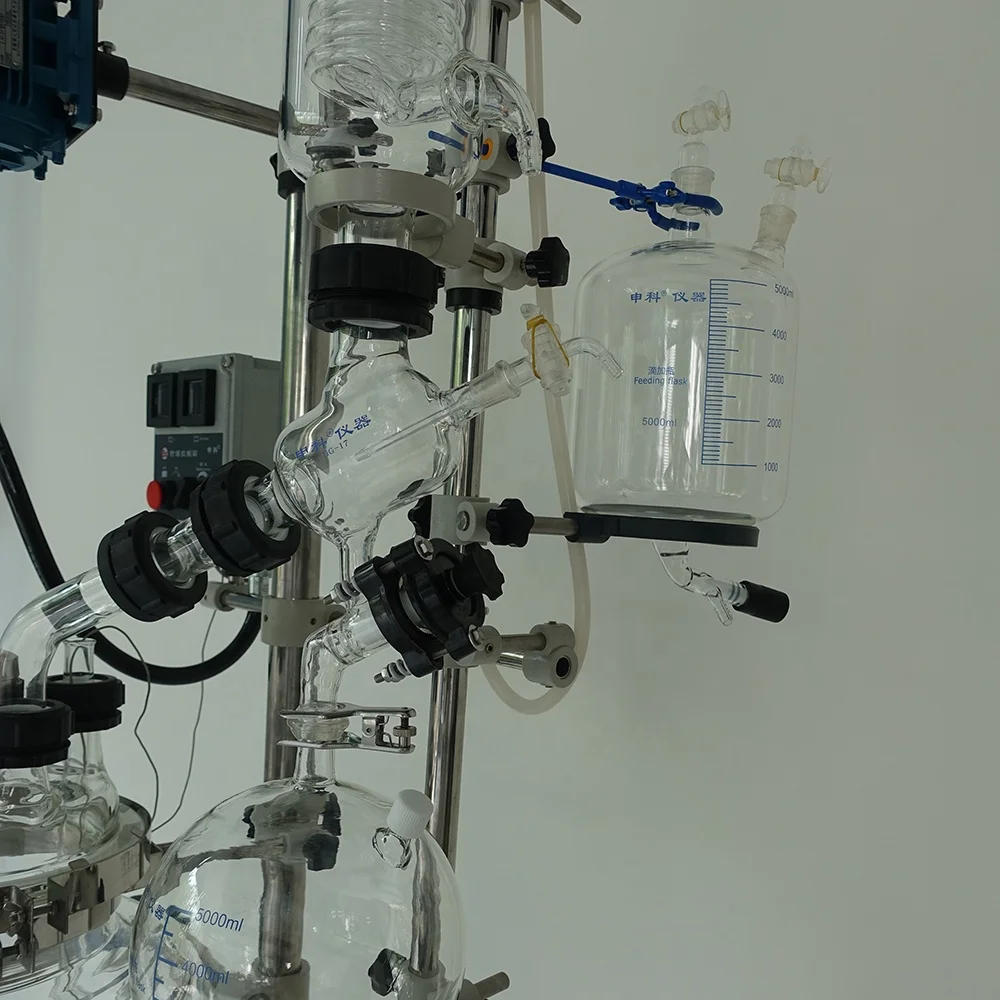

Pour the constant temperature solution (heating or cooling) between the jacketed - glass of the reactor. It can stir and react under the natural pressure or negative pressure in the sealed reactor. The evaporating and reflowing of the reacted solution is controlled. The material can be emptied from the outlet valve at the bottom of the reactor after reacting. It is easy to operate.
The reactor is the ideal instrument for experiment of modern chemistry, biochemical, pharmacy and the advanced synthetic.
The reactor is the ideal instrument for experiment of modern chemistry, biochemical, pharmacy and the advanced synthetic.
FEATURES AT A GLANCE
Products Description

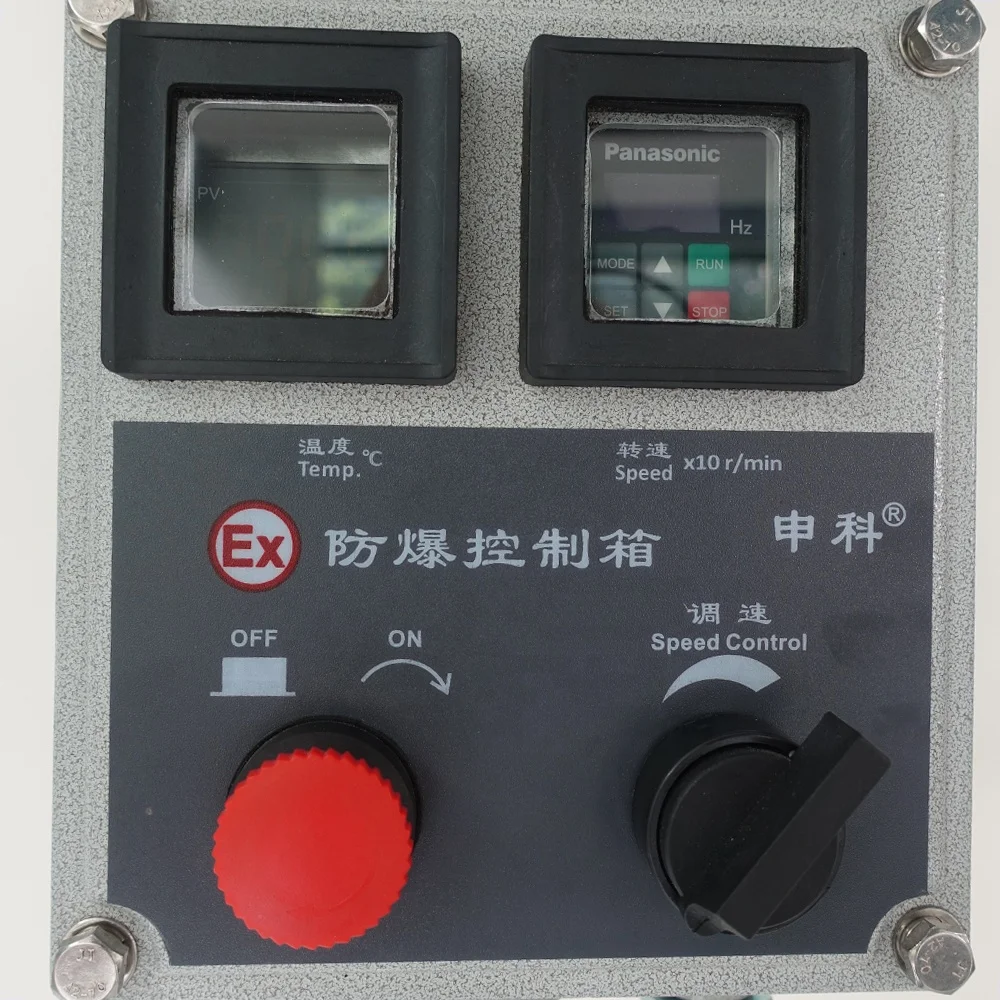

Operation panel, together with speed control and temp. display digitally
Equipped with bearing made by rare earth, mechanical seal, each of the cover is flange, it is not easy to be broken, and all the nuts is made by Engineering Plastics nuts, they can resistant to chemicals and solvents
There are PTFE-rubber filler piece between the glass flange
There are PTFE-rubber filler piece between the glass flange

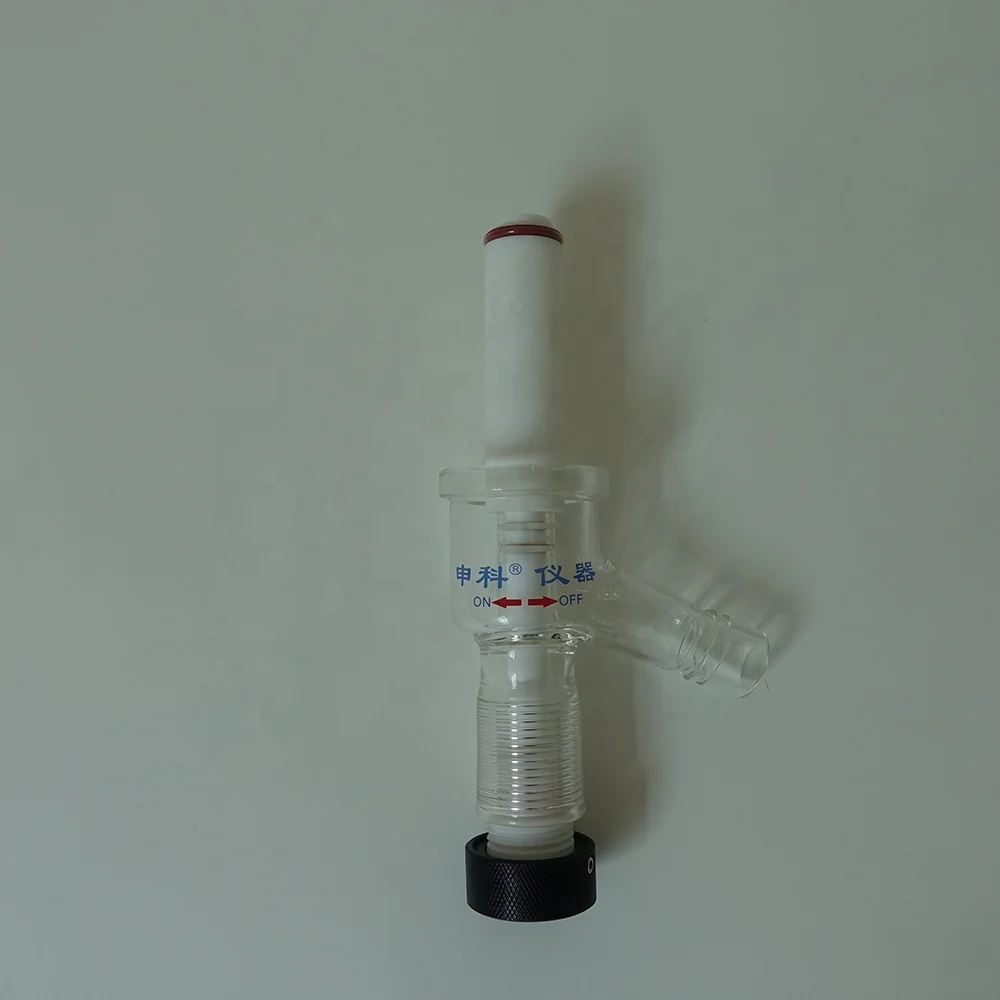

Equip with Glass-PTFE outlet valve
Different middle for different reaction
PRODUCT SPECIFICATIONS
No | Item | Data | ||||
1 | Volume | 100 L | ||||
2 | Votlage | 110 or 220 V | ||||
3 | Power of motor | 370W 【Ex-pooof motor】 / 320W【servo motor】 | ||||
4 | Speed | 100 ~ 1000 r.p.m | ||||

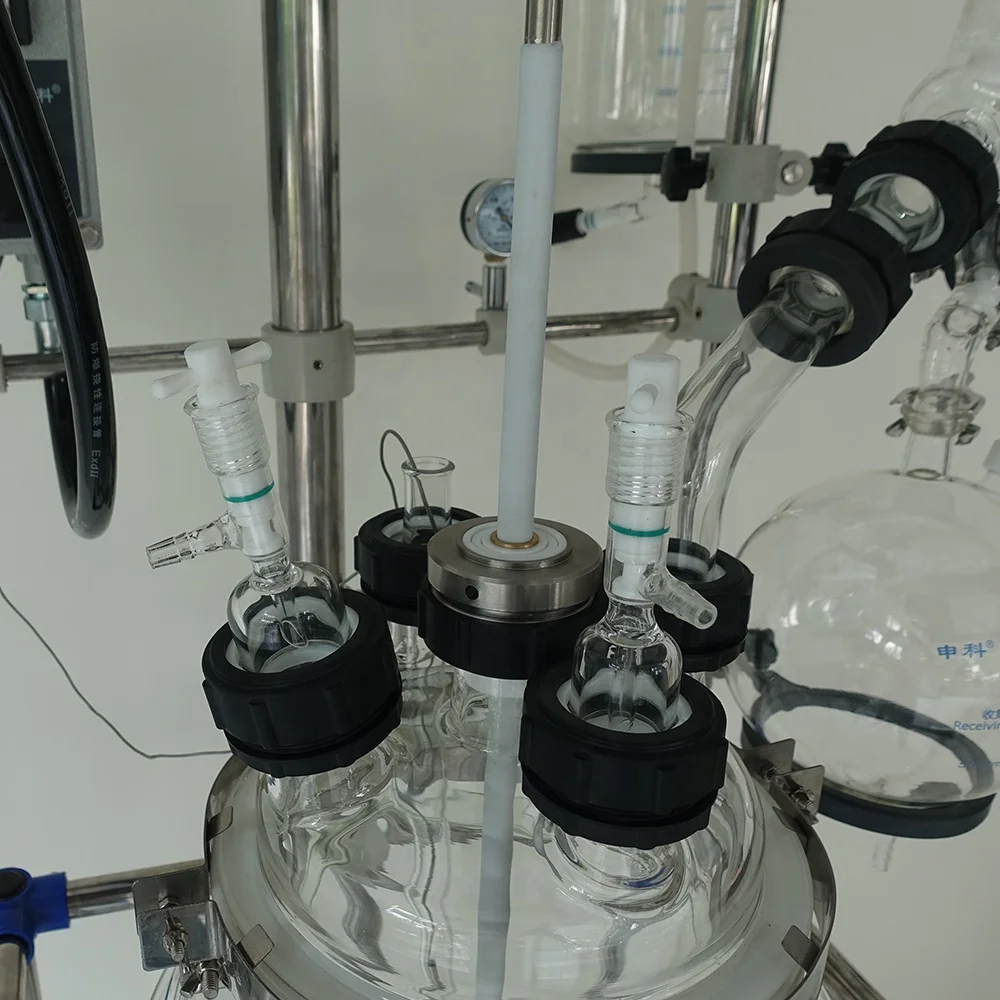

5 | Cover of the reactor | Ø60【Middle for mixing】, Ø50【Front for solid materiel】, Left[【for liquid materiel】 , Ø50【 Right for distillation】 | ||||
6 | Seal for middle | Rare earth bearing + mechanical seal 【Sic-Sic】 | ||||
7 | Seal for flange | PTFE seal + Engineering Plastics nuts | ||||
8 | Bracket | 304 stainless steel | ||||
9 | Diameter of middle | 14mm | ||||
10 | Material of middle | 304 stainless steel with PTFE coat outside | ||||
11 | Type of middle | Anchor / Propeller | ||||
12 | Condenser: | 0.8M2 | ||||
13 | Feeding flask | 10 L | ||||

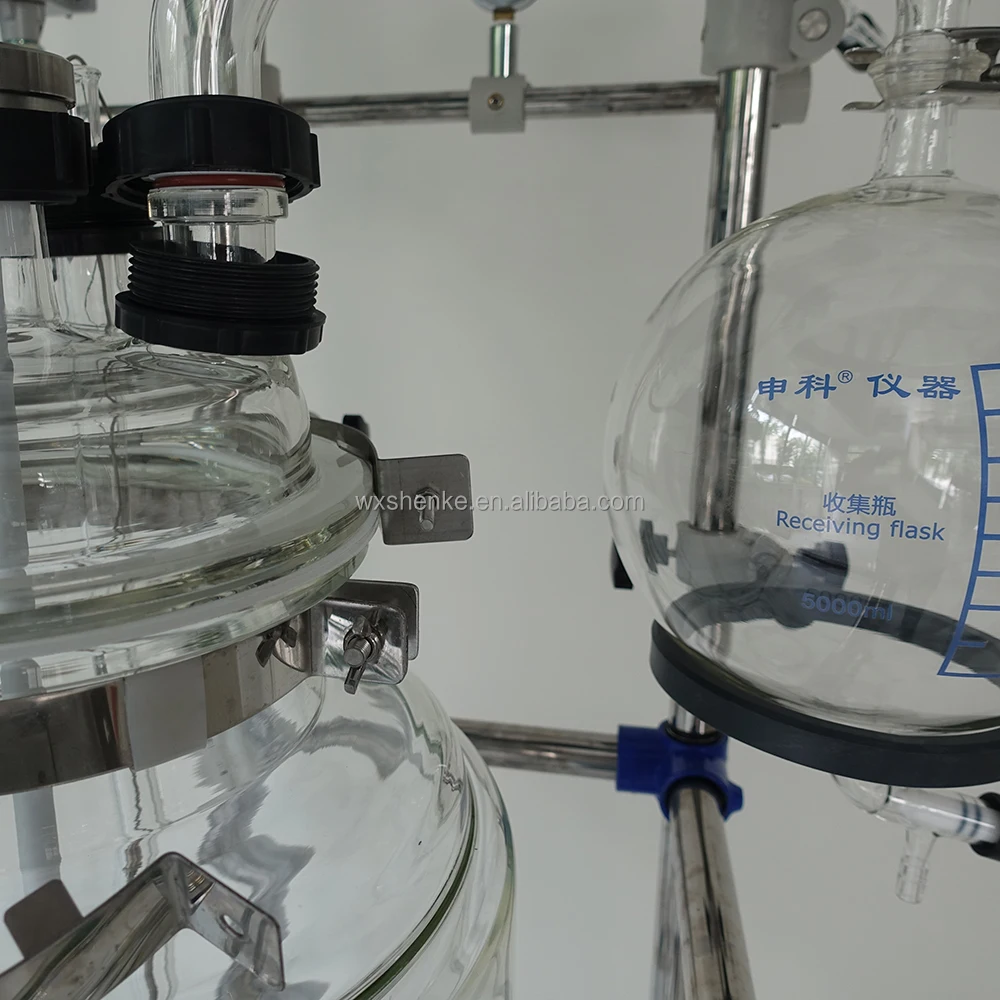

14 | Receiving flask | 10 L | ||||
15 | Measurement | 1000×1100×2550 mm(H) | ||||
