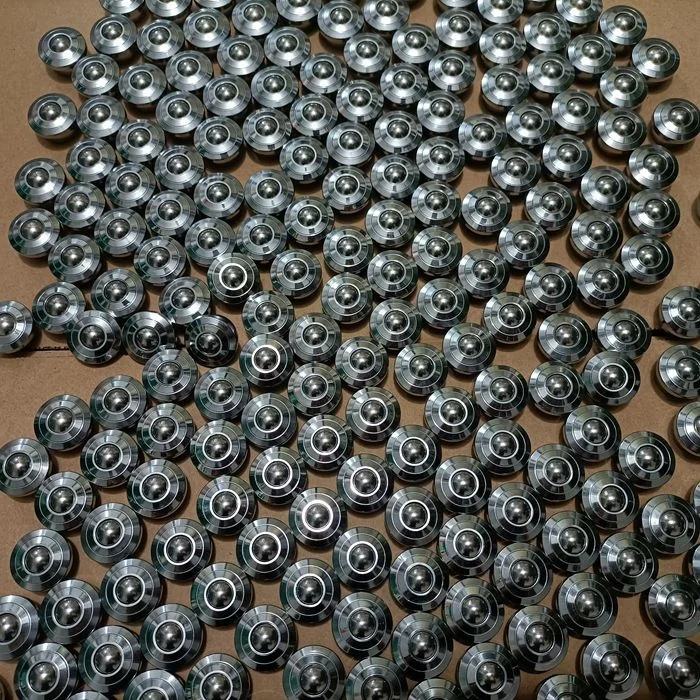

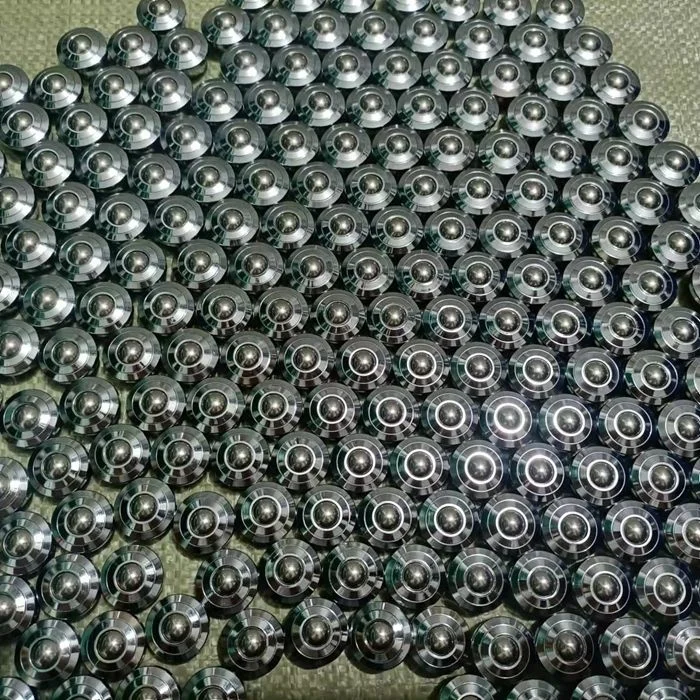

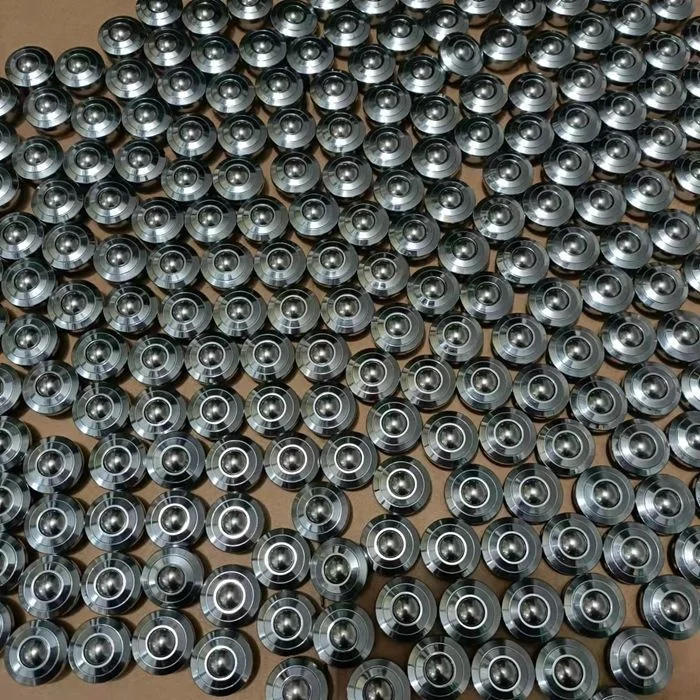

Ball transfer unit SMC 3/8 :



1.Conveying goods specification:
 A:name
 B:unit weight
 C:contour dimension:1.Flat-faced 2.uniformly distributed load 3.Bumped 4.diamond and so on, no-uniformly load.
 D:bottom conditions:1.Bulk 2.Scans 3.Cartons 4.Wooden cartons 5.Plastic bags 6.Steel pallet 7.Tooling plate
 E:length of whorl and diameter of spring washer.
 F:Need to indicate special coding in the process of application. For example, NO (no oil), NS (no seal), NB(nylon ball), PB(phenolic aldehyde ball bearing), DE(dirt external), SI(solid steel inner)



2,Transfer ball distance:
The narrowest direction size of the conveying item divided by 3.5 equal to the separation distance of the balls. For example, the narrowest direction size of the conveying item is 350mm, which is divided by 3.5, then we can get 100mm which is the separation distance of the balls. In this way, we can ensure that there are always three balls bearing the loading of the narrowest direction during conveying.



3,Transfer ball vibration load:

A-The influence of that the universal balls are not on the same plane should be taken into consideration while calculating the load. If the vibration happens frequently, spring transfer ball can reduce the wear and breakage. Vibration loading can also be reduced by installing compressed pad.

B-Transfer ball can be made to recycle products by other ways, such as cylinder, hydraulic cylinder, cam or lever, which can make up the operating sequence.

C-All rated load in the catalogue is dynamic load.

D-Self-leveling:Self-leveling can be attained by installing suitable rubber pad, which can make items to be beard by more balls.



4,Range of temperature:
The temperature for continuous working is between -30°C to +70°C, and up to +100°C for intermittent working. Special seal rings are used in some extreme situation. The highest working temperature can reach up to +150°C to +200°C in a clean environment without sealing. It also applies to type 15 transfer ball when the load is reduced



5,Conveying velocity:
The recommended maximum conveying velocity of steel ball bearing is1m/s;

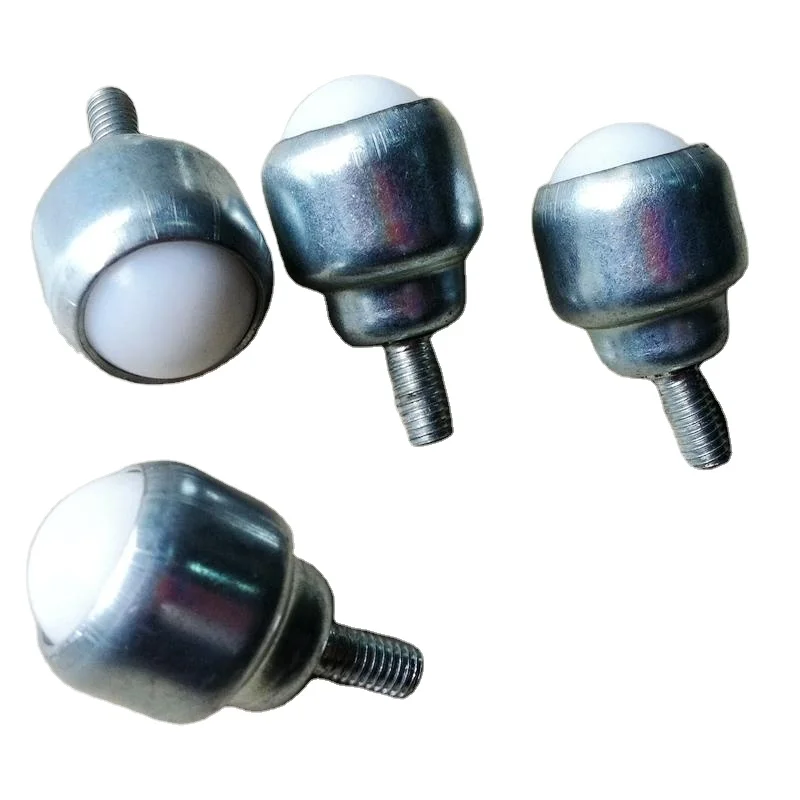

The recommended maximum conveying velocity of nylon ball bearing is 0.25m/s.



6,Installation method(see the picture):
AM transfer balls can be installed in various ways, which is suitable for many different materials. Retaining clamp can be used in most of designs.

7,Transfer balls Material:
AM transfer balls can be used in various materials, the requirements on the material by clients must be raised while ordering goods.

8,Friction factor
Under a fine working environment, the average friction factor of a new transfer ball containing a steel ball inside is 0.01 to 0.015(1%-1.5% of the load); the friction factor of a transfer ball with a seal ring is 0.02 to 0.025(2%-2.5% of the load).
