STAINLESS STEEL WOVEN WIRE MESH





To Our Customer

Yongkun Metal has many years' experience in the production of various woven wire mesh, and won a large number of foreign customers' affirmation. And our company has been devoting commitment to technology innovation, new product development, research in product development. The many years' achievements of effort promote Yongkun today in the professional field of wire mesh market.



Yongkun metal offers quality stainless steel wire mesh, woven wire cloth and screen mesh. Our company manufactures and supplies metal mesh products to meet and exceed our client’s specific requirements, reducing costs while increasing production efficiency. We have a full range of 304 and 316 stainless steel woven mesh products available for immediate shipping and we can supply our clients with extra wide wire cloth products of up to 240″ wide and extra-long rolls of up to 2000″.



Product Description

Stainless steel woven wire cloth has outstanding characteristics of resistance to the rust, corrosion, acid, alkali, heat and chemical. Also the stainless steel woven wire cloth has high strength and durability. Stainless steel woven wire cloth has widely applications in the industries, architecture, residences and other places.



Stainless Steel Wire Mesh Specifications

Material: stainless steel wire 304, 304L, 316, 316L, 310, 314, 410, 430. Weaving type: plain weave, twill weave, dutch twill. Wire diameter: 0.022mm - 3.5mm. Aperture size: Plain weave up to 425 mesh. Twill weave up to 635 mesh. Dutch weave up to 400 × 2800 mesh. Grade: mill grade, market grade and heavy duty grade.





FEATURE

Excellent resistance to the rust and corrosion. Resistance to the acid and alkali. Cleaner and brighter appearance. Resistance to the chemical and harsh weather. There is no welded point; the woven wire is long lasting. High strength and durable. Versatility in fabrication. The stainless steel can be fabricated to various weaving types, aperture size and diameter. It can fit different requirements of the customers. Customized. We can supply the standard specification of the stainless steel woven wire cloth, and the special specifics and requirements are available.



Mesh Description Table

Mesh count is the number of holes per inch of length.

Take the 6 mesh for example:



Weave Type

Stainless steel woven wire mesh screen has a great diversity of applications due to its properties of anti-acid, alkaline-resistant, wear-resistant, heat-resistant, high-strength, durability. It perfectly suits for sieving and filtration in acid, alkaline environment, liquid and gas filtration in industries of aerospace, petroleum, chemical. Also popular uses for walls and ceilings as an alternative of wood in the construction field, partitions, machine protection cover, security screens and window screens, etc.



We offer a variety of designs and styles of stainless steel woven wire mesh screen to fulfill your requirements: Plain Weave, Twill Weave, Plain Dutch Weave, Twill Dutch Weave, and Reverse Dutch Weave.



Stainless Steel Wire Mesh – Plain Weave

Stainless Steel Wire Mesh – Plain Weave is the the most common and simplest of all weaves with apertures from 10.7mm to 0.05mm, the diameter is almost the same for both the warp and the weave. It is composed of weft wire warped alternately above and below creating a wire mesh. Plain weave is also the most economical, applications including filtration, sifting, sieve and safety equipment, etc.

Plain Weave	Twill Weave



Stainless Steel Wire Mesh – Twill Weave

For heavier needs, the twill weave is recommended. The shute wire is passed above and under two warp wires ensuring that the weave is sturdier as this produces a stronger and more durable wire mesh. The warp and weft have the same diameters thus creating a close diagonal pattern. This type of pattern is mostly used for filtration.





Stainless Steel Wire Mesh –Plain Dutch Weave

Plain Dutch stainless steel woven wire mesh screen has a similar weaving pattern as in plain, except the diameter of warp wire is larger than shute wire.



Stainless Steel Wire Mesh –Twill Dutch Weave

Twill Dutch weave stainless steel wire mesh screen combines the weaving pattern of Twill and Dutch, the larger diameter warp successively passes over and under smaller diameter shute wire creating a tight mesh that can withstand heavy pressure. Since Dutch weave creates a stronger and more durable structure than plain weave does, this type of mesh provides superior liquid filtration capabilities and it is your ideal option for petrochemical, aerospace, pharmaceutical, mining, and wastewater treatment facilities.



Stainless Steel Wire Mesh –Reverse Plain & Twilled Dutch Weave

Reverse Dutch Weave stainless steel wire mesh screen also uses two different sizes of wires in weaving but reversing the method used in Dutch Weave. The smaller wires are using in the warp direction and are woven with a larger shute wire. The smaller wires are woven as closely as possible to provide a finer and tight mesh for filtering. The larger wire is used to strengthen and support the whole mesh.

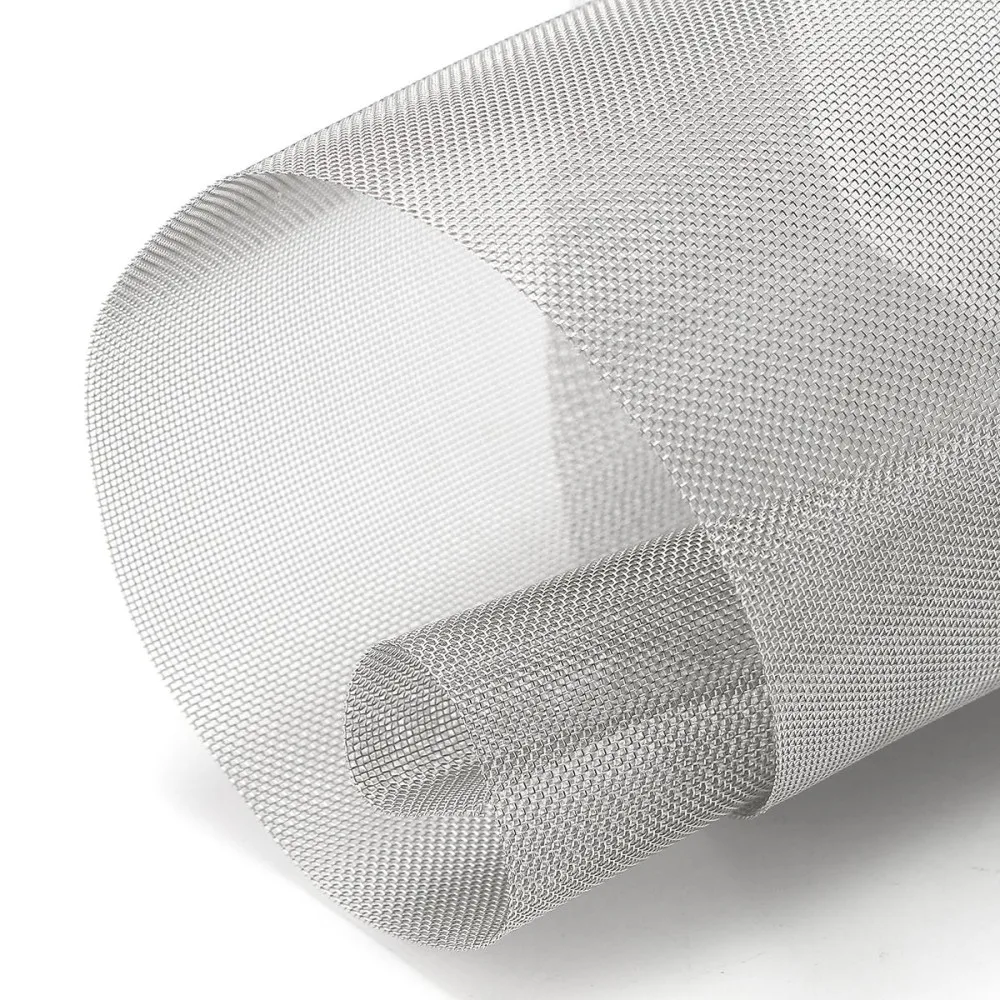

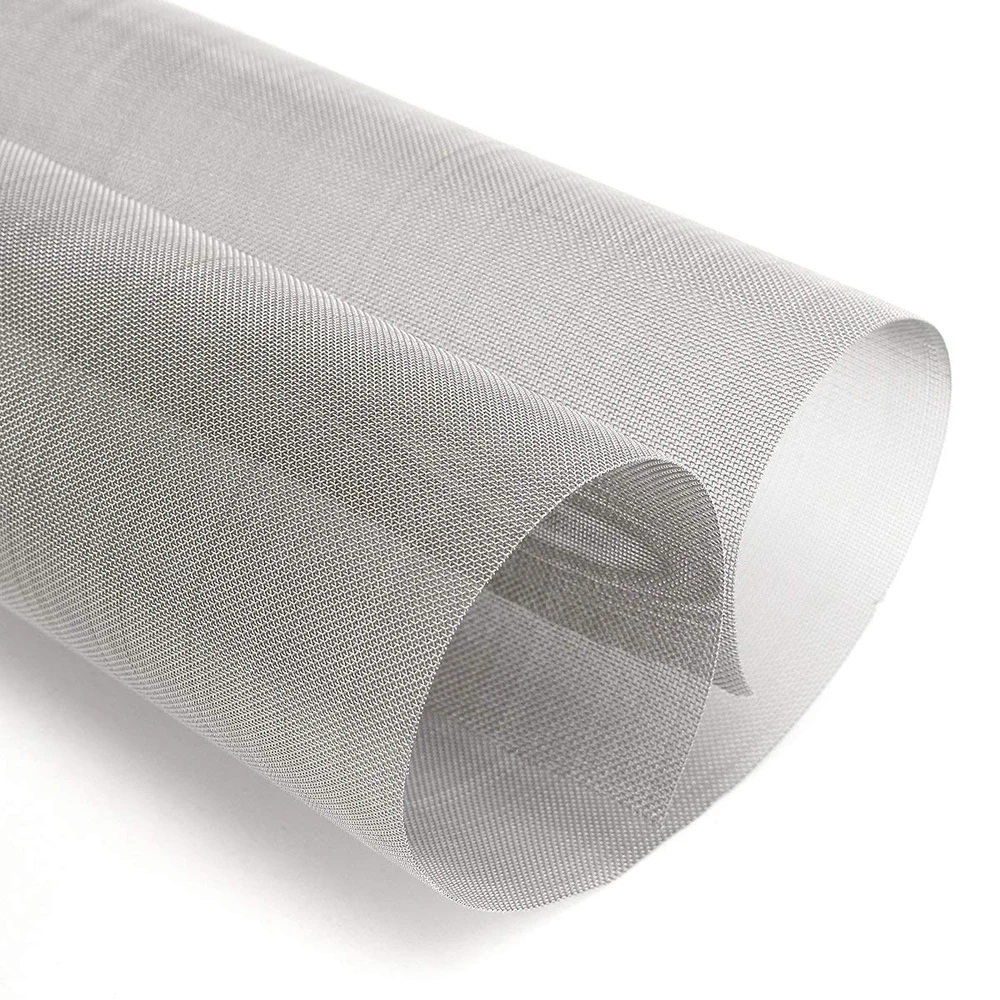

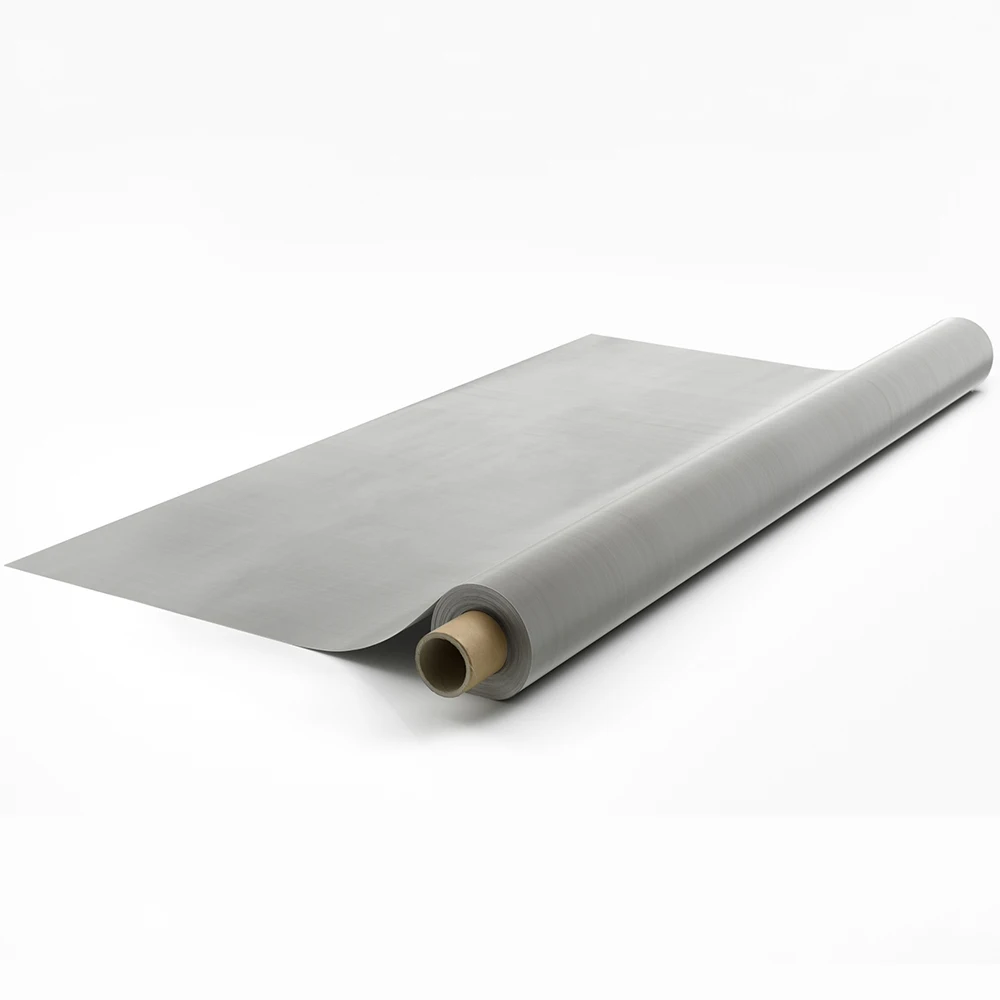

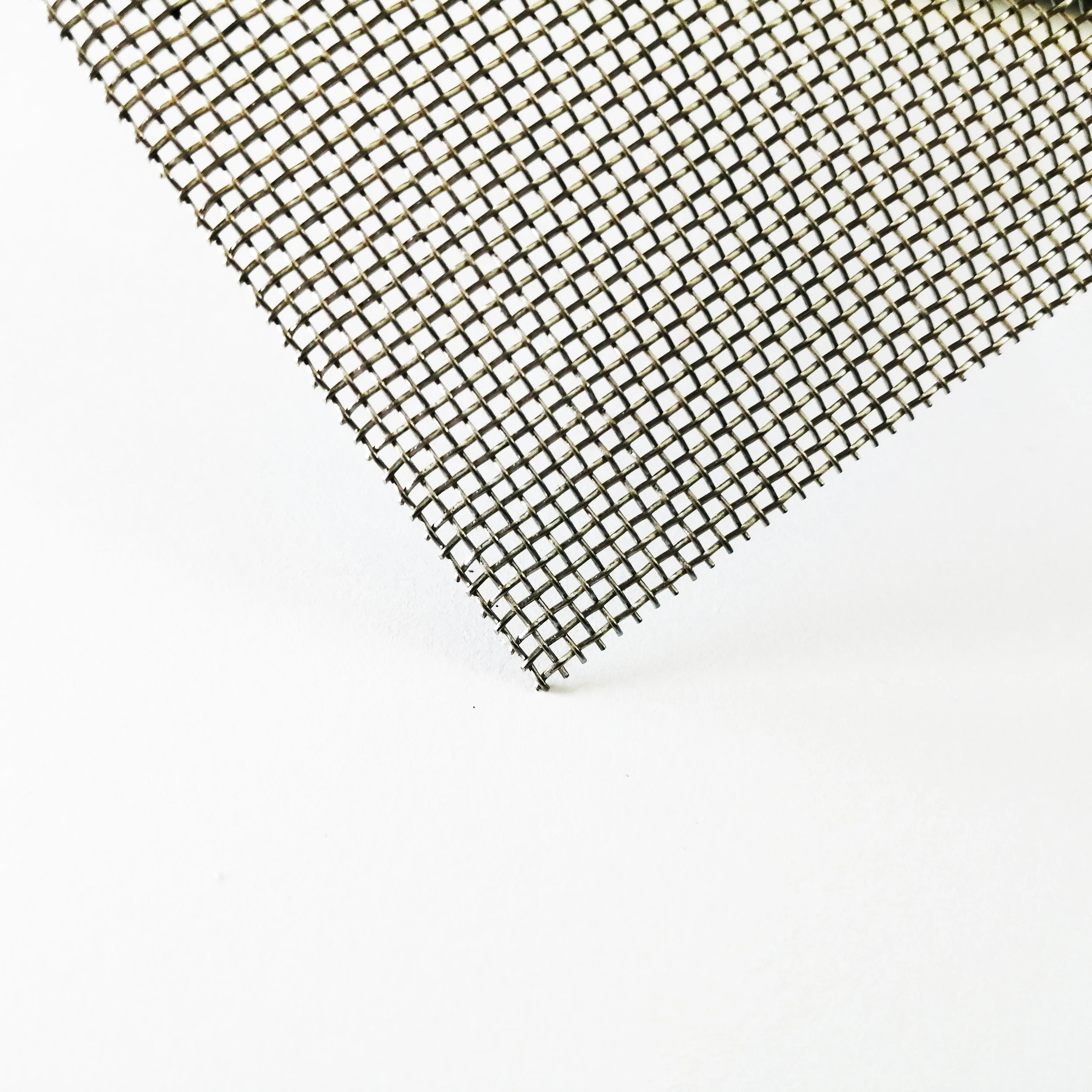

Product Images









Application

Stainless steel wire mesh is widely used for filtering, protection, feeding, decoration and printing in petroleum, chemical, electronic, textiles, ceramics, glass, biomedical, architecture, residences and other fields.



Stainless steel woven wire cloth can be used as woven wire filter cloth to filter liquid, solid and gas in the filtering industries, such as the filter discs, filter tubes, dipping baskets, test sieves, filter elements or strainers.

Stainless steel woven wire cloth can be used as window screens in the residences to prevent insects from entering the houses.

The stainless steel crimped woven wire cloth can be used as the feeding screen for the pigs and other animals.

The stainless steel woven wire cloth can be used in the architectural buildings as the decorative woven wire mesh.

The stainless steel woven wire cloth is widely used in printing of electronics, textiles, ceramics, glass and other industries.



FAQ

1. How to make an inquiry of Wire Mesh?

You need to provide material, wire diameter, size and the quantity to ask an offer. You can also indicate if you have any special requirement .



2. Could you provide free sample?

Yes, we can provide free sample in half A4 size together with our catalogue. But the courier charge will on your side. We'll send back the courier charge if you make an order.



3. How is your Payment Term?

Generally, our payment term is T/T 30% in advance and the balance 70% against the copy of B/L. Other payment term we can also discuss.



4. How is your delivery time?

We always prepare enough stock material for your urgent requirement, the delivery time is 7 days for all the stock material.
