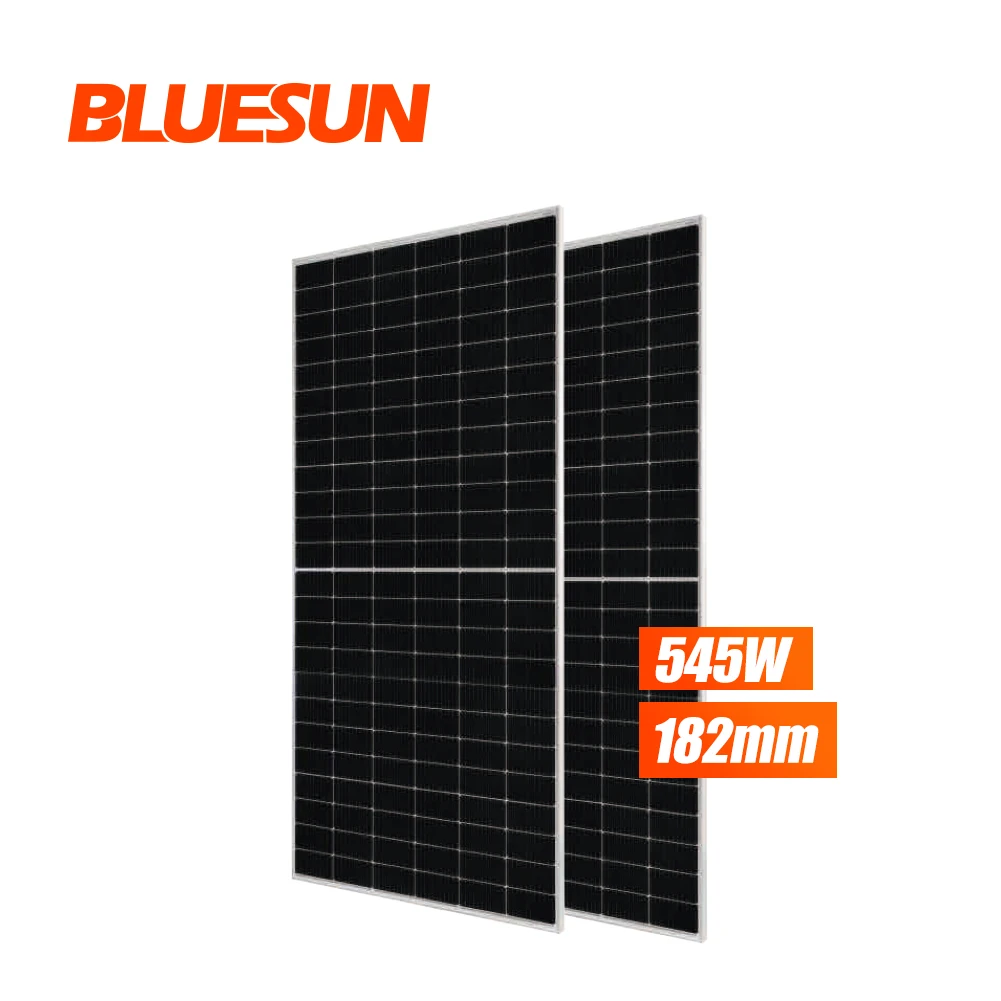

Моно 10 шарикоподшипников полуячейка лидер продаж солнечная панель 545 Вт для использования в
- Категория: Solar Panels >>>
- Поставщик: SOLAR,WORLD,CO.,LTD
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.83 $* | 0.65 $* |
| Aug-19-2025 | 0.75 $* | 0.38 $* |
| Jul-19-2025 | 0.34 $* | 0.73 $* |
| Jun-19-2025 | 0.69 $* | 0.62 $* |
| May-19-2025 | 0.34 $* | 0.95 $* |
| Apr-19-2025 | 0.46 $* | 0.65 $* |
| Mar-19-2025 | 0.37 $* | 0.39 $* |
| Feb-19-2025 | 0.53 $* | 0.32 $* |
| Jan-19-2025 | 0.68 $* | 0.34 $* |
Характеристики
Products Description
Technical Details
ELECTRICAL PARAMETERS AT STC | ||||||||||||
TYPE | BSM525M10-72HPH | BSM530M10-72HPH | BSM535M10-72HPH | BSM540M10-72HPH | BSM545M10-72HPH | BSM550M10-72HPH | ||||||
Rated Maximum Power(Pmax) [W] | 525 | 530 | 535 | 540 | 545 | 550 | ||||||
Open Circuit Voltage(Voc) [V] | 49.15 | 49.3 | 49.45 | 49.6 | 49.75 | 49.9 | ||||||
Maximum Power Voltage(Vmp) [V] | 41.15 | 41.31 | 41.47 | 41.64 | 41.8 | 41.96 | ||||||
Short Circuit Current(lsc) (A] | 13.65 | 13.72 | 13.79 | 13.86 | 13.93 | 14 | ||||||
Maximum Power Current(lmp) [A] | 12.76 | 12.83 | 12.9 | 12.97 | 13.04 | 13.11 | ||||||
Module Efficiency [%] | 20.3 | 20.5 | 20.7 | 20.9 | 21.1 | 21.3 | ||||||
Power Tolerance | 0~+5W | |||||||||||
STC | Irradiance 1000W/m2, cell temperature 25°C, AM1.5G | |||||||||||
Remark | Electrical data in this catalog do not refer to a single module and they are not part of the offer.They only serve for comparison among different module types. | |||||||||||

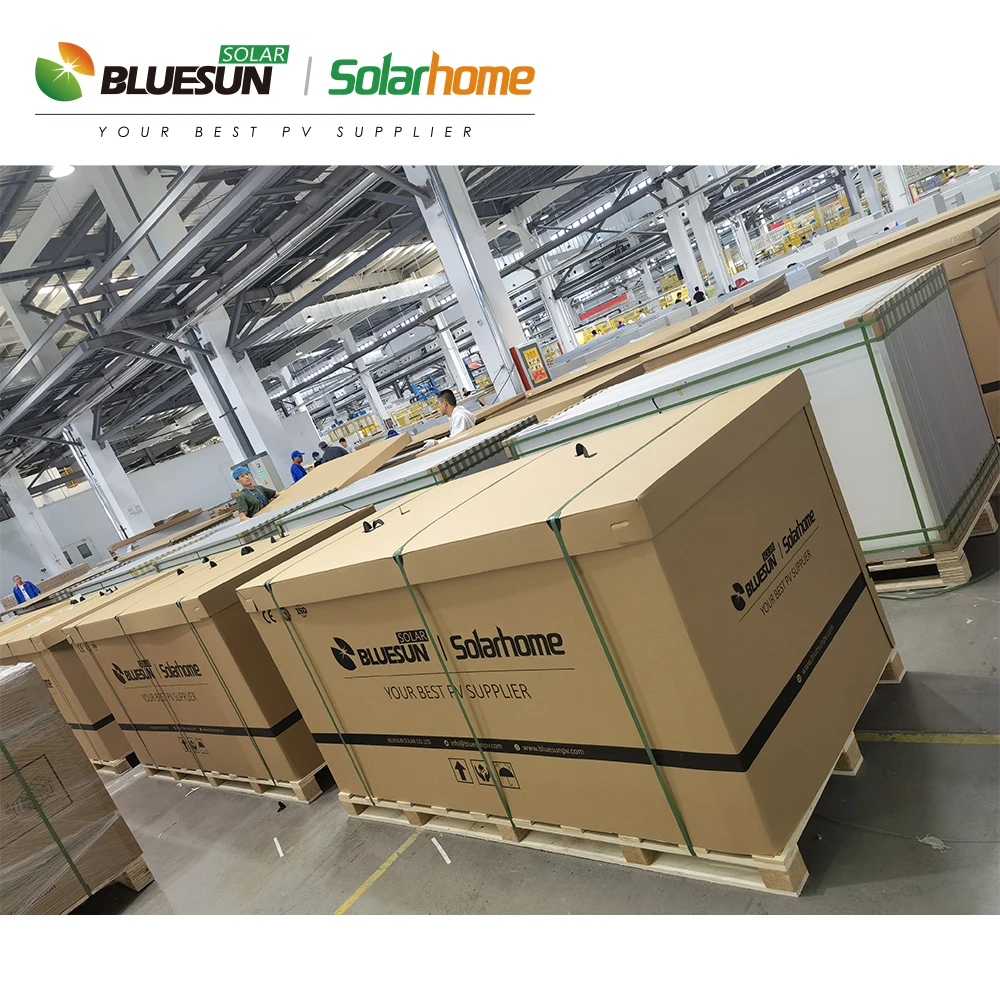

Product packaging
Bluesun Europe warehouse is put into service, will have popular shingled modules in stock:
1. BSM410PM5-60SB: 410Wp, dimension: 1719*1140*35mm, All black
2. BSM550M10-72HPH: 550Wp, dimension: 2279*1134*35mm.
Warehouse address: Rotterdam, Netherland
High quality with beautiful price, call us and order now!
2. BSM550M10-72HPH: 550Wp, dimension: 2279*1134*35mm.
Warehouse address: Rotterdam, Netherland
High quality with beautiful price, call us and order now!
