Wireless Digital CSI Flat Panel Detector Medical DR X Ray Flat Panel Detector NDT Equipment
Product Description

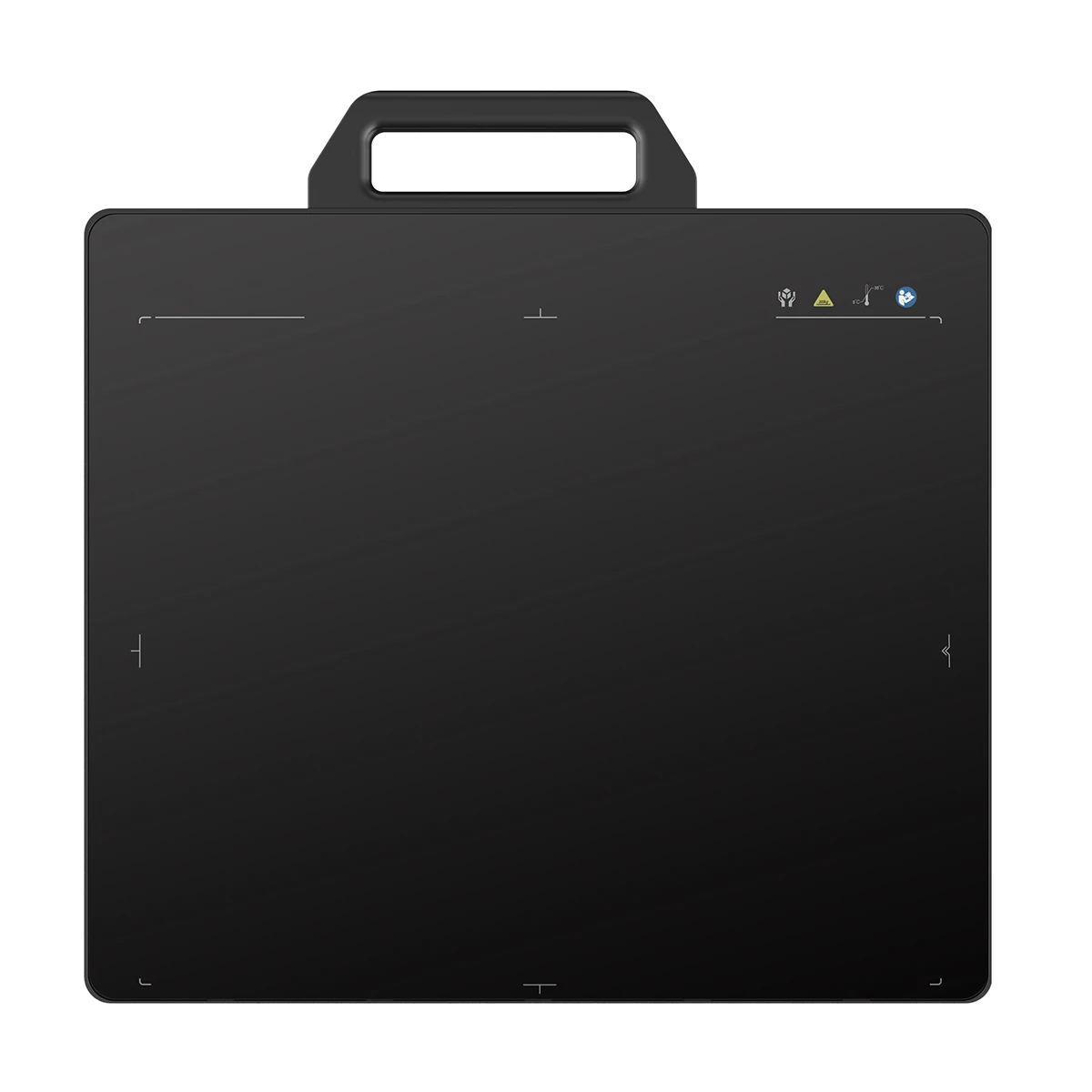

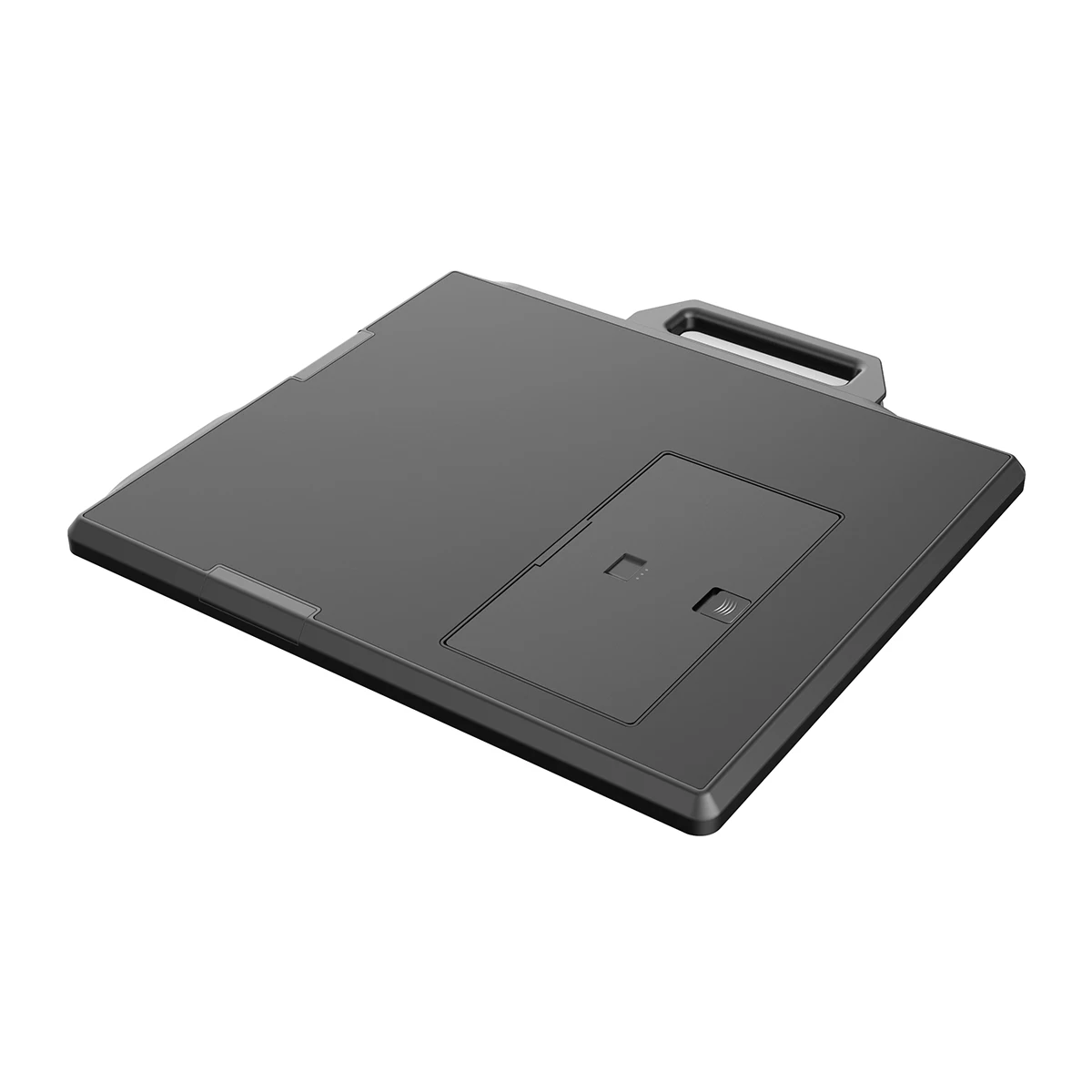

MSLFP32 is a 1 0x 12-inch wireless and portable amorphous silicon flat panel detector. The detector features a compact and industrially rugged design, which provides high radiation resistance, wide environmental capabilities, and overall high reliability. Data and signal
communication is achieved either via a wired or a wireless interface.
communication is achieved either via a wired or a wireless interface.

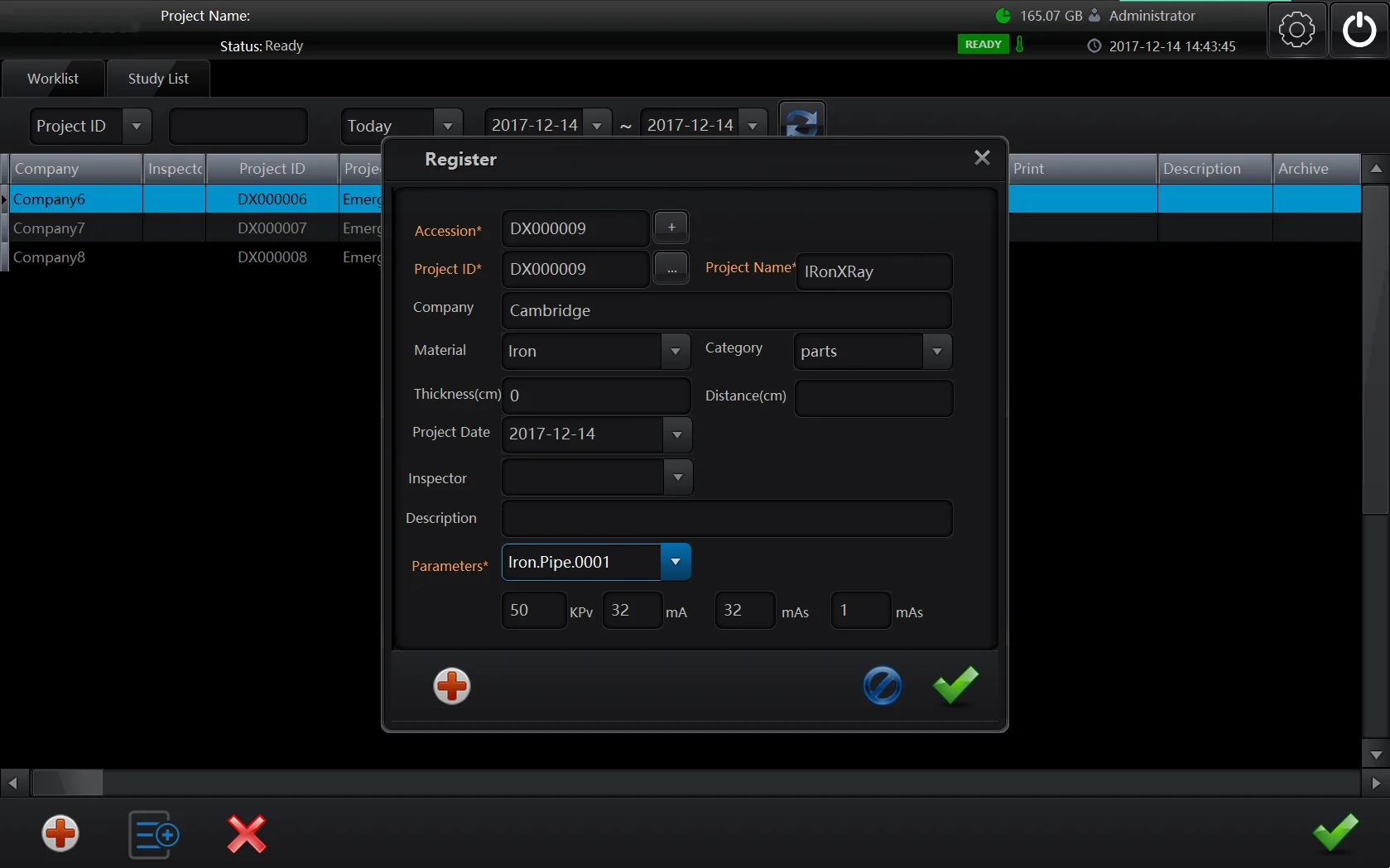

The MSL software SDK provides support for detector calibration, configuration, image acquisition, pre-processing and viewing on an end-user tablet or workstation running the MS Windows operating system. With its exceptional image quality and reliability, the MSLFP32 is an excellent choice for portable field inspection applications or IED/EOD
based security scenarios.
based security scenarios.
Proven radiation hard a-Si design
25x30 cm2 imaging area
125 um pixel pitch with 16-bit ADC for more image details
Up to 180 sec. X-ray exposure window
Rugged design, withstand 1m drop
Robust wired and 5G wireless data interface
Narrow dead space edge (< 7 mm)
2.5 hours battery capacity
25x30 cm2 imaging area
125 um pixel pitch with 16-bit ADC for more image details
Up to 180 sec. X-ray exposure window
Rugged design, withstand 1m drop
Robust wired and 5G wireless data interface
Narrow dead space edge (< 7 mm)
2.5 hours battery capacity
Specification
item | value |
Product name | Flat Panel Detector |
Detector Technology | Amorphous Silicon |
Pixel Pitch (um) | 125 |
Pixel Matrix | 2000 x 2400 |
Scintillator | Csl/ DRZ-Plus/ DRZ-STD |
Active Area (mm2) | 250 x 300 |
Spatial Resolution (lp/mm) | 4 |
AD Conversion (bit) | 16 |
Maximum X-ray Exposure Window (sec) | 180 |
X-ray Energy Range | 40kV ~ 370kV |
Features
Packing & Delivery
Related product
Certificate
Company Profile
