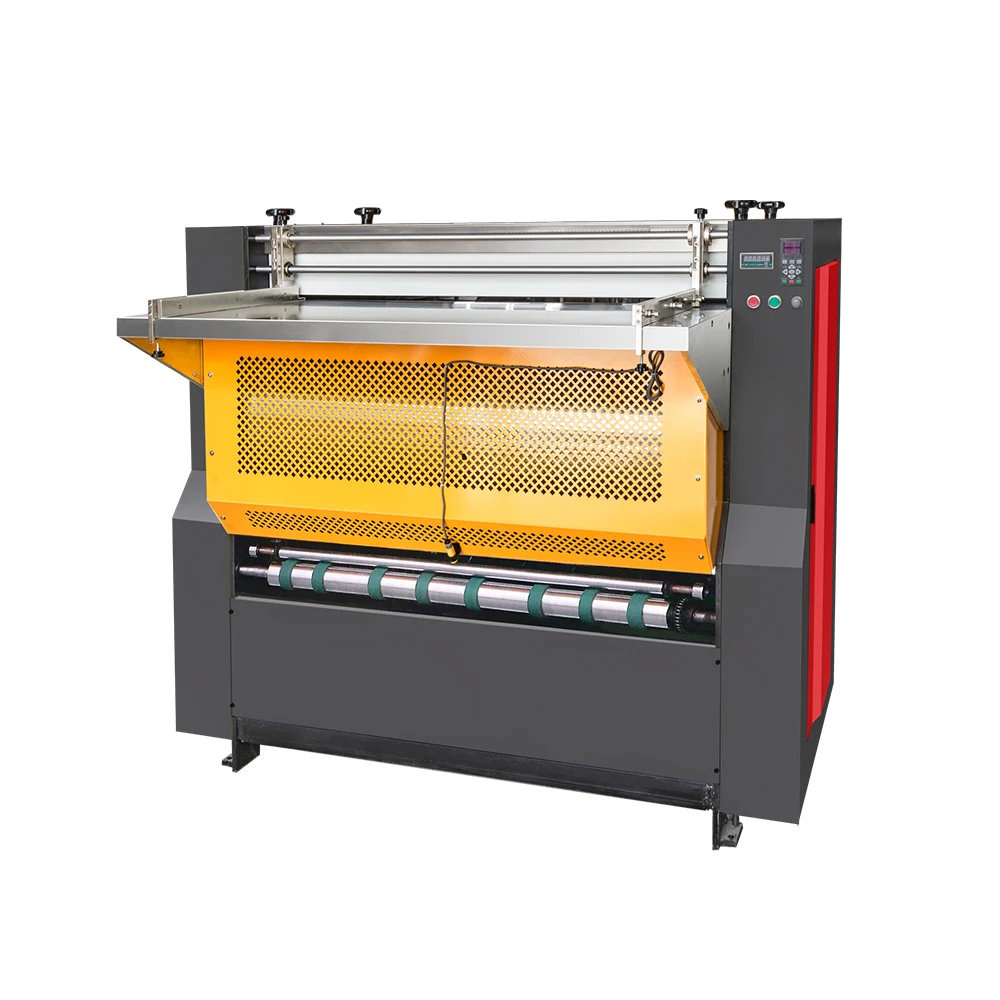

Product Appearance
Products Description

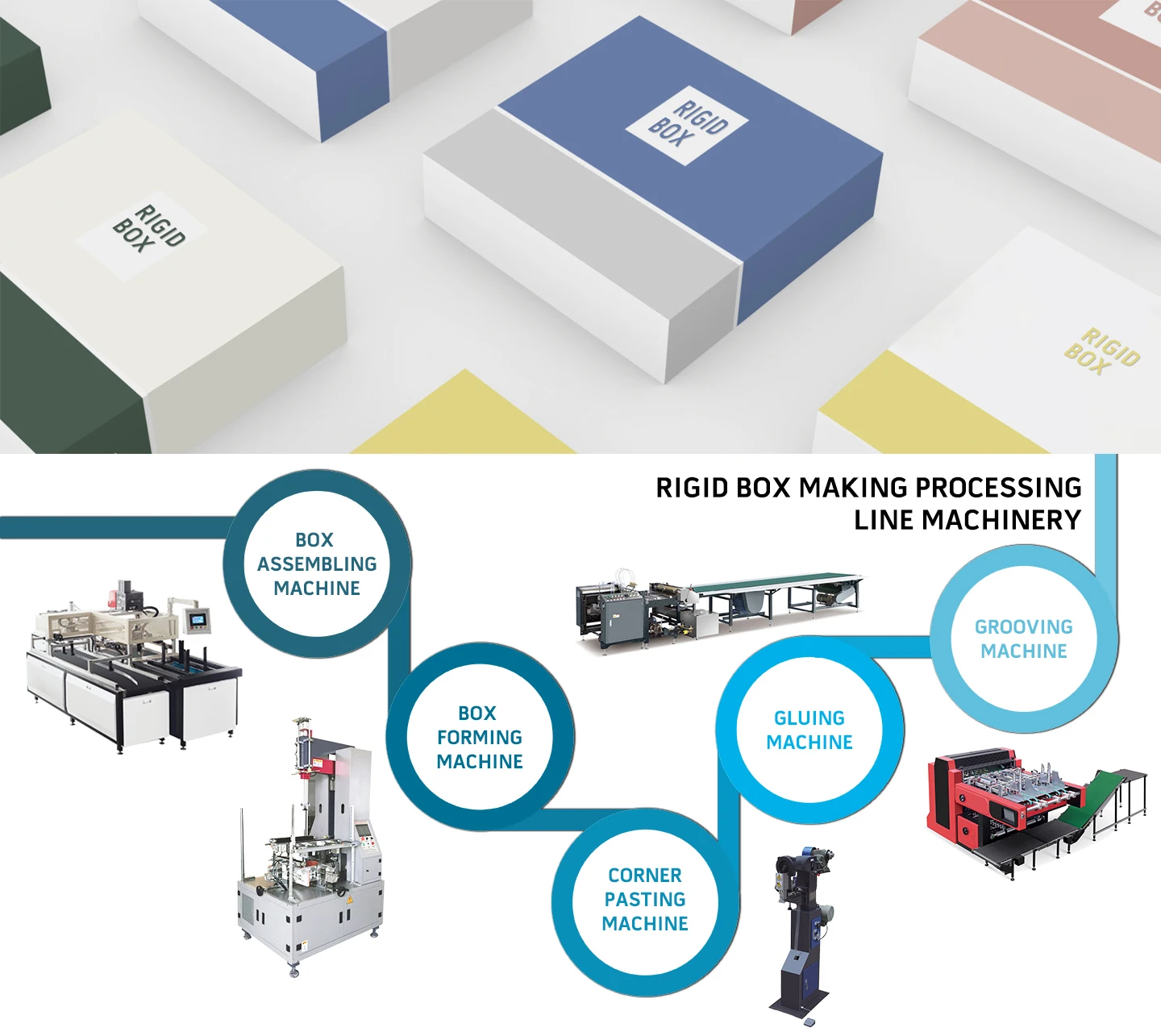

Grooving machine belong to the Gift box package production line equipment. The machine is special designed for notching V type and U type groove, use for industry-cardboard, Ash-cardboard, MDF board and other several of cardboard, to make it suitable for box or other packaging making.
Suitable for High quality package, Gift Box, Jewelry boxes, Watch packaging, mobile phone boxes, wine boxes, Storage box, shirt and shoes boxes, make-up, toiletry boxes, biscuits and cakes boxes, note book cover, book shape boxes, hardcover, file folders, display, game boards, display stands, posters and calendars, etc.
Suitable for High quality package, Gift Box, Jewelry boxes, Watch packaging, mobile phone boxes, wine boxes, Storage box, shirt and shoes boxes, make-up, toiletry boxes, biscuits and cakes boxes, note book cover, book shape boxes, hardcover, file folders, display, game boards, display stands, posters and calendars, etc.
Model | MSKC-1000M | MSKC-1200M | MSKC-1300M | ||
Width of Paper Board | 300-930mm | 300-1130mm | 300-1230mm | ||
Length of Paper Board | 300-700mm | 300-700mm | 300-750mm | ||
Min Sheet Size | 150*150mm Smaller size can combine 2/4 pieces on one sheet, more details please contact us | ||||
Grooving Speed | 10-35/min(8000-12000unit/8h) | ||||
Paper Board Thickness | 500gsm-3.4mm | ||||
Groove Gap (between two grooves) | 2-830mm | 2-1030mm | 2-1130mm | ||
Max Grooves at one time | 9 pieces | 10 pieces | |||
Grooving Degree | 80 ° --140° Adjustable | ||||
Normal Precision | ±0.1mm | ||||
Main Motor Power | 2.2kw 380v | ||||
Net Weight | 1100kg | 1300kg | 1500kg | ||
Gross Weight | 1200kg | 1400kg | 1600kg | ||
Worktable Station | 2 station/1 station depend on customer choose | ||||
Machine Dimension(L*W*H) | 1500*1400*1600mm | 1700*1400*1600mm | 1900*1400*1600mm | ||
Package Dimension(L*W*H) | 1660*1330*1700mm | 1860*1330*1700mm | 1860*1330*1700mm | ||
Details Images
MANUAL FEEDING & OUTPUT PART
Manual feeding, double sides position plate are adjustable. The can ensure the precision.
The counter is used for record the number of production.
The counter is used for record the number of production.

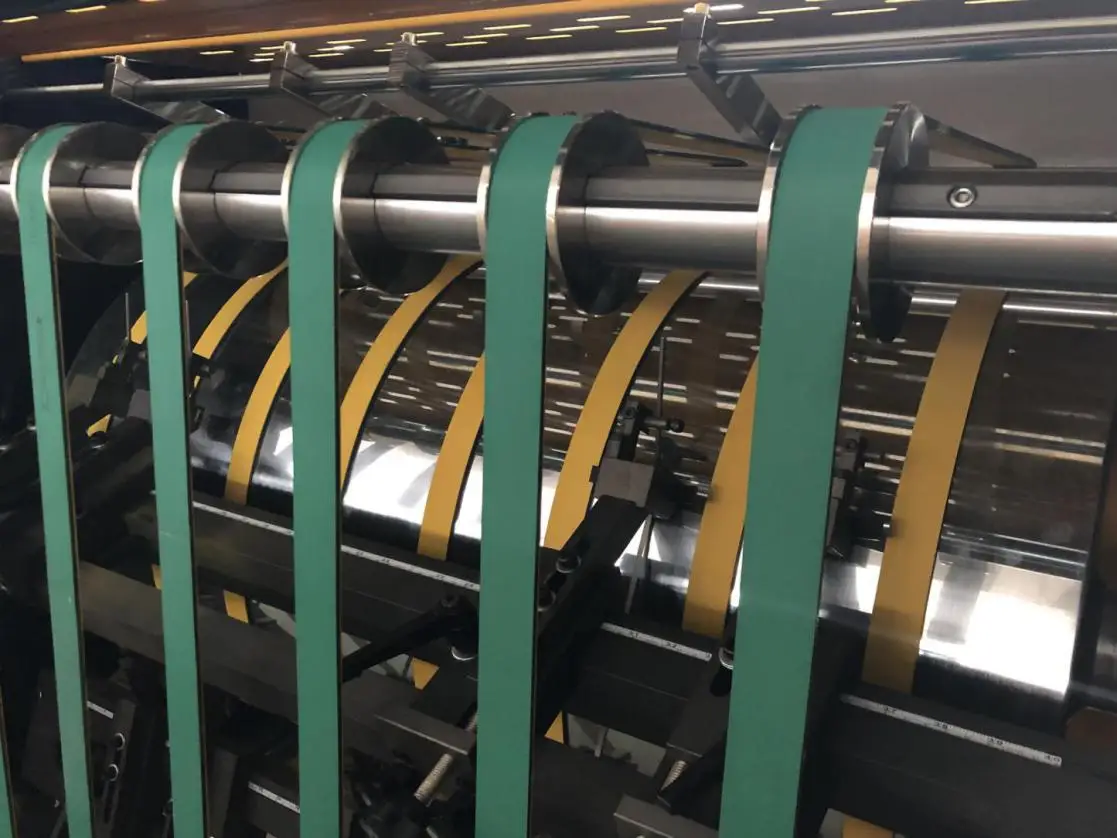

GROOVING PART
Nine Knife and each degrees and distance could be adjustable.
The belt press wheel could adjust the pressure of belt.
The belt press wheel could adjust the pressure of belt.
Big diameter drum roller

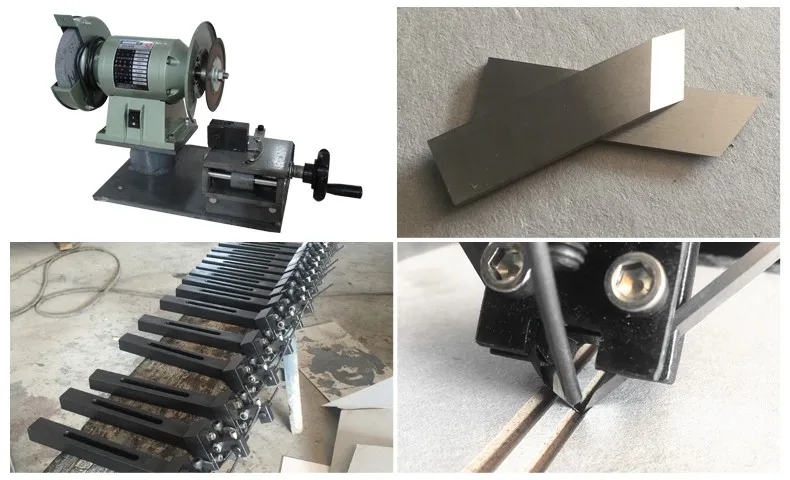

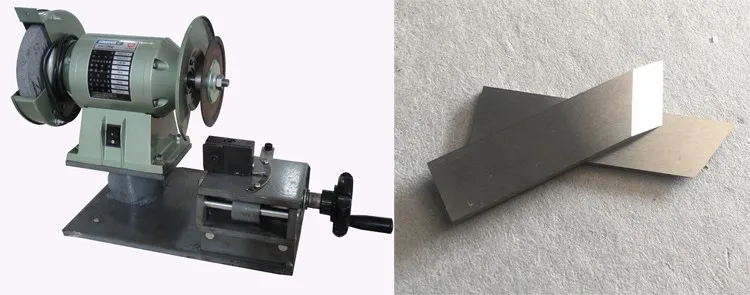

KNIFE & SHARPENER
Each machine equipped with a knife sharpener, knife can be repeated used
Sample

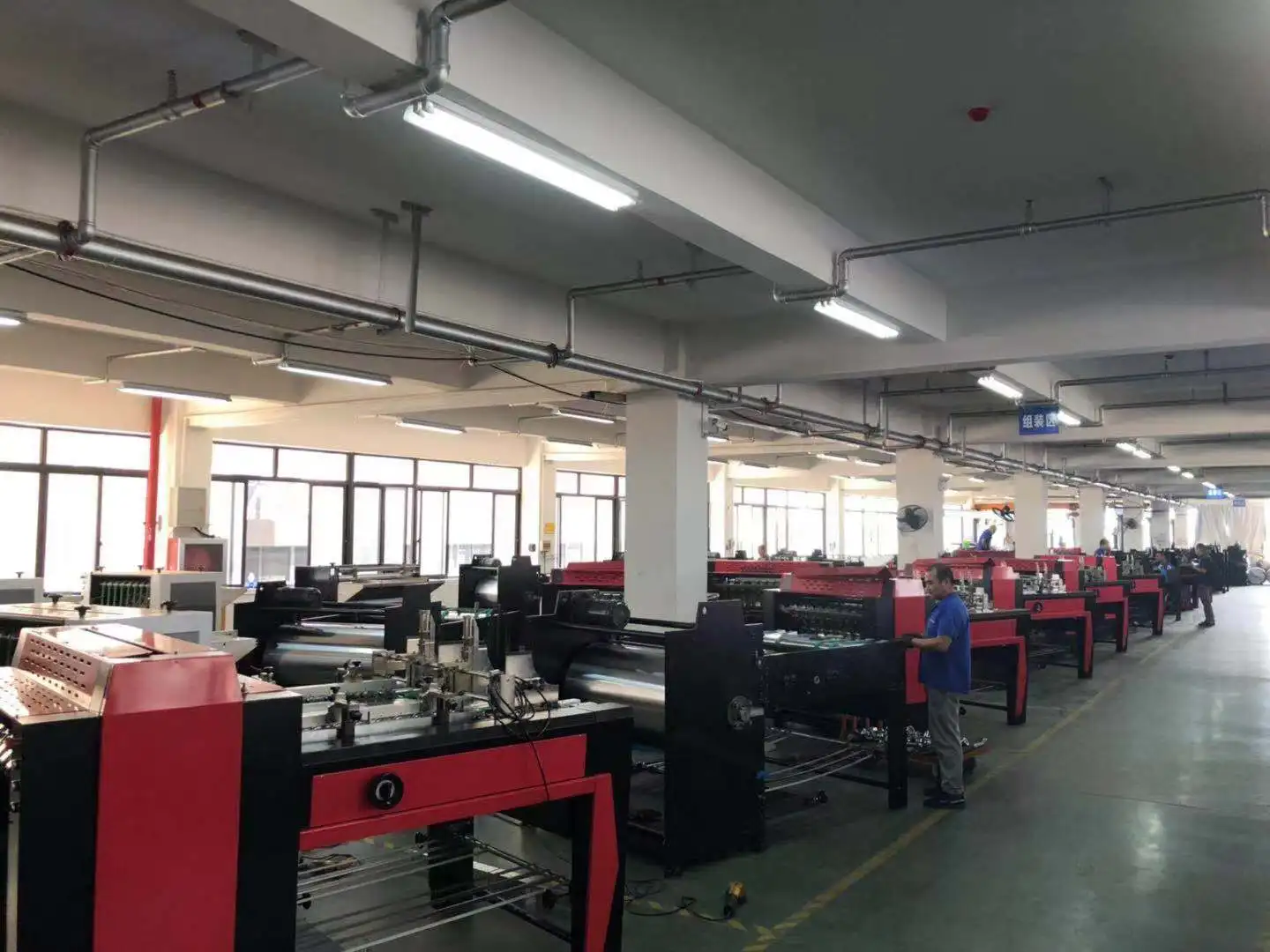

Enterprise Display
