Вертикальная ось 3 VMC1160 CNC фрезерные машины для

Вертикальная ось 3 VMC1160 CNC фрезерные машины для

Категория: Machine Centre & Parts >>>
Поставщик: Dalian,Haidi,Machinery,Co.,Ltd.

Цена:30 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	35700.99 $*	37485.3 $*
Aug-19-2025	35400.46 $*	37170.38 $*
Jul-19-2025	29700.32 $*	31185.68 $*
Jun-19-2025	34800.15 $*	36540.97 $*
May-19-2025	30300.29 $*	31815.11 $*
Apr-19-2025	34200.86 $*	35910.31 $*
Mar-19-2025	33900.51 $*	35595.43 $*
Feb-19-2025	33600.21 $*	35280.23 $*
Jan-19-2025	33300.56 $*	34965.36 $*

Характеристики

Products Description

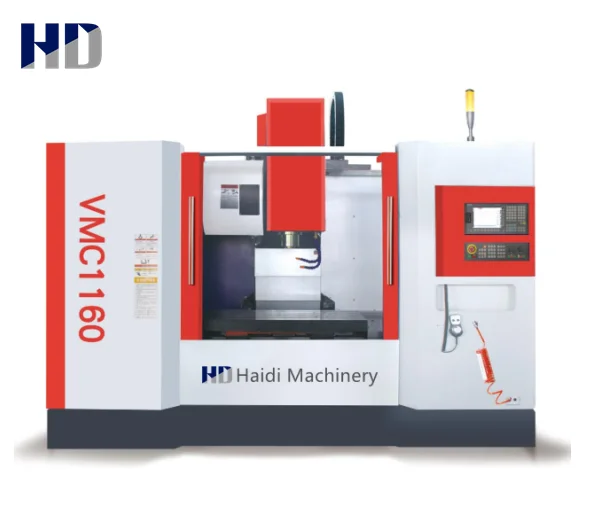

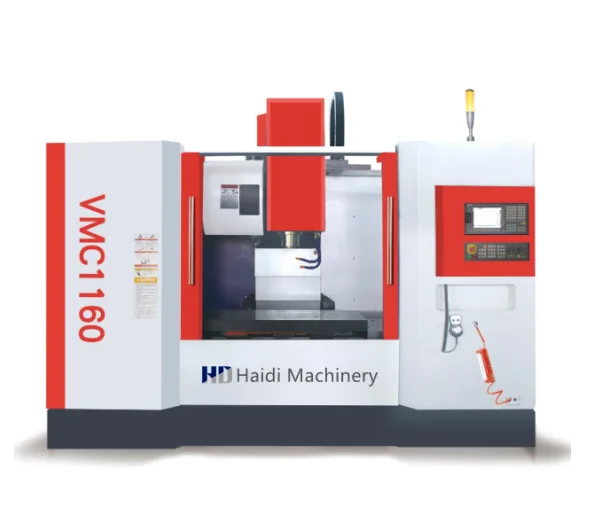

Vertical 3 Axis VMC1160 CNC Miling Machine for Metals

Three shaft motor and screw with direct drive design, no belt or gear drive cause noise, clearance or vibration problems, improve machining accuracy and efficiency. X/Y/Z adopt ball linear rail, small friction resistance, shorten the fast shift time, improve production efficiency, at the same time has good repeatability, can complete high precision product processing.

Specification	Unit	VMC1040	VMC1160	VMC1370	VMC1580
X axis travel	mm	1000	1100	1370	1500
Y axis travel	mm	400	600	700	800
Z axis travel	mm	500	600	650	700
Max. spindle speed	rpm	6000	8000	8000	8000
Spindle motor power	kw	5.5	11/15	15/18.5	15/18.5
Spindle taper	/	BT40	BT40	BT50	BT50
Worktable size	mm	1000*400	1200*60	1400*710	1700*800
Worktable loading	kg	300	700	1000	1500
Rapid traverse speed	m/min	32/32/24	36/36/24	18/18/18	15/15/15
Feed speed	mm/min	1-5000	1-16000	1-8000	1-10000
Tool changer	/	24 Disc Type	24 Disc Type	24 Disc Type	24 Disc Type
Dimension size	mm	232022101890	330028002700	360030002700	426035003200
Machine weight	kg	4200	7000	11000	12000

Other products

Company Profile

Dalian Haidi Machinery Co.,Ltd

Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column and double-column vertical lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.

Haidi Machinery, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.

Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern Liaoning.In the meantime, it has offered great support to speed up our company’s product research and production and made great contribution to providing products to customers in the shortest duration.

Haidi Machinery follows the principle of “independent innovation, govern enterprise by good virtue and prosper enterprise by good faith”. We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.
