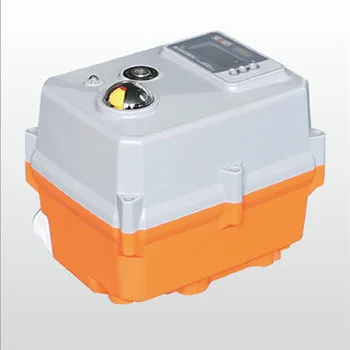

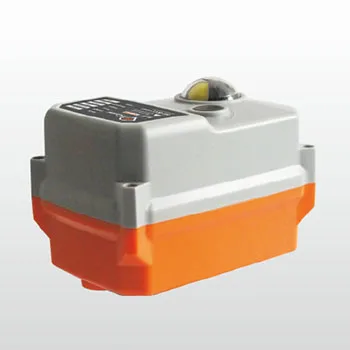

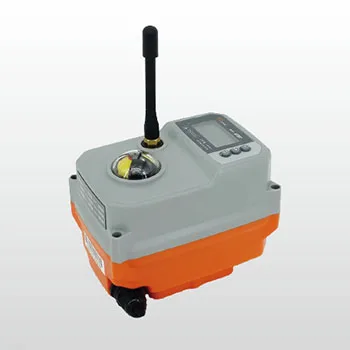

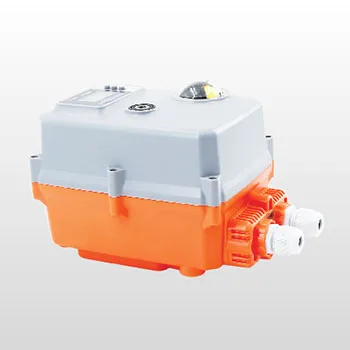

Электрические поворотные приводы для регулирующего шарового крана шаровой кран верхний оранжевый синий защита от времени крутящего момента вход цветного

• Rated voltage: DC24V


• Rated torque: 20Nm [24N.m@Max]


• Running time: about 1s


• Install valves: 2way , 3way ball valve and butterfly valve


• Control signal: 4-20mA ,0-20mA,0-5V,1-5V,0-10V,2-10V


• Position feedback: 4-20mA


• Position accuracy: ±1%(set by software)


• Adopted high-performance brushless motor,Overload protection of internal motor


• It can be used 20,000 times.*1

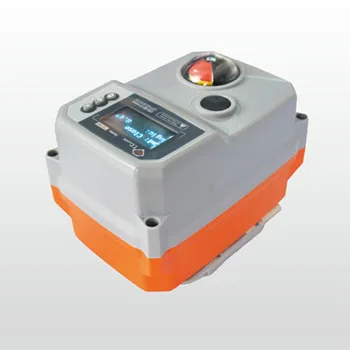

1. 1 .3” OLED screen,no visual dead angle,highly bright,energy saving and eco-friendly,real time to show valve opening angle and external control command.


2. Original valve adjustment mode--free cover-opening and interactive:
   Thoroughly eliminate the complex and inconvenience caused by mechanical positioning.


3.


   Adopt 16 High-performance microcontrollers,12 high-precision AD conversion,built-in unique algorithm,thoroughly eliminate mechanical hysteresis,greatly reduce valve position control error.





4.


   Built-in motor control module,motor frequency speed control can realize accurate positioning.





5.


   Adopt non contact positioning,control unit module design and potting processing,guarantee components reliability and greatly improve product service life;Interface use standard connectors,convenient for installment,adjustment and replacement.





6.


   Menu can report real-time failure,including stuck or other reasons which lead actuator fail to realize valve on/off integrally,and output failure warning signal.





7.


   Menu can realize valve control command exchange.





8.


   Menu can switch freely between remote control and local setting,by pressing the button to adjust valve position





9.


   Menu can set valve close position deviation to on or off direction,thoroughly eliminate the complex and inconvenience bring by “Normal On/Off mechanical positioning” to local valve adjustment.









Electrical data

Rated voltage: DC24V
Rated voltage range:DC22-28V
Functional data

Rated torque: 20Nm@rated voltage

Angle of rotation:90°+/-2°

Running time:1s per 90°

Working conditions

Electricity safety level:III Type (safety low voltage )

Inflaming retarding level:V0 UL94 test method

Enclosure:IP67

Ambient humidity:5-95%RH non-condensing

Certification:CE
