GS-MI/D средней интенсивности двойной цвет авиация непроходимость свет
US $450.00-$480.00
Светодиодный сигнальный фонарь L865 для летательного аппарата мигающий белый источник питания переменного/постоянного тока дистанционное освещение обструкции средней
- Категория: LED Aviation Obstruction Lights >>>
- Поставщик: Hunan,Chendong,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 893.45 $* | 938.39 $* |
| Aug-17-2025 | 885.6 $* | 929.87 $* |
| Jul-17-2025 | 743.79 $* | 780.94 $* |
| Jun-17-2025 | 870.36 $* | 914.56 $* |
| May-17-2025 | 758.24 $* | 796.12 $* |
| Apr-17-2025 | 855.74 $* | 898.72 $* |
| Mar-17-2025 | 848.75 $* | 890.51 $* |
| Feb-17-2025 | 840.56 $* | 882.55 $* |
| Jan-17-2025 | 833.24 $* | 875.37 $* |
Характеристики
Contact Us
T:+86-0731-85563165 85563265
Fax: +86-0731-85563365
Phone/WhatsApp: +86-13929493960
Fax: +86-0731-85563365
Phone/WhatsApp: +86-13929493960
Skype:sophia.guo88
A:No.101,#4 Building, XinCheng Science and Technology Park, West of Yuelu Ave., Hi-Tech Development Zone,Changsha city, Hunanprovince, China.
W:http://www.cdt-en.com/
E: sophia@chendongtech.com
A:No.101,#4 Building, XinCheng Science and Technology Park, West of Yuelu Ave., Hi-Tech Development Zone,Changsha city, Hunanprovince, China.
W:http://www.cdt-en.com/
E: sophia@chendongtech.com
Product Description

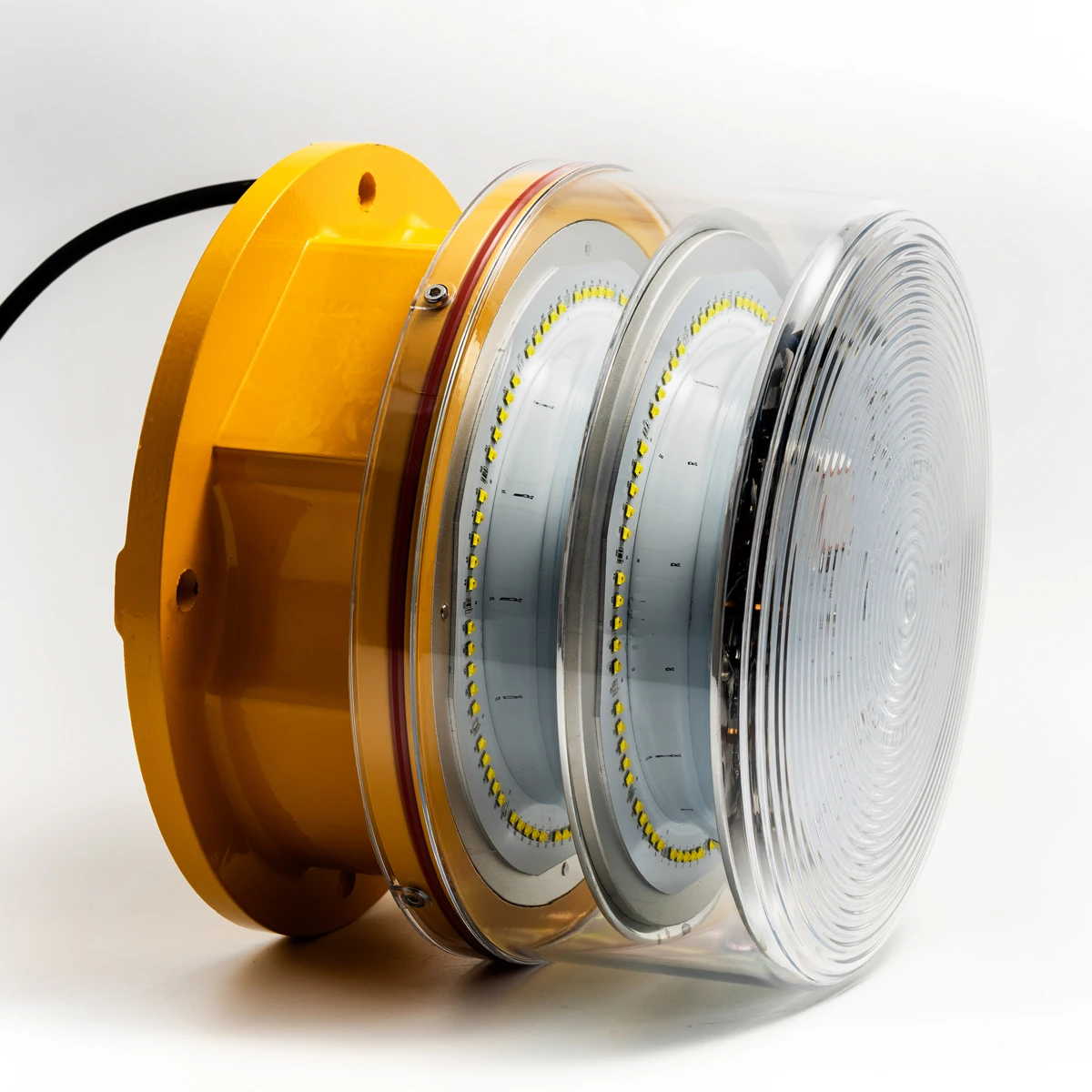

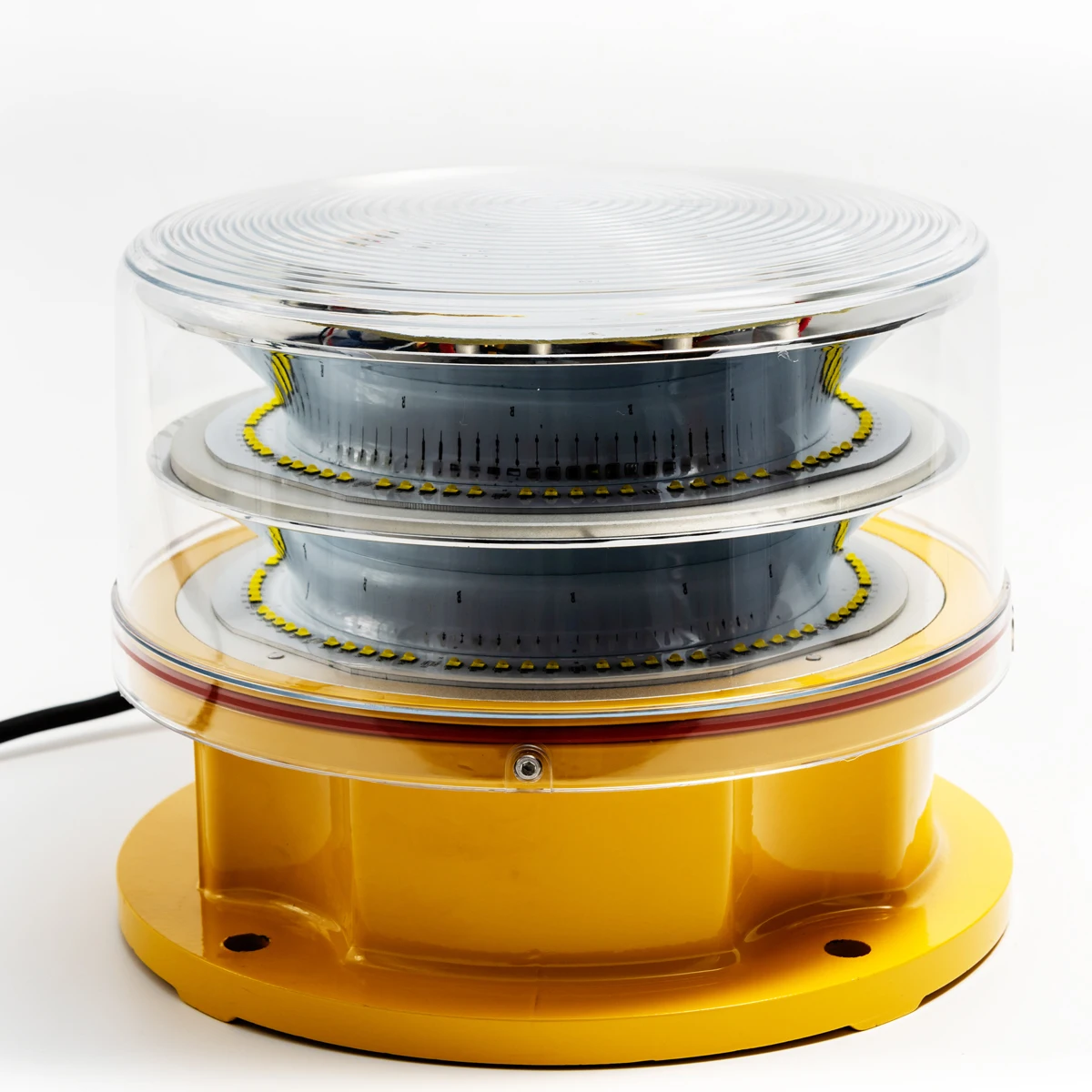

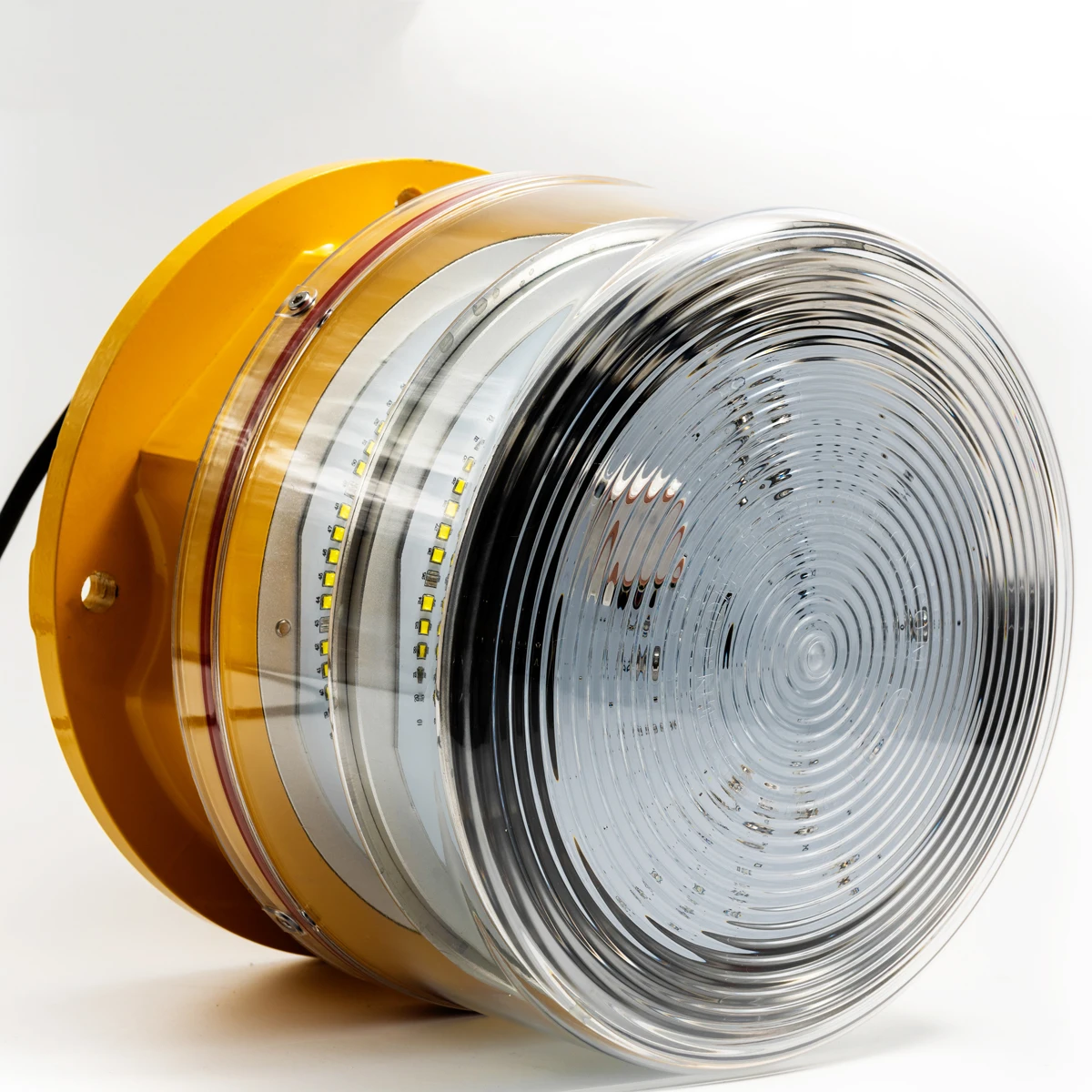

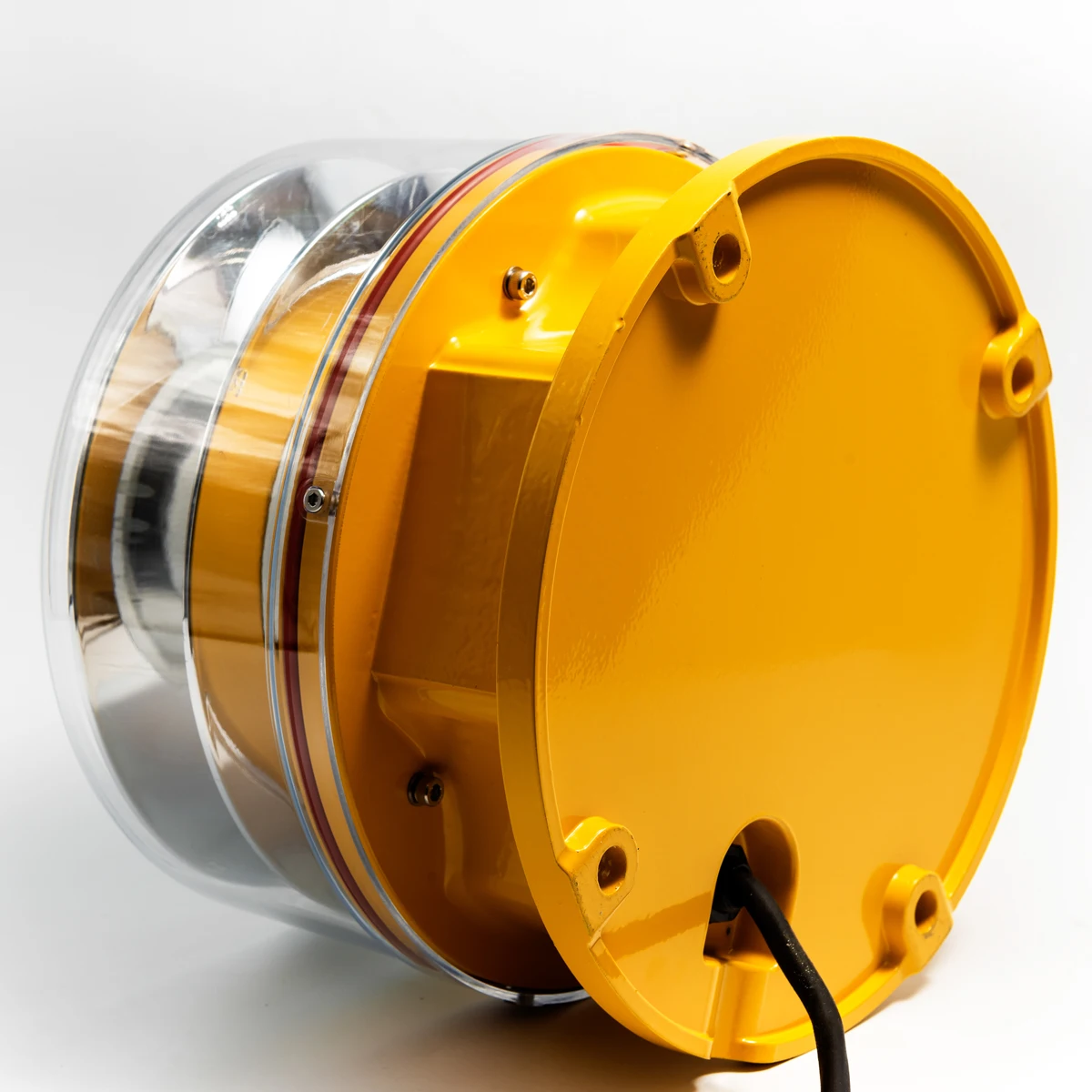

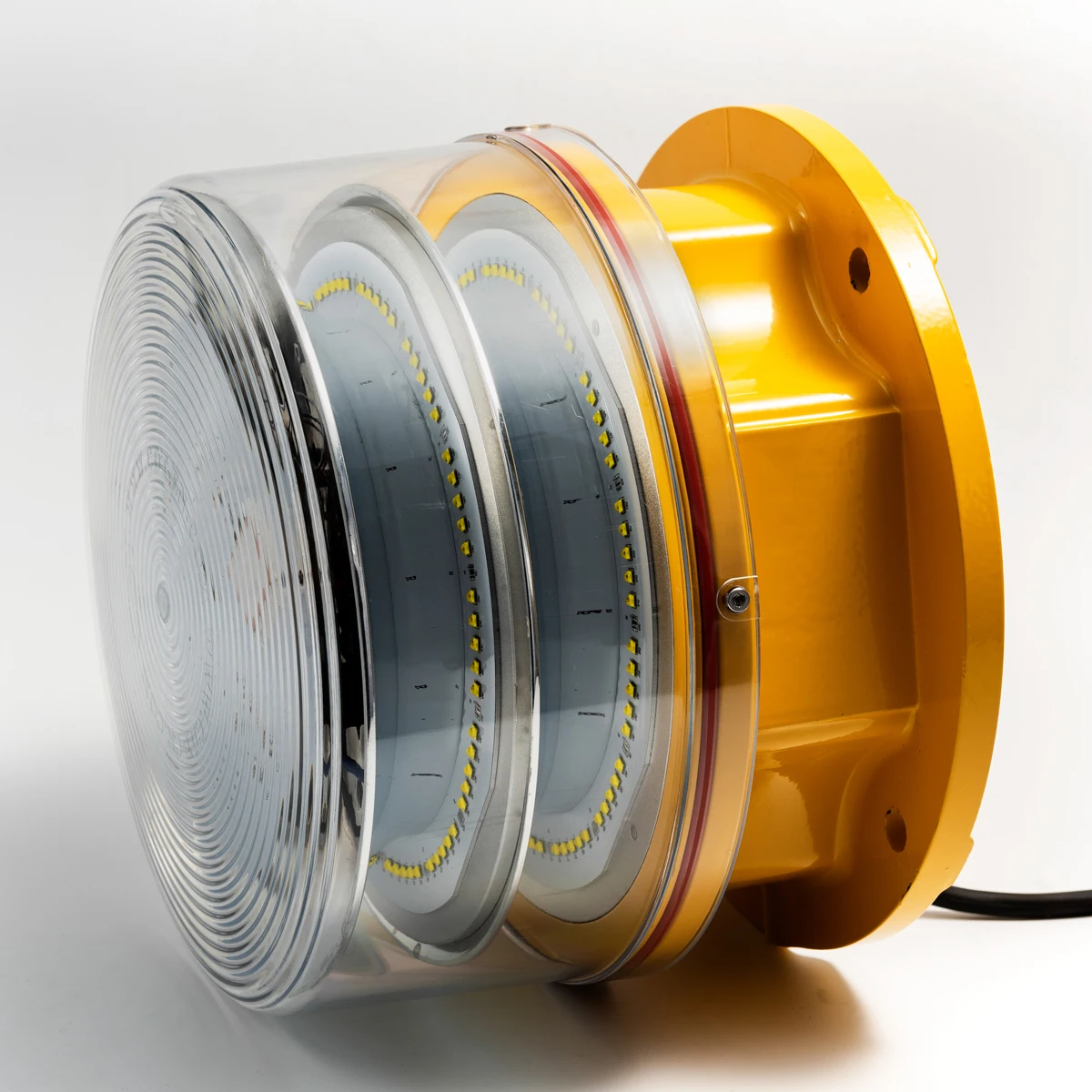

LED Aircraft Warning Light L865 Flashing White AC/DC Power Supply Medium Intensity Obstruction Telecommunication Tower Light

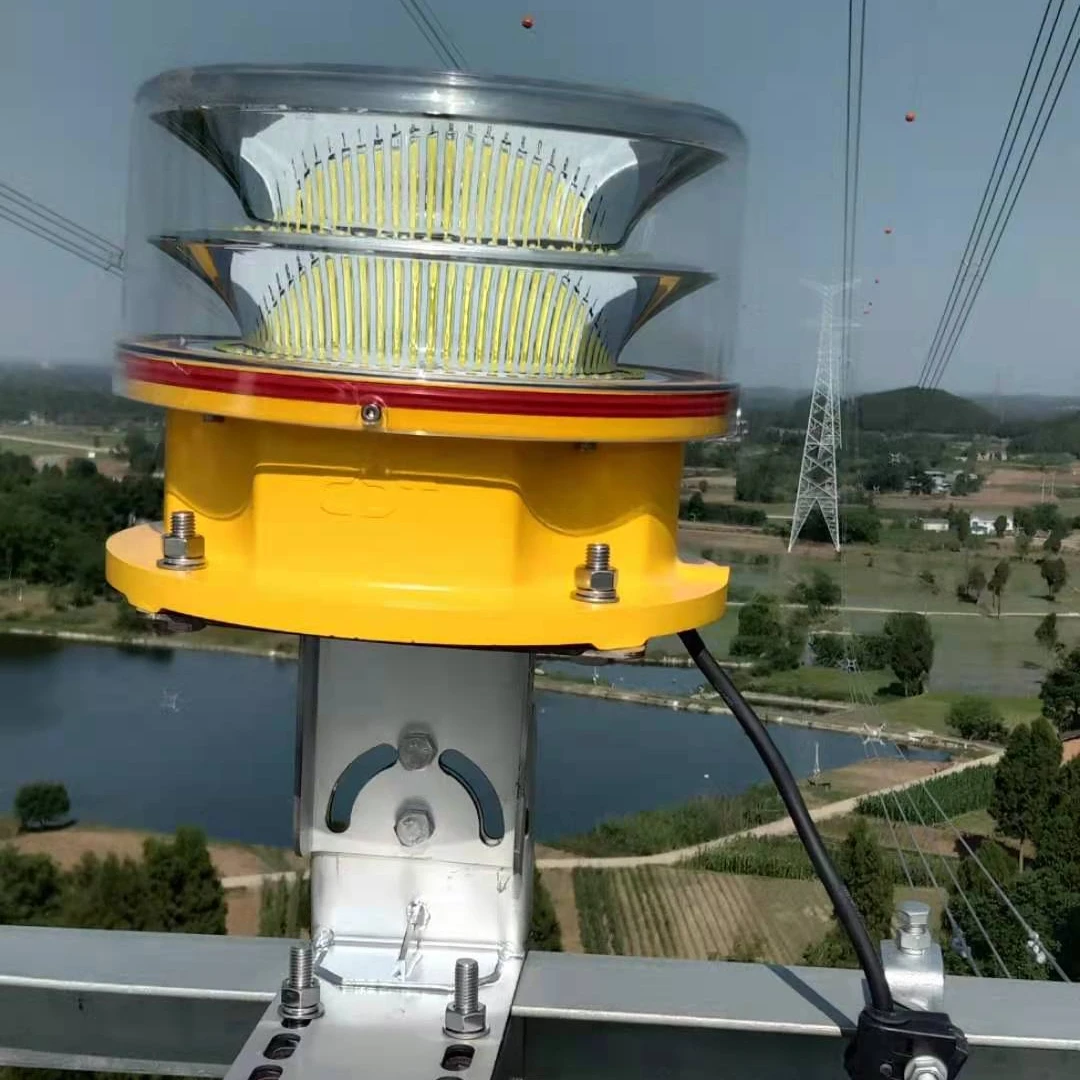

CM-15 is a white LED medium intensity obstruction light, generally used on unpainted tall structures more than 45 meters.
CM-15 flashes at 20,000cd at daytime and twilight and will automatically reduce intensity to 2,000cd at nighttime.
CM-15 white medium intensity LED obstruction light can either work with power converter box and controller for monitoring and functions as a system, or CM-15 self-controlled configuration can work independently as an economical solution.
Item Name | Telecommunication Tower Light |
Model | CM-15 |
Operating Voltage | AC90-260V |
Power consumption | ≤30W |
Flashing frequency | 20-60 times/min |
Light intensity | 2.000 cd night-mode |
20.000 cd day-mode | |
Life span | ＞100,000 hours |
Emitting color | White |
Beam angle | 360° horizontal,more than 3° vertical beam spread |
Overall size | ∅268mm×206mm |
Installation size | Φ166-4*M10 |
Ingress protection | IP65 |
Operating temperature | -40℃～55℃ |
Net weight | 7KG |
Wind load | 80m/sec. |
Specification
1. Cover of the light adopts PC with anti-UV which is high efficiency light transmission up to 90%, quite
high impact resistance and fits the bad environment very well.
2. House of the light is made of aluminum alloy and painted by spraying plastics, the structure is high
strength, resistance to corrosion.
3. Use the special optical reflector design, the visual range further, angle more accurate, no light
pollution.
4. Light source adopts import high quality LED, lifespan up to 100,000 hours, low power consumption,
energy efficiency and environmental protection.
5. Based on the single chip computer control, automatic identification sync signal, do not distinguish
the main light and auxiliary light, and also could be controlled by the controller.
6. Same power supply voltage with synchronous signal, integrate in power supply cable, eliminate the
damage by error installation caused.
7. Used the photosensitive probe fit for the natural light spectrum curve, automatic control light
intensity level.
8. The circuit of the light has surge protection, so that the light is suitable for a harsh environment.
9. Integral structure, protection level of Ip65.
10. GPS synchronizing function is available.
Company Profile
Established in 2012, Hunan Chendong Technology Co., Ltd (CDT) is located in the historic city of Changsha, Hunan province, where is known as Yuelu Mountain, a part among Nanyue Hengshan Mountain and Yuelu Academy with a thousand years history. CDT is a hi-tech company that focuses on R&D, production and sells all kinds of aviation obstruction light and green light for airport navigation.CDT has approved by ISO9001, CAAC and ICAO, owned numerous patents. And keep long terms cooperation with enterprises as ZTE, State Grid Corporation of China, China Southern Power Grid, CAH, CWAG and Hunan Airport Management Group etc. As a pioneer in aviation obstruction light, CDT expands overseas market at the same time. We have exported to over 100 countries in Southeast Asia, Europe ,South Africa, Middle East, North America, Africa and Oceania.
Product packaging
FAQ
Q1. Can I have a sample order for Obstruction light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3. Do you have any MOQ limit for Obstruction light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Obstruction light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on Obstruction light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3. Do you have any MOQ limit for Obstruction light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Obstruction light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on Obstruction light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Exhibition
