1. An overview of the

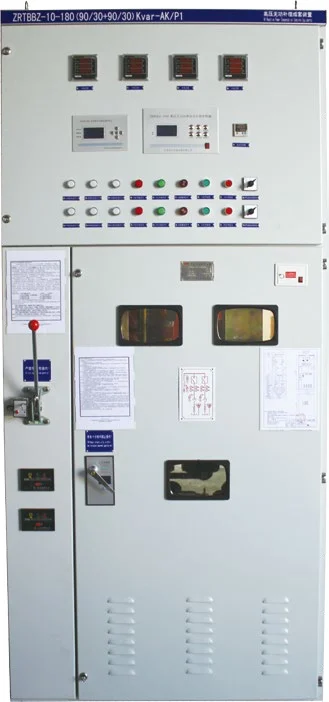

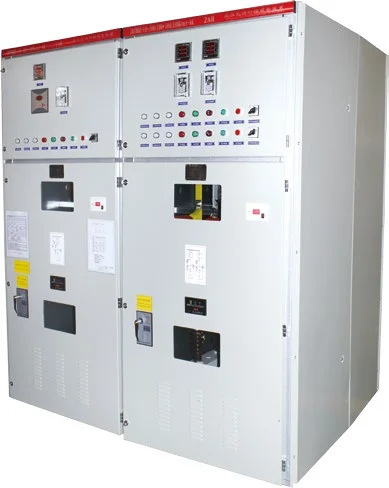

ZRTBBX high voltage fixed reactive power compensation complete set device (hereinafter referred to as the device), suitable for 6 ~ 35kV, 50Hz AC power system, mainly used for power system to adjust bus voltage, reactive power, improve power factor, improve voltage quality, reduce network loss.

2. Implementation of standards

GB 50227-2008 "Code for design of shunt capacitor Devices"

Jbit7111-1993 "High voltage Shunt Capacitor Device"

JBIT 10557-2006 "High voltage reactive power on-site compensation Device"

DL/T604-1996 "Technical conditions for ordering high voltage Shunt capacitor Units"

3. Use environmental conditions

3.1 Cabinet type indoor installation, frame type general outdoor installation;

3.2 The altitude of the installation and operation place shall not exceed 1000 meters, and the place over 1000 meters shall negotiate the order;

3.3 The ambient air temperature at the installation and operation site is -25℃ ~+45℃ for indoor devices and -40℃~+45℃ for outdoor devices;

3.4 The installation and operation site is free from severe mechanical vibration, no corrosive gas and steam, and no conductive explosive dust;

3.5 The network or bus voltage connected to the installation site should not be affected by higher-order harmonic sources, and the voltage waveform distortion rate and harmonic content should not exceed those specified in GB/14549-93 "Voltage Quality, Wave Elimination of Public Power Grid".
