Натяжная тонкая микро магнитная муфта тормоза порошка полый вал для перемотки и разматывания
- Категория: Printing Machinery Parts >>>
- Поставщик: Dongguan,Taiji,Speed,Reducer,Clutch,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 119.43 $* | 125.76 $* |
| Aug-17-2025 | 118.2 $* | 124.70 $* |
| Jul-17-2025 | 99.80 $* | 104.80 $* |
| Jun-17-2025 | 116.3 $* | 122.52 $* |
| May-17-2025 | 101.35 $* | 106.29 $* |
| Apr-17-2025 | 114.30 $* | 120.27 $* |
| Mar-17-2025 | 113.48 $* | 119.7 $* |
| Feb-17-2025 | 112.19 $* | 118.16 $* |
| Jan-17-2025 | 111.90 $* | 117.38 $* |
Характеристики

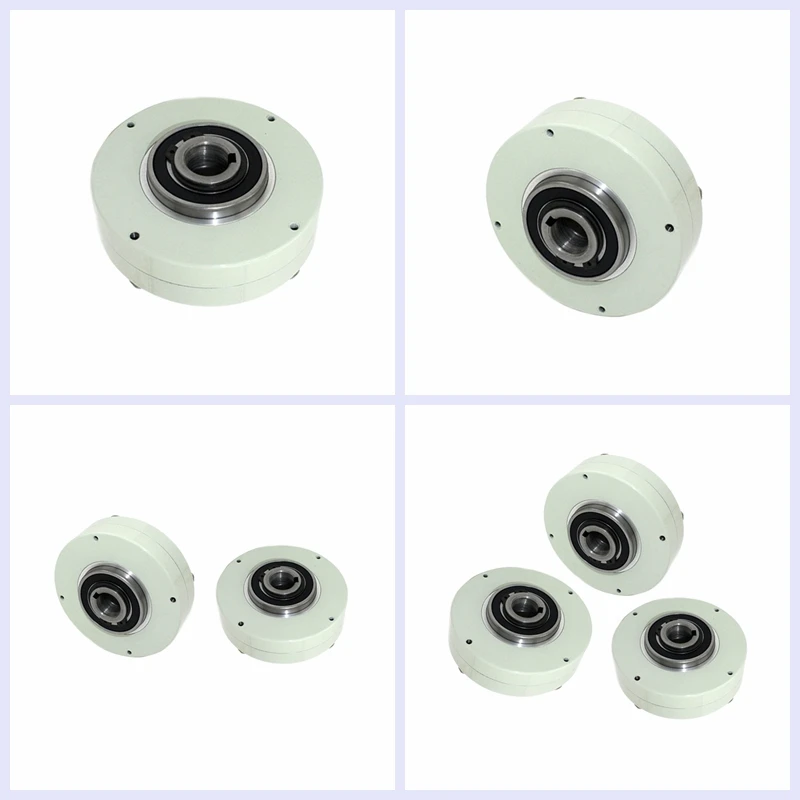

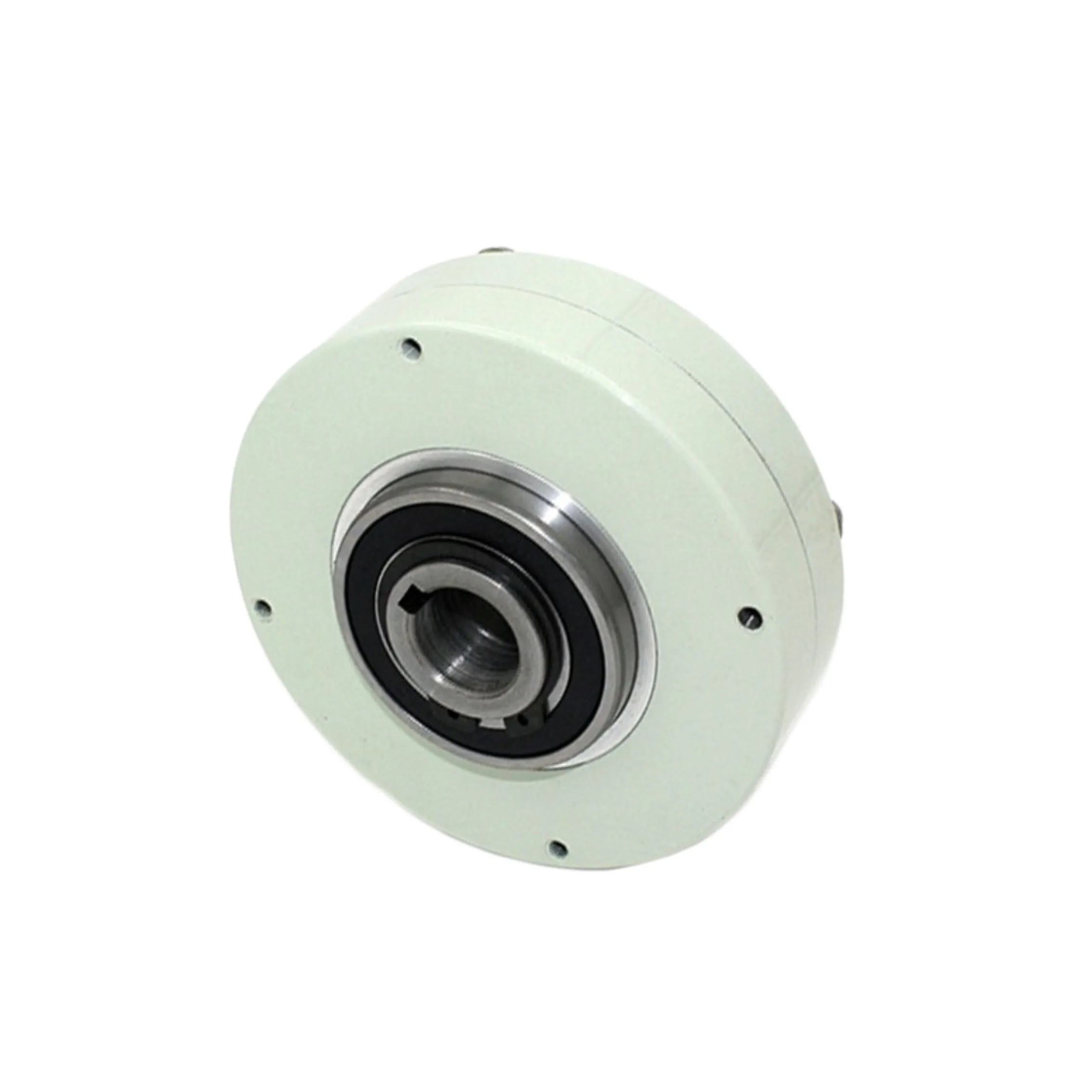

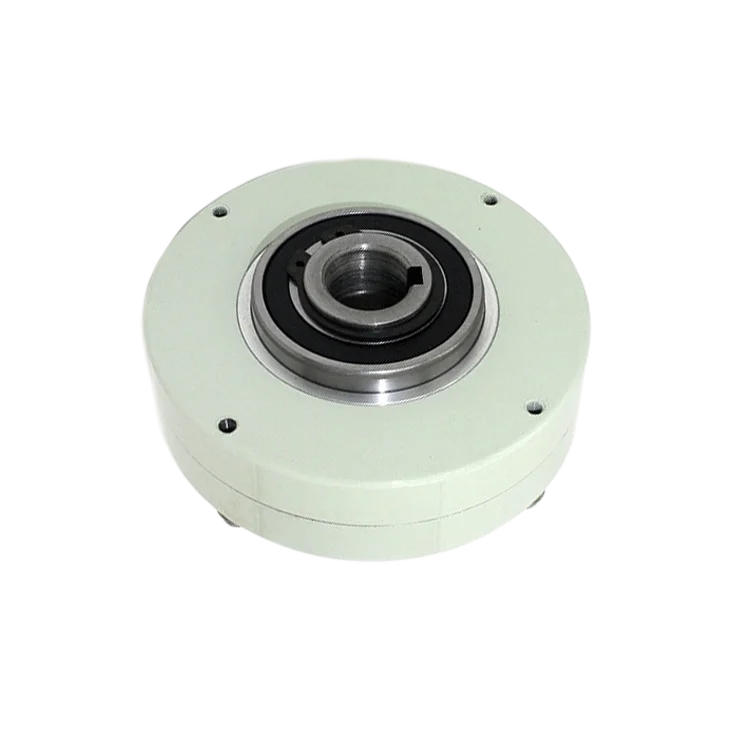

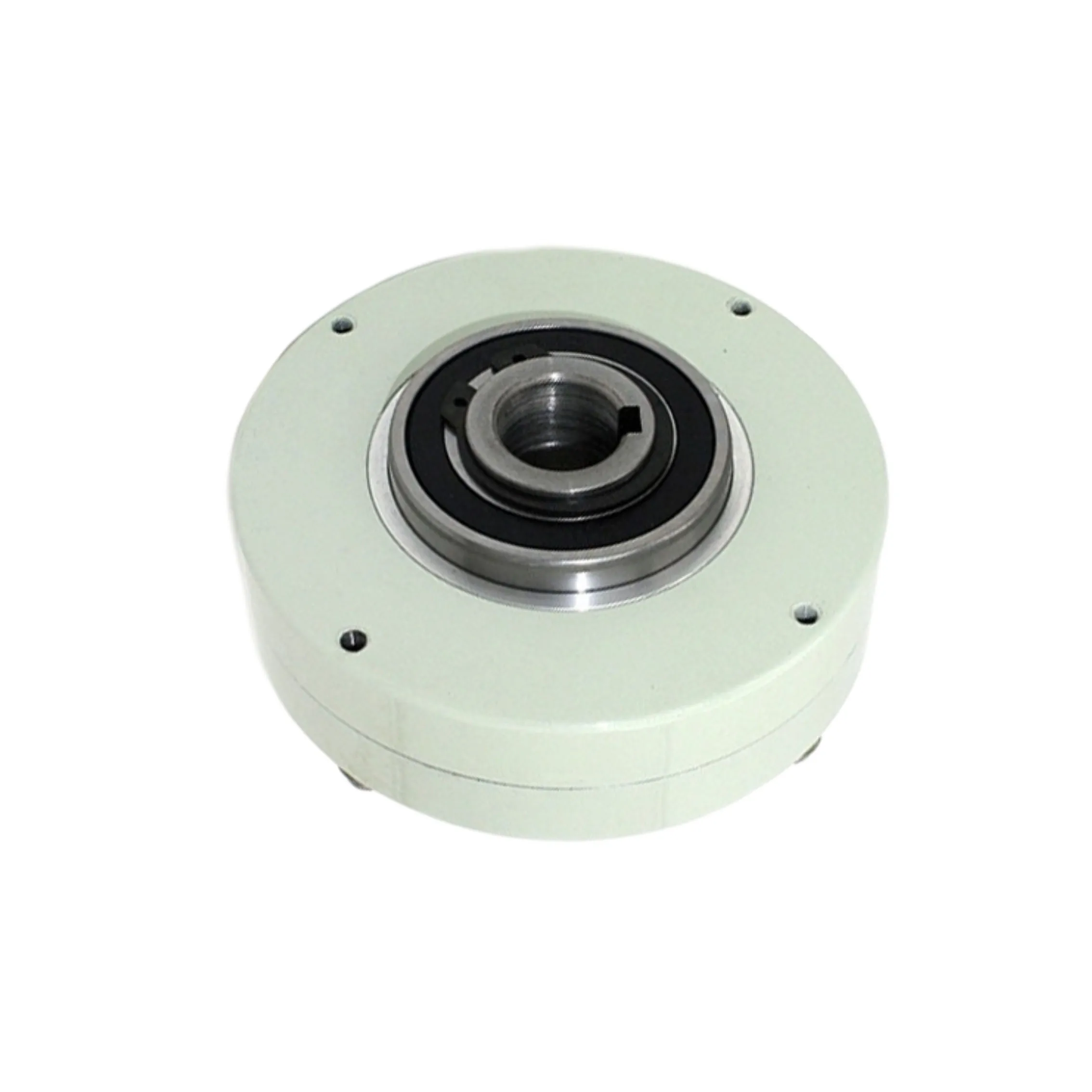

Hot selling ultrathin type magnetic powder brake for unwinder machine
Taiwan Brand-Tianji
Reliable Quality,Reasonable Price and Good Service.
Any inquiry will be replied with 24 hours. Thanks for your time!
Product Description
Magnetic Powder Clutch and Brake Introduction :
| The magnetic powder brake/clutch is composed of active rotor(input shaft), driven rotor(output shaft) and Yoke with excitation coil. The three parts are assembled relative concentric and form a system which can rotate relatively. The annular gap between active rotor and driven rotor is full of alloy powder which has high magnetic conductivity. |
Magnetic Powder Clutch and Brake Application :
| Due to the features of the magnetic powder clutch and brake, they have been widely used in paper making, printing, plastic items, rubber industry, textile industry, printing and dyeing,wire and cable, metallurgy industry and tension control of winding and winding in roll material processing industry. |
MODEL: TJ-POD-B-E Parameters
| Model | Rated Torque | Capacity DC24 (75°C) | Hollow shaft size | |||||
| Current | Slip Power | Allowable rotational speed | Flywheel moment | Bore diameter | Keyway size | T (+0.2 ) | ||
| (Nm) | (A) | (W) | (R/MIN) | ( kg cm 2 ) | (mm) | (mm) | mm | |
| TJ-POD-B-E-0.3 | 3 | 0.4 | 30 | 400 | 3.5 x10-6 | 15 | 5 | 17.3 |
| TJ-POD-B-E-0.6 | 6 | 0.4 | 50 | 400 | 9 x 10-6 | 20 | 6 | 22.8 |
| TJ-POD-B-E-1.5 | 12 | 0.5 | 100 | 400 | 1.6 x 10-4 | 25 | 8 | 28.3 |
TJ-POD-B-E-2.5 | 25 | 1.1 | 150 | 600 | 2.8 x 10-4 | 25 | 8 | 27.8 |
| TJ-POD-B-E-5 | 50 | 1.35 | 200 | 600 | 10 10-4 | 30 | 8 | 33.3 |
| TJ-POD-B-E-10 | 100 | 1.5 | 300 | 600 | 3.8 x 10-4 | 35 | 10 | 38.3 |

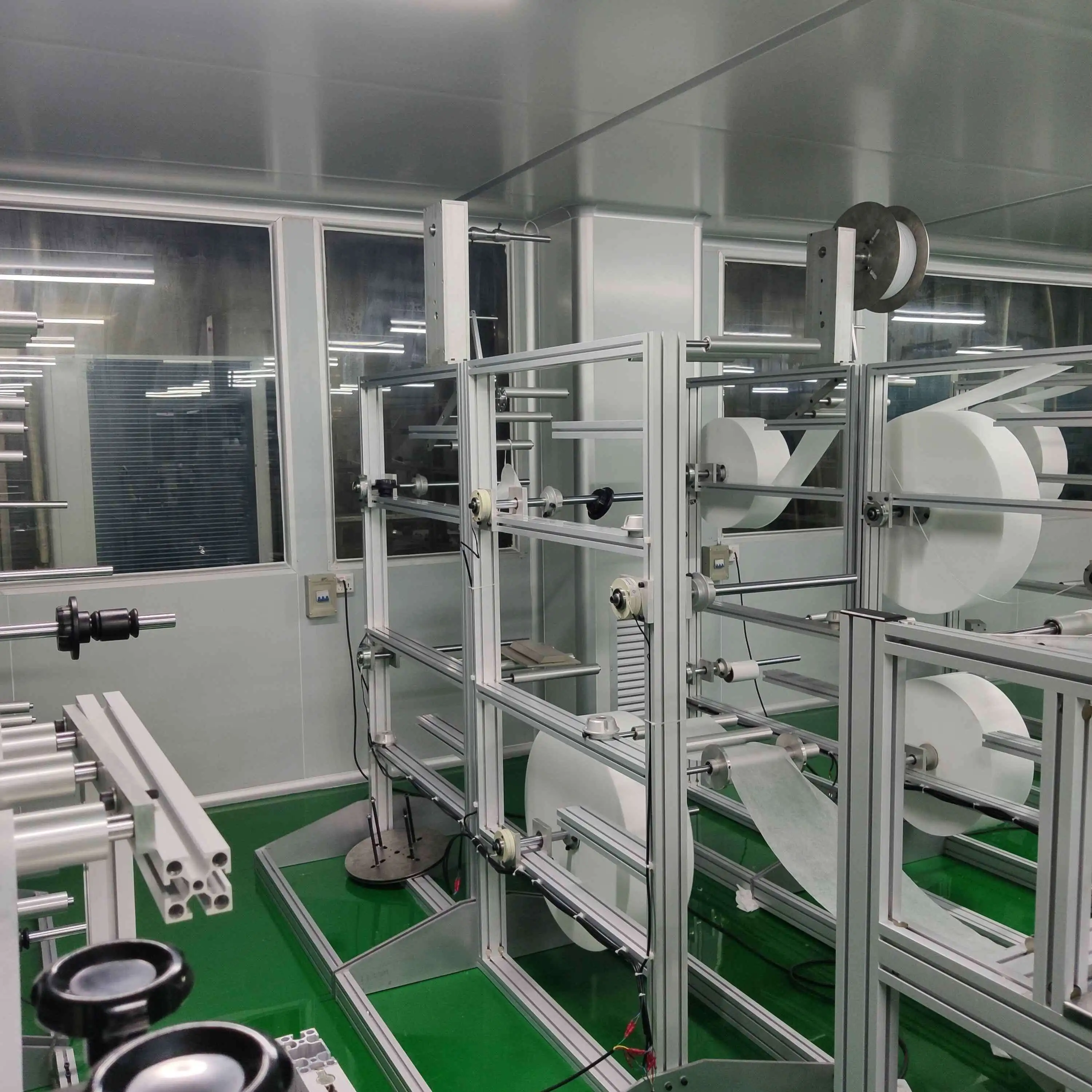

This ultrathin type magnetic powder brake model TJ-POD-E-0.3 & TJ-POD-E-0.6 is widey used for face mask machine and Small type unwinder equipment |
Product Uses
| MORE APPLICATION |
Packaging & Shipping
| PACKAGING AND SHIPPING |
Company Information
| ABOUT US |
Advantages
Why do you choose us?
Your choice,We promise!
Eight reasons to choose us:
1. Perfect service system and after-sale protection.
2. Quality problems will be solved within 24hours.
3. One-to-one customer service tracking processing.
4. Companies carry out the ERP management, improve enterprise fast response.
5. Quality assurance, one year warranty.
6. Supporting professional matched other equipments.
7. The company has more than one product testing units, the implementation of ISO9001: 2015.
8. Unique development and design capabilities to meet the needs of special-purpose equipment manufacturing.
Five Core strengths:
1. The first domestic independent R & D manufacturer and 16 years of professional manufacturing.
2. Casting exquisite, beautiful, practical and durable.
3. Complete specifications, cost-effective and spot supply.
4. Independent research and development, special specifications can be customized.
5. Selected materials, high-tech treatment, up to the international standard test.
Certifications
| CERTIFICATE |
FAQ
| FAQ |
1.When can I get the quotation?
We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell us in your email, so that we can regard your inquiry priority.
2.How should I place an order?
Please let us know the model number based on our specs for powder clutch, powder brake, air clutch, air brake, electromagnetic clutch, electromagnetic brake and safety chucks, other transmisson parts.
For air shafts,air adapter please show us your drawing, or let us know your request, and then we will provide you drawing for confirmation.
3.What’s your MOQ basis?
Normally, we don’t have MOQ request, except the customized mini clutches/brakes.
4.What about the lead time for production?
Honestly, it depends on the order quantity and the type of our products. For powder clutch, powder brake, tension controller,which is about 3-5 days. For safety chucks, air shafts which need about 15-30days.
5.What is the term of shipment?
We can arrange with EXW, FOB, CIF…etc. You can choose the most convenient one or cost-effective way.
More concerned for our products , please do not hesitate to inquiry now!
