High Quality Image Industrial Flat Panel Detector X Ray Equipment For Industial
Product Description

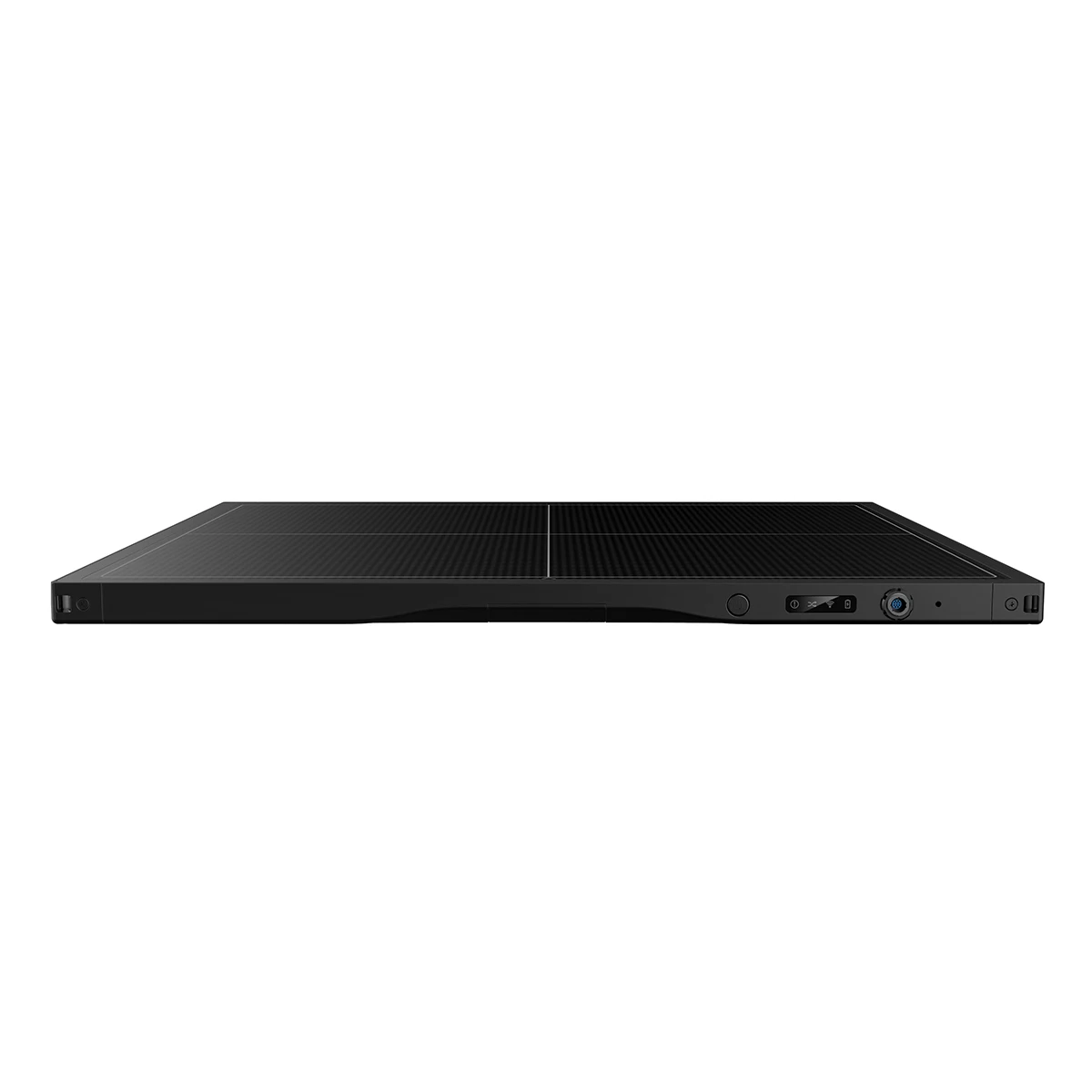

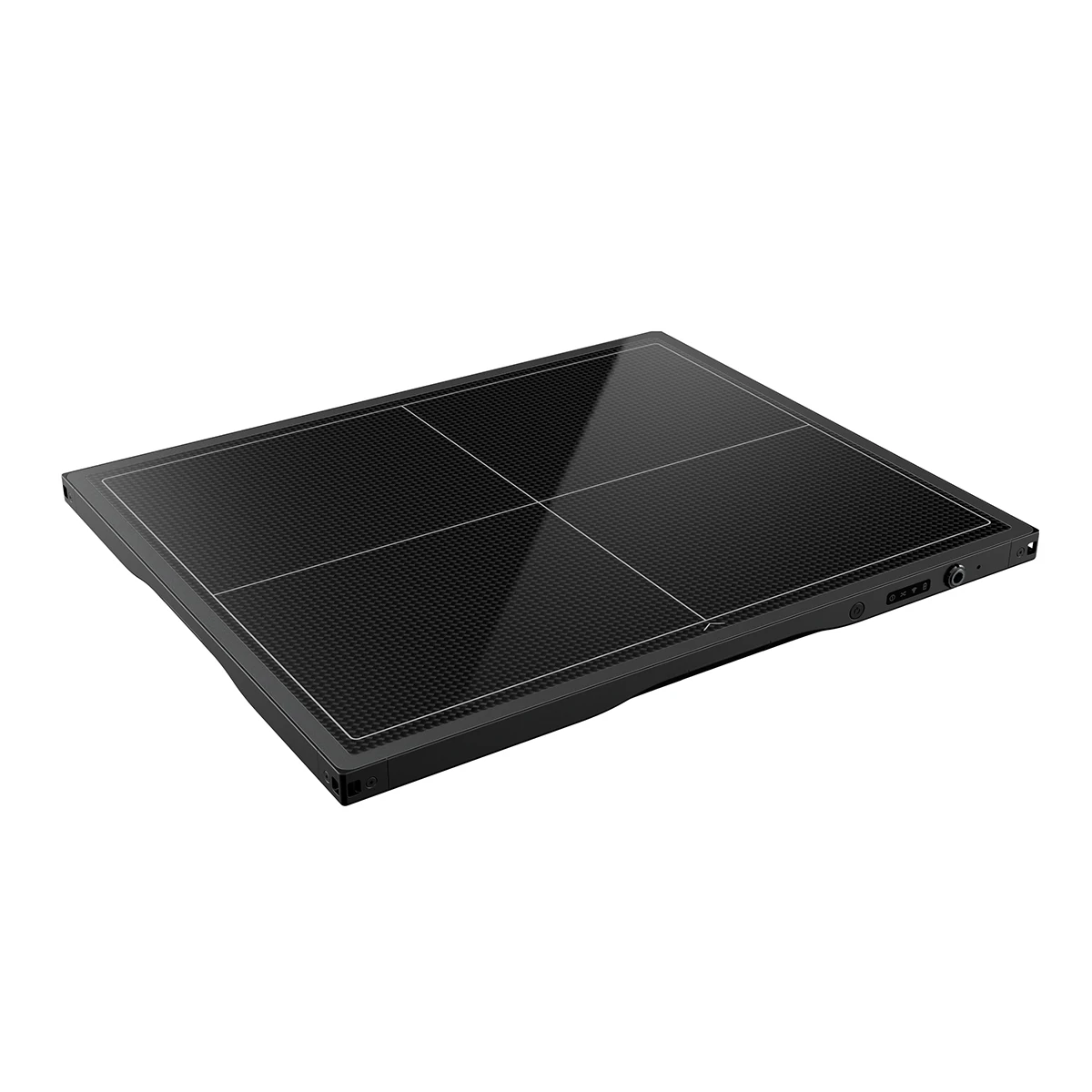

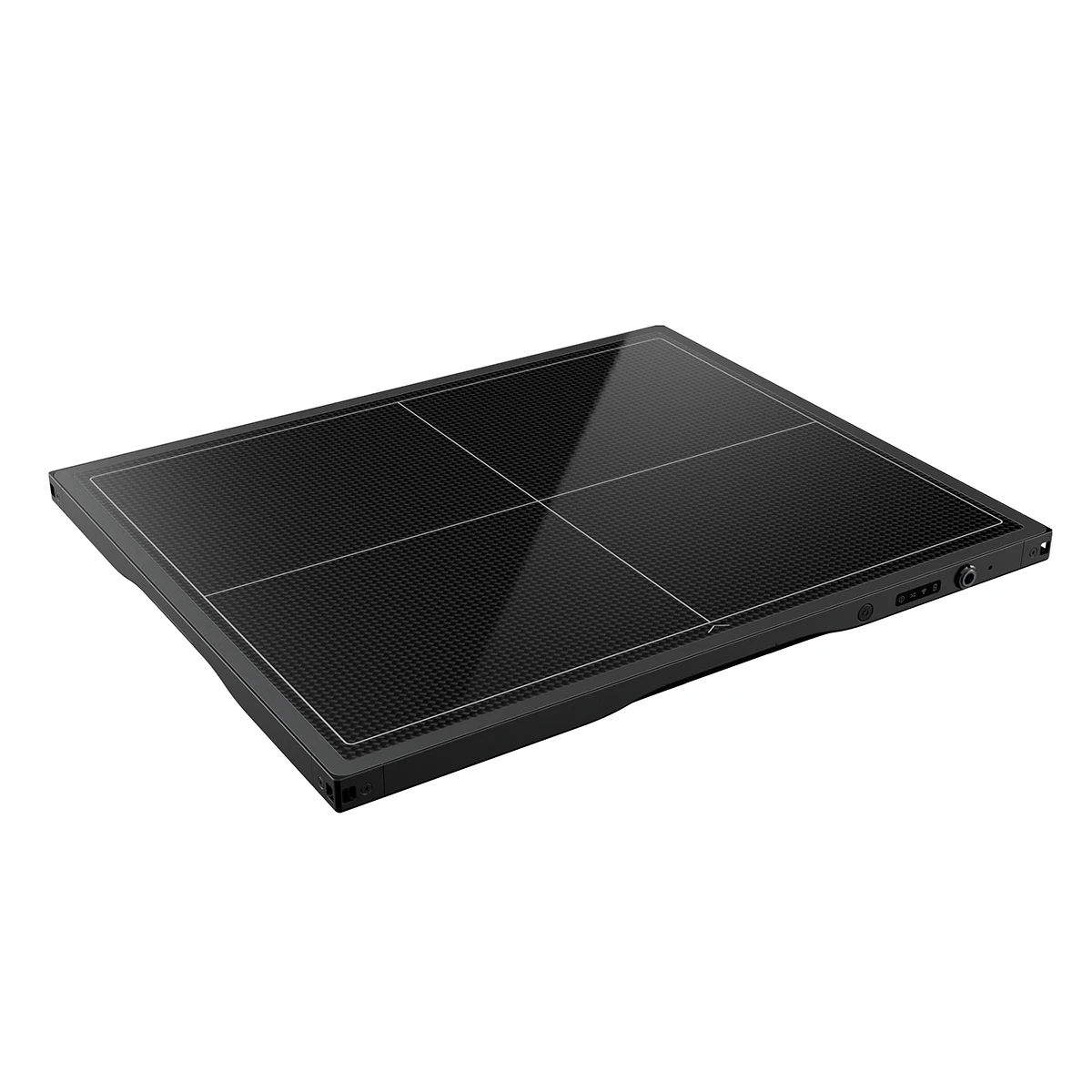

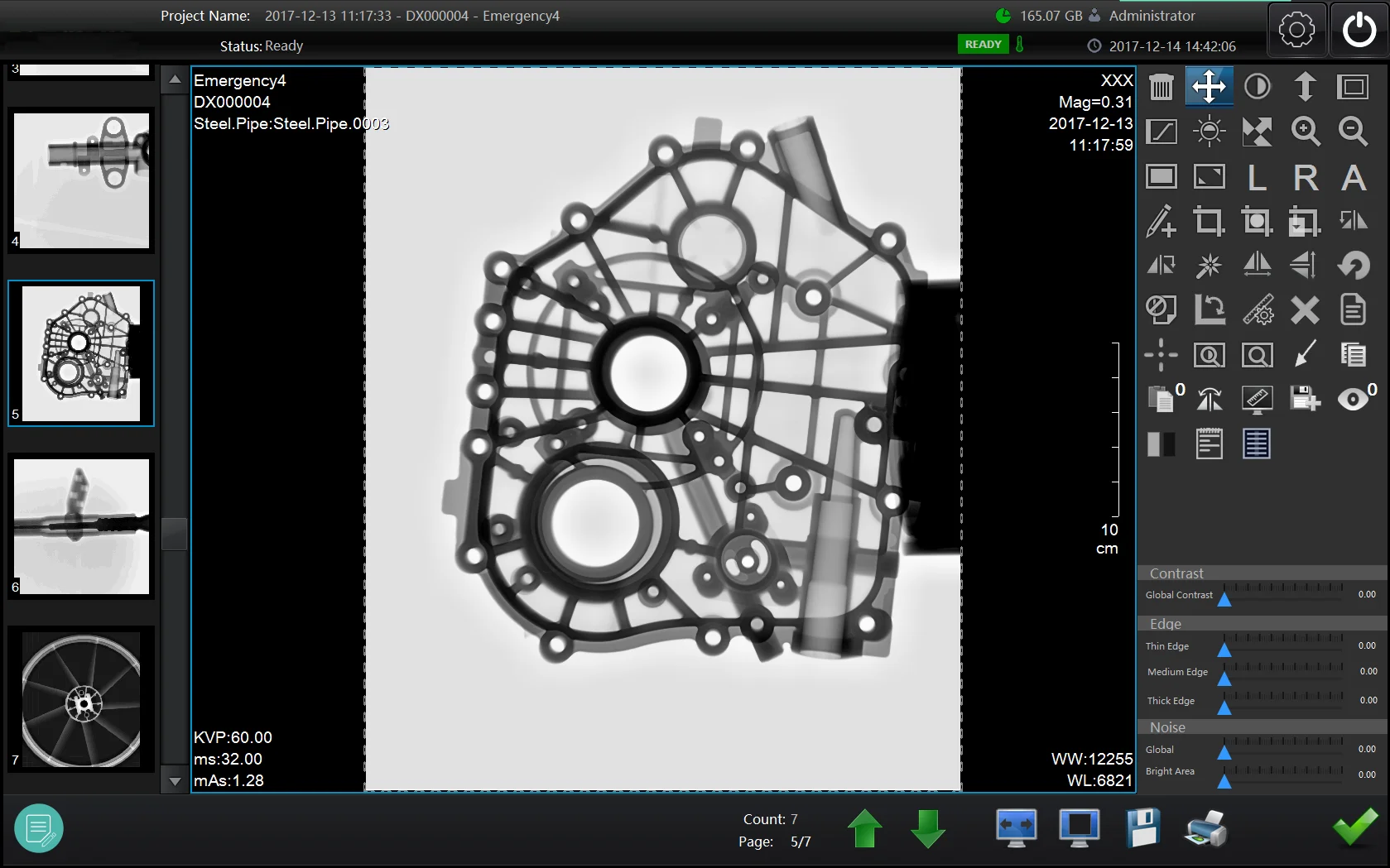

MSLFP31 is wireless a-Si and portable flat panel detector. It feature a compact and industrially rugged design, which provides high radiation resistance, wide environmental capabilities, and overall high reliability. Data and signal communication is achieved either via a wired or a wireless interface. The iRay software SDK provides support for detector calibration, configuration, image acquisition, pre-processing and viewing on an end-user
tablet or workstation running the MS Windows operating system.
tablet or workstation running the MS Windows operating system.
With their exceptional image quality and reliability, the MSLFP31is an excellent choices for industrial applications such as portable field inspection, or IED/EOD based security scenarios.
35x43 cm2 imaging area
100 um pixel pitch with 1 6-bit ADC for more image detailsUp to 180 sec. X-ray exposure window
Robust wired and 5G wireless data interface
Thin and lightweight design
More than 6 hours battery capacity
Specification
item | value |
Product name | Flat Panel Detector |
Detector Technology | Amorphous Silicon |
Pixel Pitch (um) | 100 |
Pixel Matrix | 3500 x 4300 |
Scintillator | GOS |
Active Area (mm2) | 350 x 430 |
Spatial Resolution (lp/mm) | 5 |
AD Conversion (bit) | 16 |
Maximum X-ray Exposure Window (sec) | 180 |
X-ray Energy Range | 370 KV |
