Product Description

Rough-Terrain-Crane RT35
1. Maneuverable and robust drive
• Four-wheel drive and four-wheel steer chassis;
• Fully hydraulic steering system;
• Variable steering modes, front-wheel steer,four-wheel steer and crab steer;short vehicle length and small turning radius provide the crane with maximum maneuverability and flexibility in narrow job sites

2. Excellent off-road capability
• Big ground clearance and departure / approach angle offer excellent off-road capability.

3. Strong gradeability
• Cummins electronically-controlled engine, automated transmission and steerable drive axlex provide reliable power output.
• Even in the condition of abrupt road resistance,the engine can also be functional.
• Four-wheel drive, hydraulic suspension and special tires optimize the vehicle’ s drive performance to its maximum, suitable for any bad roads and job sites.

4. Pick-and-carry operations
• The rough terrain crane has the ability to pick and carry loads, thus improves the working efficiency greatly.
• The crane can also carry out ”On tires“ Lifts without extending the outrigger beams in narrow job sites.
• Superior pick-and-carry ability during short-distance transit can bring great convenience to the users.

5. Single cab design
• Single cab design with large skylight provides large field of view;
• Air-cushioned seat suits to all types of figures, which can release the driver’ s or operator’ s fatigue, thus improves the working efficiency;
• The crane is fitted with air conditioning, suitable for all-weather work;
• Digital display and keyboard units,advanced data bus technology,error check and audible & acoustic alarm ensure the safety and high efficiency of the operation.

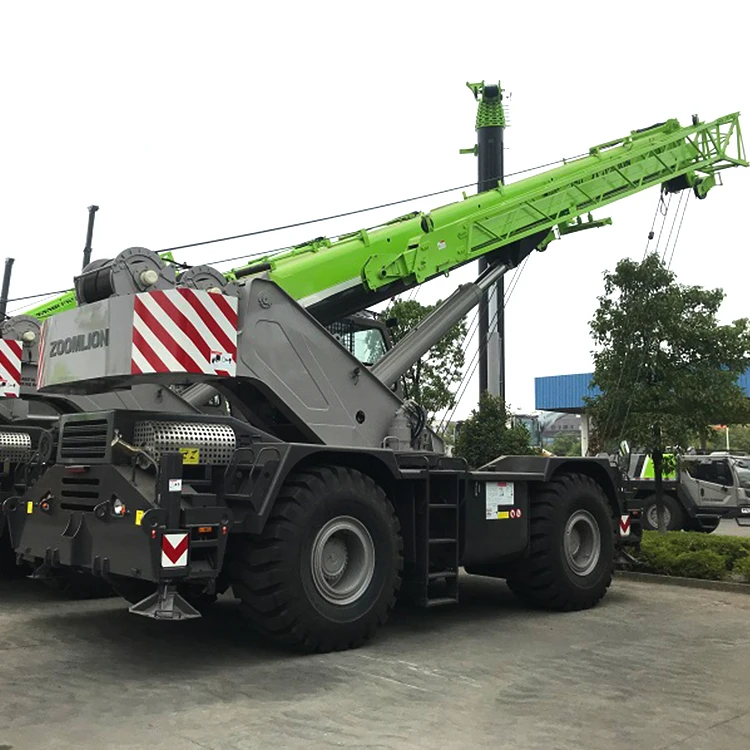

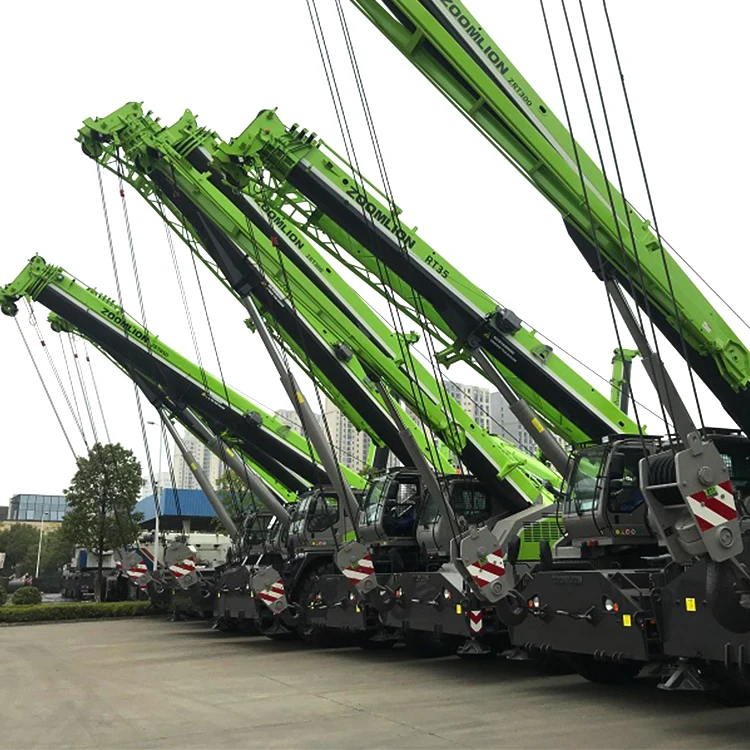

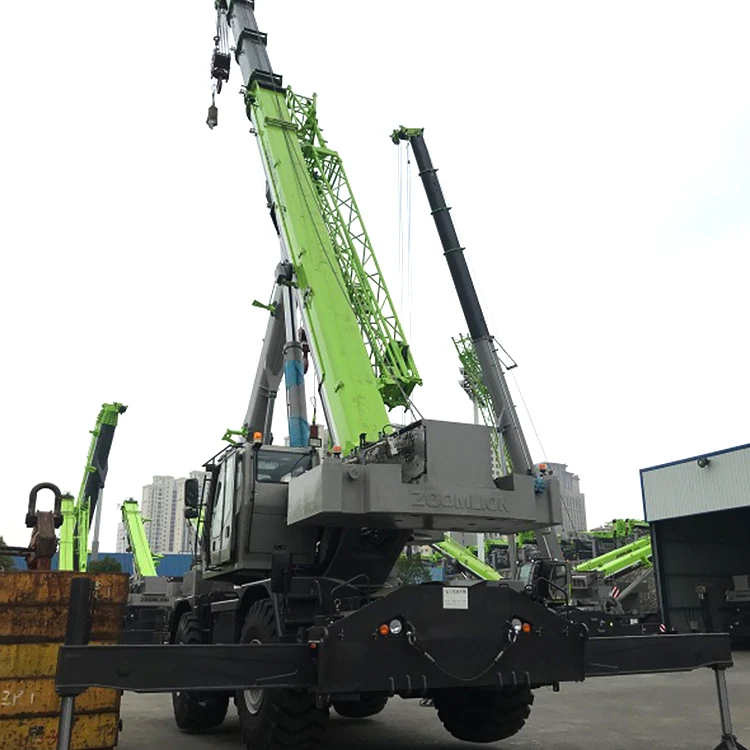

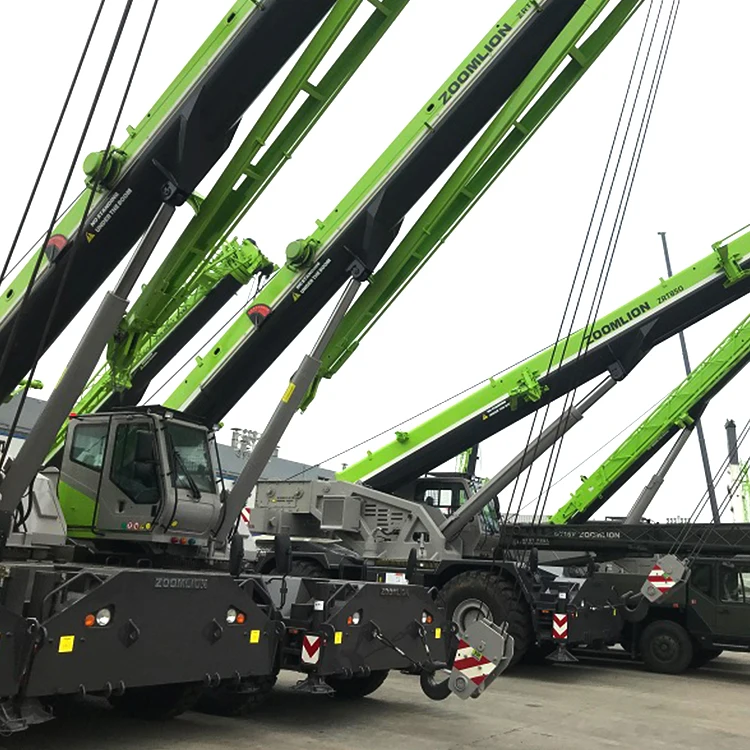

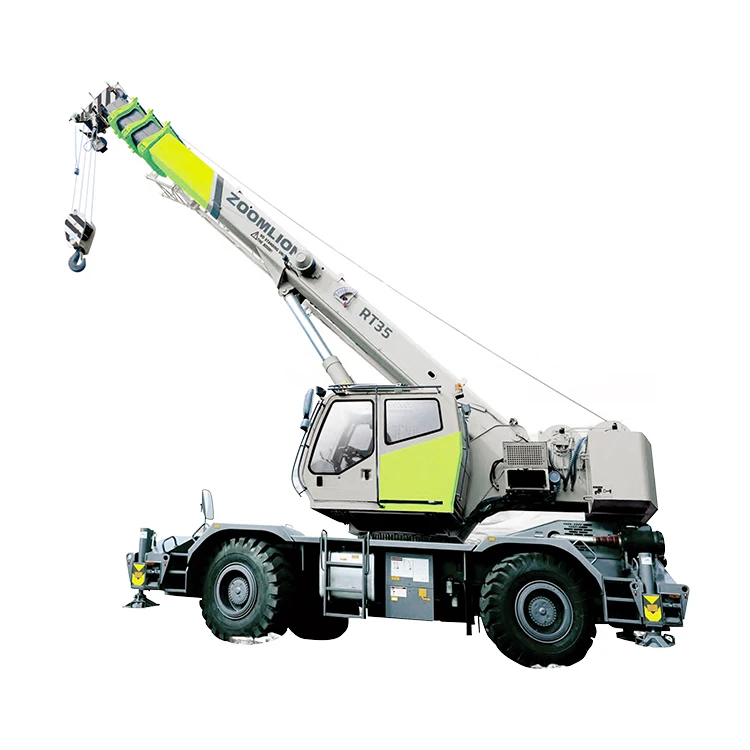

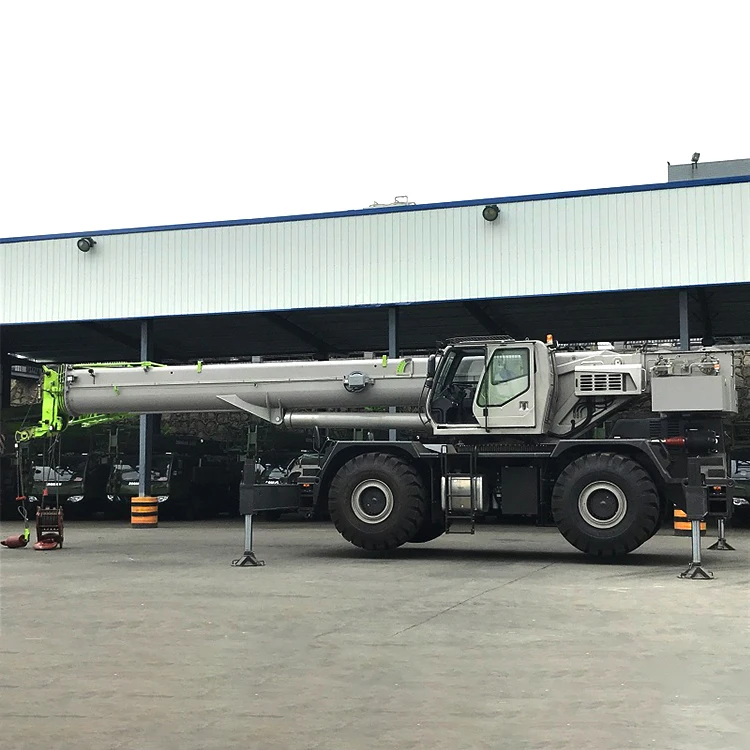

Product pictures

Specification

Type	Ser. No.	Item	Unit	Value
Working performance	1	Max. rated lifting weight × working radius	kg.m	35000×3.0
		2	Max. lifting moment of basic boom	kN.m	1344
		3	Max.lifting moment of longest boom	kN.m	870
		4	Max. lifting height of longest boom	m	31
		5	Max. lifting height of jib	m	46
Dimensions	6	Outline dimensions (L×W×H)	mm	11935×2980×3600
		7	Distance between outriggers (Longitudinal × transversal)	mm	6810×6800
		8	Main boom length (completely retracted – completely extended)	mm	9800～31000
		9	Jib length (completely retracted – completely extended)	mm	9088～15028
		10	Main boom angle of elevation	°	-3～78
		11	Swing range		360°continuously
Working speed	12	Max.speed of single rope on the drum of main winch	m/min	150
		13	Boom extension time	s	70
		14	Boom retraction time	s	75
		15	Boom derricking up time	s	46
		16	Boom derricking down time	s	47
		17	Swing speed	r/min	0～2.5
Hydraulic system	18	Rated working pressure	MPa	27
		19	Rated working flow	L/min	400
		20	Hydraulic oil tank capacity	L	600
Mass	21	Complete vehicle kerb mass	kg	32000
		22	Front axle load	kg	15030
		23	Rear axle load	kg	16970
Traveling	24	Max. traveling speed (forwards / backwards)	km/h	38/15
		25	Wheelbase	mm	3820
		26	Treads (front / rear)	mm	2444
		27	Max. gradeability	%	57
		28	Min. turning radius (outer edge of the vehicle body)	m	6.5
	29	Min. turning radius (2 wheels)	m	11.25
