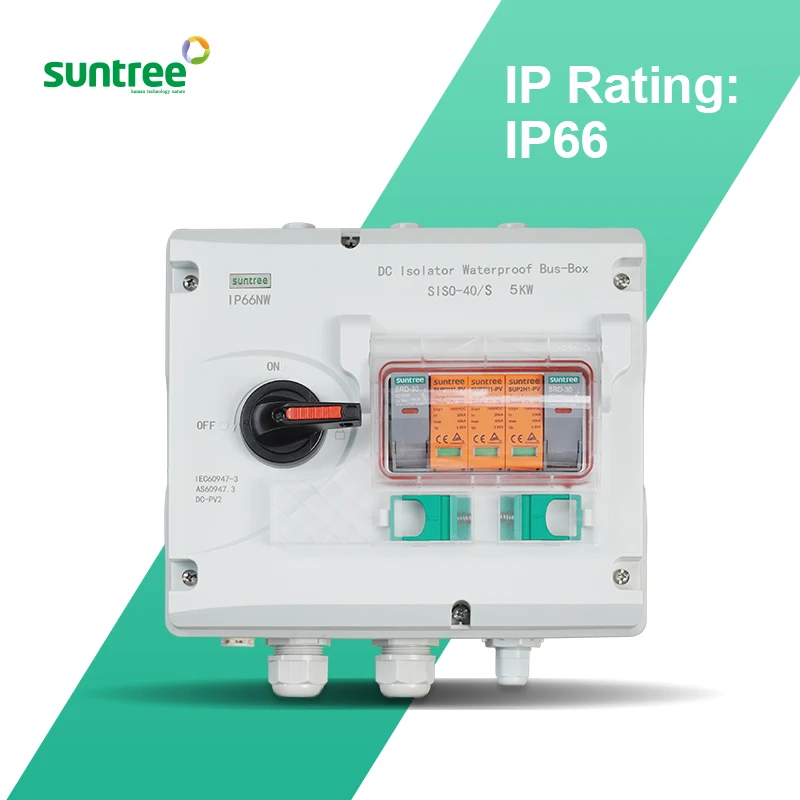

Новый продукт IP66 водонепроницаемый наружный изолирующий переключатель постоянного тока Солнечный Электрический
- Категория: Solar Related Products >>>
- Поставщик: Wenzhou,Xinchi,International,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 5246.86 $* | 5508.48 $* |
| Aug-16-2025 | 5201.3 $* | 5461.29 $* |
| Jul-16-2025 | 4364.7 $* | 4582.29 $* |
| Jun-16-2025 | 5113.79 $* | 5369.33 $* |
| May-16-2025 | 4452.53 $* | 4675.82 $* |
| Apr-16-2025 | 5025.97 $* | 5276.83 $* |
| Mar-16-2025 | 4981.92 $* | 5230.80 $* |
| Feb-16-2025 | 4937.18 $* | 5184.8 $* |
| Jan-16-2025 | 4893.36 $* | 5138.42 $* |
Характеристики
APPLICABLE STANDARDS
Standard:GB/T14048.2 GB/T 14048.1/3 GB/T18802.1
The international standard:IEC/EN60947-2 AS/NZS IEC60947.3 IEC61643-31
The international standard:IEC/EN60947-2 AS/NZS IEC60947.3 IEC61643-31
WORKING ENVIRONMENT
1.Suitable for indoor or outdoor use
2.The installation type:suitable for vertical or horizontal use
3.The environment temperature:–40℃ +70℃, The average value within 24h does not exceed 40℃
4.The altitude:No more than 2000 m
5.Pollution levels:Level 3
6.Install the category: llI Class
7.Storage and transportation:The ambient limit temperature is -25℃ ~+60℃, the air relative humidity is not more than 95% when the temperature is 25℃, and the height of free fall is not more than 50mm;In the process of transportation, it shall not be subjected to strong jolt, vibration and bump, and shall be protected from rain and snow.
8.Notice:All connector used in must be IP65 waterproof or above protection level (except indoor or installation without protection requirements).
1.Suitable for indoor or outdoor use
2.The installation type:suitable for vertical or horizontal use
3.The environment temperature:–40℃ +70℃, The average value within 24h does not exceed 40℃
4.The altitude:No more than 2000 m
5.Pollution levels:Level 3
6.Install the category: llI Class
7.Storage and transportation:The ambient limit temperature is -25℃ ~+60℃, the air relative humidity is not more than 95% when the temperature is 25℃, and the height of free fall is not more than 50mm;In the process of transportation, it shall not be subjected to strong jolt, vibration and bump, and shall be protected from rain and snow.
8.Notice:All connector used in must be IP65 waterproof or above protection level (except indoor or installation without protection requirements).
Product parameters
DC Isolating Switch Waterproof Bus-box Model | SISO-40/F | SISO-40/M | SISO-40/S | SISO-40/FM | Customised | ||||
Waterproof Box Material | PC/Polvcarhonate | ||||||||
Waterproof Protection Grade | IP66 | ||||||||
Waterproof Box Resistance Strength Grade | IK10 | ||||||||
Pole/String | 5 | ||||||||
Size of Photovoltaic Cable connection | 4mm2=-6mm2 | ||||||||
Match Power Generation System Capacity | 2 | ||||||||
installation | Vertcal installation | ||||||||
DC isolating Switch/DC Disconnector | |||||||||
Voltage | Ue=DC1200VUe=Dc1000V and bellow | ||||||||
Current | le=6A.....le=55A | ||||||||
Pole | 4P | ||||||||
String | 2 | 1 | 1 | 1 | 1-2 | ||||
DC Surge Arrestor | |||||||||
Voltage | Ue=DC1500V Ue=DC1200V Ue=DC1000V and bellow | ||||||||
Maximum instantaneous discharge current | In=20KA/40KA | ||||||||
Pole | 2P 3P | ||||||||
Cartification | CE TUV | ||||||||
DC Circuit Breaker | |||||||||
Voltage | Ue=DC1200V Ue=DC1000V and bellow | ||||||||
Current | In=6A In=10A In=16A In=20A In=25A in=32A In=40A In=50AIn=63A | ||||||||
Pole | 1P 2P 3P 4P | ||||||||
Auxiliary Us | Us:DC12V DC24V DC48V AC230V/415V 1A-2A MX+OF | ||||||||
Dc Fuse | |||||||||
Voltage | Ue=DC1100V | ||||||||
Current | Voltage In=1A in=3A In=5A In=6A In=10A in=16A In=20A In=25A In=30A | ||||||||
Specification | 10*38mm | ||||||||
Cartification | CB CE TUV | ||||||||
Details Images
Company Profile
Wenzhou Xinchi International Trade Co., Ltd is a group company,There are four branch companies subordinate to it. Registered trademark is "suntree".
Main Products:DC-Fuse, Solar system parts,Solar Panel/Inverter/Cable/Connector, AC&DC Circuit Breakers, MCCB, ATS auto transfer switch, Isolator switch, Waterproof distribution box,DC combiner box, etc.
Quality &Standards:Products are producted per ISO9001:2008, IEC60947, IEC60898,CB, SAA, TUV,CE,SONCAP,ROHS, Nemko, PCT, CCC etc.
Main markets:Australia,New Zealand,&other worldwide markets.
Business strategies &Characristic:Stability, expertise and technological innovation are the corner stones of our company's business strategy.
We are trying to develop XinChi into a world-class Electrical manufactures
Main Products:DC-Fuse, Solar system parts,Solar Panel/Inverter/Cable/Connector, AC&DC Circuit Breakers, MCCB, ATS auto transfer switch, Isolator switch, Waterproof distribution box,DC combiner box, etc.
Quality &Standards:Products are producted per ISO9001:2008, IEC60947, IEC60898,CB, SAA, TUV,CE,SONCAP,ROHS, Nemko, PCT, CCC etc.
Main markets:Australia,New Zealand,&other worldwide markets.
Business strategies &Characristic:Stability, expertise and technological innovation are the corner stones of our company's business strategy.
We are trying to develop XinChi into a world-class Electrical manufactures
Packing and Shipping
FAQ
Q: How can i trust you and your company ?
A: Suntree is a group company, we have 6 subcompanies. Have cooperation with LS, EKF the world-class companies. Our company over 500 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
A: Suntree is a group company, we have 6 subcompanies. Have cooperation with LS, EKF the world-class companies. Our company over 500 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
