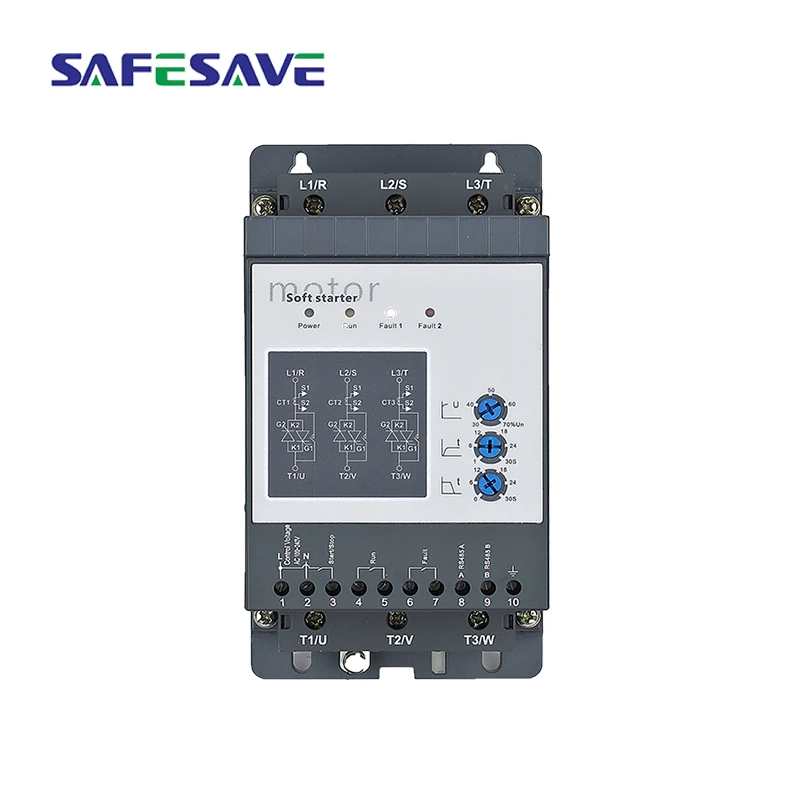

Three phase control 400V 2.2kw 3hp soft starter for ac motor
banner
Product Description
Products Specification:
Parameters(Type 3P3)
| Model | Rated power of the motor | Rated current | Structure | Weight | ||
| 220V Pe/kW | 400V Pe/kW | 500V Pe/kW | le A | F | kg | |
| SSRXX 1T5-X-3P3 | 0.37 | 0.75 | 1.1 | 1.5 | A | 1 |
| SSRXX 2T2-X-3P3 | 0.55 | 1.1 | 1.5 | 2.2 | ||
| SSRXX 03-X-3P3 | 0.75 | 1.5 | 2.2 | 3 | ||
| SSRXX 4T5-X-3P3 | 1.1 | 2.2 | 3.7 | 4.5 | ||
| SSRXX 7T5-X-3P3 | 1.5 | 3.7 | 5.5 | 7.5 | ||
| SSRXX 11-X-3P3 | 2.2 | 5.5 | 7.5 | 11 | ||
| SSRXX 15-X-3P3 | 3.7 | 7.5 | 11 | 15 | B | 1.4 |
| SSRXX 22-X-3P3 | 5.5 | 11 | 15 | 22 | ||
| SSRXX 30-X-3P3 | 7.5 | 15 | 18.5 | 30 | C | 2.4 |
| SSRXX 37-X-3P3 | 11 | 18.5 | 22 | 37 | ||
| SSRXX 45-X-3P3 | 15 | 22 | 30 | 45 | ||
| SSRXX 60-X-3P3 | 18.5 | 30 | 37 | 60 | ||
| SSRXX 75-X-3P3 | 22 | 37 | 45 | 75 | ||
| SSRXX 90-X-3P3 | 25 | 45 | 55 | 90 | D | 5 |
| SSRXX 110-X-3P3 | 30 | 55 | 75 | 110 | 5.2 | |
| SSRXX 150-X-3P3 | 37 | 75 | 90 | 150 | ||
Note: 1. 1T5 means 1.5A, 4T5 means 4.5A, 7T5 means 7.5A in Rated current.
2. Other voltage classes can be made to order.
Parameters(Type 1P1)
| Model | Rated power of the motor | Rated current | Structure | Weight | |
| 220V Pe/kW | 400V Pe/kW | le A | F | kg | |
| SSRXX02-X-1P1 | 0.37 | 0.55 | 2 | A | 1 |
| SSRXX03-X-1P1 | 0.55 | 0.75 | 3 | ||
| SSRXX04-X-1P1 | 0.75 | 1.1 | 4 | ||
| SSRXX06-X-1P1 | 1.1 | 1.5 | 6 | ||
| SSRXX09-X-1P1 | 1.5 | 2.2 | 9 | ||
| SSRXX12-X-1P1 | 2.2 | 3.7 | 12 | ||
| SSRXX20-X-1P1 | 3.7 | 5.5 | 20 | 2.4 | |
| SSRXX30-X-1P1 | 5.5 | 7.5 | 30 | C | |
| SSRXX37-X-1P1 | 7.5 | 11 | 45 | ||
Ordering Guide
Light Load Application: For example pump, compressor, venting equipment, conveying equipment...select the SSR soft starter based on rated power.
Heavy Load Application: For example,centrifugal fan, mixer, grinder, blender...Or other equipment started frequently in short time we recommend to choose a higher power grade softstarter.

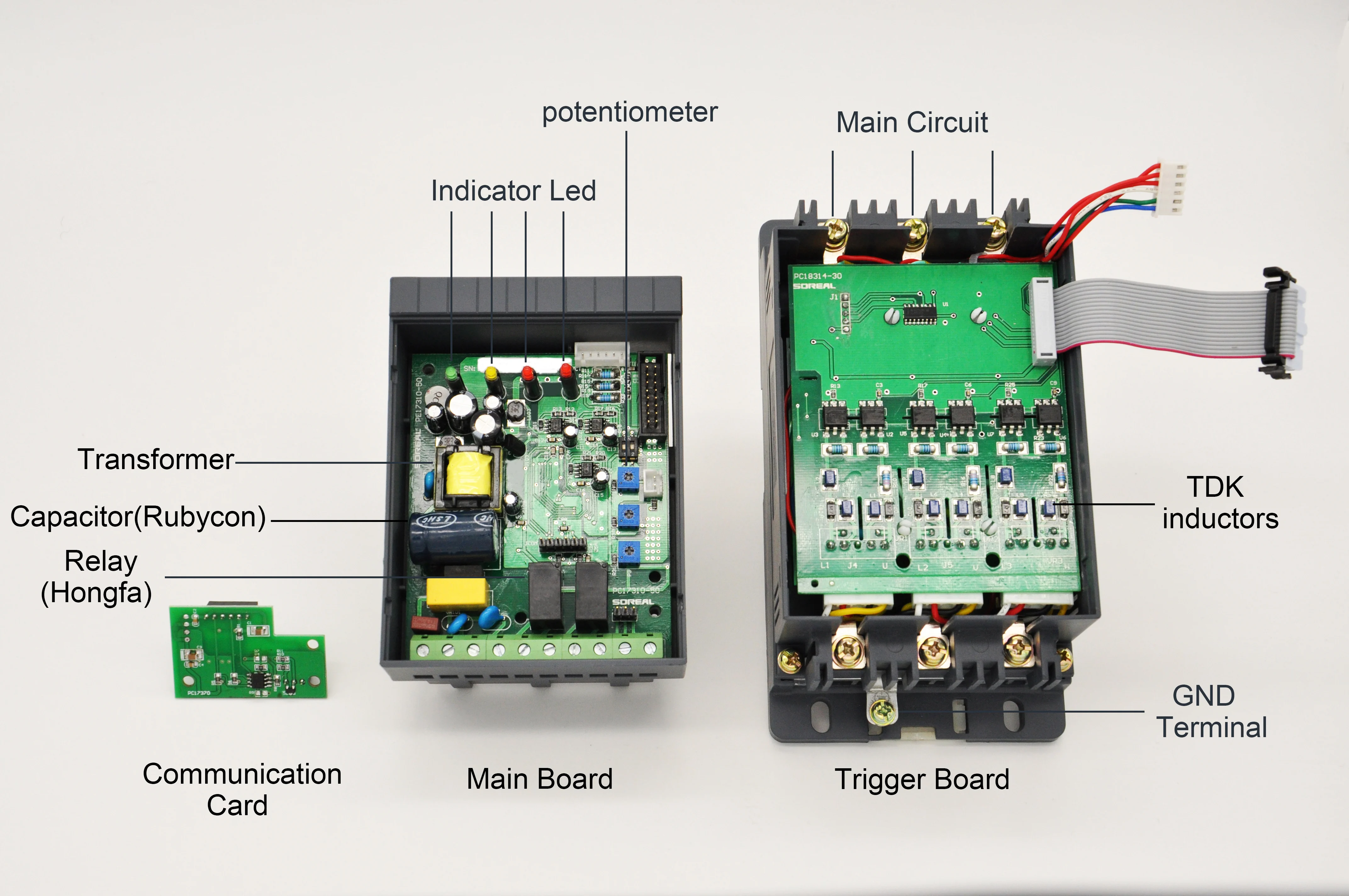

Internal Analytic Diagram
Features:
Internal Control Diagram:
Soft Starter Wiring Mode:

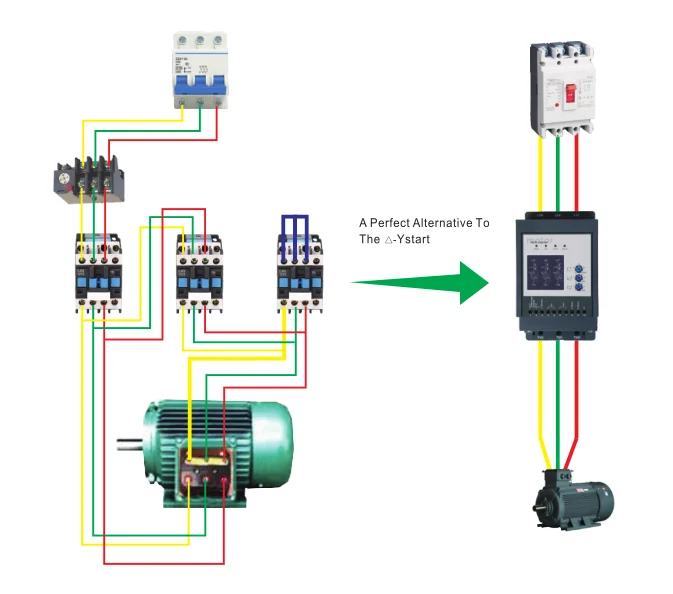

Application Diagram
Application
