Лазерный 3D уровень с 5 линиями зеленый луч инструмент 360 12 линий 4D ротационные Лазерные
- Категория: Laser Levels >>>
- Поставщик: Nantong,Lingliang,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 36.88 $* | 38.52 $* |
| Aug-20-2025 | 35.91 $* | 37.96 $* |
| Jul-20-2025 | 30.91 $* | 32.39 $* |
| Jun-20-2025 | 35.18 $* | 37.80 $* |
| May-20-2025 | 30.2 $* | 32.17 $* |
| Apr-20-2025 | 34.77 $* | 36.36 $* |
| Mar-20-2025 | 34.84 $* | 36.91 $* |
| Feb-20-2025 | 34.6 $* | 36.32 $* |
| Jan-20-2025 | 33.27 $* | 35.44 $* |
Характеристики
Products Description
■ Laser Type: Class II 515 nm ≤ 10 mW
■ Leveling Accuracy: ±1mm/7m
■ Tripod Thread: W 5/8"
■ Self-leveling Range: ±3°
■ Leveling Type: 4V1H1D

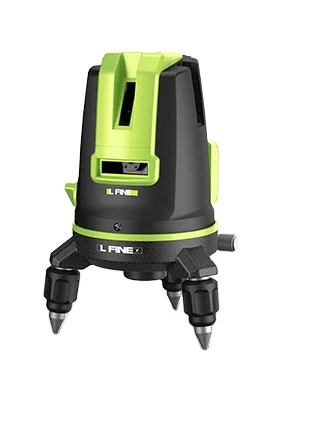

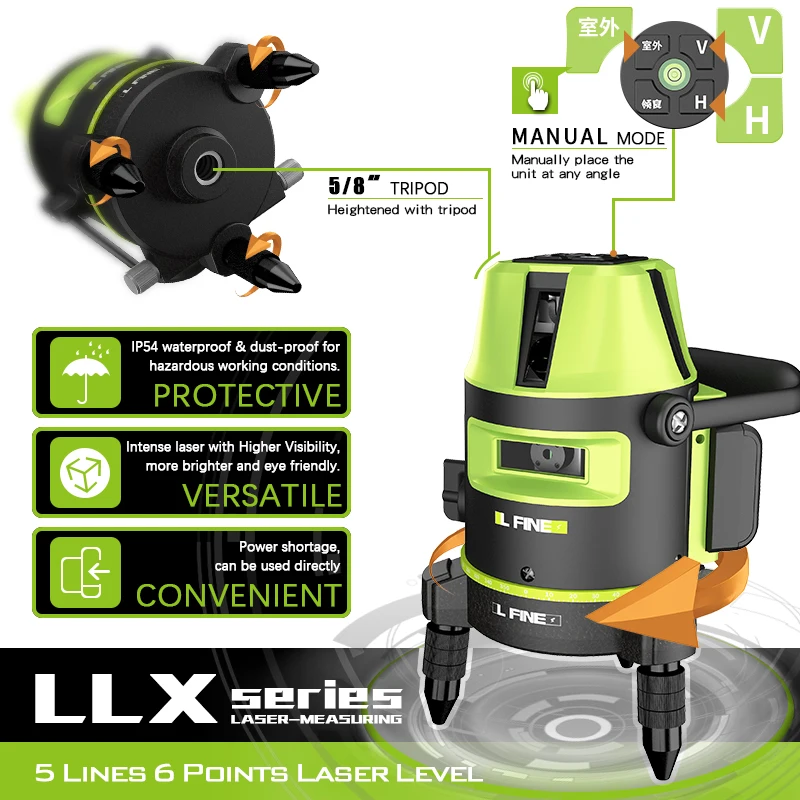

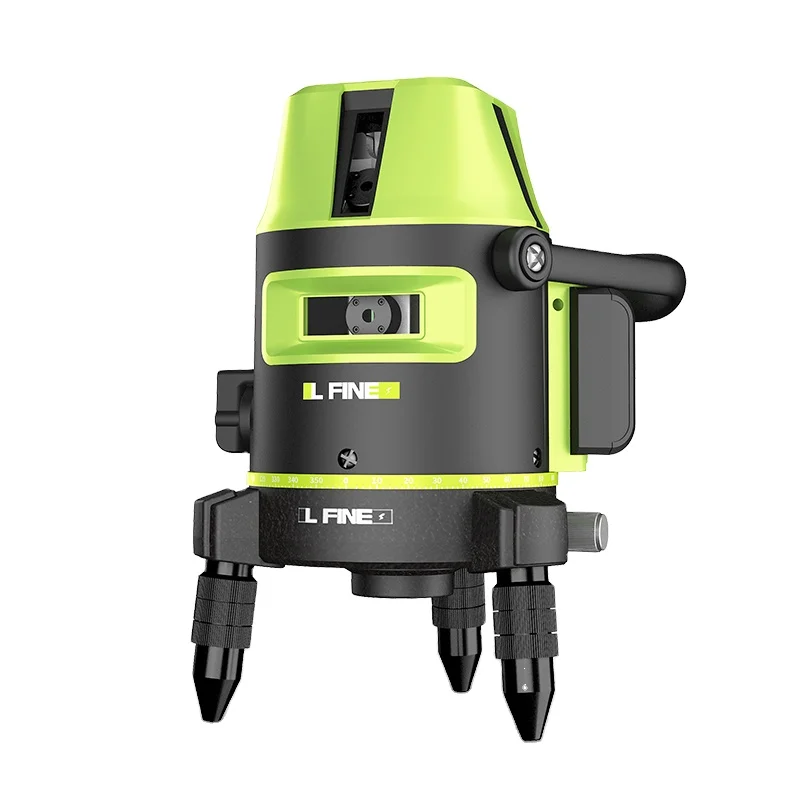

LLX Series 5 Lines 6 Points Laser Level
The LFINE LLX series 4V1H1D self-leveling laser is an all-round perfection for interior works.
On floors or using a tripod, the rotating lasers are multi- talented performers.
Green Line Laser
Green laser is 2 times brighter than red laser with the same light source, especially works better and stable indoors and outdoors.
360° Accurate Fine Adjustment
Heavy-duty leveling base is fast and easy to set up and level. Locking pendulum to help prevent damage to internal components. Fine Tuning knobs: with the ability to fine tune adjust the level you will always have the level line where you need it.
Intelligent Adjustment
The rotating lasers can automatically
self-level for inclined set-ups of up to ±3°.
Both vertical and horizontal point lasers
can be positioned to set perfect 90 degree
angles.
self-level for inclined set-ups of up to ±3°.
Both vertical and horizontal point lasers
can be positioned to set perfect 90 degree
angles.
Multi-purpose Elevating Tripod
The tripod is proper for quick setup in
stairway installations and free-standing
mode. Free to adjust the height of the
horizontal laser line by mounting the unit
to elevating tripod provided.
stairway installations and free-standing
mode. Free to adjust the height of the
horizontal laser line by mounting the unit
to elevating tripod provided.
Special Features
Green line laser head
The green light is clearly visible on the wall of outdoor backlight in the daytime, and the 18650 lithium battery pack makes the green light level more durable. If the power is insufficient, it can be directly plugged into the power supply to make the work easier.

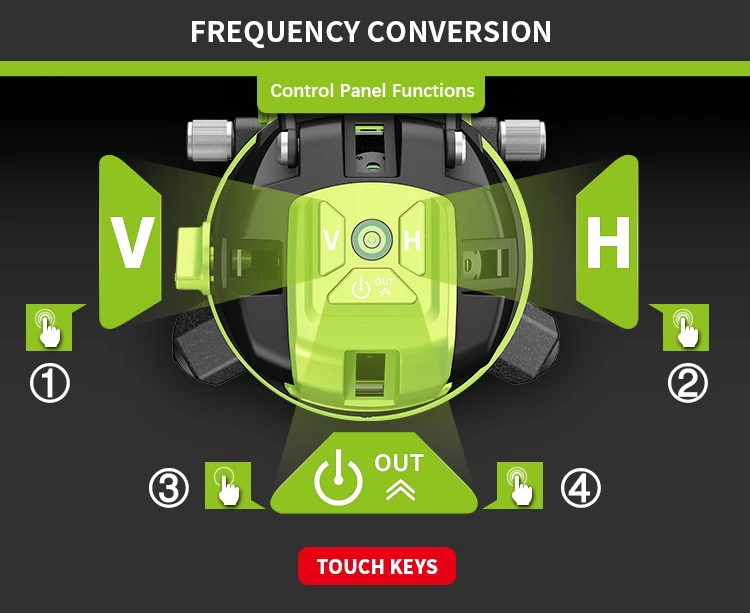

① Click the “OUT” key to switch the indoor and outdoor mode, and the thickness of the cast ray changes.
② Press the button "OUT" at the top of the tool for 3 seconds to deactivate self-leveling, you can use it at any angle or use with a tripod.
③ Long press the “V” key to brighten the light.
④ Long press the “H” key to darken the light.
Indoor & Outdoor Mode
Outdoor mode makes work easier by improving visibility in bright lighting conditions. Projects down beam with raised clearance.provides dot visibility and alignment for wall track layout.
*Special Accessories for SET2,SET4 and SET6

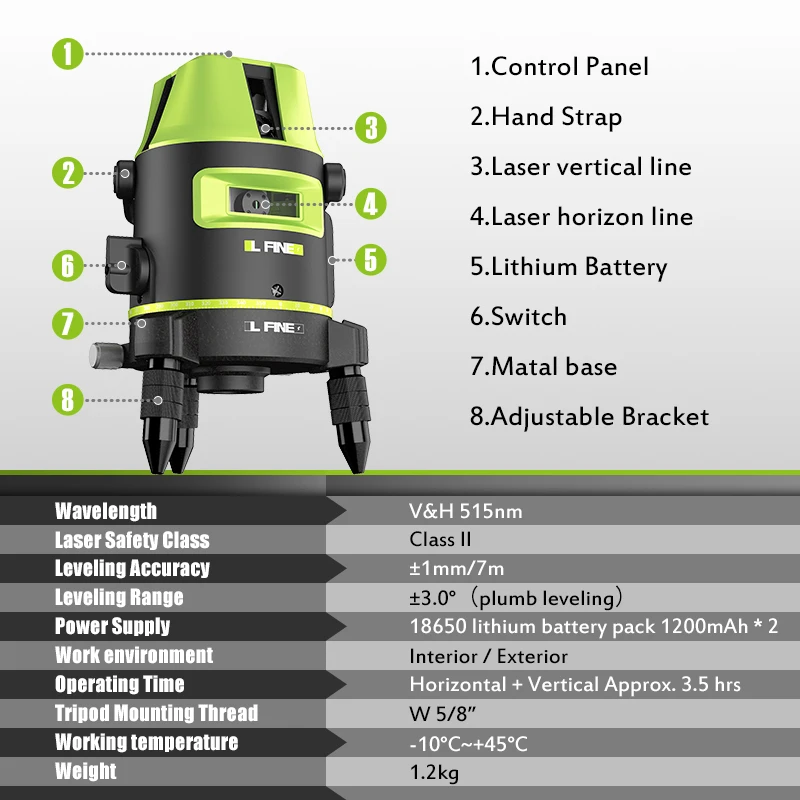

Product Paramenters
Model Number | LLX-F5-02 |
Laser Type(green) | Class II 515nm≤10 mW |
Leveling Type | 4V1H1D |
Accuracy | 1mm at 7m/1/25” at 16.5ft |
Self-leveling Range | ±3° |
No.of Laser Lines | 5 |
No.of Laser Dots | 6 |
Beam Directions | Vertical & Horizontal |
Battery Type | 18650 lithium battery pack 1200mAh * 2 |
Tripod Thread | W 5/8” |
Operating Temperature | -10°C-+45°C |
working Environment | Indoors/Outdoors |
Tripod Type | Multi-purpose Elevating Tripod |
DIY Supplies | Woodworking |
Charger Adapter Input | 100-240V AC 50-60Hz |
Company Profile
LFINE specializes in the design and production of power tools and measuring tools. Our philosophy is to provide well-designed and cost-effective tools to customers all around the world.
LFINE Tools Co.,Ltd founded 2019 and headquartered in Nantong, China. We are the scale producer and global supplier for tools
providing industry-leading engineering and high-tech innovation.We have been exporting our products to more than 35 overseas markets in Europe, North America, South America and Middle East.
Our efficient supply chain management allows getting customers what they want, when they want it. We are continuously researching the latest innovations and advancements in the industry to provide the best solutions to our customers.
LFINE Tools Co.,Ltd founded 2019 and headquartered in Nantong, China. We are the scale producer and global supplier for tools
providing industry-leading engineering and high-tech innovation.We have been exporting our products to more than 35 overseas markets in Europe, North America, South America and Middle East.
Our efficient supply chain management allows getting customers what they want, when they want it. We are continuously researching the latest innovations and advancements in the industry to provide the best solutions to our customers.
EXHIBITION HALL OFFICE
Standardized business occasions
WORKSHOP & WAREHOUSE
Professional system, production team and equipment
Shipping&Payment
Delivery time :First container 10-18 days, following container 7-10 days.
Packing :General export packing, or customized packing as your request.
Packing :General export packing, or customized packing as your request.
Professional goods shipping forwarder.
Standard payment terms:T/T,30% deposit,70% balance paid before delivery.
Online trade assurance order, all is up to you.
Online trade assurance order, all is up to you.
More payment terms could be provided(PAYPAL,WESTERN UNION)
FAQ
？Question | Are you a trading company or a manufacturer? | ||||||
——Answer | We are a trading company and we have our own factory. | ||||||
？Question | What is the delivery time? | ||||||
——Answer | The delivery time depends on the stock of the product. Usually 20~45 days. | ||||||
？Question | Can we be your distributor? | ||||||
——Answer | Any business cooperation from you will get our prompt attention. | ||||||
？Question | Can we have your catalogue? | ||||||
——Answer | Please feel free to contact us, any questions please let us know. | ||||||
？Question | Can we customize the label and boxes? | ||||||
——Answer | The packaging can be customized according to your needs, It's depend on your quantity. | ||||||
？Question | How do you guarantee product quality? | ||||||
——Answer | We do final inspection before shipment; We do pro-production sample before mass production; We have a professional engineer team and after-sales team. | ||||||
