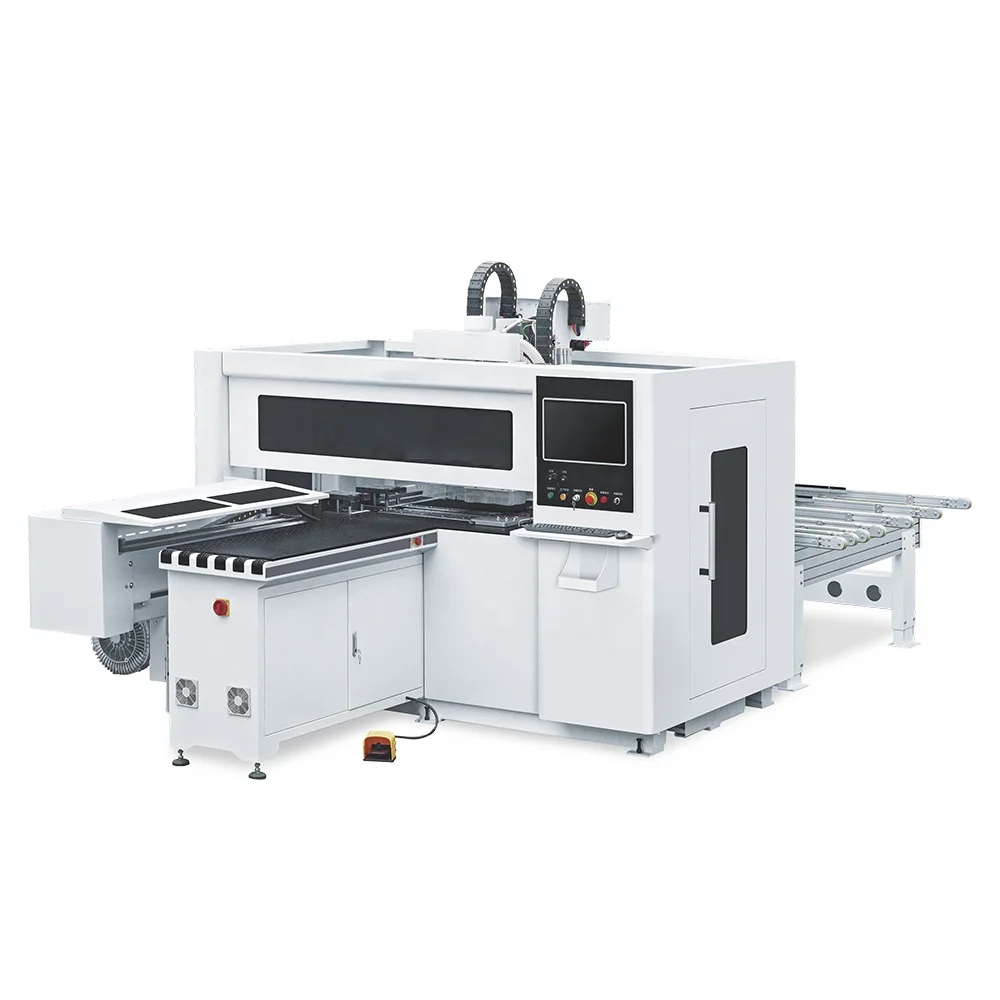

Шестисторонний сверлильный станок KINGISO с одним сверлом для

Цена:29 600,00 $ - 296 800,00 $*

Количество:

Products Description

Product Paramenters

Processing size range&speed	Panel maximum length	4250mm
		Panel minimum length	200mm
		Panel maximum width	1250mm
		Panel minimum width	30mm
		Panel maximum thickness	50mm
		Panel minimum thickness	10mm
		Fastest processing speed	60m/min
Main details	Number of Motion axis	7
Main details		Processing surface	6
Drilling bags & configuration	Number of drill bags	Upper: 1 Lower: 1
		Upper vertical drill bit	12 pcs
		Upper horizontal drill bit	8 pcs
		Lower vertical drill bit	9 pcs
Spindle	Upper spindle	1
		Lower spindle	1
		Spindle power & speed	3.5kw & 2400rpm
Axis travel & maximum positioning speed	X axis	3800mm & 130m/min
		Y axis	2500mm & 90m/min
		Z axis	150mm & 60m/min
		A axis	3800mm & 90m/min
		U axis	1500mm & 60m/min
		V axis	1250mm & 90m/min
		W axis	1250mm & 90m/min
Other parameters	Total power	22.8kw
		Tool diameter	5-20mm (optional)
		Working voltage	380V/50HZ or as your request
		Working pressure	0.6-0.8Mpa
		Weight	4300kg
		Overall size	460026502100mm
